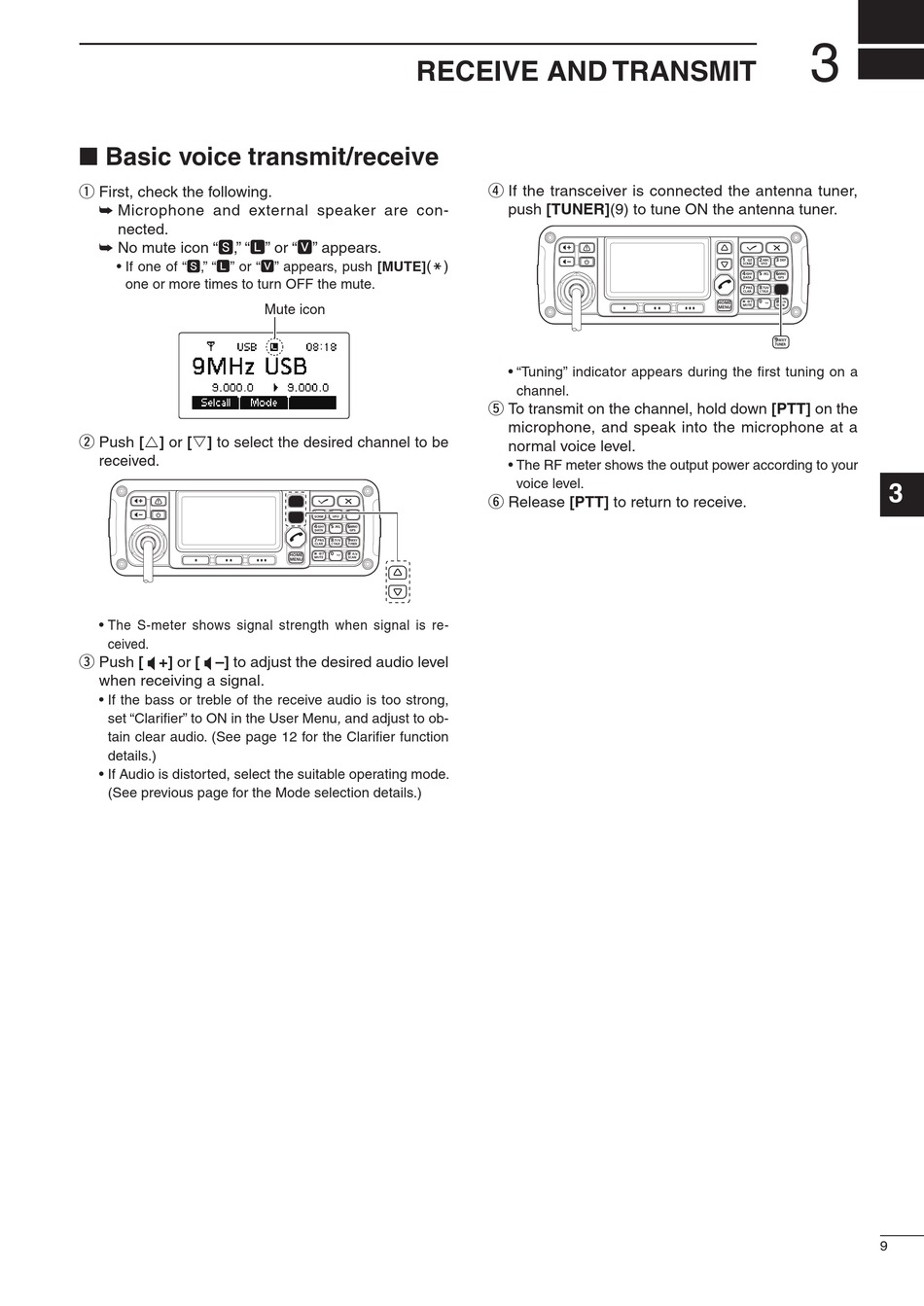

■ Basic voice transmit/receive

q First, check the following.
➥ Microphone and external speaker are con-
nected.
➥ No mute icon "S," "L" or "V" appears.
• If one of "S," "L" or "V" appears, push [MUTE]
one or more times to turn OFF the mute.
w Push [r] or [s] to select the desired channel to be
received.
• The S-meter shows signal strength when signal is re-
ceived.
e Push [ +] or [ –] to adjust the desired audio level
when receiving a signal.
• If the bass or treble of the receive audio is too strong,
set "Clarifier" to ON in the User Menu, and adjust to ob-
tain clear audio. (See page 12 for the Clarifier function
details.)
• If Audio is distorted, select the suitable operating mode.
(See previous page for the Mode selection details.)

RECEIVE AND TRANSMIT

(M)
Mute icon
r If the transceiver is connected the antenna tuner,
push [TUNER](9) to tune ON the antenna tuner.
• "Tuning" indicator appears during the first tuning on a
channel.
t To transmit on the channel, hold down [PTT] on the
microphone, and speak into the microphone at a
normal voice level.
• The RF meter shows the output power according to your
voice level.
y Release [PTT] to return to receive.
