Icom IC-F8100 Instruction Manual page 45

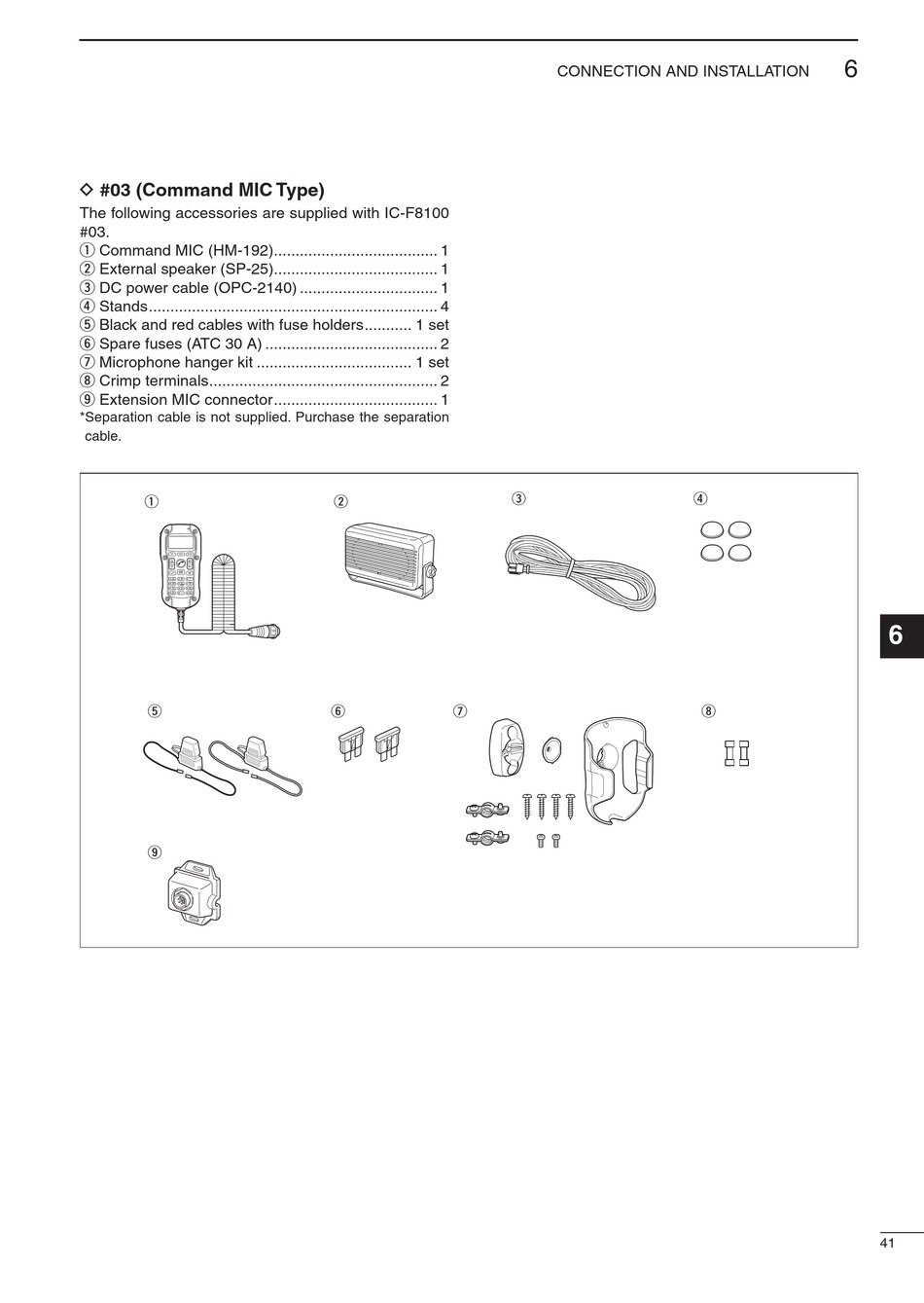

D #03 (Command MIC Type)
The following accessories are supplied with IC-F8100
#03.
q Command MIC (HM-192) ...................................... 1
w External speaker (SP-25) ...................................... 1
e DC power cable (OPC-2140) ................................ 1
r Stands ................................................................... 4
t Black and red cables with fuse holders ........... 1 set
y Spare fuses (ATC 30 A) ........................................ 2
u Microphone hanger kit .................................... 1 set
i Crimp terminals ..................................................... 2
o Extension MIC connector ...................................... 1
* Separation cable is not supplied. Purchase the separation
cable.
q
t
o
w
y u
CONNECTION AND INSTALLATION
e
6
r
i
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
41
