26

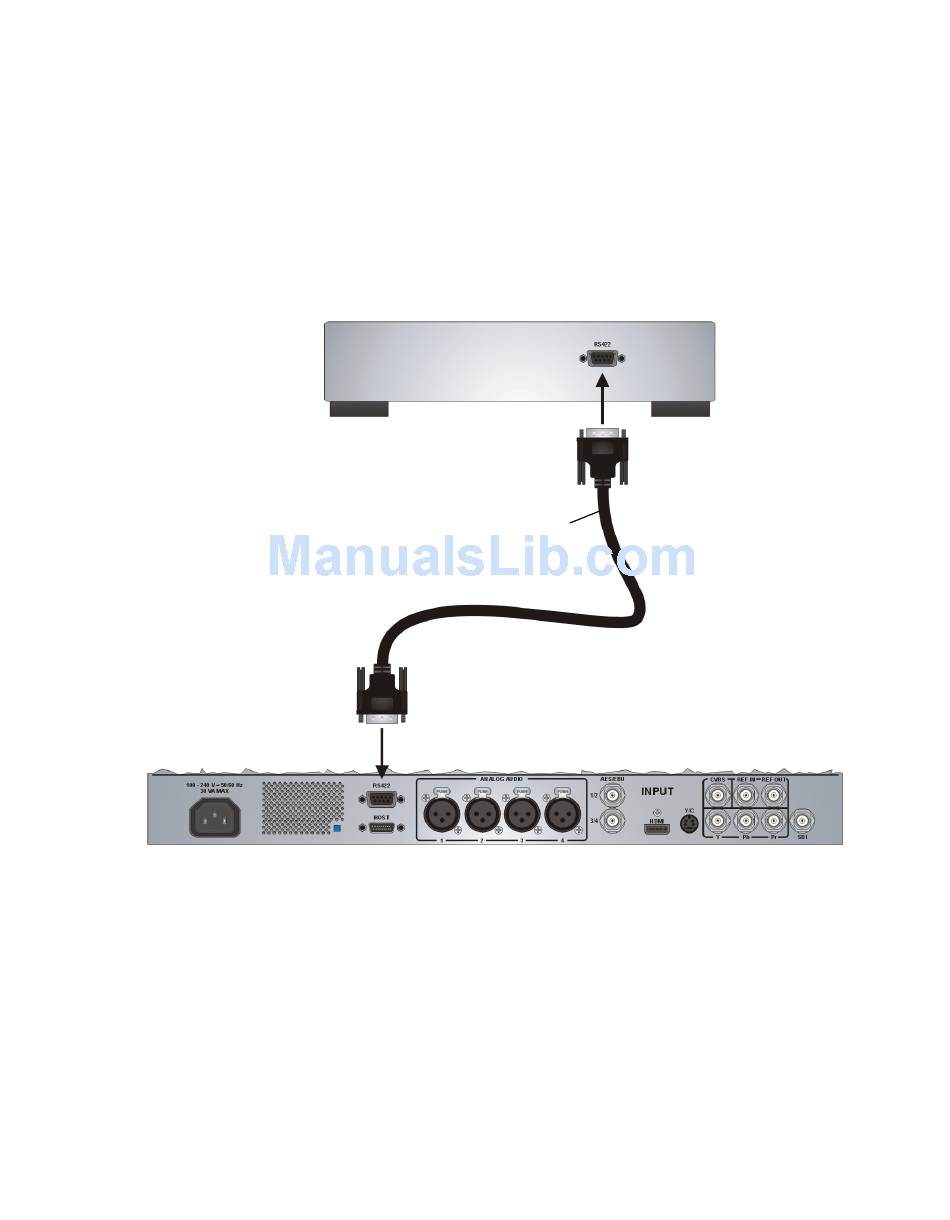

MXO2 Rack RS-422 serial connection

The Matrox MXO2 Rack RS-422 serial connector lets you use Matrox RS-422
device control with Adobe Premiere Pro when capturing material and exporting
your sequence to tape. This serial connection supports any device that uses the
RS-422 SMPTE time code protocol, such as a VTR or digital disk recorder. For
information on how to configure your RS-422 device control settings in Premiere
Pro, see
RS-422 device
Chapter 4, Connecting External Devices to Matrox MXO2 Rack
"Setting up Matrox RS-422 device control"
RS-422 serial cable
on page 88.
MXO2 Rack
(partial view)
