Connecting MXO2 Rack to your computer

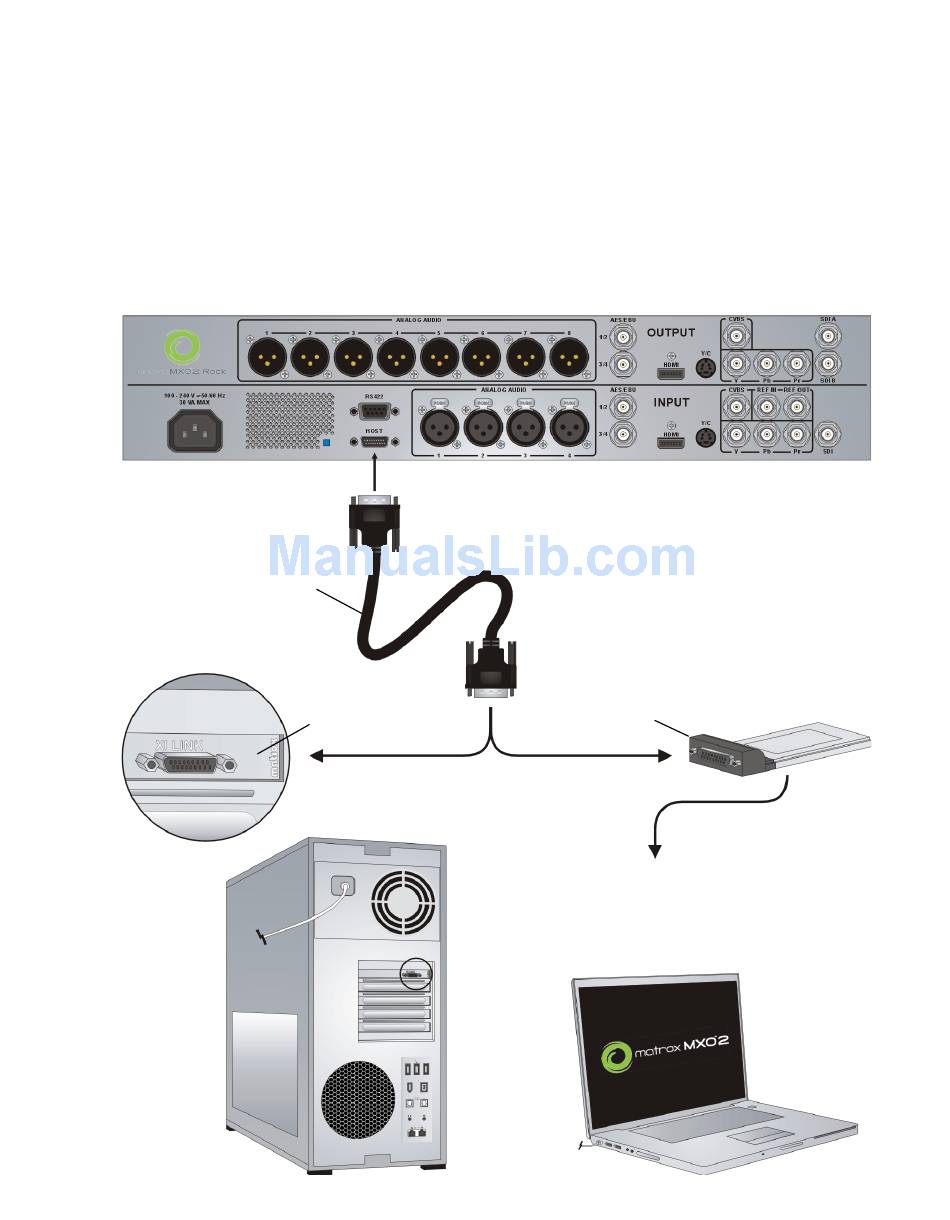

Connect MXO2 Rack to your computer or laptop using the Matrox PCIe cable.
For MXO2 Rack to be detected on a desktop computer, power must be supplied
to MXO2 Rack (see
connected to your computer before starting up your system.
¡ Important Do not disconnect the Matrox PCIe cable from the adapter, or
MXO2 Rack, when your computer is running. Shut down your laptop before
removing the Matrox PCIe host Expresscard/34 adapter from your laptop's
Expresscard/34 slot.
MXO2 Rack
PCIe cable
A
"Powering MXO2 Rack"
²Caution
when connecting the PCIe cable to avoid
damaging the cable or host connector.
Matrox PCIe
host adapter
OR
A
Connecting MXO2 Rack to your computer
on page 24), and it must be
Ensure proper orientation
Matrox PCIe host
ExpressCard/34
adapter
To your laptop's ExpressCard/34
slot (see "Installing and removing
your PCIe host ExpressCard/34
adapter (for laptops)" on page 7).
