Starting Your Capture - Matrox MXO2 Installation And User Manual

¦ Note
to the next clip based on the limit that is reached first (minutes or file size).
Be aware that your captured clips won't have exactly the same duration or file
size because the capture must always end at a GOP boundary.
If you'd like to save your changes as a custom preset, click the Save (
4
button beside the preset list in the Matrox MAX H.264 Capture dialog box.
You'll then be prompted to enter a name for your custom preset.
¦ Note To delete a custom preset, select the preset and click the Delete (
button.

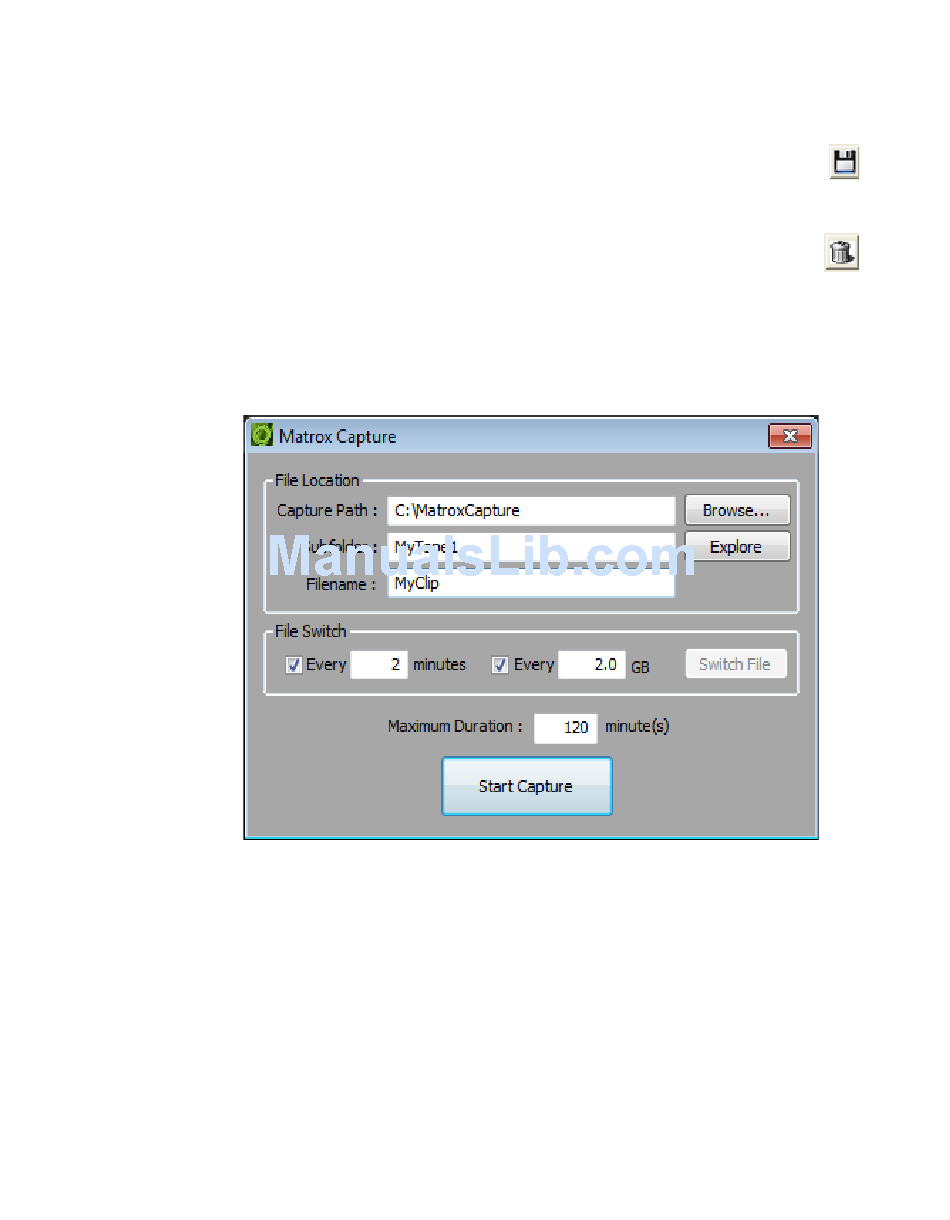

Starting your capture

Once you've specified your input, output, and capture format settings, you're
ready to start capturing clips. To do this, click the Capture button.
Enter the capture path and subfolder where you want to store your captured
1
clips, or click Browse to select the location that you want.
A default filename will be provided as the base name for your captured clips.
2
You can change this name if you want. When capturing to Matrox .mp4 files
using the automatic file switching feature, your clips will be numbered
sequentially with a three-digit suffix, such as MyClip.000.mp4,
MyClip.001.mp4, and so on.
¦ Note
incremented accordingly with a _n suffix (for example, _1, _2, and so on).
If you select both automatic file switch options, the capture will switch
Each time you start a new capture, the base filename will be
)
)
Starting your capture
215
