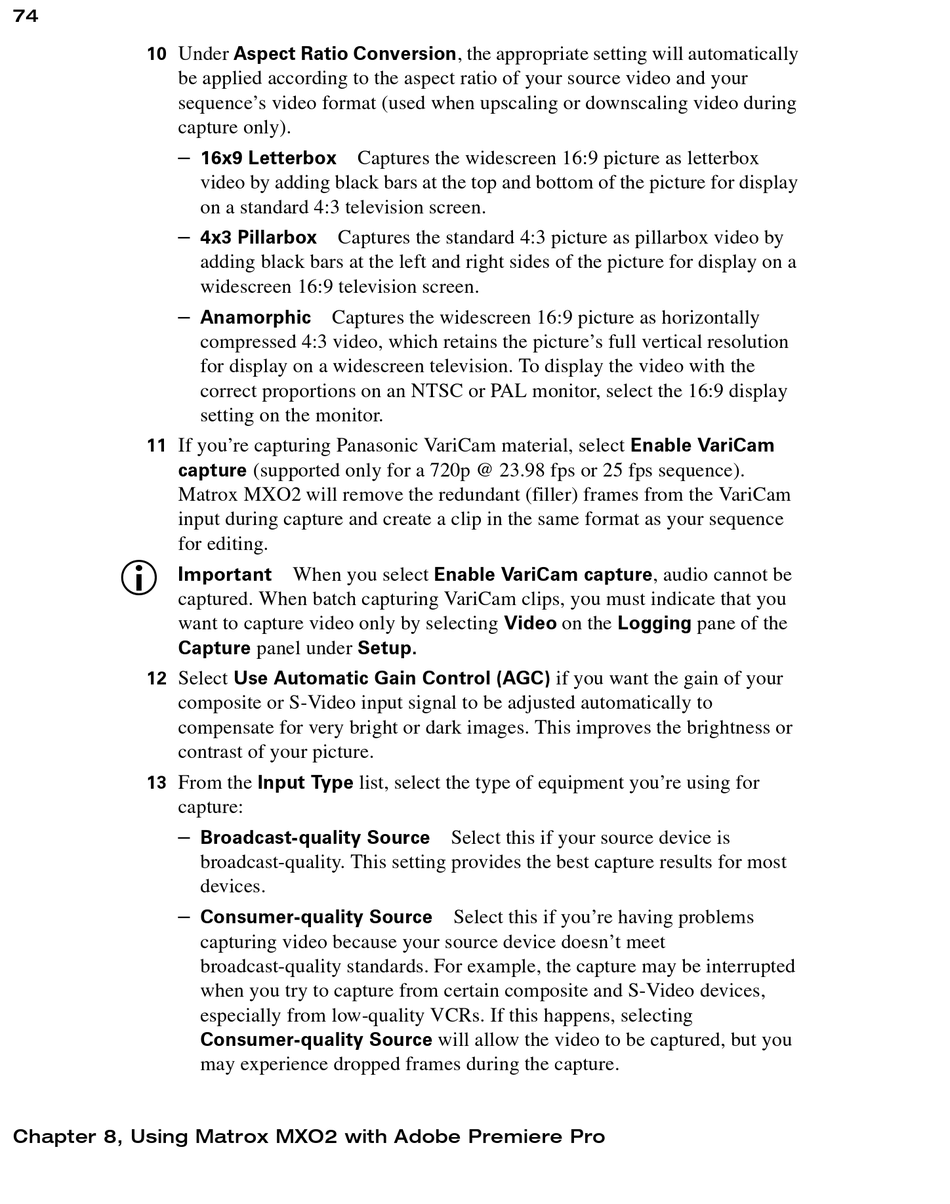

Matrox MXO2 Installation And User Manual page 94

74
Under Aspect Ratio Conversion , the appropriate setting will automatically
10
be applied according to the aspect ratio of your source video and your
sequence's video format (used when upscaling or downscaling video during
capture only).
$
$
$
If you're capturing Panasonic VariCam material, select Enable VariCam
11
capture
Matrox MXO2 will remove the redundant (filler) frames from the VariCam
input during capture and create a clip in the same format as your sequence
for editing.
¡ Important When you select Enable VariCam capture , audio cannot be
captured. When batch capturing VariCam clips, you must indicate that you
want to capture video only by selecting Video on the Logging pane of the
Capture
Select Use Automatic Gain Control (AGC) if you want the gain of your
12
composite or S-Video input signal to be adjusted automatically to
compensate for very bright or dark images. This improves the brightness or
contrast of your picture.
From the Input Type list, select the type of equipment you're using for
13
capture:
$
$
Chapter 8, Using Matrox MXO2 with Adobe Premiere Pro
16x9 Letterbox Captures the widescreen 16:9 picture as letterbox
video by adding black bars at the top and bottom of the picture for display
on a standard 4:3 television screen.
4x3 Pillarbox Captures the standard 4:3 picture as pillarbox video by
adding black bars at the left and right sides of the picture for display on a
widescreen 16:9 television screen.
Anamorphic Captures the widescreen 16:9 picture as horizontally
compressed 4:3 video, which retains the picture's full vertical resolution
for display on a widescreen television. To display the video with the
correct proportions on an NTSC or PAL monitor, select the 16:9 display
setting on the monitor.
(supported only for a 720p @ 23.98 fps or 25 fps sequence).
panel under Setup.
Broadcast-quality Source
broadcast-quality. This setting provides the best capture results for most
devices.
Consumer-quality Source
capturing video because your source device doesn't meet
broadcast-quality standards. For example, the capture may be interrupted
when you try to capture from certain composite and S-Video devices,
especially from low-quality VCRs. If this happens, selecting
Consumer-quality Source
may experience dropped frames during the capture.
Select this if your source device is
Select this if you're having problems
will allow the video to be captured, but you
