MXO2 LE RS-422 serial connection

MXO2 LE's RS-422 serial connector lets you use Matrox RS-422 device control
with Adobe Premiere Pro when capturing material and exporting your sequence
to tape. This serial connection supports any device that uses the RS-422 SMPTE
time code protocol, such as a VTR or digital disk recorder. For information on
how to configure your RS-422 device control settings in Premiere Pro, see
"Setting up Matrox RS-422 device control" on page 88..

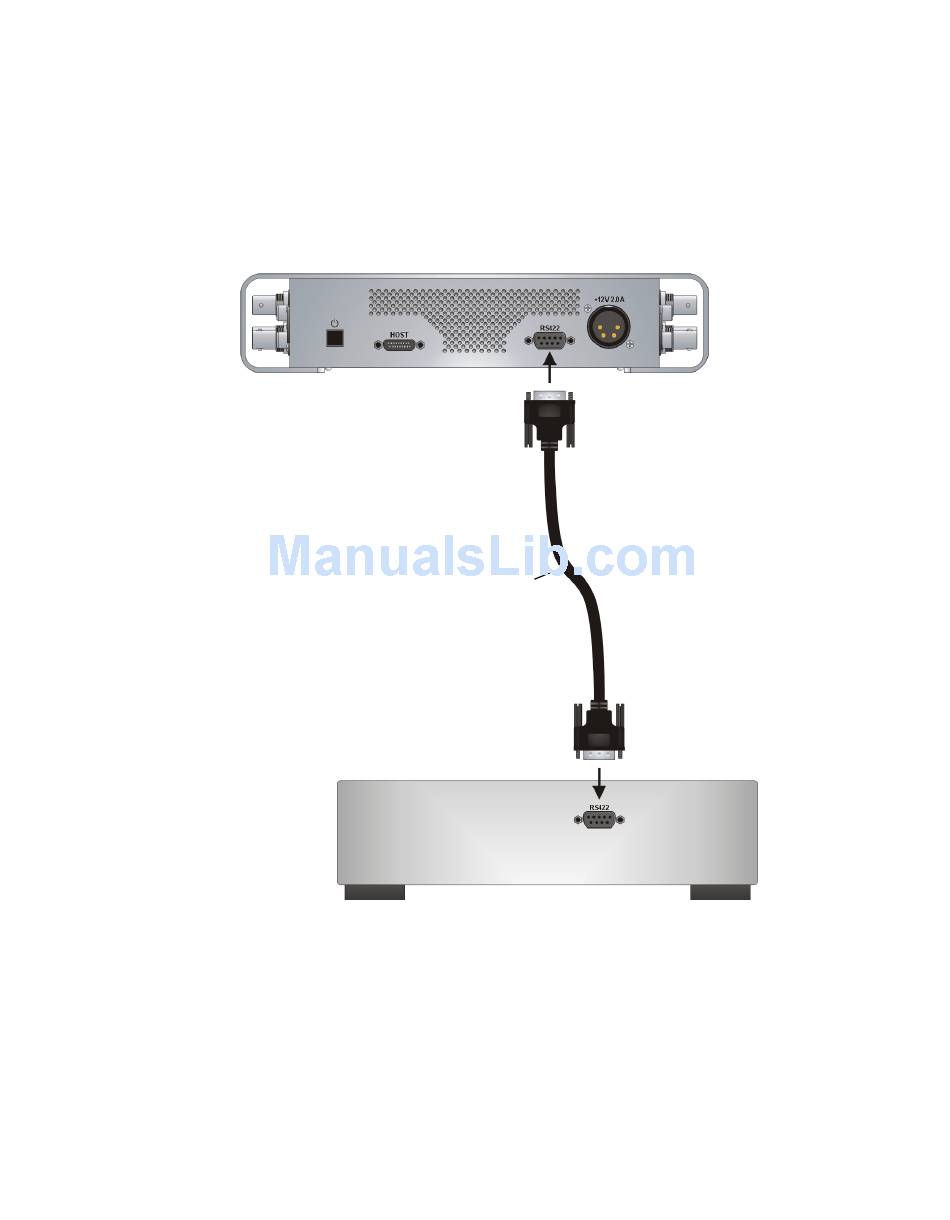

MXO2 LE
(side view)
RS-422 serial cable
RS-422 device
MXO2 LE RS-422 serial connection
