Output connector descriptions

This section describes the Matrox MXO2, MXO2 Rack, and MXO2 LE outputs.
For MXO2 Mini outputs, see
page 241.
¦ Note Depending on your MXO2 hardware, some of the following connectors
may not be available or may be available in a limited capacity only. Some
connectors on your MXO2 hardware may not appear exactly as shown below.
"Output connector descriptions (MXO2 Mini)"

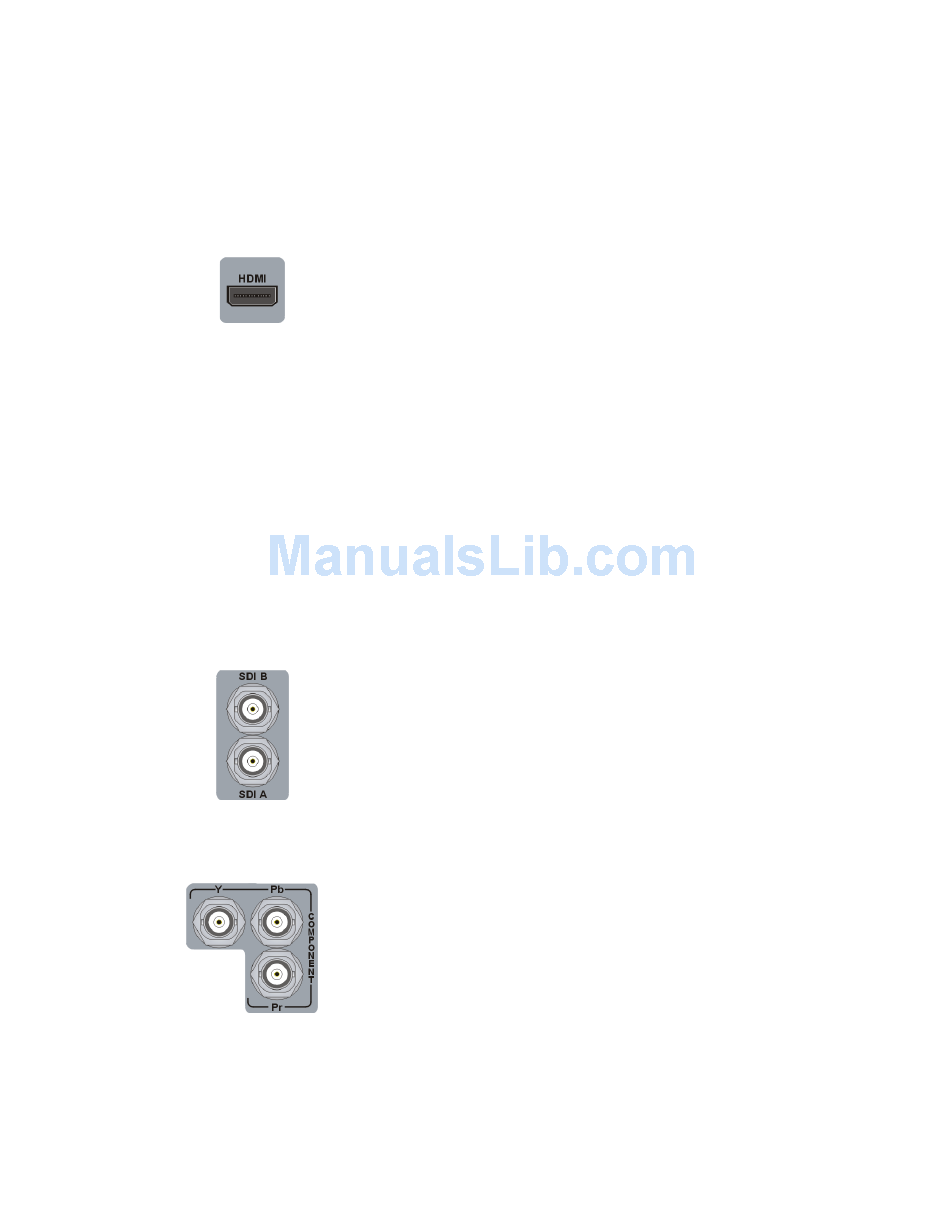

HDMI Provides an output for HD/SD HDMI video, and up to
eight channels of embedded audio, to a digital HDMI device.
HDCP is not supported on this output. This output supports 1:1
pixel mapping for accurate monitoring on your HDMI display
of NTSC, PAL, 1280×720, and 1920 ×1080 video. Connect a
standard HDMI video/audio cable to an HDMI monitor, VTR,
or other digital HDMI device. You can also connect directly to a
home theatre system for 5.1 surround sound monitoring.
¦ Note The HDMI output supports YUV and RGB
devices.
HDMI monitor calibration is available through this output. Use
the Matrox HDMI Calibration Utility to calibrate your HDMI
monitor (see Chapter 7, "Calibrating Your HDMI Monitor for
Video").
SDI A and SDI B Provide two simultaneous outputs of the
same HD-SDI or SD-SDI video, with up to eight channels of
embedded audio. For each output, connect an SDI video/audio
cable to a video monitor, VTR, or other SDI device. You can
also perform 5.1 surround sound monitoring through the SDI
output by connecting to a third-party device, such as an SDI
audio de-embedder.
Component video (Y, Pb, Pr) Allows you to output HD or
SD video to an analog component device. Connect component
Y, Pb, Pr video cables to a video monitor, VTR, or other
component device.
¦ Note The component output supports YUV and RGB
devices.
