Output connector descriptions (MXO2 Mini)

This section describes the Matrox MXO2 Mini outputs. For other MXO2
products, see
¦ Note Analog A/V cables connected to Matrox MXO2 Mini must be limited to
less than three meters to comply with EEC and EMC directives.
"Output connector descriptions"

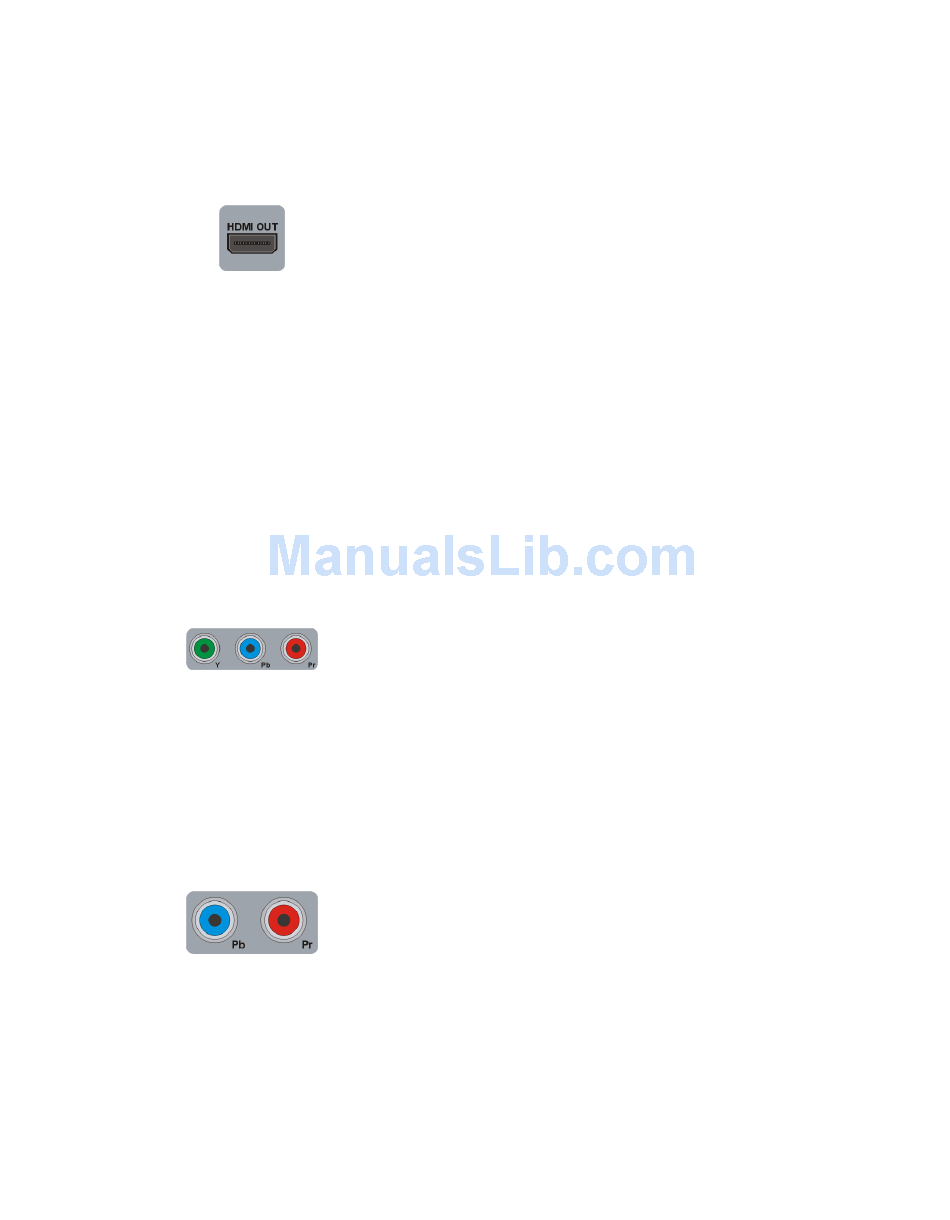

HDMI Provides an output for HD/SD HDMI video, and up to
eight channels of embedded audio, to a digital HDMI device.
HDCP is not supported on this output. This output supports 1:1
pixel mapping for accurate monitoring on your HDMI display
of NTSC, PAL, 1280×720, and 1920 ×1080 video. Connect a
standard HDMI video/audio cable to an HDMI monitor, VTR,
or other digital HDMI device. You can also connect directly to a
home theatre system for 5.1 surround sound monitoring.
¦ Note The HDMI output supports YUV and RGB
devices.
HDMI monitor calibration is available through this output. Use
the Matrox HDMI Calibration Utility to calibrate your HDMI
monitor (see Chapter 7, "Calibrating Your HDMI Monitor for
Video").
Component video (Y, Pb, Pr) Allows you to output HD or
SD video to an analog component device. Connect component
Y, Pb, Pr video cables to a video monitor, VTR, or other
component device.
¦ Note The component output supports YUV and RGB
devices. When you connect an analog component device
to MXO2 Mini, you won't be able to connect an
S-Video or composite device at the same time.
S-Video Output connectors Pb and Pr allow you to connect
the MXO2 S-Video adapter cable for outputting SD video to an
analog S-Video device. Connect an S-Video cable, via the
MXO2 S-Video adapter cable, to a video monitor, VTR, or
other S-Video device. For instructions on how to connect
S-Video devices to MXO2 Mini, see
devices to MXO2 Mini"
on page 239.
"Connecting S-Video
on page 41.
