How to capture clips

Connect the video and audio input sources from which you want to capture
1
clips to the corresponding inputs on your MXO2 hardware.

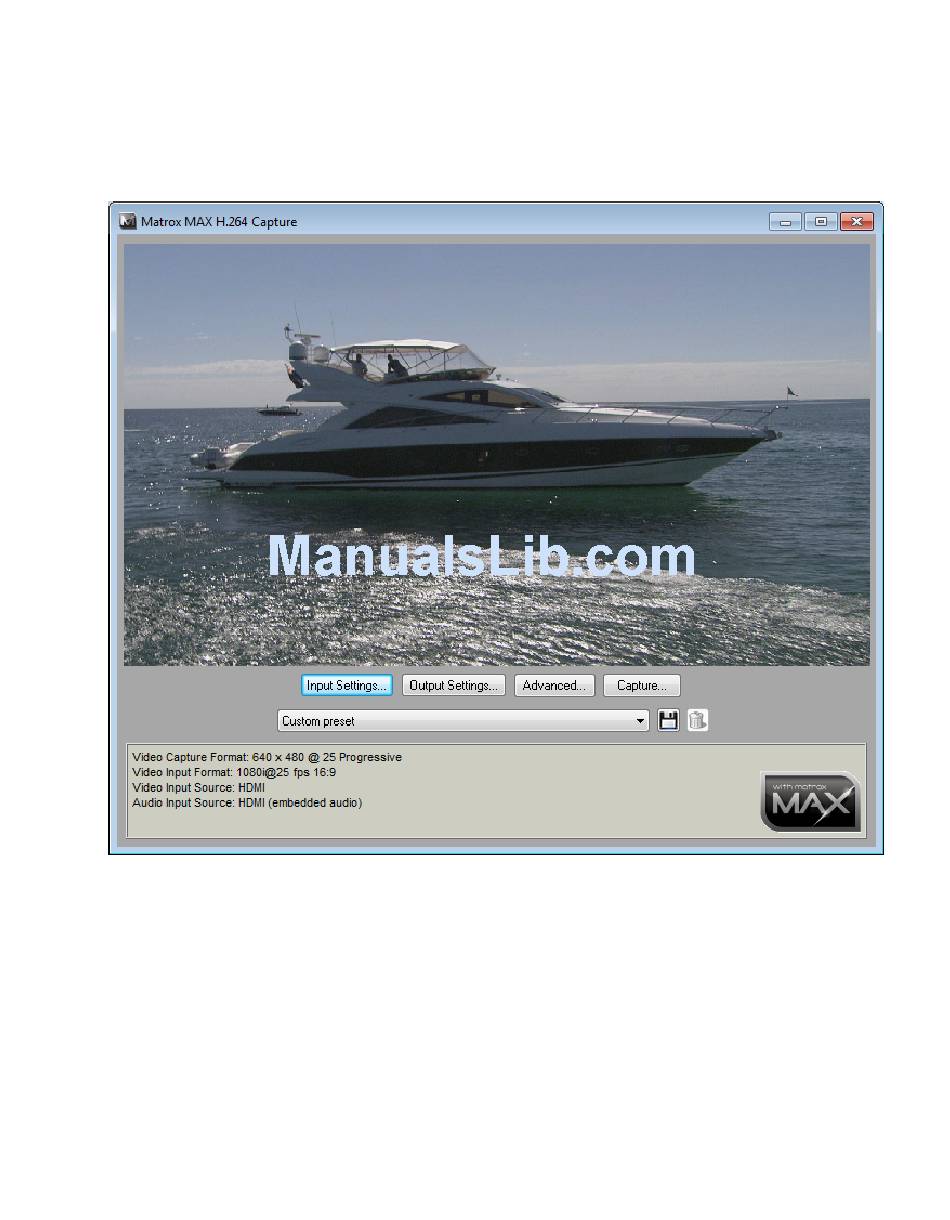

Choose Start > Programs > Matrox Mtx.utils> Matrox MAX H.264
2
Capture
Click Input Settings to select your video and audio input settings for
3
capturing clips as explained in
Click Output Settings to select your video and audio output settings for
4
monitoring the source material that you're capturing as explained in
"Specifying your output settings"
Select a preset for the type of clips that you want to capture. The Matrox
5
presets available depend on the frame rate of your video input source.
Click the Advanced button to review the settings provided by your selected
6
preset and make any required changes as explained in
capture format settings"
.
on page 212.
"Specifying your input settings"
on page 210.
on page 208.
"Specifying your
How to capture clips
207
