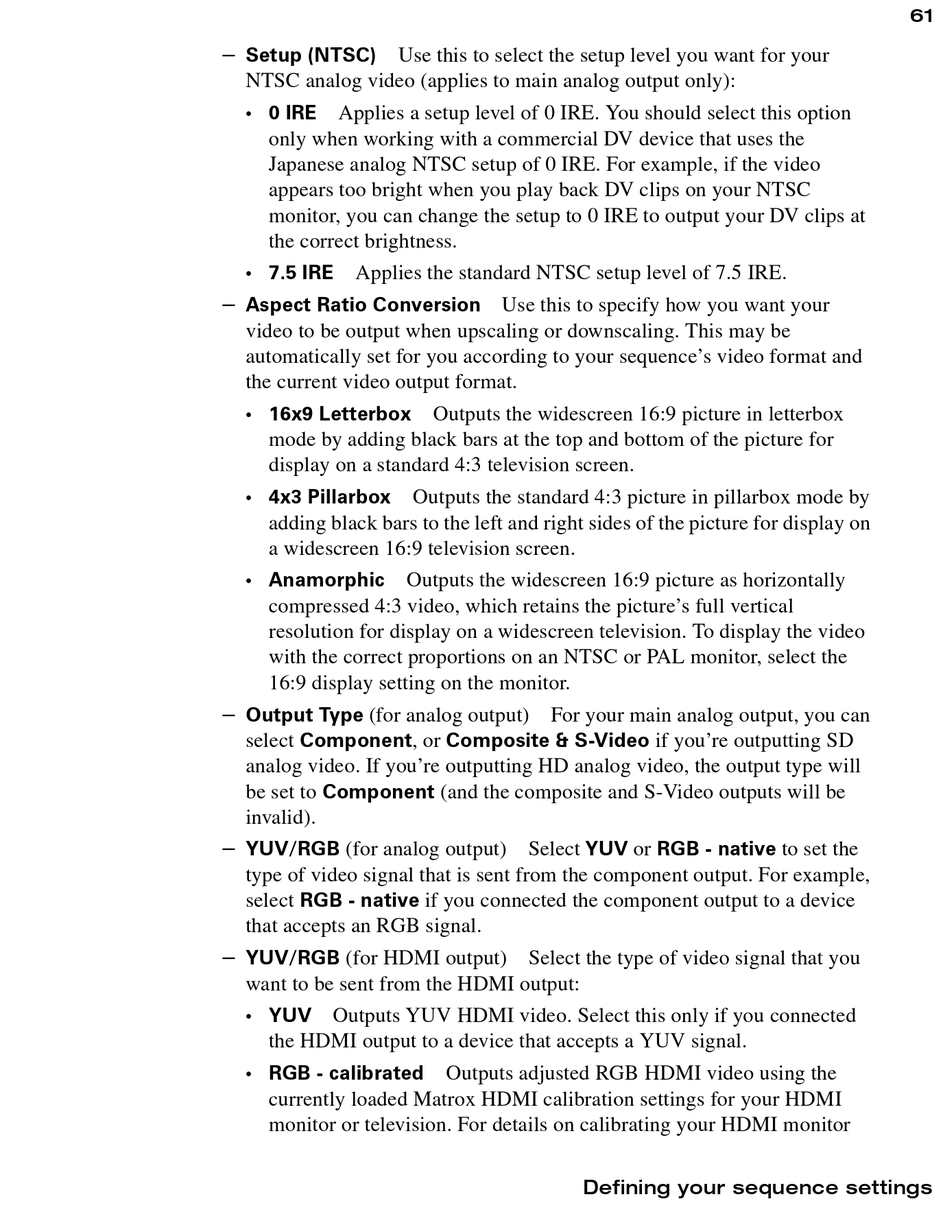

Use this to select the setup level you want for your
Setup (NTSC)
$
NTSC analog video (applies to main analog output only):
0 IRE Applies a setup level of 0 IRE. You should select this option
•
only when working with a commercial DV device that uses the
Japanese analog NTSC setup of 0 IRE. For example, if the video
appears too bright when you play back DV clips on your NTSC
monitor, you can change the setup to 0 IRE to output your DV clips at
the correct brightness.
7.5 IRE Applies the standard NTSC setup level of 7.5 IRE.
•
Aspect Ratio Conversion
$
video to be output when upscaling or downscaling. This may be
automatically set for you according to your sequence's video format and
the current video output format.
16x9 Letterbox
•
mode by adding black bars at the top and bottom of the picture for
display on a standard 4:3 television screen.
4x3 Pillarbox
•
adding black bars to the left and right sides of the picture for display on
a widescreen 16:9 television screen.
Anamorphic
•
compressed 4:3 video, which retains the picture's full vertical
resolution for display on a widescreen television. To display the video
with the correct proportions on an NTSC or PAL monitor, select the
16:9 display setting on the monitor.
(for analog output) For your main analog output, you can
Output Type
$
select Component , or Composite & S-Video if you're outputting SD
analog video. If you're outputting HD analog video, the output type will
be set to Component (and the composite and S-Video outputs will be
invalid).
YUV/RGB (for analog output) Select YUV or RGB - native to set the
$
type of video signal that is sent from the component output. For example,
select RGB - native if you connected the component output to a device
that accepts an RGB signal.
YUV/RGB (for HDMI output) Select the type of video signal that you
$
want to be sent from the HDMI output:
YUV Outputs YUV HDMI video. Select this only if you connected
•
the HDMI output to a device that accepts a YUV signal.
RGB - calibrated
•
currently loaded Matrox HDMI calibration settings for your HDMI
monitor or television. For details on calibrating your HDMI monitor
Use this to specify how you want your
Outputs the widescreen 16:9 picture in letterbox
Outputs the standard 4:3 picture in pillarbox mode by
Outputs the widescreen 16:9 picture as horizontally
Outputs adjusted RGB HDMI video using the
Defining your sequence settings
61
