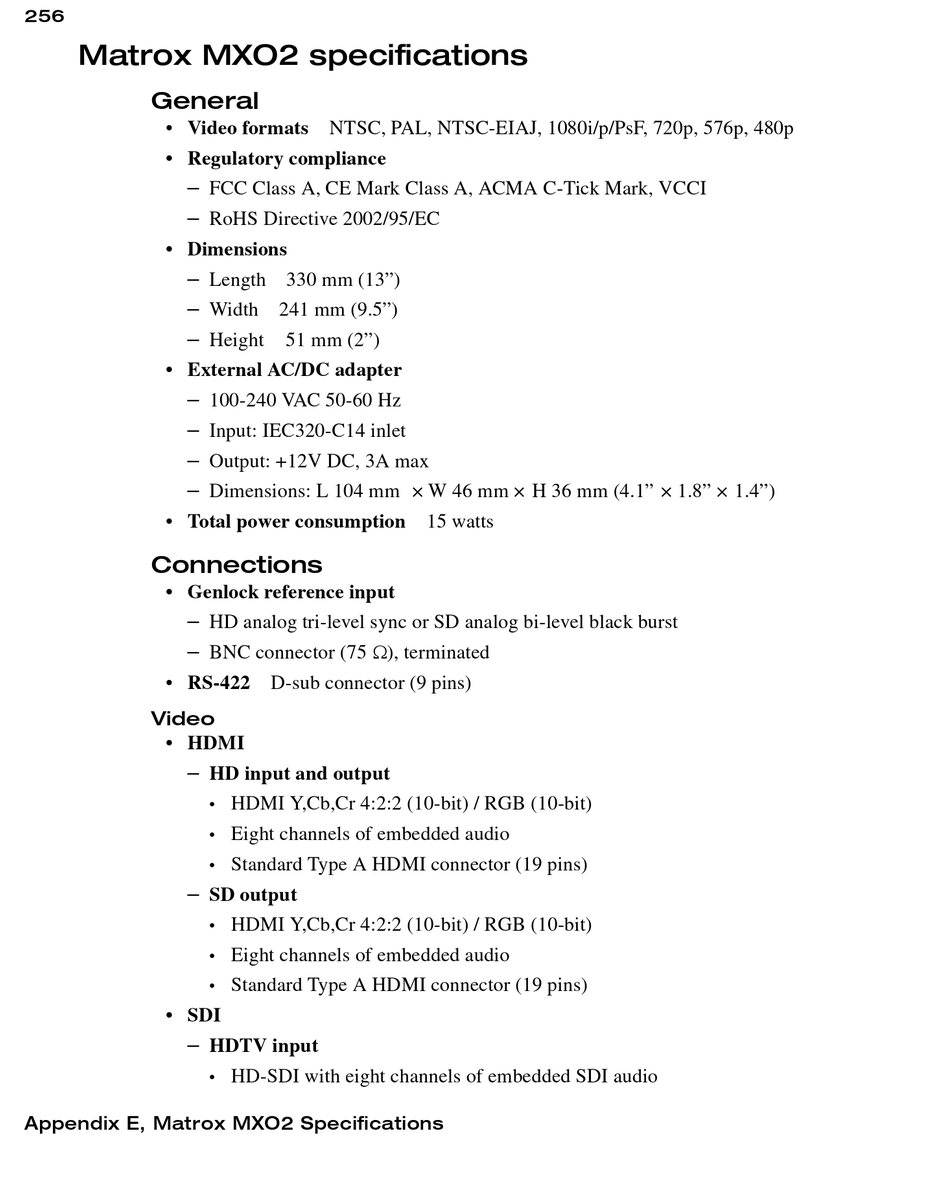

Matrox MXO2 specifications

General

• Video formats NTSC, PAL, NTSC-EIAJ, 1080i/p/PsF, 720p, 576p, 480p
• Regulatory compliance
$
$
• Dimensions
$
$
$
• External AC/DC adapter
$
$
$
$
• Total power consumption

Connections

• Genlock reference input
$
$
• RS-422 D-sub connector (9 pins)
Video
• HDMI
$
$
• SDI
$
Appendix E, Matrox MXO2 Specifications
FCC Class A, CE Mark Class A, ACMA C-Tick Mark, VCCI
RoHS Directive 2002/95/EC
Length 330 mm (13")
Width 241 mm (9.5")
Height 51 mm (2")
100-240 VAC 50-60 Hz
Input: IEC320-C14 inlet
Output: +12V DC, 3A max
Dimensions: L 104 mm × W 46 mm × H 36 mm (4.1" × 1.8" × 1.4")
HD analog tri-level sync or SD analog bi-level black burst
BNC connector (75 Ω ), terminated
HD input and output
HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (10-bit)
•
Eight channels of embedded audio
•
Standard Type A HDMI connector (19 pins)
•
SD output
HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (10-bit)
•
Eight channels of embedded audio
•
Standard Type A HDMI connector (19 pins)
•
HDTV input
HD-SDI with eight channels of embedded SDI audio
•
15 watts
