2-8 Other Connectors Configuration

This section lists out all connectors configurations for users' reference.

2-8.1 On Board FAN Connectors

Peripheral
PS/2 1
(on top) Power
Mouse
1
PS/2 K/B (underside)
3
Rj45 (on top)
+12V Power
mPGA478B
USB0
(middle)
(underside)
USB1
RT1
FAN 1
P4X266A
FAN 2
Jp7
AGP 4X / 2X
RTL8139C
PCI 1
10
PCI 2 USB3
RT2
1
PCI 3
BIOS
AC'97
1 4
Audio
CD_IN1
• These fan connectors support CPU/AGP/System cooling fan with
+12V. When connecting the wire to FAN connectors, users should
make sure that the red wire is for the positive current and should be
connected to pin +12V, and the black wire is Ground and should be
connected to pin GND. Sensor Fan supports Hardware Monitor chipset
on board to implement the hardware monitoring function.
• For fans with speed sensors, each rotation of the fan blades will send
out 2 electric pulses, by which System Hardware Monitor will work
out the fan rotation speed by counting the pulses.
SENSOR
+12V
GND
Fan1/Fan2
1
1
Main Power
VIA
FAN3
1
ON DIP
1 2 3 4
SW1
VIA
Jp6
Jp4
Jp3
VT8233A
1
1
Li JBAT1
Battery
HDD/LED
IR PWR SMI
30
1
SPK RST PWR LED SUS LED
Chapter 2 Hardware Setup
Void
+12V
GND
Fan3

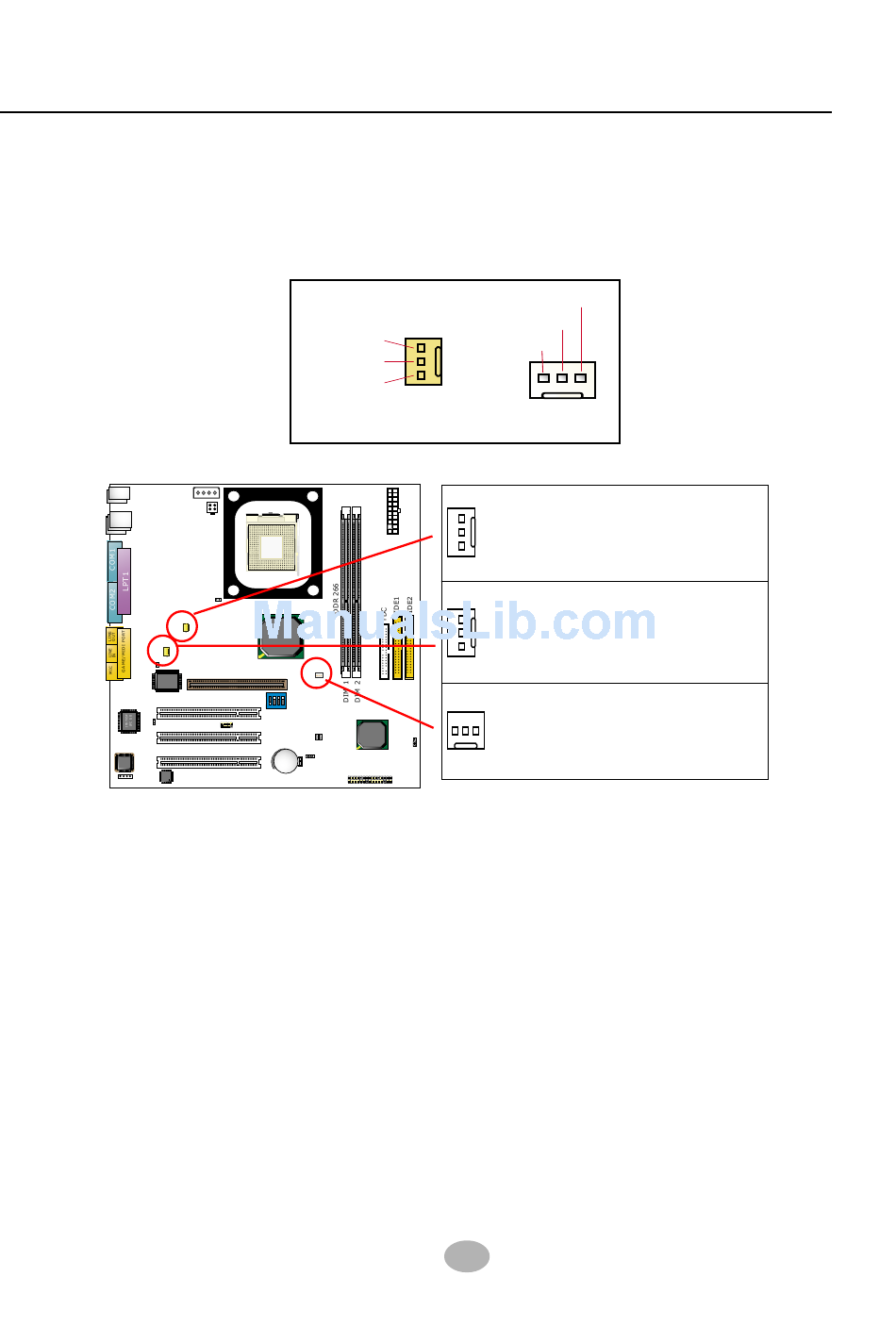

CPU FAN Connector
(FAN1, yellow, sensor)
A G P F A N C o n n e c t o r
(FAN2, yellow, sensor)
System FAN Connector
(FAN3, white, no sensor)
