Operating Mode page
Page purpose:
How to get here:
(SHIFT + SETUP keys  Operating Mode button)
(MENU key  Setup button  Operating Mode button)
Page Notes
None
Page Level Shortcuts
None
Transport Operation button
Normal
Auto-load – Fusion transport controls are locked to an external recorder such as an HD camera. When the
IMPORTANT: Obviously, as part of the Auto-load selection, this requires the appropriate timecode cable
from the camera that will be controlling the recording.
NOTE: As part of the Auto-load selection, the Fusion jams the local Reader/Generator with the incoming TC.
GPi1 Remote Roll button
Enables external transport control using a contact closure switch.
Off
Rising Edge – Places the Fusion into Record mode when the contact is opened.
Falling Edge – Places the Fusion into Record mode when the contact is closed.
Serial Remote Roll button
Enables (On) or disables (Off) the remote control of the Fusion using the serial port.
Serial Port Mode button
Used in conjunction with the Serial Remote Roll, it determines the serial port protocol: RS-232 or RS-422.
Slate Source button
This button toggles between the Fusion‟s Built in Mic and the Camera In connector as the slate source.
B-Format button
Enables (On) or disables (Off) the B-Format decoder.
Recording Format button
Pressing it takes you to the
This page manages several of the Fusion‟s operating parameters.

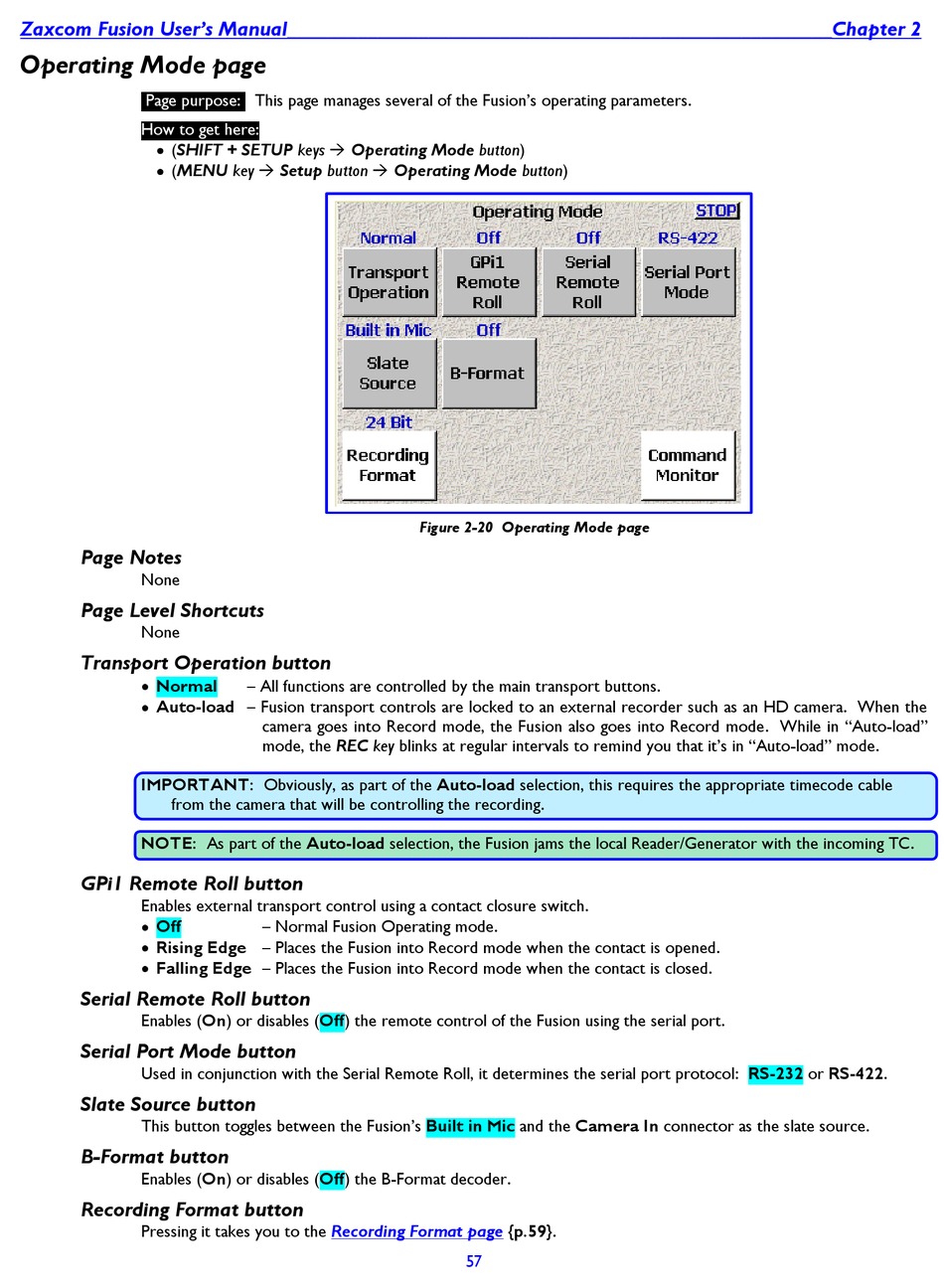

Figure 2-20 Operating Mode page

– All functions are controlled by the main transport buttons.
camera goes into Record mode, the Fusion also goes into Record mode. While in "Auto-load"
mode, the REC key blinks at regular intervals to remind you that it‟s in "Auto-load" mode.
– Normal Fusion Operating mode.
Recording Format page {p.59}.
