Front And Rear Panels; Front Panel; Front Panel Indicators - Tektronix Phaser 540 Plus User Manual

Chapter
7

Front panel

Front panel indicators

Indicator On
Power
1. The printer is on and ready for
operation.
Error
2. If the indicator is on after the
power-up sequence, some user
interaction is required (for
example, toner is low). Check
the front panel message.

Front and Rear Panels

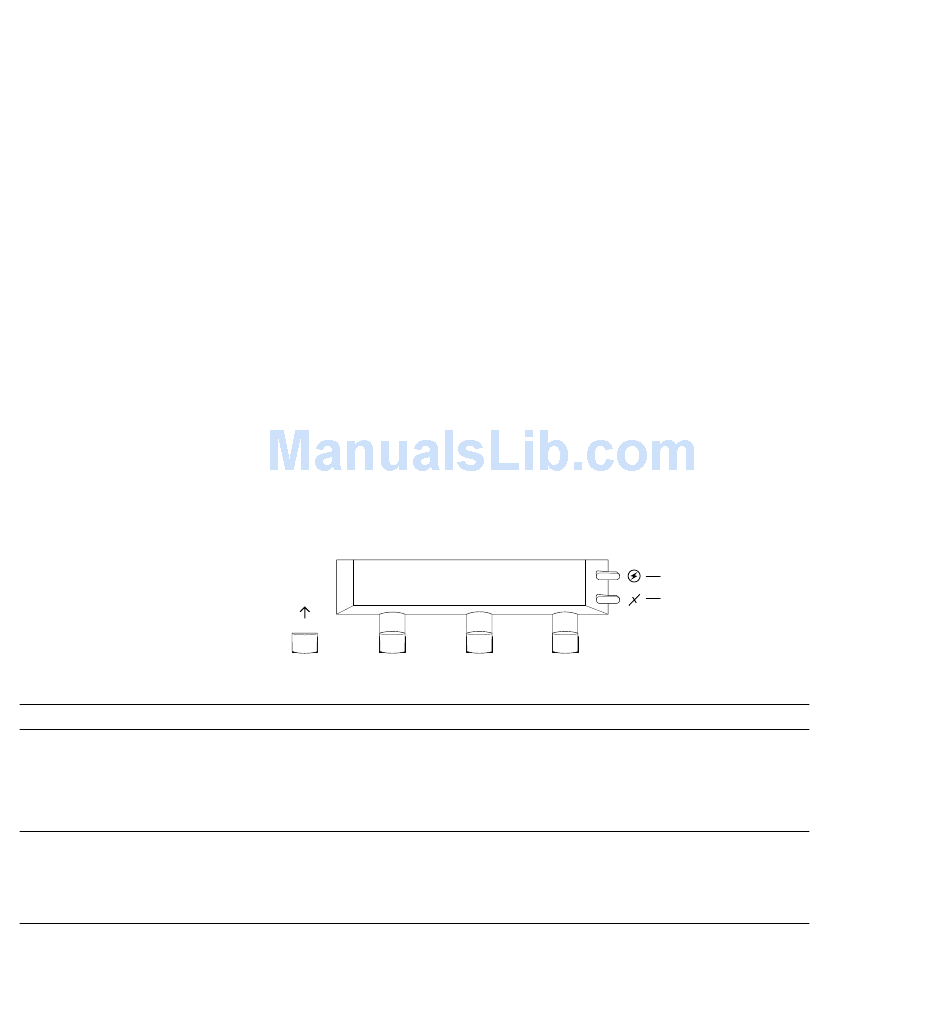

The front panel provides a display of two lines of 24-characters each for
messages, button labels, and user-adjustable parameter settings.
The front panel also includes two indicator lights:
1. Power (green LED)
2. Error (red LED)
Exit
Blinking
The printer is processing or
printing an image.
The printer is in interactive
mode: you have pressed the
Menu button.
The printer requires immediate
user interaction (for example,
clear a media jam or close an
open door). Refer to Chapter 6.
1
2
9008-34
Off
The printer is not ready, or there
is an error.
Normal operation: there are no
print engine or controller board
errors.
User Manual
7-1
