The client accesses the file and directory services provided by the server through
the IPX network. The node address of the server is 0000-0c91-f61f.
Figure 4 illustrates this configuration

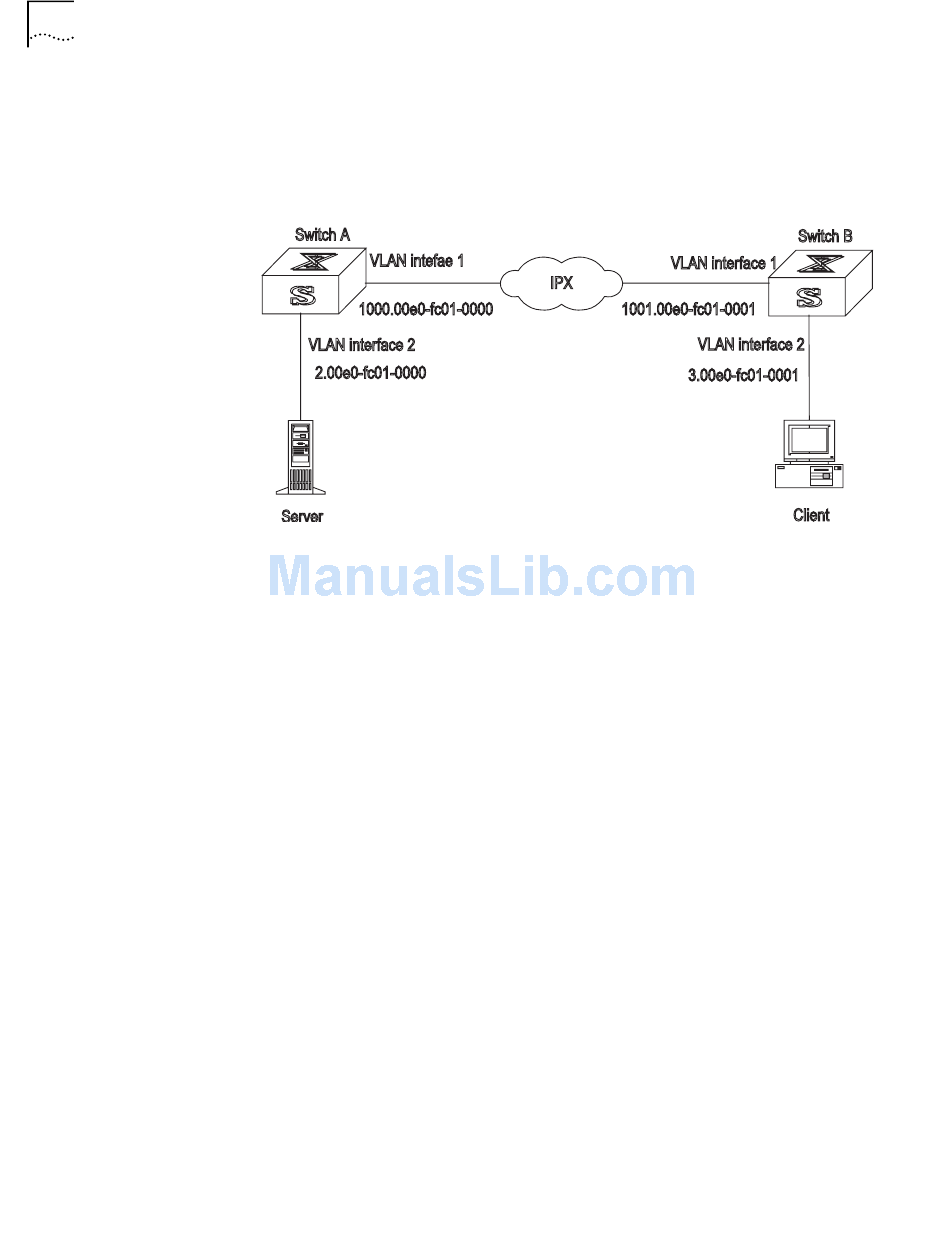

Figure 4 IPX Network Topology
1 Configure Switch A
Enable IPX.
[SW7700] ipx enable
Assign the network number 2 to VLAN interface 2 to enable IPX on the interface.
[SW7700] interface vlan-interface 2
[SW7700-Vlan-interface2] ipx network 2
Set the IPX packet encapsulation format to Ethernet_II on VLAN interface 2.
[SW7700-Vlan-interface2] ipx encapsulation ethernet-2
[SW7700-Vlan-interface2] quit
Assign the network number 1000 to VLAN interface 1 to enable IPX on the
interface.
[SW7700] interface vlan-interface 1
[SW7700-Vlan-interface1] ipx network 1000
Configure a static route with the destination network number 3.
[SW7700-Vlan-interface1] quit
[SW7700] ipx route-static 3 1001.00e0-fc01-0001 tick 7 hop 2
2 Configure Switch B
Enable IPX.
[SW7700] ipx enable
Assign the network number 3 to VLAN interface 2 to enable IPX on the interface.
