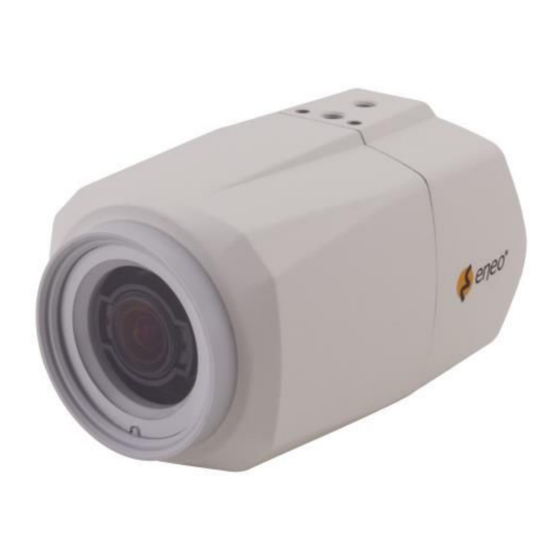

Eneo PXC-2080Z03 Installation And Operation Manual
  1. Manuals
  2. Brands
  3. Eneo Manuals
  4. IP Camera
  5. PXC-2080Z03
  6. Installation and operation manual

Eneo PXC-2080Z03 Installation And Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION AND OPERATION MANUAL
for
PXC-2080Z03

Advertisement

Table of Contents
loading

Related Manuals for Eneo PXC-2080Z03

Summary of Contents for Eneo PXC-2080Z03

  • Page 1 INSTALLATION AND OPERATION MANUAL PXC-2080Z03...

  • Page 2: Table Of Contents

    Table of contents 1. Safety Instructions and Notes…....................... 2. General Descriptions................……………………………... 3. Supplied Items..................……………………………... 4. Part names…………………………….…...........…………………………... 5. Installation Instructions..................……………………... 6. Setup Menu ……………................…………………………... 7. Specifications ………………………………………………..............8. Dimensional Drawings ……………………………………………............

  • Page 3: Power Source

    WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. The symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the unit. The symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 4: Safety Instructions And Notes

    1. Safety Instructions and Notes • Please read this safety and operating instructions before putting the camera into operation. • Keep the manual in a safe place for later reference. • Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.

  • Page 5: Supplied Items

    • f3~9mm, 3X Day & Night Zoom Lens • Wide Dynamic Range • 3D Noise Reduction • Sense Up(~x8) / AGC(0~20) • MOTION ZOOM(Automatic Zoom IN/OUT when motion is detected) • Pointing Zoom (Set the off-centered location to be the center of zoom in Motion Zoom) •...

  • Page 6: Part Names

    4. Part Names ④ Front view ③ ⑤ ① ② Window ① Window Hood ② Front Body ③ Mount Hole (Top and Bottom) ④ Rear Body ⑤ 4.1 Rear side view ⓐ ⓑ ⓗ ⓒ ⓓ ⓖ ⓔ ⓕ...

  • Page 7: Installation Instructions

    IP Reset ⓐ OSD menu switches (Up/ Down/ Left/ Right / Enter) ⓑ SD Memory Card Slot ⓒ LAN Port for RJ45 ⓓ Power Input Terminal ⓔ Alarm Input / Output Terminal ⓕ Audio ⓖ Video Output Connector (BNC) ⓗ 5.

  • Page 8: Setup Menu

    6. Setup Menu 6.1.1 Network Setup To access the ADMIN on IP INSTALLER ID: root PW: root The network camera‘s default IP address is: 192.168.1.10. Therefore, to access the camera for the first time, set the PC‘s address as 192.168.1.XX; for example: IP Address: 192.168.1.20 Subnet Mask: 255.255.255.0 •...
  • Page 9 If the Information message doesn‘t come out due to the problems like network failure, you can start the manual installation. Click the Install ActiveX Control, and the pop-up window will be displayed. After the installation is successfully completed, Smart Viewer window will be displayed. - Assigning an IP address To assign an IP address to the camera proceed as follows: Click Network Confi guration on the Network Confi guration menu.
  • Page 10 according to your network type. For static IP, select static IP and input values for IP address, NetMask, Gateway, DNS1, DNS2 and click apply for saving settings. After apply, program will ask closing web brower for updates, which will take 20~30 seconds. For DHCP, DHCP server must exist in the network environment.
  • Page 11 PPPoE is used to connect eneo products to PPPoE modem provided by ISP. Since PPPoE needs verifi cation, ID and password are necessary to access network. Type in ID and password. - Administrator password To change the password for the administrator, click Admin Password on System Confi- guration menu.
  • Page 12 - Accessing the setup menu The setup menu can be accessed and controlled either by using the OSD control joy stick on the side of the camera and a service monitor or by entering the Admin menu in your web browser. To access the OSD menu click Camera &...
  • Page 13 6.1.2 Camera setup in the menu Setup menu can be accessed and controlled by OSD control joy stick at the back of camera. Five commands are available with the joy stick. Picture of OSD may differ by the models. Joy stick SYMBOL descriptions for joystick operation;...
  • Page 14 6.2 MAIN menu Press ☟ to enter the setup menu for about 1 second. ↵ MENU V2.0 ↵ 1. ZOOM/FOCUS 2. EXPOSURE 3. SCENE ENHANCE NORMAL 4. 3D-NR ↵ 5. DAY/NIGHT EXT↵ ↵ 6. PICT ADJUST ↵ 7. SPECIAL 8. SYSTEM 9.
  • Page 15 MAIN Default Descriptions NORMAL – Optimized for the normal indoor and outdoor in the good lighting condition. WDR – Improves the visibility for the high bright area and the dark area by the double captures of image with LONG and SHORT exposures. With WDR ON, the frame rate becomes half by the double captures.
  • Page 16 6.3 ZOOM/FOCUS ZOOM / FOCUS FOCUS MODE ZOOM PUSH D-ZOOM LENS REFRESH LENS INIT. RETURN RET↵ ZOOM / Default Descriptions FOCUS ZOOM PUSH, AUTO and MANUAL modes are available for focusing. ZOOM PUSH – Focusing is activated only when zoom in/out is working. FOCUS ZOOM AUTO –...
  • Page 17 6.4 EXPOSURE EXPOSURE MODE AUTO BRIGHTNESS |:::::::|::::::| 10 SENS-UP AUTO↵ |::::::::|:::::| 12 MOTION DEBLUR RETURN RET↵ EXPOSURE Default Descriptions Can set EXPOSURE MODE to AUTO, IRIS Priority, SHUT. Priority, MANUAL and Flickerless. AUTO – Optimizes the video level by controlling the iris and the shutter speed automatically.
  • Page 18 6.5 PICT ADJUST PICTURE WHITE BAL SHARPNESS |:::::|::::::| 10 COLOR GAIN |:::::|::::::| 10 GAMMA RETURN RET↵ PICTURE Default Descriptions ATW, ATWext, ONE PUSH and MANUAL are available for the white balance modes. ATW – White balance is continuously working along with the color temperature changes in the range of 2,000K~8,500K.
  • Page 19 6.6 SPECIAL SPECIAL MIRROR/FLIP PRIVACY MOTION ↵ PIXEL DEFECT ↵ TITLE SET DISPLAY DEFOG RETURN RET↵ SPECIAL Default Descriptions Reverses the video left and right and/or up and down by MIRROR/FLIP. OFF - Normal display without mirroring or flipping Hor. – Video is reversed left and right. Ver.
  • Page 20 MOTION can detect the changes in the motion window and displays the results in blocks and/or a text message. SENSITIVITY – Adjusts the detection sensitivity for motion. High value increases the sensitivity to detect the small motion easily. Too low sensitivity will cause the erratic detection by the tree leaves or the light level changes.
  • Page 21 Enables or disables to display the OSD. ID – ON enables to display the camera ID defined by SYSTEM>COMM. SETUP>CAM ID. TITLE – ON enables to display the camera title(name) set by SPECIAL> TITLE SET. DISPLAY ZOOM RATIO – ON enables to display the zoom ratio on the bottom right corner.
  • Page 22 D-ZOOM RATIO DX1.5 Adjust Digital Zoom Ratio (up to 3x) when motion is detected. 6.7 SYSTEM SYSTEM TV SYSTEM US(60HZ) ↵ RESOLUTION 1080P COMM. SETUP LANGUAGE ☟ FACTORY DEFAULT RETURN RET↵ SYSTEM Default Descriptions Selects HDTV standards for US(60HZ) or EU(50HZ). TV SYSTEM By this selection, 2 analog video output switches to NTSC or PAL...

  • Page 23: Specifications

    . Specifications PXC-2080Z03 Imaging Sensor Sony Exmor 1 / 2.9” Progressive Scan CMOS Sensor Effective Pixels 1,936(H) x 1,097(V) Min. Illumination 0.0008 Lux (@AGC MAX, DSS x2) Output Video Resolution 1920x1080( 30p/25p) TV system US(60Hz)(switchable to EU(50HZ)) US(60Hz)(switchable to EU(50HZ)) Sync.
  • Page 24 Housing Solid Aluminum Cast External Dimension 76mm x 72mm x 125mm, 350g IP SPECIFICATION Video Encoding H.264 / MJPEG dual streaming HTTP, TCP/UDP/IP, ARP, ICMP, RTP/RTSP, multicast, Telnet, ftp, PPPoE, Protocol SMTP(e-mail), DHCP, NTP, uPNP, etc, ONVIF, PSIA support Transmission Control VBR, CBR ( 32K ~ 12M bps ) Bundled with Full featured 16 channels PC NVR.

  • Page 25: Dimensional Drawings

    8. Dimensional Drawings (Unit: mm)
  • Page 26 Smart Viewer User's Manual Smart Viewer User's Manual Version 1.1.0.5...
  • Page 27 Smart Viewer User's Manual ® Smart Viewer User’s Manual Document Part Number: M1701-04 Document Version: 1.1.0.5 About This Document This document is prepared for users of Smart Viewer and Network Cameras. It is assumed that the users are familiar with Microsoft Windows operating systems and Web browsers such as Internet Explorer. It is also assumed that the users are well aware of how to install and use the network equipment such as LAN, Hub, router, and having basic knowledge of network terminologies.
  • Page 28 Smart Viewer User's Manual Index About Smart Viewer ..........................V 1.1. Introduction ..........................V 1.2. Key Features ..........................V 1.3. System Requirement for PC ......................V Installing and Uninstalling ........................VI 2.1. Installing Smart Viewer ......................... VI 2.1.1. Installing on Web Browser ....................VI 2.1.2.
  • Page 29 Smart Viewer User's Manual 8.2. Server ............................. XXIII 8.3. Video ............................XXIII 8.4. Audio ............................XXIV 8.5. PTZ Function ..........................XXV 8.6. Relay Output ..........................XXV 8.7. Others ............................XXV...

  • Page 30: Key Features

    Smart Viewer User's Manual 1. About Smart Viewer 1.1. Introduction Smart Viewer is an ActiveX program for Internet Explorer web browser, which enable users to control video and audio functionalities of network video devices over the TCP/IP network. Smart Viewer works with SmartNVR network video software, Network Video Servers, Network Video Recorders, and Network Cameras to show real-time live video images and enables users to control audio, Relay Output, and PTZ functions.

  • Page 31: Installing And Uninstalling

    Smart Viewer User's Manual 2. Installing and Uninstalling 2.1. Installing Smart Viewer Connect to the Server on Internet Explorer, and click Live View on the main page. Then Smart Viewer will be automatically downloaded and installed. If the Internet connection is not available, it's possible to manually install the program file in advance and connect to the Serve rlater.
  • Page 32 Smart Viewer User's Manual Click the Install ActiveX Control, and the pop-up window will be displayed. After the installation is successfully completed, Smart Viewer window will be displayed. 2.1.2. Manual Installation When the Internet connection is not available or having some difficulties, you can manually download and install the Smart Viewer program file.
  • Page 33 Smart Viewer User's Manual After installation is successfully completed, the following window will be displayed. Click the Finish button. 2.2. Uninstalling Smart Viewer There are two ways to uninstall Smart Viewer program from your computer. Before uninstalling, close all the Internet Explorer windows.
  • Page 34 Smart Viewer User's Manual If the uninstalling is successful, the following window will be displayed. Click OK to finish. 2.2.2. Uninstalling on Control Panel Click Start button on the screen, then select the Control Panel.
  • Page 35 Smart Viewer User's Manual In the Control Panel window, double-click the Add or Remove Programs icon. You will see the Currently installed programs list. Click Smart Viewer button, and then click Change/Remove button. It will start uninstalling process then.
  • Page 36 Smart Viewer User's Manual 3. Starting Smart Viewer Once Smart Viewer is installed in your computer, you can start it by connecting to the Server on Internet Explorer and select Live View on the main menu. The appearance of Smart Viewer window varies depending on what type of Server is connected to Network Video Server, Network Camera Server, or Network Video Recorder.
  • Page 37 Smart Viewer User's Manual Control Tool Bar Displays or hide each control bar. Displays or hide channels. Set up the frame rate, video pause, storing images or Channel Control Bar video, Relay Output control, audio mute, FES data indication. Audio Control Bar Adjust audio control of Server and volume of MIC and Speaker.

  • Page 38: Video Control

    Smart Viewer User's Manual 4. Smart Viewer Configuration 4.1. Channel Control Bar (NVS or Network Camera only) When the Smart Viewer window is displayed for Network Video Server or Network Cameras, a channel control Bar will be shown on the left of the window. Channel 1 Display or hide the live view video from Channel 1 Channel 2...
  • Page 39 Smart Viewer User's Manual In this dialog box, you see the captured image to be saved. Enter the folder and file name, and click the Save button, then the image will be saved with the name you entered. Note: If live view video is in MJPEG format, the image will be saved as a JPEG file. If the video is in MPEG-4 or H.264 format, it will be saved in BMP format.
  • Page 40 Smart Viewer User's Manual In video files recorded from M-JPEG format video, the time information file will be generated in SMI subtitle format, which puts time stamp every second. When you play back the recorded video, the time stamp will be displayed as a subtitle on the video screen as shown the picture below.

  • Page 41: Instant Playback

    Smart Viewer User's Manual 5.2.3. Manual Recording Under NVR or network video server and network camera with built-in local storage (microSD), live video can be recorded in the HDD or microSD card. The recorded video can be viewed by Instant Playback feature of OSD Channel Buttons or by running SmartPlayer program.

  • Page 42: Extended Features

    Smart Viewer User's Manual Set the beginning of video data. Instant playback will scan 1 min after this. Se the playback speed. Begin searching data Playback Reverse playback. 1 frame playback 1 frame reverse playback Pause Stop 5.3. Extended Features When you click the right mouse button on the Live View Window, a pop-up menu will appear for extended features as shown below.
  • Page 43 Smart Viewer User's Manual 5.3.2. FPS Control FPS (Frame per Second) can be controlled only in MJPEG mode. In MPEG4 and H.264 video mode, FPS control is not supported. 5.3.3. Image Rotation By using this feature, you can make mirrored (horizontal) or flipped (vertical) image from the original. 5.3.4.
  • Page 44 Smart Viewer User's Manual 6. I/O control 6.1. Audio Control 6.1.1. Getting Audio from Server To receive an audio transmitted from Servers or cameras, a microphone or audio output should be connected to the Audio-In port. Select a proper channel on Smart Viewer and you will be able to hear the audio on the computer. Note: It is necessary to set up the audio function on the admin page in order to receive audio from Server.
  • Page 45 Smart Viewer User's Manual 6.3. P/T/Z Control If Servers have PTZ devices connected to it, you can control them on Smart Viewer. You will also be able to use a Joystick to control PTZ device if your computer has a Joystick connected to it.
  • Page 46 Smart Viewer User's Manual Adjust the rate of camera motion. It can be between 1 and 16, and higher Speed number is faster. Controls in 8 directions: Up, Down, Right, Left, 4 Diagonals. Adjust zooming. ' ' for zoom-in and ' ' for zoom-out.
  • Page 47 Smart Viewer User's Manual 7. Control Toolbar You can use Control Toolbar to perform the functions such as displaying or hiding each control bar, displaying live video in full screen mode, alternate displaying between groups, showing the software information, and etc. Display / Hide Channel Control bar.

  • Page 48: Troubleshooting

    Smart Viewer User's Manual 8. Troubleshooting 8.1. Installation Q) I can't start installation of Smart Viewer when I connect to Server and click Live View. A) The Internet connection is not available. Manual installation is required. Q) It stopped during the installation showing the message 'Process is being used'. A) Close all the Internet Explorer windows running, and try installing again.
  • Page 49 Smart Viewer User's Manual Q) ‘Extra users’ message is displayed in live view. A) It is displayed when there are excessive numbers of users viewing the video. You will be able to see the video when any of current users disconnects from the server. Q) 'No Signal' is displayed in live view.

  • Page 50: Ptz Function

    Smart Viewer User's Manual 8.5. PTZ Function Q) PTZ Control bar is not activated. A) Connect to Server, and make sure PTZ set up is properly done on Admin menu. Q) Clicking PTZ buttons doesn’t work. A) When network condition is not good enough, there may be some latency time in camera movement. Try Step Mode if Move mode is currently set to Continuous.

  • Page 51: User Manual

    Web Admin User Manual Version 4.15...
  • Page 52 Web Admin User Manual Index Admin Menu of Server s ..........................6 1.1. Entering Admin Menu ........................6 1.2. Admin Menu Structure ........................7 Quick Configuration ............................9 2.1. Step 1: Changing Server Name ..................- 10 - 2.2. Step 2: Time Setup ........................- 10 - 2.3.
  • Page 53 Web Admin User Manual 4.1.1. Static IP Configuration ....................- 18 - 4.1.2. DHCP Client Configuration ..................- 18 - 4.1.3. PPPoE Configuration ...................... - 19 - 4.2. Network Ports ..........................- 20 - 4.3. Bandwidth Control Configuration..................- 20 - 4.4.
  • Page 54 Web Admin User Manual 6.1.1. E-mail Service Configuration..................... 41 6.1.2. FTP (Buffered) Service Configuration ................45 6.1.3. FTP (Periodic) Service Configuration ................47 6.1.4. Sensor Notification Service Configuration ..............49 6.1.5. Sensor Notification Service Configuration for Each Input ........50 6.1.6.
  • Page 55 Web Admin User Manual 8.5.1. All (Firmware, RAM disk, System, Web) Update ..........- 80 - 8.5.2. System and Web Update .................... - 82 - 8.5.3. Web Only Update ......................- 82 - 8.5.4. Sensor Device Driver Update ..................- 82 - 8.5.5.
  • Page 56 Web Admin User Manual 1. Admin Menu of Servers After connecting server on the web browser, you’ll find the web page as shown below. The rightmost item of the menu is Admin, where you can set up the most of features in the Server you’re connecting to.
  • Page 57 Web Admin User Manual 1.1. Entering Admin Menu Click Admin item of the menu, then you’ll see a login window. In the login window, enter root for both ID and password as they are the factory defaults. Press Enter key or click OK button. Once logged in, you can change the password to a new one.
  • Page 58 Web Admin User Manual Level 2 Sub- Category Main Menu Level 1 Sub-Menu Menu Step 1 Step 2 Step 3 Quick configuration Step 4 Step 5 Finish Server Name Date & Time System Admin. Password Configuration Access Control User Registration Network Configuration FTP/Telnet Server...
  • Page 59 Web Admin User Manual Privacy Zone Camera Control Motion Detection Camera & Motion Primary stream Secondary stream DI/DO Camera 1 DI Status / DO Control Camera 1 E-mail Camera 2 Camera 1 FTP(Buffered) Camera 2 Camera 1 FTP(Periodic) Camera 2 Advanced Advanced Services Camera 1...

  • Page 60: Quick Configuration

    Web Admin User Manual Clear Recording Config. Delete Recorded Data System Log Save Configuration Utilities Reboot Factory Default System Update Quick Configuration In Quick Configuration, you will be able to set up many of the essential parts of the configuration in a simple manner without going into details. Selecting Quick Configuration gives you the menu as below.

  • Page 61: System Configuration Menu

    Web Admin User Manual 2.3. Step 3: Network Setup To make a connection to the Internet, it is required to figure out the type of the Internet service you’re using. See the section 4.1 Network Configuration in page - 18 - to see how to set up. 2.4.
  • Page 62 Web Admin User Manual 3.1. Server Name Setup Click Step 1 on Quick Configuration, then the following will be displayed and you will find out the system information such as model number of the Server, server name, MAC address (serial number), firmware version, and Web image version.
  • Page 63 Web Admin User Manual 3.2. Date & Time Click Step 2 on Quick Configuration. Fill the Date and Time fields with your local time and date information. If you're in a different time zone, put a checkmark on Change Time Zone, then select the correct region from the list box.
  • Page 64 Web Admin User Manual Default ID for admin account is fixed as “root” and not allowed to change. In Old Password field, enter the current password. In both New Password and Confirm Password fields, enter the same new password. The password must be between 4 and 23 alphanumeric letters. Click Apply button to put it into effect.
  • Page 65 Web Admin User Manual 3.5. User Registration You can add, modify, or delete users for your Server here. Once registered as Limited Access setting, the user can access the Server with some limited privileges. 3.5.1. Add When Add is selected, you can add users and define their passwords, names, and access permission levels respectively.
  • Page 66 Web Admin User Manual Server can have multiple VS modules registered in it. When user ticks on any of Enable checkboxes, other fields in that row are enabled to select. • VS Module ID: The registered user can select VS Modules that are available. (VS Module is a network device that has been registered in Server) •...

  • Page 67: Network Configuration

    Web Admin User Manual To see existing users, click Select User ID, and select a user to be edited. Then change the password, name, or access permission, and click Apply button to save the setting. Setup of Access Permission can be done the same way as in Add section. 3.5.3.
  • Page 68 Web Admin User Manual To make a connection to the Internet, it is required to figure out the type of the Internet service you’re using. Depending on the service type, the network configuration can be in any of Static IP, DHCP Client, or PPPoE. You need to set up the Server according to your network type. 4.1.
  • Page 69 Web Admin User Manual 4.1.3. PPPoE Configuration PPPoE is used to connect Network Camerasto PPPoE modem provided by ISP. Since PPPoE needs verification, ID and password are necessary to access network. Type ID and PW. - FTP/Telnet Server Configuration Configuration to access FTP/Telnet Server - 19 -...
  • Page 70 Web Admin User Manual 4.2. Network Ports In this configuration, you set up the HTTP port for Server to communicate with the Client PC. HTTP Port is the network port that is used when a Client PC connects to the Server ’s Web page.
  • Page 71 Web Admin User Manual If multiple users try to access a Network Camera which bandwidth control is enabled, users connected to the Network Camera will share network bandwidth limit. Note: This bandwidth control feature works fairly well in M-JPEG video transmission.
  • Page 72 Web Admin User Manual 4.5. Network Status Notify This feature helps to send updated network status information to registered email address if any changes happen. This function will work under DHCP or PPPoE. If Network Status Notify is set to Enable, Server’s network status will be emailed to a specific person in case of the following events: •...
  • Page 73 Web Admin User Manual First, select Enable to use the feature. Then enter the address of the SMTP server which is needed for email service. If your SMTP server requires a user ID and a password for authentication, you will have to get them from ISP or network admin. Enter the ID and password.
  • Page 74 Web Admin User Manual Password Password for SMTP server Sender Email address of Sender 1st / 2nd / 3rd Recipient Email Addresses of the Recipients (up to 3 persons) User Defined Message Message to be included in the Notification email 4.6.
  • Page 75 Web Admin User Manual 4.7. Port Forwarding & UPnP UPnP(Universal Plug and Play) is a kind of network protocol to help users to find and configure network products in same local network area. Port forwarding is to assign a certain network port to a network product Proper so as users can access it from outside of Local Area Network.
  • Page 76 Web Admin User Manual 4.8. RTP/RTSP Setup for Cameras RTSP (Real-Time Streaming Protocol) is a protocol to transfer video and audio stream over the network. Any application supporting Standard RTSP can be used for Server. Quick Time Player or VLC program can be used for this, but it may not be supported in the environment within firewall.
  • Page 77 Web Admin User Manual For Multicast Address: Use “rtsp://network video server ip address/mcam0_0”. If there are multiple channels, use mcam0_x, x (0~3) with each channel number applied. If there are multiple modules, use mcamx_0 x (0 ~ 3) with each module number applied. Enable: Start RTSP service Service Disable: Stop RTSP service...
  • Page 78 Web Admin User Manual Multicast Address for multicast video transfer. Address The multicast address 0.0.0.0 is for stopping multicast. Multicast Port number for viewing the video with a multicast address Port To use ONVIF protocol, RTP/RTSP must be enabled. 4.9. SNMP Setup for Cameras SNMP (Simple Network Management Protocol) is a protocol to monitor and configure network status of a network device.

  • Page 79: Device Configuration

    Web Admin User Manual is wrong Device Configuration You set up the connection between Server and the camera in this part of configuration. That includes Video data, external devices, Input / Output, Alarm control, and etc. 5.1. Serial Ports There are two serial ports configurable in the system, COM and AUX. COM port is primarily used for console, and AUX is for PTZ control, but they both can be used for other purposes when necessary.
  • Page 80 Web Admin User Manual After rebooting, open the Serial Ports window in Device Configuration menu again. Select the Serial Input Mode, then the Serial Input Mode Configuration windows will be displayed as shown below. • Current Port: This shows the name of the port currently configured. •...
  • Page 81 Web Admin User Manual • Upper Limit: The highest value in the range to assign • Lower Limit: The lowest value in the range to assign • Initial String Length: The length of initial string from sensor • Initial String Data: The initial string from sensor •...
  • Page 82 Web Admin User Manual 5.1.2. Serial Output Mode Using Serial Output Mode, you can send UART device commands to Server in order to control PTZ devices, Multiplexer, Access control box, X10 Protocol, z256 protocol by RS-232 or RS- 485/422 communication. In the picture below, serial output mode can be selected among By- Pass, X10, or Z256.
  • Page 83 Web Admin User Manual • Baud Rate: Data transfer rate • Data Bit: The number of bits in data • Stop Bit: The number of stop bit • Parity Bit: Parity bit characteristic • Network Protocol: The type of protocol used to send data •...
  • Page 84 Web Admin User Manual Privacy zone is marked with a rectangular shape. When you click New button, red-colored box will pop up and users can change its size and location. After that, click Apply button which will make box to green-color and finish the configuration. Users can define the Privacy zone as many as 8 parts of the screen.
  • Page 85 Web Admin User Manual • M-JPEG: This format requires much higher network bandwidth than H.264 compression. But because of its higher quality of still image, it is adequate for detailed reviewing of stored video. Note: For Dual Stream products, the most of parameters are dependent on primary stream value.
  • Page 86 Web Admin User Manual • Video with server name: If Enabled, video data will contain the server name that you defined. • Video with IP address: If Enabled, video data will contain the IP address of the video server. • Audio: Select if Audio function is to be used (applies to Primary Stream only). Server provides 2-way audio streaming by combining microphone input with video data.
  • Page 87 Web Admin User Manual • Camera Name: Enter the name of the channel in up to 21 alphanumeric or up to 10 Unicode letters. Image Quality Setup - 37 -...
  • Page 88 Web Admin User Manual Image Quality: one of 6 quality levels Rate Control Mode: VBR (Variable Bit Rate) (Low Compression / Highest / High Normal / Low / Lowest) Video frames are encoded with selected image quality and GOP. Encoded frames GOP Structure: Distance between I- have different data size from each other.
  • Page 89 Web Admin User Manual The setup menu can be accessed and controlled either by using the OSD control joy stick on the side of the camera and a service monitor or by entering the Admin menu in your web browser. To access the OSD menu click Camera &...
  • Page 90 Web Admin User Manual Motion Detection Click Motion Detection on the bottom of Camera & Motion Configuration menu. • Motion Sensitivity: This value sets how sensitively the motion detection works for the motion detection functionality. It can be between –100 and 100 while 100 is the most sensitive.
  • Page 91 Web Admin User Manual After configuration is finished, click Apply button to save the setting. If you click Default button, the entire configuration will be reset to the original values. 5.4. DI (Sensor Input) / DO (Alarm Output) Select DI/DO from Device Configuration menu to configure Sensor Input and Alarm Output. After the setting up, select DI Status/DO Control on Device Configuration menu to configure the behavior of those Input and Output ports.
  • Page 92 Web Admin User Manual DI/DO Setup You can define Sensor Input Name and Alarm Output Name as you want, which should be up to 31 alphanumeric or up to 15 Unicode characters. DI/DO Control These models have 1 Alarm output port and they act like a push button. When you click On button, it is essentially like the push button pressed.

  • Page 93: Advanced Configuration

    Web Admin User Manual Advanced Configuration Available to be configured to start and stop certain pre-defined services by scheduling, event, or conditions. It also has ISENS feature, which is a way of integrating with CMS software. You can set up the advanced services in Advanced Configuration menu. There are two types of advanced service, one is Buffered Service and the other is Periodic Service.
  • Page 94 Web Admin User Manual In Periodic Service, only the image, alarm/sensor status after an event/schedule is reported to you upon the server is triggered. - 44 -...
  • Page 95 Web Admin User Manual 6.1. Advanced Services Pre-Alarm buffer size and buffering speed can be defined here. • Pre-Alarm Buffer Size: You can set the buffer size which will store the images before event. The unit is in frame, and each channel can be set with different values. The total number of frames for Pre-Alarm Buffer and Post-Alarm Buffer is limited to 10 frames.
  • Page 96 Web Admin User Manual Item Description Camera 1~2 (max 4) Select a channel to be configured for email notification Service Select Enable in order to use this service SMTP server address Enter SMTP server’s address for sending email. Select Enable if SMTP server requires ID and password Authentication Login User ID Enter User ID to log in to SMTP server...
  • Page 97 Web Admin User Manual E-mail Service Setup for Each Channel For each channel, the following items can be configured for email service: Condition, Post-Alarm Buffer Size, and Post-Alarm speed. The content of text message and display style of DI value can be configured as well Item Description...
  • Page 98 Web Admin User Manual NONE: Don’t Send, INT: Decimal, HEX: Hexadecimal, BIN: Binary, IPA: IP Address, EVT: Name of Event After finishing setup, click Save button to apply. If you don’t want to change, click Back button. Condition, Schedule & Event Configuration - 48 -...
  • Page 99 Web Admin User Manual If you click on a Condition link, the Advanced Service windows is displayed as shown below. Alarm Service is activated only when the conditions in Advanced Services are met. Item Description Service This shows what service this condition is for. Module ID Module ID for current setup Camera ID...
  • Page 100 Web Admin User Manual 6.1.2. FTP (Buffered) Service Configuration Item Description Camera 1 - Camera Select which channel to set up for FTP (Buffered). Select Enable to use the FTP (Buffered) service. Otherwise select Service Disable. Server Address FTP Server Address. The directory in FTP server where the data will be uploaded.
  • Page 101 Web Admin User Manual Connection Mode Select connection mode for FTP server If Directory Name is checked, new directory is created with server Server Name name. If File Name is checked, new file is created with server name. If Directory Name is checked, new directory name is created with Weekday weekday.
  • Page 102 Web Admin User Manual Item Description Condition 1 ~ Select a condition for FTP (Buffered) service to be activated. Up to Condition 3 3 conditions can be set. Pre-Alarm Buffer Size The Buffer size assigned for Pre-Alarm. Check Video buffer Click this link to go to Advanced Services for video buffer setup.
  • Page 103 Web Admin User Manual 6.1.3. FTP (Periodic) Service Configuration Item Description Camera 1 - Camera Select which channel to set up for FTP (Periodic) service Select Enable to use the FTP (Periodic) service. Otherwise select Service Disable. Server Address FTP Server Address. The directory in FTP server where the data will be uploaded.
  • Page 104 Web Admin User Manual Date Description Select Date Display Style (e.g. 20090228) Mode Connection Mode Select connection mode for FTP server If checked, new file overwrites the existing file with the same Overwrite name. If Directory Name is checked, new directory is created with server Server Name name.
  • Page 105 Web Admin User Manual FTP (Periodic) Service Configuration for each channel Item Description Condition 1 ~ Select a condition for FTP (Periodic) service to be activated. Condition 3 Up to 3 conditions can be set respectively. FTP Interval(msec) Time interval between each image upload service. After finishing setup, click Save button to apply.
  • Page 106 Web Admin User Manual 6.1.4. Sensor Notification Service Configuration Item Description Input 1 - Input 2 Select which input to set up for Sensor Notification Service Select Enable to use Sensor Notification. Otherwise select Service Disable. Select network mode for CGI. Select one among HTTP, TCP, or Service Mode UDP.
  • Page 107 Web Admin User Manual After finishing the configuration, click Save button to apply the change and continue to the next page. Clicking Back button will cancel the changes and go back to the previous page. 6.1.5. Sensor Notification Service Configuration for Each Input Item Description CGI Name or Alarm Port...
  • Page 108 Web Admin User Manual Output 1 – Output Select the output port to configure for Alarm Output Service. Select Enable to use the service, otherwise select Disable. Service After finishing the configuration, click Save button to apply the change and continue to the next page.

  • Page 109: Recording Configuration

    Web Admin User Manual Recording Configuration 7.1. SD Configuration If a SD card is not present in the slot already, turn off the Network Camera before inserting a SD card. Make sure to turn the power on after inserting the SD card. Open a web browser, type in the IP address of the network camera.
  • Page 110 Web Admin User Manual Now you will see the list of SD cards available and whether they are formatted or not. To perform formatting the unformatted one, click the SD card. Then the following window will be displayed. Click the Partition and Format button, then a pop-up window will be shown to confirm the formatting.
  • Page 111 Web Admin User Manual Note: If the program is terminated during the format process, the SD card may be damaged. To avoid this problem, make sure to close the program in the right manner and check the SD card. After formatting is finished, the following window will appear informing it. Click the OK button. On SD Status &...
  • Page 112 Web Admin User Manual 7.2. Recording Configuration Each camera can be configured for recording option in this section. Configuration items include motion detection recording, 24-hour continuous recording, event-driven recording, and etc. It displays the information of the recording-capable servers such as VS Module ID (IP Devices), Server Name, Server IP Address, Service Port Number, Vendor, Camera Name, and Record ability.
  • Page 113 Web Admin User Manual Click on Camera 1, and it will display the screen for detailed configuration such as recording speed, camera name, Pre- and Post-alarm image speed. After configuring them properly, click the Save button to save the change. - 63 -...
  • Page 114 Web Admin User Manual - 64 -...
  • Page 115 Web Admin User Manual Item Description Condition 1~4 Set the conditions for recording Graphs for Time, Day of week, Alarm, Motion, Camera Graphic displays of conditions for recording Connection Click Enable to record the video. Click Disable Recording Service otherwise. Server ID number of the added VS Module ID (IP Server Module ID Devices).
  • Page 116 Web Admin User Manual - 66 -...
  • Page 117 Web Admin User Manual Category Item Description Always Recording is enabled all the time. Schedule Only Recording is done by configured schedule. Select Event Only Recording is controlled by configured event. Mode Recording is controlled by both schedule and Schedule and Event event.
  • Page 118 Web Admin User Manual Video is recorded if alarm is activated on Saturday and The graph displayed below means “ Sunday. ” You need to select Enable on Recording Service field for recording to be made by recording condition setup. If you want to prevent recording from starting even though recording conditions are configure, select it as Disable.
  • Page 119 Web Admin User Manual Example 1) Recording Condition: Always, Schedule • Pre-Recording Speed: 1 fps • Pre-Alarm Count: • Post-Recording Speed: 10 fps • Post-Alarm Count: • Since the recording condition is Always and Schedule, Pre-Recording Speed is in effect. So the recording speed is 1 fps.
  • Page 120 Web Admin User Manual If there are two recording conditions configured, it can start recording when at least one condition is valid. After configuration is finished, click the Save button to apply the change and return to previous screen. Now you will notice that the Recording Configuration is made. If the video is already being recorded, the status will display Recording.
  • Page 121 Web Admin User Manual recording conditions are configured properly and video is not being recorded at the moment, you need to click the Record button to start recording. Once recording has been started, the Status field will change to Recording. From that point on, when the conditions meet the setup value in recording condition, the video will be recorded to the HDD.
  • Page 122 Web Admin User Manual 7.4. Recording Mode In this part, you can decide which action to take in case the SD capacity becomes full during recording video. To configure, click Recording Mode on the menu. The following will be displayed. Now you are to choose the action between two options.
  • Page 123 Web Admin User Manual • Circulation: Every time the SD is out of space, it will delete the oldest file to make space. • Pause at full: When the SD is out of space, it will stop recording and display STOP status.
  • Page 124 Web Admin User Manual Select Enable to use this feature. Disk Full Notification Select Enable if you want to receive the SD capacity Periodic Notification information on specific Day of week and Time. Set the Day of week and Time you want to receive email notification.
  • Page 125 Web Admin User Manual SMTP Server IP address of the server for email service. Select Enable if the SMTP server requires user Authentication Login authentication. User ID User ID for authentication login Password Password for the User ID Sender Email address of sender 1st Recipient 2nd Recipient Email addresses of the recipients (up to 3 persons).
  • Page 126 Web Admin User Manual and click Delete button. A confirmation window will be displayed as below. Click OK button to delete all the stored video data. Utilities In Utilities part of the Admin menu, you can view the system log file, save the changed value during the configuration, reboot, restore the factory default condition, and update the system.
  • Page 127 Web Admin User Manual 8.2. Save Configuration Changes to configuration will be saved automatically for this model 8.3. Reboot It is recommended to reboot the system after making changes and saving the configuration. To reboot, click Reboot on Utilities menu. A confirmation screen will be displayed as shown Click Save Configuration button, otherwise click Back button to cancel the rebooting.
  • Page 128 Web Admin User Manual Cancel, the web browser is still open, but you will not be able to access the Server until the rebooting is finished. 8.4. Factory Default Whenever it is required to restore the configuration of Camera setup to factory default condition, you can do it here.
  • Page 129 Web Admin User Manual 8.5. System Update Server ’s system program and data are stored in Flash memory, and it consists of Kernel Image, RAM Disk Image, System Image, and Web Image. In order to update the system of the server, you should have proper image files ready in your PC.
  • Page 130 Web Admin User Manual Up-to-date system files can be downloaded in Support page of supplier. After the update is done, it is required to reboot the server. 8.5.1. All (Firmware, RAM disk, System, Web) Update Click the Start button next to All (Firmware, RAM disk, System, Web) Update item on the menu, and a confirmation window will appear.
  • Page 131 Web Admin User Manual Now you can check the file name and the size in the new window. If you want to go back to the previous stage, click the Previous button. Click the Next button to update the firmware right away and proceed to next stage.
  • Page 132 Web Admin User Manual Now the final confirmation window will appear. Click Reboot button and the system will reboot. 8.5.2. System and Web Update Click the Start button next to System and Web Update item on the menu, and a confirmation window will appear.
  • Page 133 Web Admin User Manual window will be shown. Click OK button to proceed the update, otherwise click Cancel. 8.5.5. Flexible Extra system Flexible Extra system is an integrated system combining Server’s video with external devices. Examples of the external devices can be entry control equipment, POS terminal, intelligent video analyzer, GPS terminal, dust density monitor, license plate recognition system, and so on.
  • Page 134 Web Admin User Manual Now the window to locate the Config Image file is displayed. Select a file after clicking Browse button. Click Next button to move to the next stage. If Previous button is clicked, it will go back to the file selection step. If Skip button is clicked, it will go to the next step without updating the file.
  • Page 135 Web Admin User Manual If you click Edit button, now you can edit the Config file after clicking Edit button which is found on the right of the file name. Click Save button to save the Config file. Click Close button to close the editing window. If you click Next button, a window for rebooting is displayed.
