Eneo HDC-2080Z03 D User Manual

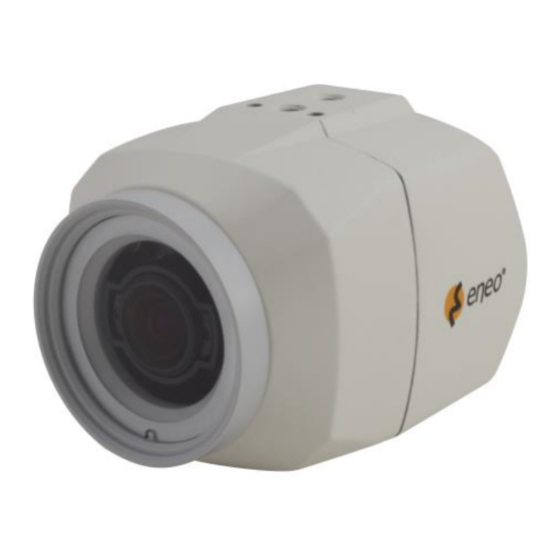

1/3” hdcctv camera, wdr, day&night, 1920x1080, 3x af zoom, infrared, 12/24v
Hide thumbs Also See for HDC-2080Z03 D:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual
1/3" HDcctv Camera, WDR,
Day&Night, 1920x1080, 3x AF
Zoom, Infrared, 12/24V

User Manual

HDC-2080Z03 D
HDC-2180Z03 D
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDC-2080Z03 D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eneo HDC-2080Z03 D

Summary of Contents for Eneo HDC-2080Z03 D

  • Page 1: User Manual

    User Manual 1/3” HDcctv Camera, WDR, Day&Night, 1920x1080, 3x AF Zoom, Infrared, 12/24V HDC-2080Z03 D HDC-2180Z03 D...

  • Page 3: Safety Precaution

    FULL-HD AF-ZOOM CAMERA Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 4 FULL-HD AF ZOOM CAMERA Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.

  • Page 5: Table Of Contents

    FULL-HD AF ZOOM CAMERA Contents p.03~04 Safety Precaution p.05 Contents p.06~07 Features p.07 Composition p.08 Dimensions p.09 Part Names p.10 Installation Instructions p.11~27 Operating Instructions p.28 Specifications...

  • Page 6: Features

    • Real time True WDR (Wide Dynamic Range) / 30fps • Improved noise figure with the enhanced 3DNR • HDC-2080Z03 D : f=3~9mm, F1.2~F2.1 Day&Night zoom lens (Optical 3x Auto focus zoom / Digital 32x zoom) • HDC-2180Z03 D : f=9~22mm, F1.6~F2.3 Day & Night zoom lens (Optical 2.4x Auto focus zoom / Digital 32x zoom)

  • Page 7: Composition

    FULL-HD AF ZOOM CAMERA Features General Description This camera realizes the natural and crisp image as you see the scene in front of you by adopting Auto Focus Full HD(1920x1080p) camera module. Highly detailed pictures can be achieved and color reproducibility deserves attention.

  • Page 8: Dimensions

    FULL-HD AF ZOOM CAMERA Dimensions (unit : mm) CAUTION • Extreme care should be taken NOT to scratch the window in front of lens. • Care should be taken the cable is NOT to be damaged, kinked or exposed in the hazardous area.

  • Page 9: Part Names

    FULL-HD AF ZOOM CAMERA Part Names Mount Holes Rear Case (Top / Bottom) Front Case Window REAR VIEW ⑦ ① ⑥ ⑤ ② ④ ③ ① OSD Control Joy stick ④ HD-SDI/EX-SDI output connector ② Power input terminal ⑤ Power LED (AC24V/DC12V or DC12V) ⑥...

  • Page 10: Installation Instructions

    FULL-HD AF ZOOM CAMERA Installation Instructions Installation and commissioning Instructions • Make sure the power is removed before the installation. • Follow the order for applying power. First connect the low voltage (DC12V or AC24V), then plug the AC adapter to AC outlets to avoid an improper reset from power jitter and a damage from the surge voltage when no load.

  • Page 11: Operating Instructions

    FULL-HD AF ZOOM CAMERA Operating Instructions Power Supply Connection Camera can work with either 24VAC or 12VDC, dual voltage power. Primary and secondary grounds are completely isolated to avoid the possible ground-loop problems. In case that HD-SDI/EX-SDI Inputs are not supported in Monitor, please use HD-SDI/EX-SDI Converter to connect HD-SDI cable with Monitor Some computer monitors or TVs may not support 30p/25p.
  • Page 12 FULL-HD AF ZOOM CAMERA Operating Instructions OSD menu Startup Press ‘●’(OSD menu Joy stick key) down for about 2 seconds to access the setup menu mode. Lens Initializing is strongly recommended at the first stage of setup menu control. ZOOM/FOCUS > LENS INIT > Press the joystick ‘☟’straight down for about 2 seconds.
  • Page 13 FULL-HD AF ZOOM CAMERA Operating Instructions SAVE & EXIT – Exits the menu after saving the parameters. EXIT EXIT – Exits the menu without saving the menu. 1. ZOOM/FOCUS ZOOM / FOCUS FOCUS MODE ZOOM PUSH D-ZOOM HOME POSITION LENS REFRESH ☟...
  • Page 14 FULL-HD AF ZOOM CAMERA Operating Instructions HOME POSITION O-ZOOM RATIO OZ X2.0 DURATION 5sec RETURN 1-4. LENS REFRESH (default: OFF) : LENS REFRESH can be set to 1~10day and performs the scheduled LENS Initialization automatically. Every initialization occurs when the time reaches the scheduled time after setup or power up.
  • Page 15 FULL-HD AF ZOOM CAMERA Operating Instructions EXPOSURE MODE AUTO BRIGHTNESS DAY |:::::::|::::::| 10 |::::::|:::::::| 8 BRIGHTNESS NIGHT SENS-UP |:::::::|::::::| 10 MOTION DEBLUR RETURN • AUTO: Optimizes the video level by controlling the iris and the shutter speed automatically. • IRIS Priority: Selects to fix IRIS in a certain apperture and the video level is controlled by an automatic shutter control.
  • Page 16 FULL-HD AF ZOOM CAMERA Operating Instructions 2-6. MOTION DEBLUR (default: ON) : ON enables MOTION DEBLUR to reduce the motion blur in a certain indoor enviroment. Noise or color rolling can increase. 3. SCENE ENHANCE 3-1. NORMAL (default) : Optimized for the normal indoor and outdoor in the good lighting condition. 3-2.
  • Page 17 FULL-HD AF ZOOM CAMERA Operating Instructions 5. DAY / NIGHT DAY/NIGHT is used to control the setting during day-time and night-time operation. Select the mode according to the light condition and the camera types. SMART IR can be set to reduce the saturation by the strong IR illumination in the night in any menu.
  • Page 18 FULL-HD AF ZOOM CAMERA Operating Instructions • D↔N DELAY (0~60s): Sets the delay time when the camera switches from/to DAY(color) or NIGHT(B/W). • SMART IR : SMART IR can be set to reduce the saturation by the strong IR illumination in the night in any menu of EXT, AUTO and B/W(NIGHT).
  • Page 19 FULL-HD AF ZOOM CAMERA Operating Instructions 6-1. WHITE BAL (default: ATW) : ATW, ATWext, ONE PUSH and MANUAL are available for the white balance modes. • ATW: White balance is continuously working along with the color temperature changes in the range of 2,000K~8,500K. •...
  • Page 20 FULL-HD AF ZOOM CAMERA Operating Instructions 7-2. PRIVACY : 10 Privacy zones which can be enabled individually by ZON DISP are available to mask the video. • ZONE NUM : Set a number to select a privacy zone from 1~10. •...
  • Page 21 FULL-HD AF ZOOM CAMERA Operating Instructions ※SMART MOTION ZOOM doesn’t work at low light condition and BW. • STAY ZOOMING : Sets the duration time for zooming by Motion. NOTICE : SMART MOTION ZOOM does not work at low sensitivity and B/W mode. CAUTION •...
  • Page 22 FULL-HD AF ZOOM CAMERA Operating Instructions • ZOOM RATIO : ON enables to display the zoom ratio on the bottom right corner. OZx.x appears during the optical zoom and DZx.x will display by multiplying the optical zoom ratio and the actual digital zoom ratio. •...
  • Page 23 FULL-HD AF ZOOM CAMERA Operating Instructions • O-ZOOM RATIO: Set the Optical Zoom Ratio from OX 1.1~OX3.0 (~OX2.4) • D-ZOOM RATIO: Set the Digital Zoom Ratio from DX 1.1~DX5.0 • STAYING ZOOMING : Sets the duration time for preset zoom area. 8.
  • Page 24 FULL-HD AF ZOOM CAMERA Operating Instructions Detail Function Description ▐ SMART MOTION ZOOM SMART MOTION ZOOM enlarges the certain area defined by a yellow window to the full sized image when the motion is detected in the black window. SMART MOTION ZOOM window can be re-sized by adjusting D-ZOOM RATIO and moved by H-POS and V-POS UNLIKE the conventional zoom which can zoom in/out the center area of image only, by the flexible zoom location and area, SMART MOTION ZOOM differentiates...
  • Page 25 FULL-HD AF ZOOM CAMERA Operating Instructions ▐ POINTING ZOOM This camera has a very useful and powerful feature, POINTING ZOOM, which can zoom in/out any area. UNLIKE the conventional zoom which can zoom in/out the center area of image only, by the flexible zoom location and area, POINTING ZOOM differentiates its usefulness from others.
  • Page 26 FULL-HD AF ZOOM CAMERA Operating Instructions * EXAMPLE OF SMART MOTION & POINTING ZOOM [ At the ATM nearby ENTERANCE ] [ At the LOBBY ]...
  • Page 27 FULL-HD AF ZOOM CAMERA Operating Instructions Setting for Zoom Function with PTZ Controller ● Enter the MENU : Press buttons 9+5+PSET (PRESET) ● Set the Preset Zoom : Press buttons 1(or ~4)+PSET (PRESET) ● Move the cursor in the MENU : Moves UP/DOWN/LEFT/RIGHT Joy stick ●...

  • Page 28: Specifications

    FULL-HD AF ZOOM CAMERA Specifications ITEM HDC-2080Z03 D HDC-2180Z03 D Imaging Sensor Panasonic 1/3" Progressive Scan CMOS Sensor Effective Pixels 1,944(H) x 1,092(V) Min.Illumination 0.0008 Lux (@AGC MAX, DSS x2) Video Resolution 1920x1080 (30p/25p) TV System EU(PAL) Sync. System Internal...
  • Page 32 Videor E. Hartig GmbH Exclusive distribution through special- ised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
