Summary of Contents for Eneo HDC-2080CS

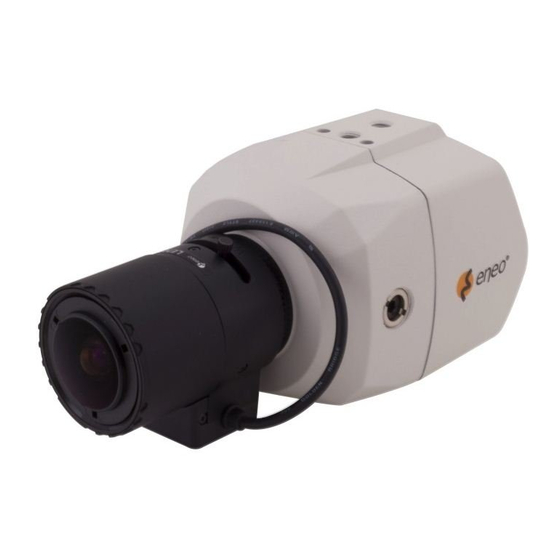

- Page 1 INSTALLATION AND OPERATION MANUAL HDC-2080CS...
-
Page 2: Table Of Contents
Table of contents 1. Safety Instructions and Notes…....................... 2. General Descriptions................……………………………... 3. Supplied Items..................……………………………... 4. Part names…………………………….…...........…………………………... 5. Installation Instructions..................……………………... 6. Setup Menu ……………................…………………………... 7. Specifications ………………………………………………..............8. Dimensional Drawings ……………………………………………............ - Page 3 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. The symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the unit. The symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"...
-
Page 4: Safety Instructions And Notes
1. Safety Instructions and Notes • Please read this safety and operating instructions before putting the camera into operation. • Keep the manual in a safe place for later reference. • Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in. -
Page 5: Supplied Items
• Day & Night Simulation • Scale down the image to 720p without loss of field of view • Top performance at low light sensitivity(Sense-up On) • LSC(Lens Shade Compensation) • RS-485(Pelco-D) • OSD MENU Control • Easy & Stable Back Focus adjustment. •... -
Page 6: Part Names
4. Part Names 4.1 Front view ② ① ③ ④ ⑥ ⑤ Front Body ① Mount Hole (Top and Bottom) ② Rear Body ③ Back Focus Adjustment ④ Lens connector for auto iris lens ⑤ Dust Protection Cap ⑥... - Page 7 - Lens Connector for Auto-iris lens (DC Drive) PIN 4 PIN 2 PIN No DC Iris Damp(-) Damp(+) Drive(+) PIN 3 PIN 1 4.2 Rear side view ⓑ ⓐ ⓓ ⓒ ⓔ OSD menu switches (Up/ Down/ Left/ Right / Enter) ⓐ...
-
Page 8: Installation Instructions
5.1. Attaching the lens • Remove the Dust Protection cap from the lens mount • Screw the lens onto the camera firmly. • Plug the lens plug into the lens connector 5.2. Setting the back focus The proper back focus adjustment is essential for the motorized zoom lens to get the all time sharp focus when zooming in and out by the remote control. - Page 9 5.4 Commissioning • Connect power supply to the power terminal on the rear panel of camera firstly • Plug the power adaptor to the mains supply secondly • Power indicator LED will be lit • The camera is ready for operation 5.5 Power Supply Connections Camera can work with either 24VAC or 12VDC, dual voltage power.
-
Page 10: Setup Menu
6. Setup Menu Setup menu can be accessed and controlled by OSD control joy stick at the back of camera. Five commands are available with the joy stick. Picture of OSD may differ by the models. SYMBOL descriptions for joystick operation; Joy stick -▲,▼,◀,▶... - Page 11 6.2 MAIN menu Press ● to enter the setup menu for about 1 second. ↵ MENU V3.01 1. EXPOSURE ↵ DC↵ 2. LENS 3. FOCUS ADJ. 4. SCENE ENHANCE NORMAL 5. 3D-NR ↵ 6. DAY/NIGHT AUTO↵ ↵ 7. PICT ADJUST ↵...
- Page 12 Sets DAY / NIGHT to EXT, AUTO, COLOR and B/W. SMART IR can be set to reduce the saturation by the strong IR illumination in the night in any menu of EXT, AUTO and B/W(NIGHT) Setting SMART IR in any menu is identically applied to other menu. Zero(0) turns off SMART IR and High setting avoids the saturation strongly but the corners will be darker accordingly.
- Page 13 6.3 EXPOSURE EXPOSURE SHUTTER AUTO BRIGHTNESS |:::::::|::::::| 10 SENS-UP |::::::::|:::::| 12 RETURN RET↵ EXPOSURE Default Descriptions Can set EXPOSURE MODE to AUTO, MANUAL and Flickerless. AUTO – Optimizes the video level by controlling the iris and the shutter speed automatically. MANUAL –...
- Page 14 6.4 LENS MANUAL MODE OUTDOOR MODE DEBLUR RETURN RET↵ RETURN RET↵ Lens Default Descriptions Lens can be selected either DC or MANUAL lens. Lens MUST be set to DC for the best image when DC iris lens is installed. OURDOOR DC or MANUAL- OUTDOOR, INDOOR, DEBLUR IR LED type Select lens mode according to installation place.
- Page 15 6.5 FOCUS ADJ. Usually cameras are installed in the day time and FOCUS ADJ. they often become OUT OF FOCUS at night time and IN FOCUS again at next day time. This problem can occur at any cameras regardless of types or manufacturers. DN DWELL FOCUS ADJ.
- Page 16 6.7 PICT ADJUST PICTURE WHITE BAL |:::::::|::::::| 10 SHARPNESS COLOR GAIN |:::::::|::::::| 10 GAMMA 0.50 SHADING RETURN RET↵ PICTURE Default Descriptions ATW, ATWext, ONE PUSH and MANUAL are available for the white balance modes. ATW – White balance is continuously working along with the color temperature changes in the range of 2,000K~8,500K.
- Page 17 6.8 SPECIAL PICTURE MIRROR/FLIP PRIVACY MOTION ↵ PIXEL DEFECT ↵ TITLE SET DISPLAY DEFOG POINTING ZOOM RETURN RET↵ SPECIAL Default Descriptions Reverses the video left and right and/or up and down by MIRROR/FLIP. OFF - Normal display without mirroring or flipping Hor.
- Page 18 Detects and compensates the white pixels which becomes defective. Once CALIBRATE is selected, the pixel calibration is initiated with lens closed and can’t cancel. THRESHOLD – Defines the level of detection and low value detects more pixels. Be sure to set the value so that the pixels are uniformly blinking PIXEL DEFECT over the entire screen.
- Page 19 6.8.1 SMART MOTION ZOOM SMART MOTION ZOOM crops and enlarges the certain area defined by a yellow window to the full sized image when the motion is detected in the black window. SMART MOTION ZOOM window can be re-sized by adjusting D-ZOOM RATIO and moved by H-POINTER and V-POINTER.
- Page 20 6.8.2 POINTING ZOOM This camera has a very useful and powerful feature, POINTING ZOOM, which can zoom in/out any area. UNLIKE the conventional zoom which can zoom in/out the center area of image only, by the flexible zoom location and area, POINTING ZOOM differentiate its usefulness from others. That is, a conventional camera installed on the corner of ceiling can zoom the center of the floor in a room and result in losing the image of door on the side wall.
- Page 21 6.9 SYSTEM SYSTEM US(NTSC) TV SYSTEM ↵ 1080P RESOLUTION COMM. SETUP ENG☟ LANGUAGE FACTORY DEFAULT RETURN RET↵ SYSTEM Default Descriptions Selects HDTV standards for US(NTSC) or EU(PAL). TV SYSTEM By this selection, 2 analog video output switches to NTSC or PAL accordingly. 1080P and 720P are available.
-
Page 22: Specifications
. Specifications HDC-2080CS Imaging Sensor Sony Exmor 1/2.9" Progressive Scan CMOS Sensor Effective Pixels 1,936(H) x 1,097(V) Min. Illumination 0.0005 Lux @ (AGC MAX, DSS x2) Output Video Resolution 1,920x1,080 30p/25p TV system EU(50Hz)(switchable to US(60Hz)) Sync. System Internal Format 16:9 Video format for most popular commercial HDTV monitors Video-out 1.485Gbps HD-SDI (SMPTE 292M) thru 75Ω... - Page 23 External Dimension 74mm x 72mm x 89mm, 300g Power Source 24VAC/12VDC DUAL POWER, 300mA Circuit protection against faulty connection Isolated power supply against ground loop problem ● Design and specifications are subject to change for product improvements without prior notice.
-
Page 24: Dimensional Drawings
8. Dimensional Drawings (Unit: mm)
