Eneo GXC-1605M User Manual

1.3/2.0/3.0 mega-pixel ip camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

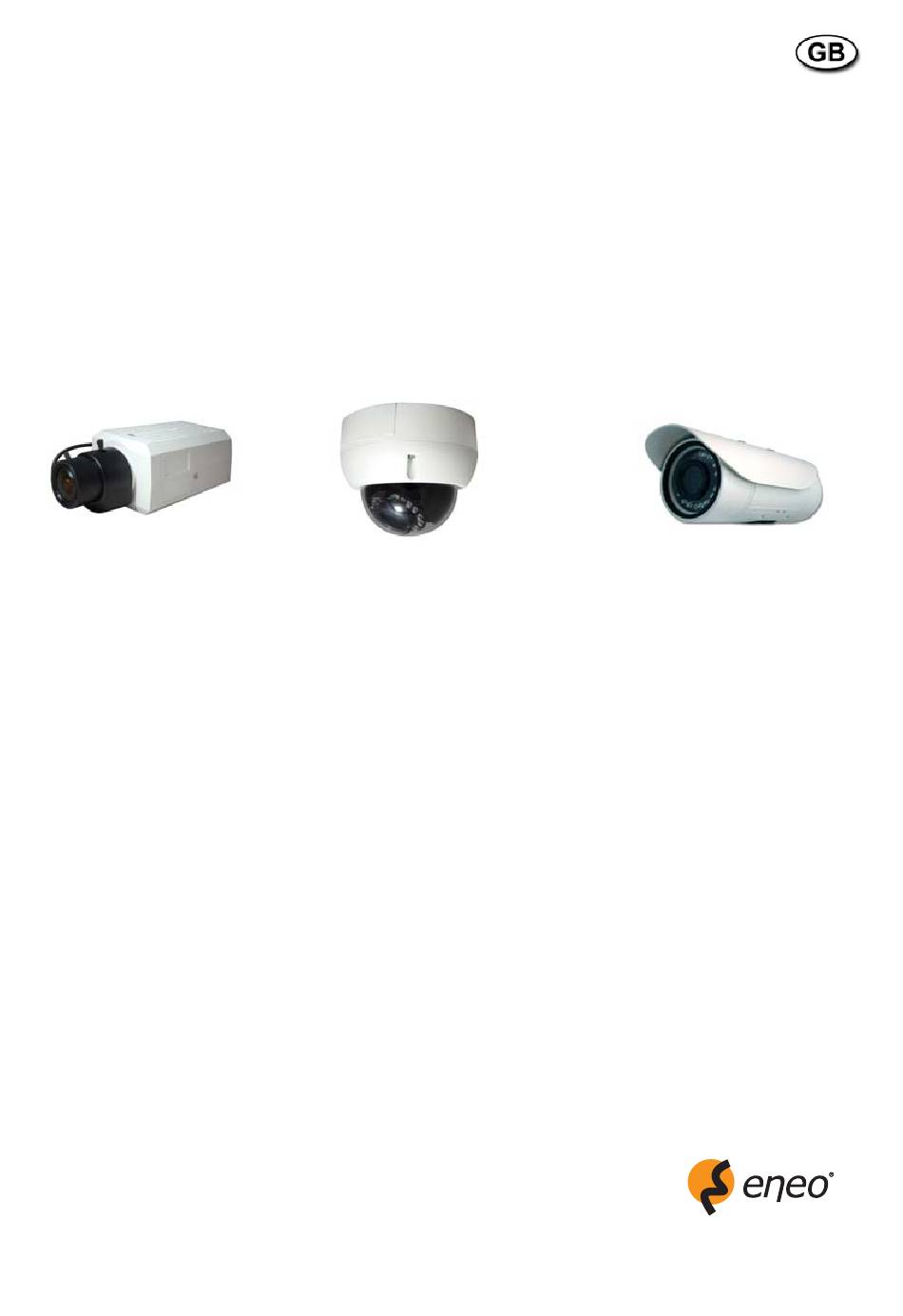

User Manual
1.3/2.0/3.0 Mega-Pixel IP Camera
GXC-1605M
GXC-1710M
GXC-1720M
GXD-1610M/IR
GXD-1710M/IR
GXD-1720M/IR
1
GXC-1606M/IR
GXB-1710M/IR
GXB-1720M/IR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GXC-1605M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eneo GXC-1605M

Summary of Contents for Eneo GXC-1605M

  • Page 1 User Manual 1.3/2.0/3.0 Mega-Pixel IP Camera GXC-1605M GXD-1610M/IR GXC-1606M/IR GXC-1710M GXD-1710M/IR GXB-1710M/IR GXC-1720M GXD-1720M/IR GXB-1720M/IR...
  • Page 2 Betriebsanleitung Installation and Operating Instructions Mode d’emploi Instrukcja instalacji i obsługi...

  • Page 3: Table Of Contents

    Table Of Contents SAFETY PRECAUTIONS ................5 1. PRODUCT FEATURES................6 1.1 P ..............6 RODUCT NSTRUCTIONS 1.2 P ................8 RODUCT EATURES 2. DESCRIPTION OF THE SURFACE ............9 2.1 T IP B E)..............9 AMERA 2.2 T IP I E)......11 IXED NDOOR UTDOOR 2.3 T IP C E)......12 ULLET...
  • Page 4 4.4 TCP/IP I ...............28 NSTALLATION 4.5 TCP/IP ............29 CONFIGURATION SETTING 4.6 C ...............30 ONNECTION ESTING 5. Operating Instructions for Image Software and Network....32 5.1 M ............33 ICROSOFT NTERNET XPLORER 5.1.1 Connecting the IP camera ........................33 5.1.2 Live Video ............................34 5.1.3 Setup..............................38 6.

  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS All the following safety and operational instructions to prevent harm or injury to the operator(s) or other persons should be read carefully before the unit is activated. WARNING To prevent fire or shock hazard, avoid exposing this unit to rain or moisture. Do not block ventilation openings.

  • Page 6: Product Features

    1. PRODUCT FEATURES 1.1 Product Instructions The 1.3 mega-pixel IP camera series is a high performance mega-pixel network camera which is equipped with a high resolutions SONY 1.3M CMOS sensor and a resolution of up to 1280 x 1024 (SXGA). This powerful new series enables you to see fresh images in fine detail aided by a spectrum of high resolutions plus WDR technology that combats problems like capturing images against backgrounds of bright light.
  • Page 7 The 3.0 mega-pixel IP camera series is a high performance mega-pixel network camera which is equipped with a high resolutions SONY 3M CMOS sensor and a resolution of up to 2048 x 1536. This powerful new series enables you to see fresh images in fine detail aided by a spectrum of high resolutions.

  • Page 8: Product Features

    H.264 compression Currently, the H.264 is the most common and dynamic video compression format and a powerful compression codec which delivers superior image quality at a low bit rate. 3GPP Users can view a live scene via the Internet with a 3GPP installed mobile phone. (Note: The 3G network bandwidth is limited;...

  • Page 9: Description Of The Surface

    2. DESCRIPTION OF THE SURFACE 2.1 The IP Box Camera (PoE) Front Panel and Rear Panel: -- Front Panel -- -- Rear Panel -- 1/4＂-20UNC 1. Light Sensor: Registers the quality of light in the camera’s environment, and controls the iris shuttle to provide better information concerning the light.
  • Page 10 Flank Panel: IRIS 1.ALM-OUT A 7.RS-485:D+ 1. AES 2.ALM-OUT B 8.RS-485:D- 2. DC IRIS 3.ALM-IN + 9.DC-OUT(5V) 4.ALM-IN - 10.GND 3. DHCP 5.ALM-RST + 11.AUDIO-IN 4. STATIC IP 6.ALM-RST - 12.AUDIO-OUT 1. IRIS: Auto iris connector. This camera works with a DC drive auto iris lens. Please refer to the pin assignment marked on the camera when connecting the auto iris lens 2.

  • Page 11: The Fixed Ip Indoor/ Outdoor Mini-Dome (Poe)

    2.2 The Fixed IP Indoor/ Outdoor Mini-Dome (PoE) 4 5 6 4 5 6 Power Input: DC 12V input connects to an external power supply. Power Input: AC 24V input connects to an external power supply. ETHERNET 10/100 Connector: This is a standard RJ-45 connector for 10/100 Mbps Ethernet networks.

  • Page 12: The Bullet Ip Camera Indoor/ Outdoor (Poe)

    2.3 The Bullet IP Camera Indoor/ Outdoor (PoE) The component parts ( the internal view ). Dismantle the bullet IP camera to see its different parts. The picture here shows you the internal component items making up the product. SCREWS SUN SHIELD SD PCB LENS FAN...
  • Page 13 The PCB board: 9 10 Plug Inlet: An AC 24V inlet that connects to an external power supply. ETHERNET 10/100 Connector: This is a standard RJ-45 connector for 10/100 Mbps Ethernet networks. PoE (Power over Ethernet) function: Provides power to the device via the same cable as used for the network connection.

  • Page 14: The Reset Button

    2.4 The Reset Button The Reset Button will bring the IP camera back to its factory default settings. Press the Reset Button for about 10 seconds. A Blue screen will be displayed and a text that says “RESETTING…” will appear. The device will then auto reboot. All settings will then be back to default. The following items will return back to default.

  • Page 15: The Alarm Wiring Diagrams

    2.5 The Alarm wiring diagrams   The IP Box Camera (PoE) +12V +12V...
  • Page 16   The Fixed IP Indoor/ Outdoor Mini-Dome (PoE) +12V +12V...
  • Page 17   The Bullet IP Camera Indoor/ Outdoor (PoE) +12V +12V...

  • Page 18: The Usb Function

    2.6 The USB function The IP camera can provide two separate functions by connecting the IP camera with a PC via the USB connector. 1. Using an SD card as a card reader. Insert an SD card into the IP camera and then connect to the PC. You may then transfer files between the SD card and the PC.

  • Page 19: Installation

    3. INSTALLATION Please follow the instructions and the diagram below to set up the system. NOTE: The IP camera is linked by its Video Out connection via a BNC connector to a monitor's Video In connection. If this connection is there, you can see some information on the monitor screen, such as the IP camera factory default Static IP address (192.168.1.10).

  • Page 20: The Installation Of The Fixed Ip Indoor Mini-Dome (Poe)

    3.2 The Installation of the Fixed IP Indoor Mini-Dome (PoE) Attaching the dome via the flank. Step 1. Fix the iron base to the ceiling with Step 3. Insert the cable in the flank port. the nails and the nylon nails. Step 4.

  • Page 21: The Installation Of The Fixed Ip Outdoor Mini-Dome (Poe)

    3.3 The Installation of the Fixed IP Outdoor Mini-Dome (PoE) Attaching the dome via the flank. Step 1. Fix the iron base to the ceiling with the Step 4. Insert the cable in the flank port. nails and the nylon nails. Step 5.

  • Page 22: Placing A Desiccant Pack Inside The Camera

    3.4 Placing a Desiccant Pack Inside the Camera The outdoor mini-dome/ bullet camera comes with a desiccant pack which is placed inside the camera using a two-sided adhesive tape. The desiccant pack is for reducing the moisture and humidity content inside the camera and prevents moisture from condensing on the lens or its cover. If the user decides to remove the camera cover after more than a few months of camera use, remove the used desiccant pack as well and place the replacement pack inside the camera.

  • Page 23: Updating System Software

    3.5 Updating System Software If the system software of the IP Camera needs to be upgraded, please take the following steps to safely process it. Important: Before carrying out the following procedures, please ensure the SD card is working and the file of the system firmware is intact Create a directory named UPGRADE (upper-case or lower-case letters are no difference) in the SD card if it does not exist.

  • Page 24: Network Configuration

    4. Network Configuration 4.1 Cable Connections Please follow the instructions below to connect your IP camera to a computer or a network and to choose a proper RJ-45 cable configuration for connections. Physical specifications of the RJ-45 cable for Ethernet Cat.

  • Page 25: Configure Your Ip Camera Network Settings

    4.2 Configure Your IP Camera Network Settings Upon connecting with the network hardware, you need to activate the network function and configure the proper network settings of the IP camera. 4.2.1 Enable DHCP Function Note: The IP Camera default setting is DHCP ON. Users can obtain an IP address automatically from the DHCP server.

  • Page 26: Tcp/Ip Communication Software

    4.3 TCP/IP Communication Software Follow the procedure below to install the TCP/IP communication program in your computer. Click Start, and then click Control Panel. Double click the Network Connections icon to enter the windows. Right-click your network connection and then click Properties.
  • Page 27 On the General tab, check if the Internet Protocol (TCP/IP) is included in the list. If the TCP/IP is included, please process section 4.5. If it is not included, please follow section 4.4 to install the TCP/IP.

  • Page 28: Tcp/Ip Installation

    4.4 TCP/IP Installation On the General tab of the Connection Properties, under “This connection uses the following items”, click Internet Protocol (TCP/IP). Then click Install. Select Protocol from the network component type then click Add. Select Microsoft TCP/IP from the network protocol then click OK. Click Close to return to the Network Connections window.

  • Page 29: Tcp/Ip Configuration Setting

    4.5 TCP/IP configuration setting Click Start > Control Panel > Network Connections. Select Internet Protocol (TCP/IP), and then click Properties. Before processing the IP camera installation in a WAN, please make sure the Internet connection works properly. If not, please contact your ISP provider. 　...

  • Page 30: Connection Testing

    4.6 Connection Testing With the previous settings, follow the instructions below to ensure whether you have established the connection successfully. Click Start > All Programs > Command Prompt. Enter ping XXX.XXX.XXX.XXX (the camera’s IP address), then enter. (See the sample screen below).
  • Page 31 If you receive a response as in the sample screen below, the connection hasn’t been successfully established. Please re-check all the hardware and software installations by repeating sections 4.4 and 4.5. If you still can’t establish the connection after rechecking, please contact your dealer.

  • Page 32: Operating Instructions For Image Software And Network

    5. Operating Instructions for Image Software and Network Two choices of software are available for linking with the IP camera: (1) the Microsoft Internet Explorer; and (2) the IP camera viewer software, a network browser in a PC which provides the functions of monitoring remote zones or watching recorded data through the TCP/IP protocol.

  • Page 33: Microsoft Internet Explorer

    5.1 Microsoft Internet Explorer 5.1.1 Connecting the IP camera Start up the Microsoft Internet Explorer, and then follow the steps below to connect the IP camera. Click on the URL block at the top of the window. Enter the URL address of the IP camera into the URL block and press the “Enter” button to enter the home page.

  • Page 34: Live Video

    5.1.2 Live Video The Live Video from the IP camera is displayed on the home page when your PC is online with the IP camera. There are also additional settings provided on the home page. The AJAX (default) and the ActiveX viewer types display different display formats on their home page. The AJAX viewer type: Non-IE browsers support (for the JPEG mode only).
  • Page 35 Alarm on-icon: When there is a detection of external devices such as a sensor, The icon will appear on the upper right corner warn the user. When an alarm is triggered, the icon will blink red...
  • Page 36 The ActiveX viewer type: You can select from the available thumbnails for your option of taking a Snapshot, setting the Storage Folder, selecting the Full Screen mode, Recording, Listen, Talk and Zoom. Snapshot: Click on the button to take a snapshot. The icon will change to a blue color while working effectively.
  • Page 37 icon will change to a blue color while working effectively. Digital output: Click on the button to start/stop digital output. The icon will change to a blue color while working effectively. EPTZ: The Digital Zoom mode. The mode utilizes the high resolution feature of the mega pixel camera to simulate the mechanical functions of the PTZ camera.

  • Page 38: Setup

    5.1.3 Setup Click on the Setup button on the home page to proceed to the advanced settings. 5.1.3.1 Wizard To quickly configure your IP Camera, click Wizard on the top of the Setup pages. This wizard will guide you through a step-by-step process to configure your new camera and connect the camera to the Internet.
  • Page 39 If your Internet Service Provider has provided you with connection settings, or you wish to set a static address within your home network, enter the accurate information for your static IP setting. Click Next to continue. Step 2: If you are using PPPoE, select Enable and enter your user name and password, otherwise select Disable and click Next to continue.
  • Page 40 Step 4: Enter a name for your camera and click Next to continue. Step5: Configure the correct time to ensure that all events will be triggered, captured and scheduled at the right time. Click Next to continue. Step 6: If you have selected DHCP, you will see a summary of your camera’s settings. Please note down all this information as you will need it for accessing your camera within the network.
  • Page 41 5.1.3.2 Change Image Setting Please follow the steps below to change the video setting through the network as necessary. A preview of the image will be shown in the window of Live Video. Click Submit to activate and save your changes. The Image Setup setting page 1.
  • Page 42 3. Adjust the ”Image Settings”, including “AGC”, “Exposure Time“, “Mirror”, “Flip”, “White Balance”, “Brightness”, “Contrast”, “Saturation”, “Sharpness” and “WDR Level” as necessary. 4. Adjust the ”Device Settings” including “Device Name” and “Timestamp”. • Click “Enable OSD” to checkmark the box and activate the function. •...
  • Page 43 Denoise (noise reduction) is the process of removing noise from signals. Denoise The mirror stores the images reflected by it so it can be used for Mirror: surveillance or to simply take your own picture. To flip the camera’s lens 180 degrees. Flip: White balance is the process of removing unnatural shades of color, so that White Balance...
  • Page 44 The Audio and Video setting page 1. Click on the Audio and Video button to enter the Audio and video page to set the details of the device. You may configure video profiles with different settings for your camera. Hence, you may setup different profiles for your computer and mobile displays.
  • Page 45 3. Set the “Mode”, “Frame size”, “Viewer window area”, “Maximum frame rate” and “Video quality” of the Video Profile as necessary. 4. Set the details of the audio functions. 5. Select 50 Hz or 60Hz of the Power Line. 6. Click on the Submit button to submit the new setting. Description of function keys: Select the Profile Number from 1-3 and the default video profile Profile Number...
  • Page 46 3.0 Mega-pixel: 4:3 - “2048x1536”, “1600x1200”, “1024x768“, “800x600”, “640x480”, “480x360”, “320x240” and “176x144”. 16:9 - “1920x1080”, “1280x720”, “800x450”, “640x360”, “480x270”, “320x176” and “176x144”. In the H.264 and the MPEG4 mode, if there is little motion and most Intra Frame Period: of the video content does not change from frame to frame, the H.264 and the MPEG4 encoding can compress the video by intra-frame way to keep the quality from loss.
  • Page 47 NOTE: Audio In/Out: In order to use the Audio In/ Out signal function, please follow the steps given below. Connect to the camera webpage over the PC IE Browser. Ensure “Audio Mechanism Setting” & “Enable audio out” are both selected. Click Submit. Connect the Mic to the PC, and connect the camera Audio out to the speaker.
  • Page 48 The Privacy Mask setting page Click on the Privacy Mask button to enter the Privacy Mask Area setting page. Mask 3 privacy area(s) on video to specify up to the area(s) on the camera's image to be blocked/excluded from recordings and snapshots. 1.
  • Page 49 5.1.3.3 Change the Network Setting Please follow the steps below to change the network setting through the network as necessary. Set the network options and IP address. Click on the Network button in the home page to enter the Network Setup page. The accessible networks here are the “PPPoE”, “Port Detail”, ”Traffic”, “Dynamic DNS”, “HTTPS”...
  • Page 50 Change the Network Setting — PPPoE. The “Network” page has, on its upper left, the “PPPoE” icon. Please follow the steps below to change the PPPoE setting through the network as necessary. Click on the PPPoE button on the upper left menu to enter the “PPPoE Settings” page. Active the “Enable”...
  • Page 51 Change the Network Setting — Port Detail. The “Network” page has, on its upper left, the “Port Detail” icon. It allows you to specify and reserve the ports for both the HTTP and RSTP streaming. Please follow the steps below to change the Port Detail setting through the network as necessary.
  • Page 52 Description of function keys: HTTP ports allow you to connect to the camera via a standard web HTTP Port browser. This port can be set to a number other than the default HTTP port 80. A corresponding port must be opened on the router. For example, if the port is changed to 8080, users must type in the web browser 'http://192.168.0.100:8080' instead of 'http://192.168.0.100'.
  • Page 53 Change the Network Setting —Network Traffic. The “Network” page has, on its upper left, the “Traffic” icon. Specifying the maximum download/upload bandwidth for each socket is useful when connecting your device to a busy or heavily loaded network. Please follow the steps below to change the setting through the network as necessary. 1.
  • Page 54 Change the Network Setting — DDNS. The DDNS (Dynamic Domain Name Server) will hold a DNS host name and synchronize the public IP address of the modem when it has been modified. The user name and password are required when using the DDNS service.
  • Page 55 Description of function keys: Checkmark to activate the function. Enable DDNS Function: (The Domain Name System) is an Internet service that translates domain names into IP addresses (i.e. 192.168.0.20). The address can be obtained from your ISP or network gateway. Select your Dynamic DNS provider from the pull down menu or enter the Server Address: server address manually.
  • Page 56 Change the Network Setting — HTTPS. The “Network” page has, on its upper left, the “HTTPS” icon. Please follow the steps below to change the HTTPS setting through the network as necessary. Click on the HTTPS button on the upper left menu to enter the “HTTPS Setting” page. Mark the “Enable HTTPS secure connection”...
  • Page 57 Methods of creating and installing the certificate: 1. Create self-signed certificate automatically Before using HTTPS for communication with the IP camera, a Create self-signed certificate automatically: (1) Enable HTTPS secure connection. (2) Select the “Create self-signed certificate automatically” option. (3) Click the Create button. (4) The new Certification Information will show in the third column on the HTTPS setting page.
  • Page 58 Change the Network Setting —Access List. The “Network” page has, on its upper left, the “Access List” icon. Please follow the steps below to change the Access List setting through the network as necessary. 1. Click on the Access List button on the upper left menu to enter the “Access List” page. 2.
  • Page 59 Deny List: The starting IP Address of the devices (such as a computer) which don’t Start IP Address have permission to access the video of the camera. The ending IP Address of the devices (such as a computer) which don’t End IP Address have permission to access the video of the camera.
  • Page 60 5.1.3.4 Change the System Setting Please follow the steps below to change the date and time of the system setting through the network as necessary. Set the Time and Date of the system 1. Click on the System button to enter the “Time And Date” page (default). From this section, you may automatically or manually configure, update and maintain the internal system clock for your camera.
  • Page 61 Description of function keys: Select your time zone from the drop-down menu. Time Zone: Select this to enable the daylight saving time. Enable Daylight Saving: Select this option so that your camera will configure the Auto Daylight Saving: Daylight Saving setting automatically. Select this option so that you may configure the Daylight Set date and time manually: Saving date and time manually.
  • Page 62 Change the System Setting — Digital Input &Output. You may enable the Digital Input (D/I) and Digital Output (D/O) feature and configure the source of events for your camera. 1. Click on the DI and DO button on the left side of the “System” page to enter the “DI and DO” page. 2.
  • Page 63 Change the System Setting — ICR. Please follow the steps below to change the IR cut function through the network as necessary. Click on the ICR button on the left side of the “System” page to enter the “ICR” page. For the “IR-Cut Removable filter trigger condition”, mark your options from “Automatic”, “Day Mode”, “Night Mode”...
  • Page 64 Change the System Setting — RS485 Setting (for the IP Box Camera only) You may configure the RS-485 settings or communication specifications (baud rate, data bit, stop bit, and parity bit) for your camera. The RS-485 is a serial communication method for computers and devices.
  • Page 65 odd parities, the serial port sets the parity bit (the last bit after the data bits) to a value to ensure that the transmission has an even or odd number of logic-high bits. For example, if the data is 011, for even parity, the parity bit is 0 to keep the number of logic-high bits even.
  • Page 66 Change the System Setting — Users. You may modify the name and administrator’s password of your camera, as well as add and manage the user accounts for accessing the camera. You may also use this section to create the unique name and configure the OSD setting for your camera.
  • Page 67 Change the System Setting — Maintenance. Please follow the steps below to change the system setting through the network as necessary. Click on the Maintenance button on the left side of the “Date and Time” page to enter the “Maintenance” page.
  • Page 68 Change the System Setting — Update Firmware. Please follow the steps below to update the firmware through the network as necessary. Click on the Firmware Upgrade button on the left side of the “Date and Time” page to enter the “Firmware Upgrade”...
  • Page 69 1. Quit Internet Explorer and quit any instances of Windows Explorer. 2. Click Start, click Control Panel, and then double-click Internet Options. 3. On the General tab, click Delete Files under Temporary Internet Files. Select the Delete all offline content check box in the Delete Files dialog box, and then click 5.
  • Page 70 5.1.3.5 Change the Application Setting Please follow the steps below to change the application setting through the network as necessary. Change the Application Setting —Language Setting. Please follow the steps below to change the Language setting via the network as necessary. Click on the Language button on the left side to enter the “Language Setting”...
  • Page 71 Change the Application Setting —Motion Detection. Please follow the steps below to enable changes in the motion detection function of the alarm through the network as necessary. Set the motion detection: Click on the Motion Detection button on the left side of the Alarm to enter the “Motion Detection”...
  • Page 72 Change the Application Setting —Event. In this section, you can configure and schedule the recording setting for your IP camera. Click on “Add” to enter the setting pages of the Server, Media, Event and Recording to make the advanced settings. Or click on “Delete” to erase the settings. The Event Setup page includes 4 different sections: Server, Media, Event and Recording.
  • Page 73 Server: Click on the Add button in the Server column to enter the “Server” setting page. Enter the Server name, the unique name for a server. There are four kinds of servers supported. They are email server, FTP server, HTTP server and network storage. Set the details of the Email.
  • Page 74 for uploading. "Passive Mode": Check it to enable the passive mode in transmission. Set the details of the Network storage. Only one network storage is supported. "Network storage location": The path to upload the media. "Workgroup": The workgroup for network storage. Click on the SD card to activate the function.
  • Page 75 FTP: Select to send the media files to an FTP server when a trigger is activated. Server address: Enter the domain or IP address of the FTP server. Port: The default FTP server port is 21. It can also be assigned to another port number.
  • Page 76 SD card: Select to send the media files to an SD card when a trigger is activated. Insert your SD card first. To verify if the storage setting is correctly configured, click the Test button. The result will be shown in above this setting page (TEST OK or TEST ERROR).
  • Page 77 Media: Click on the Add button in the Media column to enter the “Media” setting page. Enter the Media name, the unique name for media. There are three kinds of media: snapshot, video clip and system log. Set the details of the Snapshot. "Source": Select the video source.
  • Page 78 "Maximum duration": The maximum recording file duration in seconds. "Maximum file size": The maximum file size would be generated. Click on the System log to activate the function. Click on “Submit” to save, or click on “Don’t Submit” to go back to the Event main page. Media settings: Click Add under the Media column on Event Settings page to open the Media setting page.
  • Page 79 Snap_20090101_122030 The prefix file name Date and time suffix The format is: YYYYMMDD_HHMMSS Add date and time suffix to file name: Select the option to add the date/ time suffix to the file name. Click Submit to activate the setting. Video Clip: Select to send video clips when a trigger is activated.
  • Page 80 System log: Select to send a system log when a trigger is activated. Click Submit to activate the setting. When completed, click Submit to enable the settings to exit this page. The new media settings will appear on the Event Settings page. NOTE: To remove a media setting from the list (Application>...
  • Page 81 Event: Click on the Add button in the Event column to enter the “Event” setting page. Enter the Event name. Checkmark the “Enable this event” box and activate the function. Then set the Priority and the Source from the drop-down list. "Priority": The event with higher priority will be executed first.
  • Page 82 Click on “Submit” to save or click on “Don’t Submit” to go back to the Event main page. Event settings: Click Add under the Event column on Event Settings page to open the Event setting page. On this page, you can arrange three parts –Trigger, Event Schedule, and Action to set an event.
  • Page 83 device or sensor as a trigger source. Depending on your application, there are many choices of digital input devices on the market which helps to detect changes in temperature, vibration, sound, and light, etc. System boot: This option triggers the IP camera when the power to the IP camera is disconnected.
  • Page 84 Recording: Click on the Add button in the Recording column to enter the “Recording” setting page. Enter the Recording entry name. Checkmark the “Enable this recording” box and activate the function. Enable this option if you want to upload the recording to a shared folder in the network.
  • Page 85 Record settings: Click Add under the Record column on Event Settings page to open the Record setting page. In this page, you can define the recording source, recording schedule and recording capacity. A total of 2 recording settings can be configured. Enter the Record entry name for the event setting.
  • Page 86 5.1.3.6 Change the Storage Setting Please follow the steps below to change the SD card setting through the network as necessary. Change the SD card Setting. Please follow the steps below to change the setting via the network as necessary. Click on the “storage”...
  • Page 87 5.1.3.7 Status The device information. This page displays all the information about your device and network connection. Click on the “Device info” button of the Status page to enter the “Device info” screen.
  • Page 88 The device information. This page displays the log information of your camera. Click on the “Device info” button of the Status page to enter the “Device info” screen. Click on the “Clear “ to erase all of the logs. You may also download the information by clicking “Download”.
  • Page 89 5.1.3.8 PPPoE & DDNS Using the PPPoE Install the XDSL software (obtained from your ISP dealer) in your PC. Search your IP camera's IP address: you can connect the IP camera and the Video monitor. The monitor screen will show the IP address on its right side. Turn off the DHCP function (of the IP camera) if it is “ON”.
  • Page 90 Test: Go to the Internet. Set your PC to enter the Internet. Desktop → IE browser → Enter the IP camera IP address (the same address as in the PPPoE settings and step 3 above) → You can see the IP camera images. DDNS settings Check your IP camera’s IP address (monitor) →...

  • Page 91: Advanced Operation

    6. ADVANCED OPERATION Question 1: How do I view live images of the IP camera via the Internet Explorer on a Desktop PC or a laptop computers in a situation where there are no monitors? ◇To get the IP address of the IP camera without a monitor, use one of the following two methods to get the IP address: UPnP and USB function.
  • Page 92 Question 5: How do I use the DynDNS to connect the IP camera by using its Sub Hostname via the intranet? ◇Set the DDNS function 1. Click the Network button on the home page. 2. Click the Dynamic DNS button on the left side of the page to enter the “Dynamic DNS” page. 3.
  • Page 93 ◇Modify the user 1. Click the user name you want to modify from the USER LIST. 2. Enter the password, the confirmed password and choose authority level. 3. Click the Add/Modify User button to submit new setting. ◇Delete a user 1.

  • Page 94: Specifications

    7. SPECIFICATIONS 1.3 Mega-pixel Image sensor 1/3” Sony IMX035 CMOS sensor The IP box camera: 2.9~8.2mm C/CS MOUNT Lens The IP mini-dome & the IP bullet camera: 3.3~12mm Vari-focal board type (VGA type) C/CS mount; Vari-focal board type – Camera Minimum illumination Color: 0.2 Lux @ F1.4;...
  • Page 95 The IP box camera: Push-in: 1 x Alarm input / 1 x Alarm output / 1 X DC output ( 12V DC ) / 1 x Ground / 2 x RS-485 Digital I / O The IP indoor/ outdoor mini-dome & the IP bullet camera: Push-in: 2 x digital input / 2 x digital output / 1 X DC output ( 12V DC ) / 1 x ground 2 x 3.5 mm...
  • Page 96 2.0 Mega-pixel Image sensor 1/2.7” Omni Vision 2M CMOS sensor The IP box camera: CS-MOUNT The IP mini-dome & the IP bullet camera: 3.3~12mm Vari-focal board type (VGA type) Lens 3~9mm Vari-focal board type (MEGA type) The IP bullet camera (fixed lens): 4.0mm/ F1.5, Fixed Iris.
  • Page 97 Recording SD card, SAMBA, FTP Pre-alarm recording Yes. Advanced motion 512 zones. Sensitivity: 0 - 100 %. Motion Detection Alarm Schedule Trigger Alarm input Ethernet loss Network/Remote digital alarm input Notification SD card recording, SMTP, FTP, HTTP, alarm output. RJ-45 10 BASE - T / 100 BASE -TX.
  • Page 98 3.0 Mega-pixel Image sensor 1/2.8” 3M Sony IMX036 CMOS sensor. The IP box camera: 3.1~8mm CS mount Vari-Focal Megapixel Lens Lens The IP mini-dome & the IP bullet camera: Camera 3~9mm Vari-Focal board type Megapixel Lens Minimum illumination Color: 0.2 Lux @ F1.2; B/W: 0.01 Lux @ F1.2 IR cut filer Day &...
  • Page 99 RJ-45 10 BASE - T / 100 BASE -TX. The IP box camera: Push-in: 1 x Alarm input / 1 x Alarm output / 1 X DC output ( 12V DC ) / 1 x Ground / 2 x RS-485 Digital I / O The IP indoor/ outdoor mini-dome &...

  • Page 100: Functions Of Client Pc

    8. Functions of client PC System requirement Windows XP Browser IE 6.x Live Monitor Max. 16 Split, Real Time REC/ Capture/ Audio/ Live Event/ Full Screen Playback Viewer Playback, Time / live event Search / Export (JPEG / AVI) Settings Device/ System/ Camera management/ web page Client PCs One camera can supports 10 simultaneous client PCs.

  • Page 101: Appendix 1. -How To Run Ip Camera Upnp

    APPENDIX 1. –How to run IP Camera UPnP ® The most troublesome issue when you setup an IP Camera is that you have no idea what the IP ® address of this device is. Now IP Camera supports the UPnP (Universal Plug and Play) protocol ®...
  • Page 102 Figure 2 Step 2: When Control Panel appears, double-click the Network Connections icon. The Network Connections dialog box appears. See Figure 3. Figure 3 Step 3: Click the Protocols tab in the Network Connections dialog box. See Figure 4. Figure 4 Step 4: When the Local Area Connection Properties dialog box shows up, choose Internet Protocol (TCP/IP) and click Properties.
  • Page 103 Figure 5 Step 5: In the Internet Protocol(TCP/IP) Properties dialog box, choose Use the following IP Address to indicate that you do not wish to use DHCP, and assign IP Address 192.168.1.200 with Subnet mask 255.255.255.0. Click OK when you finish it. See Figure 6. Figure 6 Step 6: Choose Close to finish the modification.
  • Page 104 2. Install UPnP Packets ® As described before, Microsoft Windows XP doesn’t start the UPnP service by default; however, we have to install some packets before we initialize it. The following steps will help you to install them. Step1: In the Start menu, point to Set Program Access and Default, and then click it. See Figure 8 Figure 8 Step 2: When the Add or Remove Programs dialog box appears, click the Add/Remove...
  • Page 105 Figure 10 Step 4: Check UPnP User Interface, and choose OK. See Figure 11. Figure 11 Step 5: When the original Network Component Wizard dialog box returns, click Next. See Figure12. Figure 12...
  • Page 106 Step 6: After about one minute the UPnP installation will be done, and choose Finish to close it. See Figure13. Figure 13 3. Turn on Services After installation, we should turn on the relative services to start the UPnP protocol. The following procedures will teach you how to do it.
  • Page 107 Figure15 Step 3: Click the Services icon in the Administrative Tools dialog box. See Figure16. Figure16 Step 4: When the Services dialog box shows up, double click the SSDP Discovery Service icon. See Figure17.
  • Page 108 Figure17 Step 5: Choose Automatic in the Startup type, and click OK to start it. See Figure18. Figure18 Step 6: When the Services dialog box appears again, double click the Universal Plug and Play Device Host icon. See Figure19.
  • Page 109 Figure19 Step 7: Choose Automatic in the Startup type, press the Start button, and click OK to start it. See Figure20. Figure20 Step 8: Restart your system.
  • Page 110 ® 4. Scan IP Cameras through My Network Place After you complete the installation and starting services, the UPnP protocol will take effect. You can ® scan all IP Cameras in My Network Place, as in Figure21 and Figure22 below. Figure21 Figure22 Just double click the UPnP IP Camera icon, and the video live stream will pop up automatically...

  • Page 111: Appendix 2. -Register As A Ddns Member

    APPENDIX 2. –Register as a DDNS member The DDNS（dynamic domain name system） is a function which is provided by an American company. Please refer to . This chapter provides the user with the basic instructions on how to register a free DDNS service. Registering for a DDNS Enter the URL .
  • Page 112 Figure 3 Click “My Services” to enter the service page. Please click the “Add Host Service” item which is below the ”My Hosts“ item, as shown in Figure 4. Click “Add Host Service”, and its service items will appear. The Add Dynamic DNS Host item helps to add a new DDNS.
  • Page 113 Figure 5 All we have to set in this page is the “Hostname” item. The user can choose a Sub Hostname as s/he likes from the right-hand side of the Hostname’s drop-down list. NOTE: You don’t have to set the “IP Address” in the same format as the camera’s IP Address.
