Page 1: Quick Installation Guide

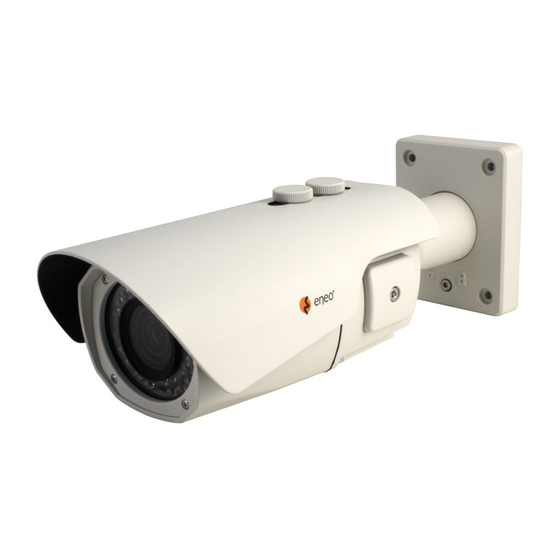

Quick Installation Guide 1/3” HDcctv Camera, 3D-DNR, Day&Night, 1920x1080, 2.8- 10mm, RS-485, infrared, 12/24V HDB-2080M2810IR D... -
Page 3: Safety Precaution
FULL-HD MEGA-PIXEL CAMERA Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK, DO NOT REMOVE COVER (OR BACK). - Page 4 FULL-HD MEGA-PIXEL CAMERA Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
-
Page 5: Table Of Contents
FULL-HD MEGA-PIXEL CAMERA Contents p.03~04 Safety Precaution p.05 Contents p.06~07 Features p.07 Composition p.08 Dimensions p.09 Part Names p.10~12 Installation Instructions p.13~29 Operating Instructions p.30~31 Specifications... -
Page 6: Features
FULL-HD MEGA-PIXEL CAMERA Features Key Features • Full HD, 2Mega Pixel EX-SDI CAMERA, 1920x1080(30p/25p) • Extended long reach HD Solution • Real time True WDR(Wide Dynamic Range) / 30fps • Improved noise figure with the enhanced 3DNR • Built-in f=2.8~10mm F1.4, Mega-pixel DC Auto Iris vari-focal lens •... -
Page 7: General Description
FULL-HD MEGA-PIXEL CAMERA Features General Description This camera realizes the natural and crisp image as you see the scene in front of you by Full HD(1920x1080p) camera module. Highly detailed pictures can be achieved and color reproducibility deserves attention. • With ICR mechanism, - Enhances its sensitivity about 10x at night time - Can accepts the infrared light •... -
Page 8: Dimensions
FULL-HD MEGA-PIXEL CAMERA Dimensions (unit : mm) 87.30 CAUTION • Extreme care should be taken NOT to scratch the window in front of lens. • Care should be taken the cable is NOT to be damaged, kinked or exposed in the hazardous area. •... -
Page 9: Part Names
FULL-HD MEGA-PIXEL CAMERA Part Names SUNSHIELD BOLT SUNSHIELD POWER CABLE OSD Setup CONTROL COVER DUAL WINDOW EASY BRACKET BRACKET REAR CASE FRONT CASE LOCK/UNLOCK SCREW FOCUS ZOOM REAR VIEW Lock/Unlock Torque Screw wrench ■ Adjustment of viewing angle with a bracket... -
Page 10: Installation Instructions
FULL-HD MEGA-PIXEL CAMERA Installation Instructions 1. Locate the mounting template at the installation position and drill the ceiling or wall if needed. ( *The easy bracket can not be installed on the ceiling) 2. Place the easy bracket on pre-drilled position and fix it through using mounting screws (4x30mm). - Page 11 FULL-HD MEGA-PIXEL CAMERA Installation Instructions Pan & Tilt adjustments • Unlock the screw on the camera bracket through using the torque wrench supplied • Set the camera’s viewing angle then lock the screw on the bracket. 1) Pan limit: Pan is limited to +/- 90°. 2) Tilt limit: Tilt is limited to 0°(2°) min ~ 90°...
- Page 12 FULL-HD MEGA-PIXEL CAMERA Installation Instructions Power Supply Connections Make sure the power is removed before the installation. Camera can work with either 24AC or 12VDC, dual voltage power . Primary and secondary grounds are completely isolated to avoid the possible ground-loop problems In case that HD-SDI/EX-SDI Inputs are not supported in Monitor, please use HD-SDI/EX-SDI Converter to connect HD-SDI/EX-SDI cable with Monitor...
-
Page 13: Operating Instructions
FULL-HD MEGA-PIXEL CAMERA Operating Instructions Using OSD controller Setup menu can be accessed and controlled by OSD control joy stick on the side of camera unit. Five commands are available with the joy stick. The design of OSD could be different according to the Model. Video Sub-out Connector Cover Open... - Page 14 FULL-HD MEGA-PIXEL CAMERA Operating Instructions Set the video format according to system, EX-SDI or HD-SDI 1M~120M via RG59u or 5C2V cable Camera (HD-SDI) (HD-SDI) 1M~120M 1M~120M 350M+ via RG59u or RG59u or 5C2V RG59u or 5C2V cable cable 5C2V cable HDA-3000E HDA-3000E (HD-SDI)
- Page 15 FULL-HD MEGA-PIXEL CAMERA Operating Instructions OSD menu Startup Press ‘●’(OSD menu Joy stick key) down for about 2 seconds to access the setup menu mode. MENU V5.xx 1. EXPOSURE 2. LENS 3. FOCUS ASSIST NORMAL 4. SCENE ENHANCE 5. 3D-NR 6.
- Page 16 FULL-HD MEGA-PIXEL CAMERA Operating Instructions SAVE & EXIT – Exits the menu after saving the parameters. EXIT EXIT – Exits the menu without saving the menu. 1. EXPOSURE EXPOSURE AUTO SHUTTER |:::::::|::::::| 10 BRIGHTNESS SENS-UP |:::::::|::::::| 12 RETURN 1-1. SHUTTER (default: AUTO) : Can set EXPOSURE MODE to AUTO, MANUAL and Flickerless.
- Page 17 FULL-HD MEGA-PIXEL CAMERA Operating Instructions 2. LENS Lens can be selected either DC or MANUAL lens. Lens MUST be set to DC for the best image when DC iris lens is installed 2-1. DC (default: INDOOR) : Selects lens mode according to installation place.
- Page 18 FULL-HD MEGA-PIXEL CAMERA Operating Instructions • POP ON FOCUS (OFF) : ON zooms in the center of picture at 2X for better focusing. • FOCUSING STATUS (ON) : Shows how exactly focus is set. When blue bar doesn’t show up, try the lens focus to NEAR and FAR. The maximum blue bar indicates the best focusing position.
- Page 19 FULL-HD MEGA-PIXEL CAMERA Operating Instructions 6. DAY / NIGHT DAY/NIGHT is used to control the setting during day-time and night-time operation. Select the mode according to the light condition and the camera types. SMART IR can be set to reduce the saturation by the strong IR illumination in the night in any menu.
- Page 20 FULL-HD MEGA-PIXEL CAMERA Operating Instructions any menu is identically applied to other menu. Zero(0) turns off SMART IR and high level avoids the saturation strongly but the corners will be darker accordingly. 6-3. B/W(NIGHT) : Forcibly removes IR cut filter and switches to B/W regardless of light level. 6-4.
- Page 21 FULL-HD MEGA-PIXEL CAMERA Operating Instructions • ATWext: White balance is continuously working along with the color temperature changes in the range of 1,800K~11,000K. • ONE PUSH: White balance works only during ● is pressed. • MANUAL: White balance is fixed to the settings by R_GAIN and B-GAIN. This mode can be used only when the color temperature does not vary.
- Page 22 FULL-HD MEGA-PIXEL CAMERA Operating Instructions • ZONE NUM : Set a number to select a privacy zone from 1~10. • ZONE DISP : ON enables a relevant privacy zone. • H-POS, V-POS, H-SIZE and V-SIZE : Adjust the size and position of zone. •...
- Page 23 FULL-HD MEGA-PIXEL CAMERA Operating Instructions Area to be zoomed in by SMART MOTION ZOOM can be set at SPECIAL> MOTION> SMART MOTION ZOOM>ZOOM TARGET. Adjusting ◀,▶ (Joystick) for ZOOM TARGET varies the viewing angle to be zoomed when the motion occurs. (See page No.27 “SMART MOTION ZOOM”) Set the video left and right and/or up and down by MIRROR/FLIP.
- Page 24 FULL-HD MEGA-PIXEL CAMERA Operating Instructions TITLE ABCDEFGHIJKLMNOPQRST U V W X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z , . ( ) { : [ ] 0 1 2 3 4 5 6 7 8 9 * +- /= l ! ? “...
- Page 25 FULL-HD MEGA-PIXEL CAMERA Operating Instructions 8-8-2. PRESET ZOOM: Able to zoom in for the preset area by PTZ controller. • ZONE NUM : Set a number to select a preset zoom from 1~ 4. • ZONE VIEW : ON enables a relevant preset zone. •...
- Page 26 FULL-HD MEGA-PIXEL CAMERA Operating Instructions 9. SYSTEM SYSTEM TV SYSTEM EU(PAL) RESOLUTION 1080P COMM. SETUP LANGUAGE FACTORY DEFAULT RETUTN 9-1. TV SYSTEM (default: US or EU) : Selects HDTV standards for US(60HZ) or EU(50HZ). By this selection, 2nd analog video output switches to NTSC or PAL accordingly. 9-2.
- Page 27 FULL-HD MEGA-PIXEL CAMERA Operating Instructions Detail Function Description ▐ SMART MOTION ZOOM SMART MOTION ZOOM enlarges the certain area defined by a yellow window to the full sized image when the motion is detected in the black window. SMART MOTION ZOOM window can be re-sized by adjusting D-ZOOM RATIO and moved by H-POINTER and V-POINTER.
- Page 28 FULL-HD MEGA-PIXEL CAMERA Operating Instructions ▐ POINTING ZOOM This camera has a very useful and powerful feature, POINTING ZOOM, which can zoom in/out any area. UNLIKE the conventional zoom which can zoom in/out the center area of image only, by the flexible zoom location and area, POINTING ZOOM differentiates its usefulness from others.
- Page 29 FULL-HD MEGA-PIXEL CAMERA Operating Instructions * EXAMPLE OF SMART MOTION & POINTING ZOOM [ At the ATM nearby ENTERANCE ] [ At the LOBBY ]...
-
Page 30: Specifications
FULL-HD MEGA-PIXEL CAMERA Specifications ITEM HDB-2080M2810IR D Panasonic 1/3" Progressive Scan CMOS Sensor Imaging Sensor 1,944(H) x 1,092(V) Effective Pixels Min.Illumination 0.0005 Lux @ (AGC MAX, DSS x2) Video Resolution 1920x1080 (30p/25p) TV System EU(PAL) Sync. System Internal Format 16:9 Video format for most popular commercial HDTV monitors EX-SDI: 270Mbps Visually lossless compression thru 75Ω... - Page 31 FULL-HD MEGA-PIXEL CAMERA Specifications Installation Temp. -20ºC ~ +50ºC (Humidity : 30%RH ~ 80%RH) Operating Temp. -50ºC ~ +50ºC (Humidity : 30%RH ~ 80%RH) External Dimension 108mm(W) x 100mm(H) x 267mm(L)_with Bracket / About 1.35Kg Mechanical Feature IP67, Aluminum Cast, Dual window, One touch 3-Axis locking bracket, Easy Installation Pad, External Zoom/Focus adjustment, Heating function Power Source...
- Page 32 VIDEOR E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
