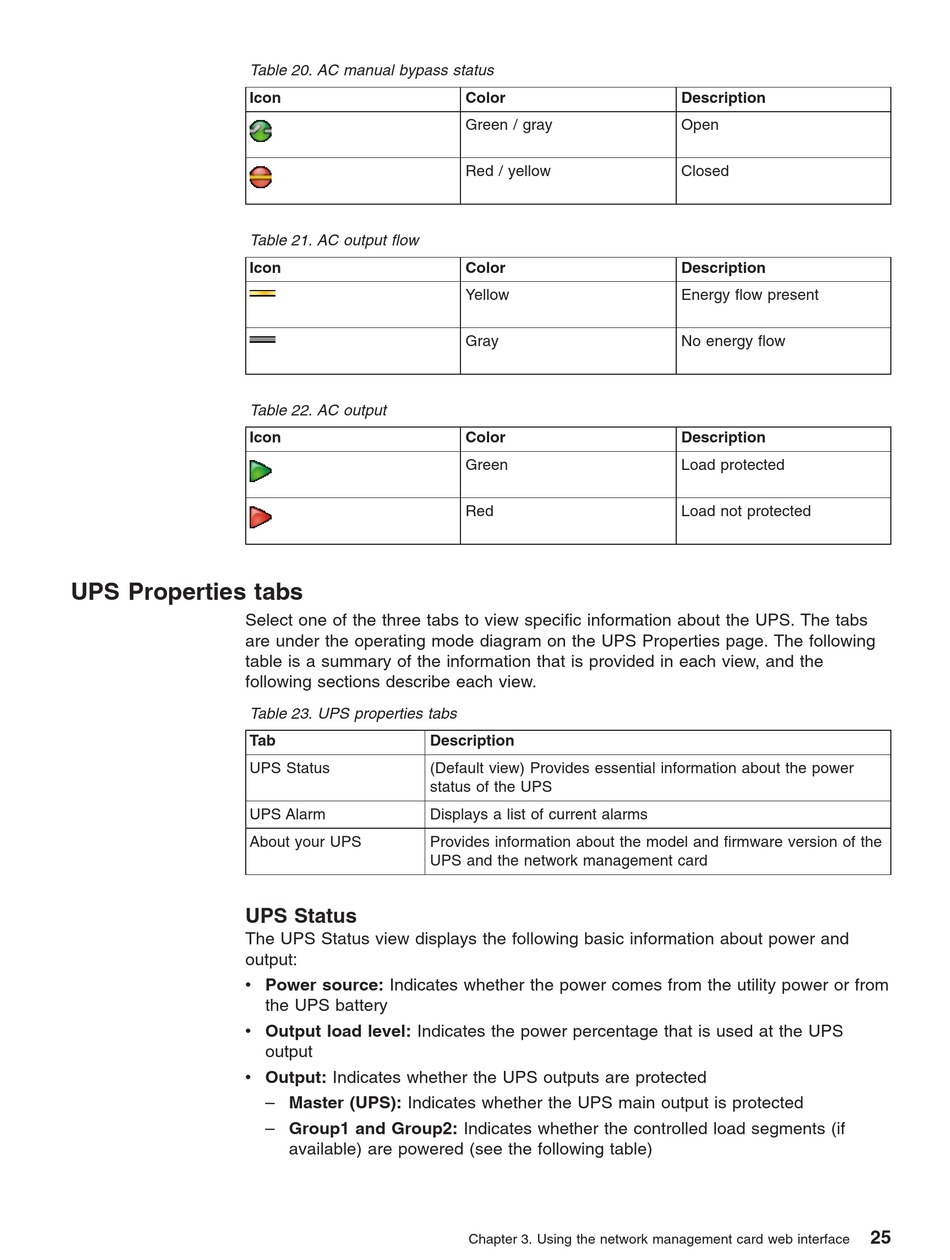

UPS Properties tabs
Select one of the three tabs to view specific information about the UPS. The tabs
are under the operating mode diagram on the UPS Properties page. The following
table is a summary of the information that is provided in each view, and the
following sections describe each view.

UPS Status

The UPS Status view displays the following basic information about power and
output:
v Power source: Indicates whether the power comes from the utility power or from
v Output load level: Indicates the power percentage that is used at the UPS
v Output: Indicates whether the UPS outputs are protected
Table 20. AC manual bypass status
Icon
Table 21. AC output flow
Icon
Table 22. AC output
Icon
Table 23. UPS properties tabs
Tab
UPS Status
UPS Alarm
About your UPS
the UPS battery
output
– Master (UPS): Indicates whether the UPS main output is protected
– Group1 and Group2: Indicates whether the controlled load segments (if
available) are powered (see the following table)
Color
Green / gray
Red / yellow
Color
Yellow
Gray
Color
Green
Red
Description
(Default view) Provides essential information about the power
status of the UPS
Displays a list of current alarms
Provides information about the model and firmware version of the
UPS and the network management card
Chapter 3. Using the network management card web interface
Description
Open
Closed
Description
Energy flow present
No energy flow
Description
Load protected
Load not protected
