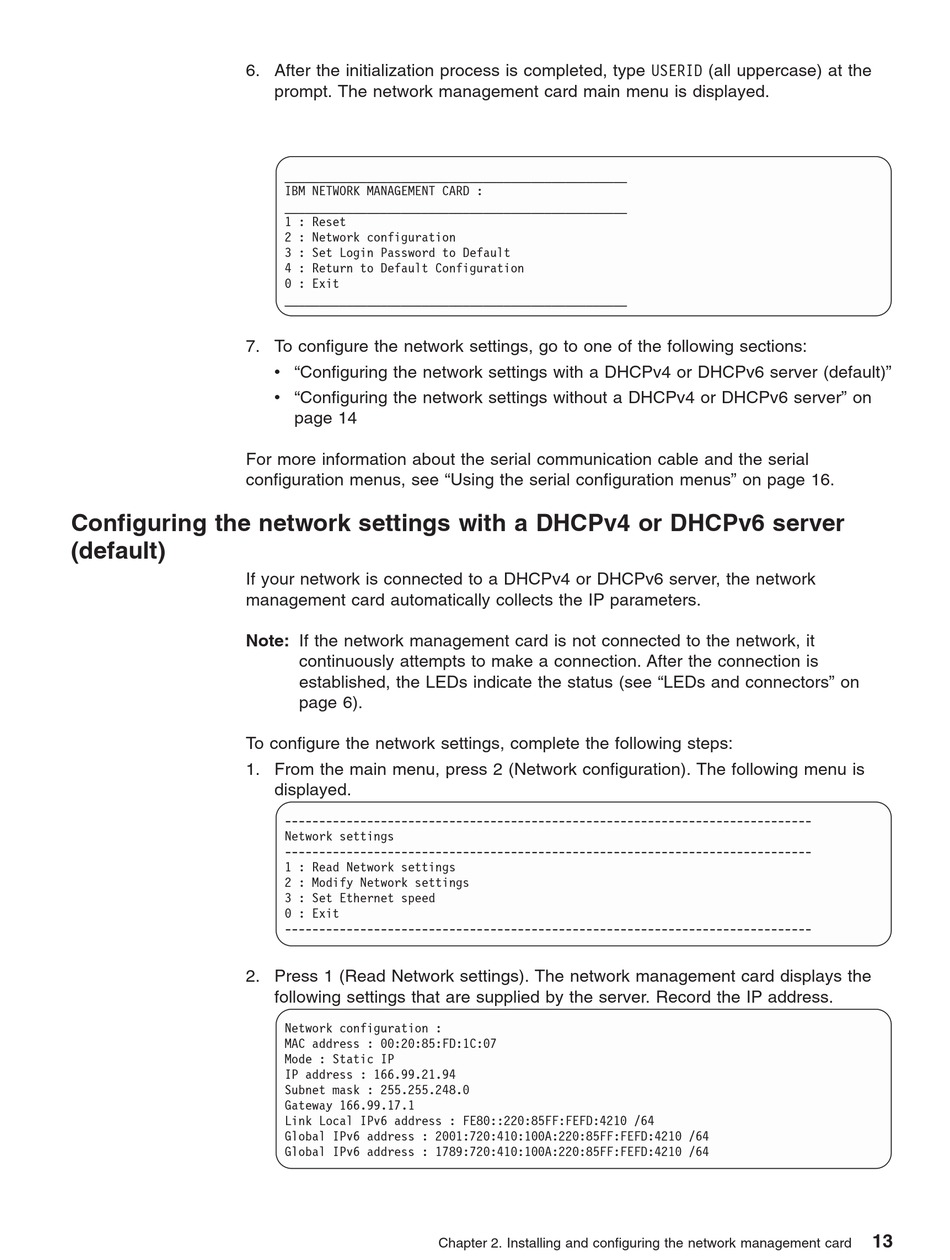

IBM Network Management Card User Manual page 23

6. After the initialization process is completed, type USERID (all uppercase) at the
7. To configure the network settings, go to one of the following sections:
For more information about the serial communication cable and the serial
configuration menus, see "Using the serial configuration menus" on page 16.
Configuring the network settings with a DHCPv4 or DHCPv6 server
(default)
If your network is connected to a DHCPv4 or DHCPv6 server, the network
management card automatically collects the IP parameters.
Note: If the network management card is not connected to the network, it
To configure the network settings, complete the following steps:
1. From the main menu, press 2 (Network configuration). The following menu is
2. Press 1 (Read Network settings). The network management card displays the
prompt. The network management card main menu is displayed.
__________________________________________________
IBM NETWORK MANAGEMENT CARD :
__________________________________________________
1 : Reset
2 : Network configuration
3 : Set Login Password to Default
4 : Return to Default Configuration
0 : Exit
__________________________________________________
v "Configuring the network settings with a DHCPv4 or DHCPv6 server (default)"
v "Configuring the network settings without a DHCPv4 or DHCPv6 server" on
page 14
continuously attempts to make a connection. After the connection is
established, the LEDs indicate the status (see "LEDs and connectors" on
page 6).
displayed.
-----------------------------------------------------------------------------
Network settings
-----------------------------------------------------------------------------
1 : Read Network settings
2 : Modify Network settings
3 : Set Ethernet speed
0 : Exit
-----------------------------------------------------------------------------
following settings that are supplied by the server. Record the IP address.
Network configuration :
MAC address : 00:20:85:FD:1C:07
Mode : Static IP
IP address : 166.99.21.94
Subnet mask : 255.255.248.0
Gateway 166.99.17.1
Link Local IPv6 address : FE80::220:85FF:FEFD:4210 /64
Global IPv6 address : 2001:720:410:100A:220:85FF:FEFD:4210 /64
Global IPv6 address : 1789:720:410:100A:220:85FF:FEFD:4210 /64
Chapter 2. Installing and configuring the network management card
13
