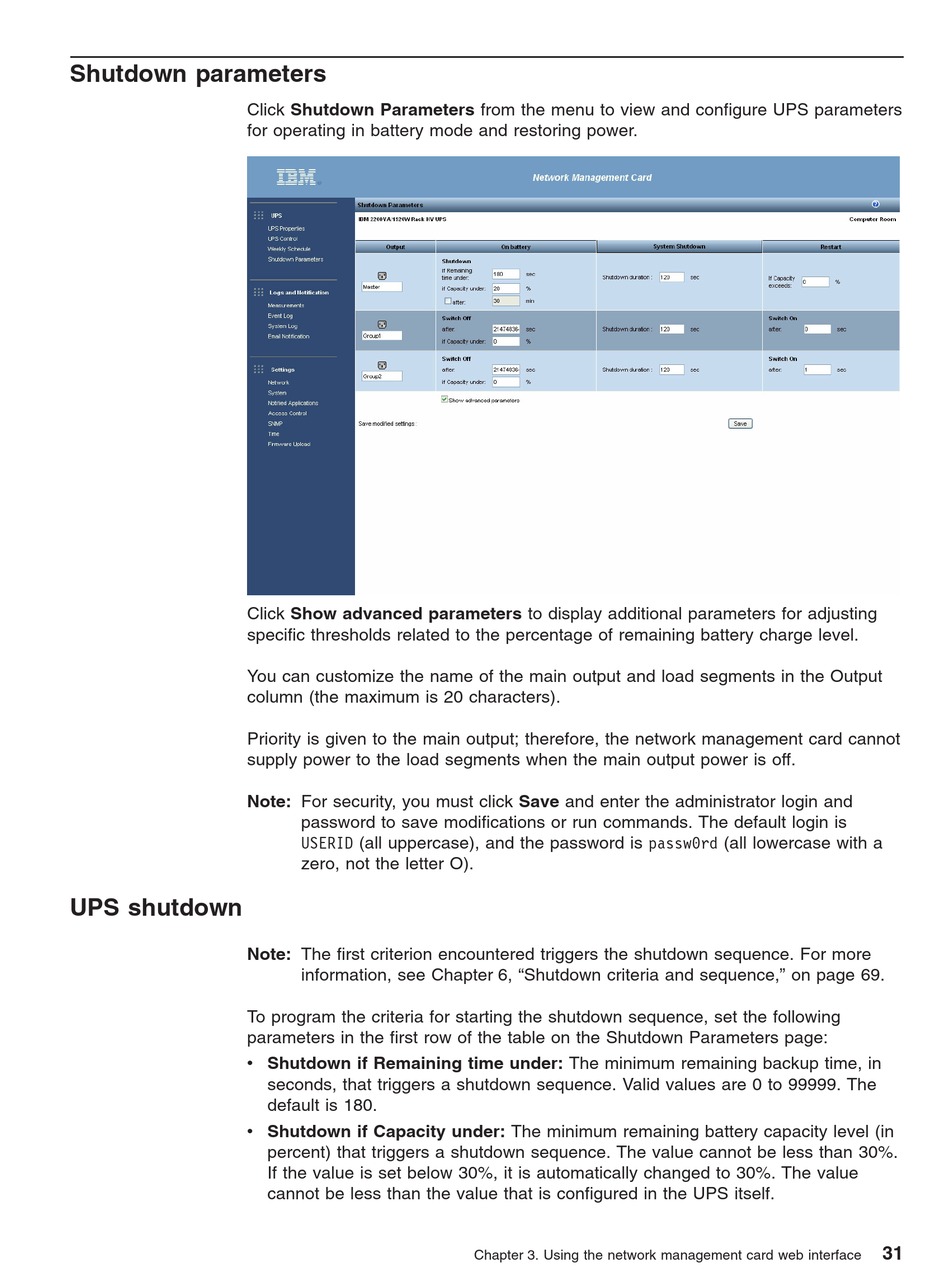

Shutdown parameters

Click Shutdown Parameters from the menu to view and configure UPS parameters
for operating in battery mode and restoring power.
Click Show advanced parameters to display additional parameters for adjusting
specific thresholds related to the percentage of remaining battery charge level.
You can customize the name of the main output and load segments in the Output
column (the maximum is 20 characters).
Priority is given to the main output; therefore, the network management card cannot
supply power to the load segments when the main output power is off.
Note: For security, you must click Save and enter the administrator login and
UPS shutdown
Note: The first criterion encountered triggers the shutdown sequence. For more
To program the criteria for starting the shutdown sequence, set the following
parameters in the first row of the table on the Shutdown Parameters page:
v Shutdown if Remaining time under: The minimum remaining backup time, in
v Shutdown if Capacity under: The minimum remaining battery capacity level (in
password to save modifications or run commands. The default login is
USERID (all uppercase), and the password is passw0rd (all lowercase with a
zero, not the letter O).
information, see Chapter 6, "Shutdown criteria and sequence," on page 69.
seconds, that triggers a shutdown sequence. Valid values are 0 to 99999. The
default is 180.
percent) that triggers a shutdown sequence. The value cannot be less than 30%.
If the value is set below 30%, it is automatically changed to 30%. The value
cannot be less than the value that is configured in the UPS itself.
