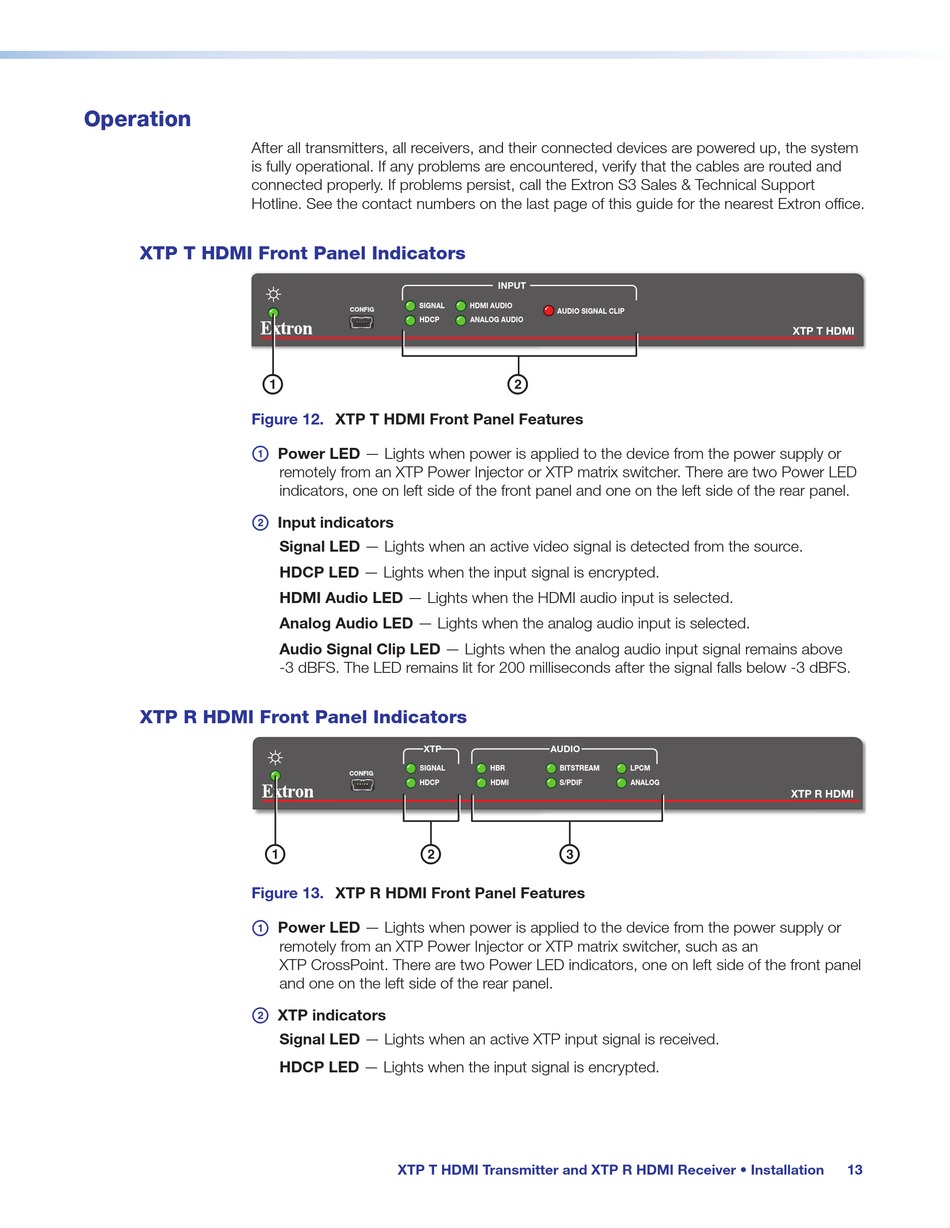

Operation

After all transmitters, all receivers, and their connected devices are powered up, the system
is fully operational. If any problems are encountered, verify that the cables are routed and
connected properly. If problems persist, call the Extron S3 Sales & Technical Support
Hotline. See the contact numbers on the last page of this guide for the nearest Extron office.

XTP T HDMI Front Panel Indicators

a
Figure 12.
a
b

XTP R HDMI Front Panel Indicators

Figure 13.
a
b
SIGNAL
CONFIG
HDCP
XTP T HDMI Front Panel Features
Power LED — Lights when power is applied to the device from the power supply or
remotely from an XTP Power Injector or XTP matrix switcher. There are two Power LED
indicators, one on left side of the front panel and one on the left side of the rear panel.
Input indicators
Signal LED — Lights when an active video signal is detected from the source.
HDCP LED — Lights when the input signal is encrypted.
HDMI Audio LED — Lights when the HDMI audio input is selected.
Analog Audio LED — Lights when the analog audio input is selected.
Audio Signal Clip LED — Lights when the analog audio input signal remains above
-3 dBFS. The LED remains lit for 200 milliseconds after the signal falls below -3 dBFS.
XTP
SIGNAL
CONFIG
HDCP
a b
XTP R HDMI Front Panel Features
Power LED — Lights when power is applied to the device from the power supply or
remotely from an XTP Power Injector or XTP matrix switcher, such as an
XTP CrossPoint. There are two Power LED indicators, one on left side of the front panel
and one on the left side of the rear panel.
XTP indicators
Signal LED — Lights when an active XTP input signal is received.
HDCP LED — Lights when the input signal is encrypted.
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation
INPUT
HDMI AUDIO
AUDIO SIGNAL CLIP
ANALOG AUDIO
b
AUDIO
HBR BITSTREAM LPCM
HDMI S/PDIF ANALOG
c
XTP T HDMI
XTP R HDMI
13
