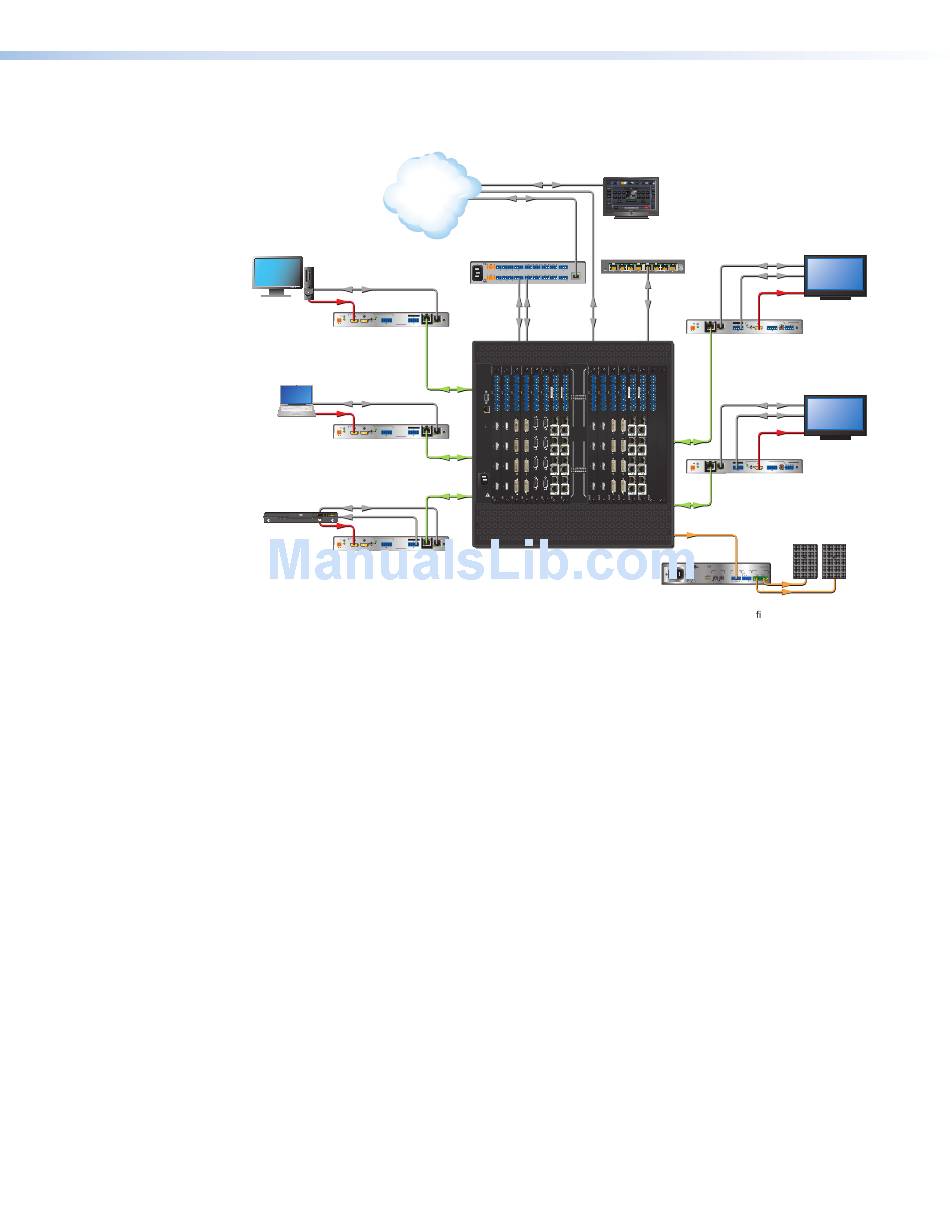

The following diagram shows some ways the XTP T HDMI and the XTP R HDMI can be
integrated in an XTP matrix application.
Figure 1.

Key Features

Reliable cable infrastructure — Transmits or receives video, audio, bidirectional
RS-232 and IR, and Ethernet up to 330 feet (100 m) over a CATx cable, providing
high reliability and maximum performance on an economical and easily installed cable
infrastructure.
1080p/60 Deep Color and 1920x1200 signals — Supports digital signal transmission up
to 330 feet over a single twisted pair cable, maintaining superior image quality at the highest
resolutions.
CAT 5e, 6, 6a, and 7 compatible — Optimized for use with common unshielded and
shielded twisted pair cable types. XTP systems fully support a maximum transmission
distance of 330 ft (100 m) for all compatible resolutions. Shielded twisted pair cable provides
added protection from outside interference.
Bidirectional RS-232 and IR insertion — Allows a remote display to be controlled without
the need for additional cabling through bidirectional RS-232 and IR control signals inserted
into the XTP output.
HDMI specification features — Include data rates up to 6.75 Gbps, Deep Color up to
12-bit, 3D, and HD lossless audio formats.
HDCP compliance — Ensures display of content-protected media and interoperability with
other HDCP-compliant devices.
AV Control
Network
Ethernet
PC
HDMI
INPUTS SIG LINK
POWER HDMI AUDIO AUDIO OVER XTP
12V
--A MAX ON L R RS-232 IR
RESET
OFF
HDMI LOOP-THRU + − + − XTP T HDMI Tx Rx Tx Rx XTP OUT ACT LINK
LAN
Extron
CAT 5-type Cable
XTP T HDMI
Long Distance XTP
Transmitter for HDMI
Ethernet
HDMI
Laptop
INPUTS SIG LINK
POWER HDMI AUDIO AUDIO OVER XTP
12V
--A MAX ON L R RS-232 IR
RESET
OFF
HDMI LOOP-THRU + − + − XTP T HDMI Tx Rx Tx Rx XTP OUT ACT LINK
LAN
Extron
XTP T HDMI
Long Distance XTP
Transmitter for HDMI
Ethernet
STANDBY/ON
PQLS HDMI OPEN/CLOSE FL OFF IR
USB
Blu-ray
HDMI
INPUTS SIG LINK
POWER HDMI AUDIO AUDIO OVER XTP
12V
--A MAX ON L R RS-232 IR
RESET
OFF
HDMI LOOP-THRU + − + − XTP T HDMI Tx Rx Tx Rx XTP OUT ACT LINK
LAN
Extron
XTP T HDMI
Long Distance XTP
Transmitter for HDMI
Typical XTP HDMI Transmitter and Receiver Matrix Application
XTP T HDMI Transmitter and XTP R HDMI Receiver • Introduction
Ethernet
Ethernet
Extron
IPCP 505
IP Link Control
House Network Switch
Processor
100-240V 50-60Hz 1 2 COM1 COM2 COM3 COM7 1 2 3 4 1 2 3 4 eBUS
+ - + -
TX RX TX RX TX RX TX RX RTS CTS S G S G S G S G +V D -S +S
PWR OUT = 12W LAN
SWITCHED 12VDC IR/SERIAL RELAY
40W MAX TOTAL
3 4 COM4 COM5 COM6 COM8 5 6 7 8 5 6 7 8 FLEX I/O
+ - + -
TX RX TX RX TX RX TX RX RTS CTS S G S G S G S G
5A MAX 1 2 3 4
RS-232 IR Ethernet
IN IN IN IN IN IN IN IN OUT OUT OUT OUT OUT OUT OUT
REMOTE
RS 232/RS422
ACT
LAN
LINK
RESET
O
I
U
N
T
P
P
U
U
T
T
S
S
100-240V --A MAX
50-60Hz
DISCONNECT POWER
CORD BEFORE
SERVICING
Extron
XTP CrossPoint 3200
Modular Digital
Matrix Switcher
Extron
TLP 1000TV
10" Tabletop TouchLink
Touchpanel
Ethernet
IR
Ethernet
HDMI
Flat Panel
Display
OUTPUTS XTP R HDMI
POWER SIG LINK
OVER XTP HDMI AUDIO AUDIO S/PDIF RELAYS
12V ON
--A MAX RS-232 IR L R 1 2 RESET
ACT LINK OFF HDMI + - + -
XTP IN LAN Tx Rx Tx Rx
Extron
XTP R HDMI
Long Distance XTP
Receiver for HDMI
Ethernet
RS-232
HDMI
Flat Panel
Display
OUTPUTS XTP R HDMI
POWER SIG LINK OVER XTP
12V HDMI AUDIO AUDIO S/PDIF RELAYS
ON 1 2
--A MAX RS-232 IR L R RESET
OFF
XTP IN ACT LAN LINK Tx Rx Tx Rx HDMI + - + -
Extron
XTP R HDMI
Long Distance XTP
Receiver for HDMI
Stereo Audio
100-240V 1.3A, 50-60Hz XPA 1002
17TT
C US AUDIO/VIDEO
CLASS 2 WIRING
APPARATUS
LISTED LEVEL INPUTS REMOTE OUTPUT
1 2 1 2
1 2 10V 50 mA
LIMITER/ VOL/MUTE
1 2
PROTECT
SIGNAL
0 0
STANDBY
Extron
XPA 1002
Extron
Stereo Power Ampli er
SI 28
Surface Mount
Speakers
