Remote power

The XTP HDMI transmitter and receiver can be powered remotely through an XTP Power
Injector or through an XTP matrix switcher.
ATTENTION: XTP remote power is intended for indoor use only. No part of the network
that uses XTP remote power should be routed outdoors.
Power injector
To power XTP HDMI transmitters and receivers remotely with an XTP Power Injector, power
Local power
one device locally (see
the XTP cable run along the XTP ports (see the XTP Power Injector User Guide for more
installation information).
NOTE: The power injector provides remote power up to 330 feet with a CATx cable with
24 AWG wire.
E R
O V
2
23
R S-
D IO
A U
R G
Rx
L Tx
−
+
D IO
A U
O N −
+
F
O F
U TS
IN P U
H R
O P -T
L O
W ER M I
PO H D
V
12 M A X
-- A
HDMI
Extron
XTP T HDMI
XTP Transmitter

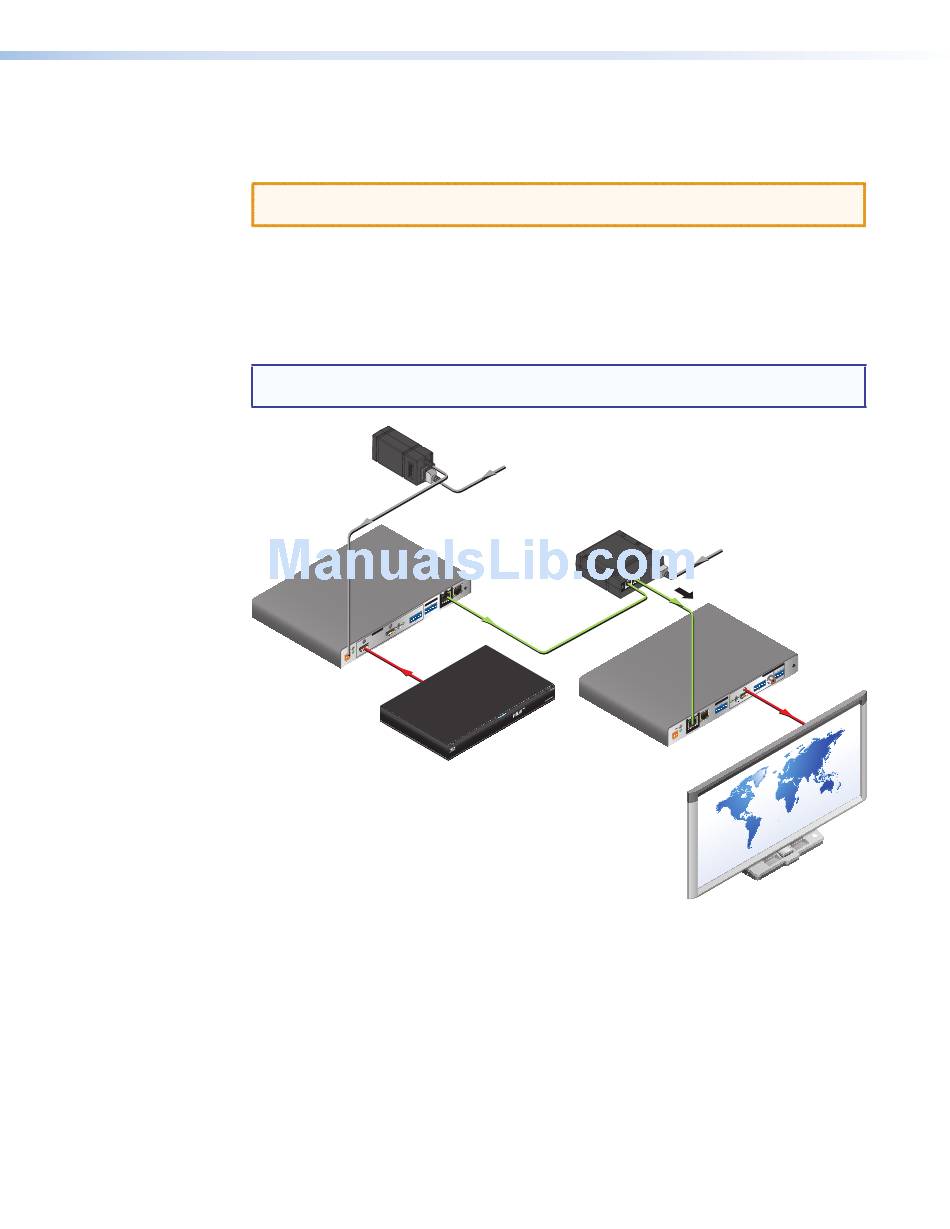

Figure 11. Typical Point-to-Point Application with Remote Power
