Transmitter Configuration

The Device Settings screen allows a user to view and edit various device settings of the
transmitter connected to the host device.
Transmitter device settings
When connected directly to an XTP T HDMI, the Device Settings screen contains
configuration options for the transmitter only. Click the icon on the
Device Settings
Global Navigation bar to open the Device Settings screen.

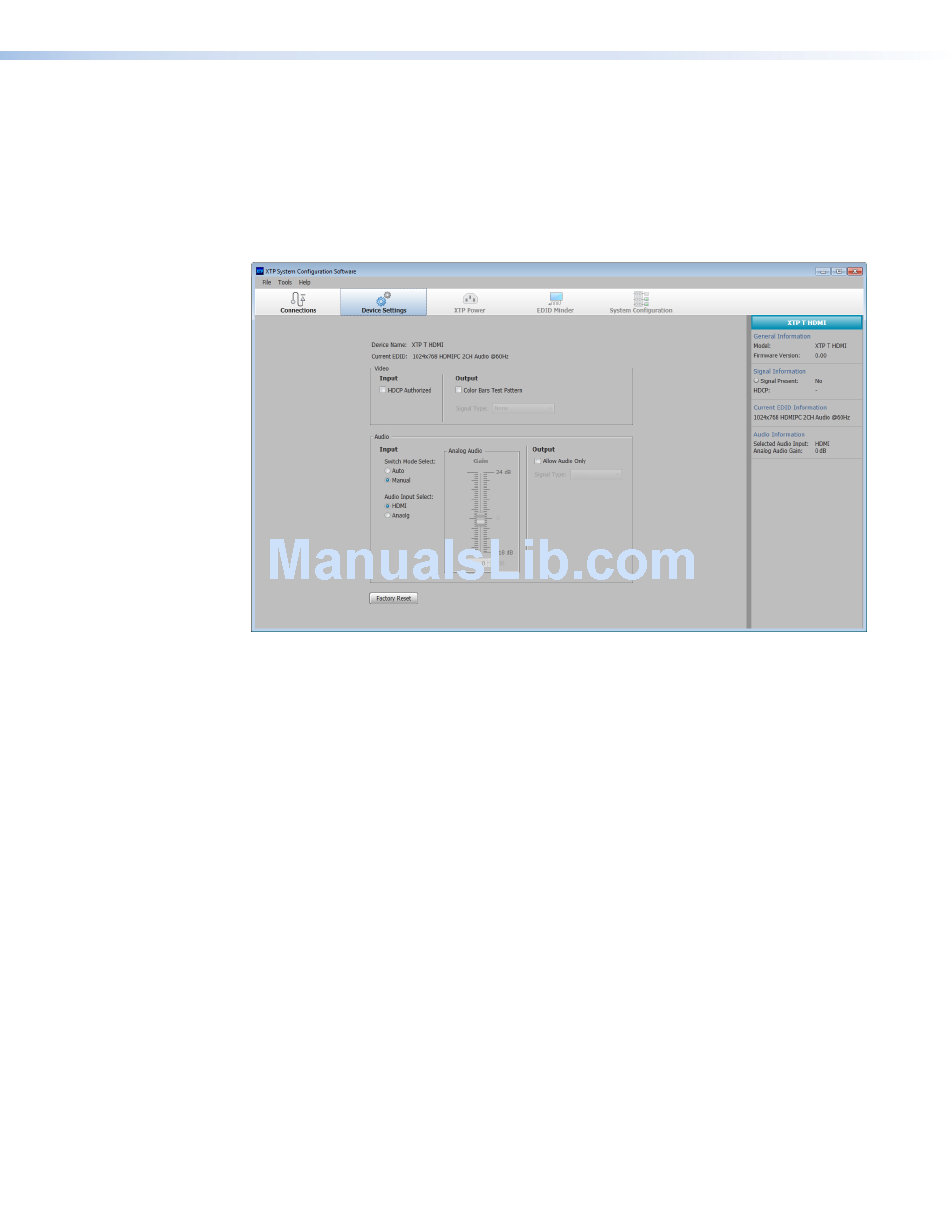

Figure 16. Transmitter Device Settings Screen
Video panel
Video input — Select the
check box to set the transmitter as an HDCP
HDCP Authorized
authorized device or deselect it to indicate that the device is not an HDCP authorized
device. This is checked by default.
Video output — Select or deselect the check box to transmit
Color Bars Test Pattern
or not transmit a test pattern to an XTP receiver. This is not selected by default. If a color
bars text pattern is enabled, select a signal type from the drop-down list.
Signal Type
Audio panel
Switch mode select — Select the radio button to enable Auto Switch mode (default).
Auto
When in Auto Switch mode, HDMI audio has priority over analog audio. Select the
Manual
radio button to disable Auto Switch mode.
Audio input select — If the switch mode is set to
, select the radio button to
Manual HDMI
transmit embedded audio from an HDMI signal or select the radio button to transmit
Analog
an analog audio signal.
Analog audio — If the transmitter transmits analog audio, move the
Analog Audio Gain
slider up or down or select the gain in the field below the slider to adjust the audio gain or
attenuation in decibels.
Audio output — Select the check box to enable the black signal for
Allow Audio Only
audio-only transmission. This is not selected by default.
If enabled, select the black signal resolution from the drop-down list. The
Signal Type
default resolution is 720p @ 60 Hz.
