Extron electronics XTP SR HDMI User Manual

Xtp extenders xtp hdmi scaling receiver
Hide thumbs Also See for XTP SR HDMI:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
User Guide
XTP Extenders

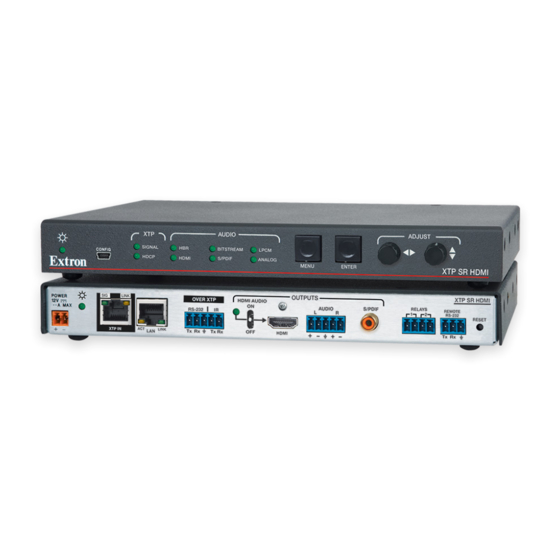

XTP SR HDMI
XTP HDMI Scaling Receiver
68-2007-01 Rev. D
02 15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTP SR HDMI and is the answer not in the manual?

Questions and answers

Related Manuals for Extron electronics XTP SR HDMI

Summary of Contents for Extron electronics XTP SR HDMI

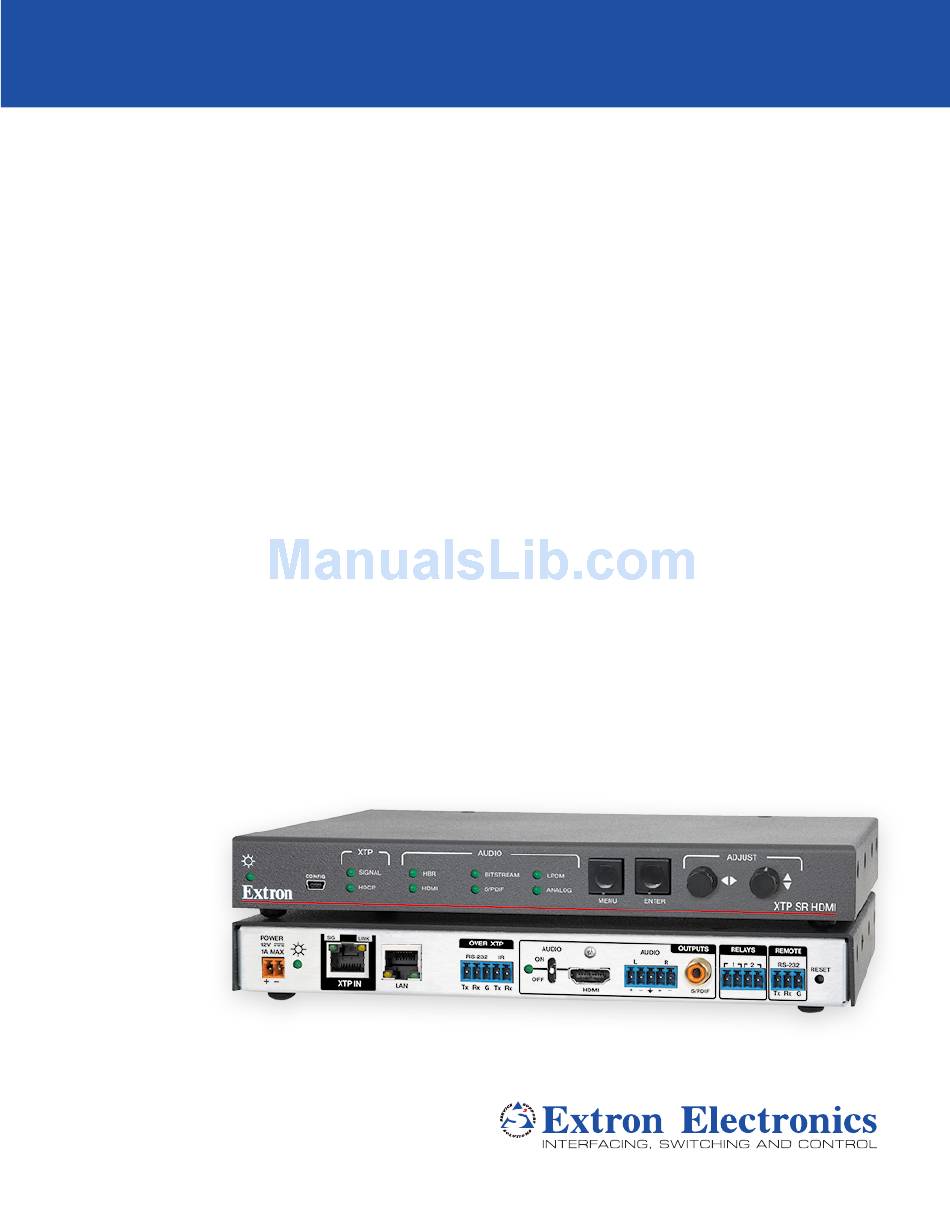

  • Page 1 User Guide XTP Extenders XTP SR HDMI XTP HDMI Scaling Receiver 68-2007-01 Rev. D 02 15...

  • Page 2: Safety Instructions

    Safety Instructions Safety Instructions • English Инструкция по технике безопасности • Русский WARNING: This symbol, , when used on the product, is intended to ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан alert the user of the presence of uninsulated dangerous voltage within the на...
  • Page 3 “Extron Safety and Regulatory Compliance Guide” on the Extron website. Copyright © 2015 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks , registered service marks...
  • Page 4 Conventions Used in this Guide Notifications The following notifications are used in this guide: Potential risk of severe injury or death. WARNING: AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information.

  • Page 5: Table Of Contents

    ............1 for SIS Commands ........21 About this Guide ..........1 Symbol Definitions ........22 About the XTP SR HDMI Scaling Receiver ..1 Command and Response Tables for SIS Key Features ............2 Commands ............. 23 Picture Adjustment Commands ....23 Installation ..............
  • Page 6 XTP SR HDMI Scaling Receiver • Contents...

  • Page 7: Introduction

    This guide provides installation, operation, control, and reference information for the XTP SR HDMI scaling receiver. In this guide, the terms “scaling receiver” and “XTP SR HDMI” are used interchangeably to refer to the XTP SR HDMI scaling receiver. About the XTP SR HDMI Scaling Receiver The Extron XTP SR HDMI receives video, audio, bidirectional RS-232 and IR, and Ethernet signals over a single twisted pair cable.

  • Page 8: Key Features

    The following diagram shows one way the XTP SR HDMI can be integrated in an XTP point-to-point application. The scaling receiver can also be used with an XTP matrix switcher (see the XTP matrix switcher user guide for more details on matrix applications).
  • Page 9 (power supply excluded). Above-the-ceiling placement conceals the scaling receiver to prevent theft, and is convenient for installing equipment when space inside the room is limited. XTP SR HDMI Scaling Receiver • Introduction...

  • Page 10: Installation

    • Rear Panel Connectors • Making Connections The XTP SR HDMI can be placed on a tabletop or mounted in a rack or under a desk (see Mounting on page 43). Rear Panel Connectors LINK POWER...
  • Page 11 For unbalanced audio, connect the sleeves to the contact ground. Do not connect the sleeves to the negative (-) contacts. • Pour l’audio asymétrique, connectez les manchons au contact au sol. Ne pas connecter les manchons aux contacts négatifs (–). XTP SR HDMI Scaling Receiver • Installation...

  • Page 12: Making Connections

    DC power connector and LED — Connect the external 12 V, 1.0 A power supply to the 2-pole captive screw connector. The Power LED lights to indicate the device is receiving power. NOTE: The XTP SR HDMI can also be powered remotely (see Power Connection on page 9).

  • Page 13: Tp Cable Termination And Recommendations

    Figure 5. Twisted Pair Cable Termination Connector Supported cables The XTP SR HDMI is compatible with shielded twisted pair (F/UTP, SF/UTP, and S/FTP) and unshielded twisted pair (U/UTP) cables. ATTENTION: • Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable to link the XTP products.
  • Page 14 Do not comb the cable for the first 20 M, where cables are straightened, aligned, and secured in tight bundles. • Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners. • Separate twisted pair cables from AC power cables. XTP SR HDMI Scaling Receiver • Installation...

  • Page 15: Rs-232 And Ir Over Xtp Communication

    XTP à distance est destiné à une utilisation en intérieur seulement. Aucune partie du réseau qui utilise l’alimentation XTP à distance ne peut être routée en extérieur (voir Remote power à la page 11). XTP SR HDMI Scaling Receiver • Installation...
  • Page 16 Connector Figure 7. Power Wiring The XTP SR HDMI can be connected to a local power supply (see figure 7). WARNING: Electric shock hazard. The two power cord wires must be kept separate while the power supply is plugged in. Remove power before wiring.
  • Page 17 Remote power The XTP SR HDMI can be powered remotely through an XTP Power Injector or through an XTP matrix switcher. ATTENTION: • XTP remote power is intended for indoor use only. No part of the network that uses XTP remote power should be routed outdoors.

  • Page 18: Operation

    Operation This section contains information for front panel operation and configuration of the XTP SR HDMI and configuration through the On-Screen Display (OSD) menu. Topics in this section include: • Front Panel Features and Indicators Rear Panel HDMI Audio Switch •...

  • Page 19: Rear Panel Hdmi Audio Switch

    Rear Panel HDMI Audio Switch AUDIO The XTP SR HDMI has an HDMI audio switch that mutes or unmutes the embedded audio on the HDMI output connector. The LED next to the HDMI switch lights when HDMI audio is enabled.

  • Page 20: Menu Navigation Using Front Panel Controls

    Press the button to cancel any Enter Menu pending changes. To exit the OSD menu: While in the list of submenus, press the button to exit the OSD menu. Menu XTP SR HDMI Scaling Receiver • Operation...

  • Page 21: Image Reset Submenu

    Horizontal Adjustment brightness (Bright) of the image. Rotate the knob to adjust the Vertical Adjustment contrast (Cont) of the image. Detail — Rotate the adjustment knobs to adjust the detail of the image. XTP SR HDMI Scaling Receiver • Operation...

  • Page 22: User Presets Submenu

    Image size and position Recall — Rotate the adjustment knobs to select a preset to recall. Save — Rotate the adjustment knobs to select a preset to store the current picture control settings. XTP SR HDMI Scaling Receiver • Operation...

  • Page 23: Input Configuration Submenu

    Output format and color bit depth settings are not configurable from the OSD. To configure either setting, use SIS commands (see Output Configuration Commands page 25) or use the XTP System Configuration Software (see Input/Output tab page 35). Figure 14. Output Configuration Submenu XTP SR HDMI Scaling Receiver • Operation...
  • Page 24 Color bit depth — Shows the color bit depth setting. This is not configurable from the OSD menu. To configure this setting, use SIS commands (see Video bit depth SIS commands Input/Output tab on page 25) or use the XTP System Configuration Software (see page 35). XTP SR HDMI Scaling Receiver • Operation...

  • Page 25: Advanced Configuration Submenu

    2 seconds or until the Power LED blinks (see Enter Executive mode SIS commands on page 27 or XTP System Configuration Software on page 29 for remote enabling or disabling of executive mode). XTP SR HDMI Scaling Receiver • Operation...

  • Page 26: Sis Configuration And Control

    Use a computer running the Extron DataViewer utility or HyperTerminal, or use a control system to make serial control of the receiver possible. To connect directly to an XTP SR HDMI, connect the computer to the XTP SR HDMI through the front panel USB Config port (see...

  • Page 27: Error Responses

    Error Responses When the XTP SR HDMI receives an SIS command and determines that it is valid, it performs the command and sends the corresponding response to the host device. If the command is determined invalid or contains invalid parameters, the receiver returns an error response to the host.

  • Page 28: Symbol Definitions

    23.98 Hz 24 Hz 25 Hz 29.97 Hz 30 Hz 50 Hz 59.94 Hz 60 Hz 75 Hz 640x480 800x600 852x480 1024x768 1024x852 1024x1024 1280x768 1280x800 1280x1024 1360x765 1360x768 1365x768 1366x768 1365x1024 1440x900 1400x1050 1680x1050 1600x1200 1920x1200 480p 576p 720p 1080i 1080p 2048x1080 * = default XTP SR HDMI Scaling Receiver • SIS Configuration and Control...

  • Page 29: Command And Response Tables For Sis Commands

    View brightness X&] View the brightness level. BRIT Brit NOTES: = unmute (default) = Video mute = mute video = mute video and sync = default) X& = Picture adjustment XTP SR HDMI Scaling Receiver • SIS Configuration and Control...
  • Page 30 Execute an image reset Reset shift and size settings to the default values. NOTES: X& = default) = Picture adjustment 65535 = Horizontal position or size 65535 = Vertical position or size XTP SR HDMI Scaling Receiver • SIS Configuration and Control...

  • Page 31: Output Configuration Commands

    = alternating pixels = crosshatch = colorbars = greyscale = auto (default) = Video bit depth = 8 bit See the table on page 22. = Output scaler rate and refresh rate XTP SR HDMI Scaling Receiver • SIS Configuration and Control...

  • Page 32: Audio Configuration Commands

    = mute S/PDIF audio output = mute S/PDIF and HDMI audio outputs = mute S/PDIF and analog audio outputs = mute all audio outputs = default) X1& = Volume = User preset XTP SR HDMI Scaling Receiver • SIS Configuration and Control...

  • Page 33: Advanced Configuration Commands

    1 step = 100 ms or 10 steps = 1 s = Basic mute = default) where 1 step = 100 ms or 10 steps = 1 s = Advanced mute = default) XTP SR HDMI Scaling Receiver • SIS Configuration and Control...
  • Page 34 = no input = Input signal status = input detected = auto or encrypt the output only when required by = HDCP mode the input (default) = always encrypt the output XTP SR HDMI Scaling Receiver • SIS Configuration and Control...

  • Page 35: Xtp System Configuration Software

    XTP system or individual XTP devices. This section contains installation and configuration procedures for the XTP System Configuration Software. The On-Screen Display Menu XTP SR HDMI can also be controlled with the OSD menu (see System on page 13) or SIS commands (see SIS Configuration and Control page 20).

  • Page 36: Using The Xtp System Configuration Software

    Program Files folder named “Extron Electronics\XTP System Configuration.” Using the XTP System Configuration Software The XTP SR HDMI can be controlled directly from the front panel Config port or remotely from a connected XTP matrix switcher. Connections When opening the XTP System Configuration Software, the Connections screen opens first.

  • Page 37: Menu Bar

    To access this menu, click the Tools menu. Tools Figure 21. Tools Menu NOTE: The options are not Backup and Restore Software Preference available when directly connected to the XTP SR HDMI. XTP SR HDMI Scaling Receiver • XTP System Configuration Software...

  • Page 38: Update Firmware

    Select file from computer connected host device. The dialog box opens. Browse Select the desired firmware file and click the button. Open Click the button after the firmware finishes updating. Close XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 39 This option opens the XTP System Configuration Software help file in a Web browser. From the menu, select Help Help Extron Website This option opens the Extron website in a Web browser. From the menu, select Help Extron Website XTP SR HDMI Scaling Receiver • XTP System Configuration Software...

  • Page 40: Device Settings

    Audio and video mute — Click the button to mute or AV Mute unmute audio and video output. NOTE: The mute buttons turn red when they are enabled. XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 41 Fill Follow Fill — Scales the input signal to fill the entire • video output. Follow — Maintains the signal aspect ratio, • with respect to the current output resolution. XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 42 Pulse — In the desired relay panel, select a length of time from the field. Duration Click the button to pulse the relay for the time specified in the field. Pulse Duration XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 43 Save Preset — Select a preset from the list of presets and click the Save Preset button. Recall Preset — Select the desired preset from the list of presets and click the Recall button. Preset XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 44 Size Enter a value or click the arrows in the Down Horizontal Position fields ( Vertical Position To reset all position and size settings: Click the button ( Image Reset XTP SR HDMI Scaling Receiver • XTP System Configuration Software...

  • Page 45: Audio Tab

    DVI signals. NOTE: When this check box is selected, Extron EDID Minder does not show the EDID information of the connected display. It shows a 720p Extron EDID. XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 46 General unmute output video and sync. Mute video and sync — Click the button to Mute Video and Sync mute the active video and disable sync on the output. XTP SR HDMI Scaling Receiver • XTP System Configuration Software...

  • Page 47: Factory Reset

    ) to reset the receiver to factory settings Factory Reset (except for firmware). NOTE: This is the same as the SIS command (see the Factory defaults ZXXX command on page 28). XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 48 S/PDIF Audio — Displays the mute status of the audio on the S/PDIF output. Analog Audio — Displays the mute status of the analog audio output. Analog Audio Volume — Displays the analog audio output volume level. XTP SR HDMI Scaling Receiver • XTP System Configuration Software...

  • Page 49: Reference Information

    Updating Firmware with Firmware Loader Mounting The XTP SR HDMI can be placed on a tabletop or mounted in a rack or underneath a desk. Tabletop Mounting Attach the provided rubber feet to the bottom four corners of the enclosure.

  • Page 50: Updating Firmware With Firmware Loader

    Updating Firmware with Firmware Loader To upload and update firmware for the XTP SR HDMI, download the new firmware to a connected computer and upload the firmware with the Extron Firmware Loader utility. Downloading Extron Firmware Loader Figure 33. Software on the Extron Website...

  • Page 51: Installing Firmware Loader

    The file can be downloaded from the same page as the firmware. Click the link to the right of the desired device. Download Submit any required information to start the download. Note where the file is saved. XTP SR HDMI Scaling Receiver • Reference Information...

  • Page 52: Installing Firmware With Firmware Loader

    Click the button to start the upload process. Begin Close Firmware Loader when the field shows , the Remaining Time 00.00.00 column shows , and the field shows Progress 100% Status completed XTP SR HDMI Scaling Receiver • Reference Information...
  • Page 53 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
