Summary of Contents for Extron electronics XTP R HDMI

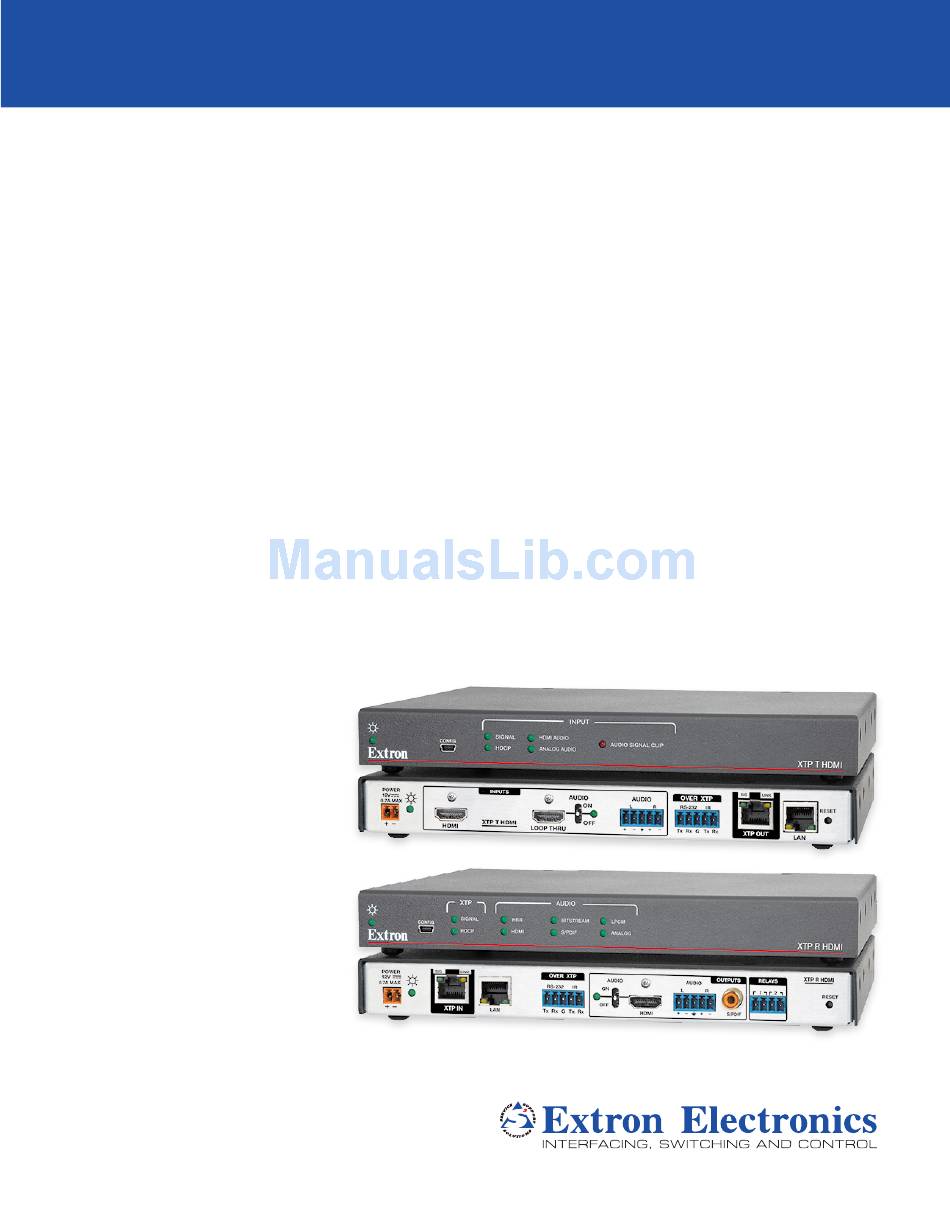

- Page 1 User Guide XTP Systems XTP T HDMI XTP R HDMI XTP HDMI Transmitter and Receiver 68-1723-01 Rev. B 01 16...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Инструкция по технике безопасности • Русский WARNING: This symbol, , when used on the product, is intended to ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан alert the user of the presence of uninsulated dangerous voltage within the на... - Page 3 この装置は、 クラスＡ情報技術装置です。 この装置を家庭環境で使用すると、 電波妨害を引き 起こすこ とがあります。 その場合には使用者が適切な対策を講ずるよう要求されるこ とがあります。 ＶＣ ＣI－Ａ Copyright © 2016 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks , registered service marks...
- Page 4 Conventions Used in this Guide Notifications The following notifications are used in this guide: Potential risk of severe injury or death. WARNING: AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information.
- Page 5 SIS Overview ............ 19 Host-to-Device and Device-to-Host Communication ........... 19 Error Responses ........... 19 Using the Command and Response Tables for SIS Commands ........20 Symbol Definitions ........20 XTP T HDMI Transmitter and XTP R HDMI Receiver • Contents...
- Page 6 XTP T HDMI Transmitter and XTP R HDMI Receiver • Contents...
-
Page 7: Introduction
In this guide, the terms “XTP T HDMI” and “transmitter” refer to the XTP T HDMI Transmitter. The terms “XTP R HDMI” and “receiver” refer to the XTP R HDMI Receiver. XTP T HDMI Transmitter and XTP R HDMI Receiver Description The XTP T HDMI and XTP R HDMI send and receive video, audio, bidirectional RS-232 and IR, and Ethernet signals over a shielded twisted pair cable. -
Page 8: System Compatibility
The following diagram shows ways the XTP T HDMI and XTP R HDMI can be integrated in an XTP matrix application. Extron TLP 1000TV Ethernet 10" Tabletop TouchLink AV Control Touchpanel Network Ethernet Extron IPCP 505 IP Link Control House Network Switch... -
Page 9: Features
Receiver HDMI audio de-embedding with analog stereo and digital S/PDIF • audio outputs — Digital HDMI audio is made available as a balanced or unbalanced analog stereo signal on captive screw connectors or a S/PDIF connector. XTP T HDMI Transmitter and XTP R HDMI Receiver • Introduction... -
Page 10: Installation
HDMI Audio Switch on page 16 to select local audio output options). A display that is not HDCP-compliant displays a green screen when HDCP encrypted content is sent to it. XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation... - Page 11 LAN connector — Connect a control device or device to be controlled to the pass-through LAN connector (see figure on the previous page) for 10/100Base-T Ethernet communication. LEDs on the connector indicate link and activity status. XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation...
-
Page 12: Receiver Rear Panel Connectors
Receiver XTP interconnection XTP Input connector — Connect a twisted pair cable to the RJ-45 connector labeled “XTP IN” on the XTP R HDMI and the XTP output port on another XTP device to pass all signals (see TP Cable Termination and Recommendations on page 9). - Page 13 17 for supported audio formats on the S/PDIF output): The audio format selected on the source material or device. • The source device automatically outputting an audio format through EDID. • XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation...
-
Page 14: Connection Details
6). For wiring considerations, Power Connection on page 12. The Power LED lights to indicate the device is receiving power. NOTE: The XTP R HDMI can also be powered remotely (see Remote power page 14). Connection Details HDMI Connection To secure the HDMI cable to the HDMI input connector, use an Extron LockIt Cable Lacing Bracket and a tie wrap. -
Page 15: Tp Cable Termination And Recommendations
Connector Figure 7. TP Cable Termination Supported cables The XTP T HDMI and XTP R HDMI are compatible with shielded twisted pair (F/UTP, SF/UTP, and S/FTP) cable. ATTENTION: • Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable to link the XTP products. - Page 16 • Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners. • Separate twisted pair cables from AC power cables. XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation...
-
Page 17: Rs-232 And Ir Communication
Any shorter and the wires can be easily pulled out even if tightly fastened by the captive screws. • S’ils sont un peu plus courts, ils pourraient sortir, même s’ils sont attachés par les vis captives. XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation... -
Page 18: Power Connection
Output Cord Figure 9. Power Wiring Both the transmitter and receiver can be powered by a local power supply. See the notifications on the next page for local power considerations. XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation... - Page 19 TIP: Do not tin the stripped power supply leads. Tinned wires are not as secure in the captive screw connectors and could be pulled out. XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation...
- Page 20 XTP devices (see the XTP CrossPoint matrix switcher user guide at www.extron.com for more details). To manage available power from the XTP CrossPoint matrix switcher, use the XTP System Configuration Software with the XTP CrossPoint matrix switcher. XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation...
-
Page 21: Operation
Audio Signal Clip LED indicator — Lights when the analog audio input signal • remains above -3 dBFS. The LED remains lit for 200 milliseconds after the signal falls below -3 dBFS. XTP T HDMI Transmitter and XTP R HDMI Receiver • Operation... -
Page 22: Receiver Front Panel Features
Analog LED indicator — Lights when the analog audio output is enabled. • HDMI Audio Switch The XTP T HDMI and XTP R HDMI have an HDMI audio switch that AUDIO mutes the embedded audio on the related HDMI connector (see... -
Page 23: Edid
EDID To manage EDID on the XTP T HDMI or XTP R HDMI, use the XTP System Configuration Software (see EDID Minder on page 34).The XTP T HDMI can record and save EDID in a user memory location, select a pre-defined EDID, or use EDID from a display connected to a receiver. -
Page 24: Reset Mode
DO mistake, cycle power to NOT operate the firmware the device to return to the version that results from this firmware version running prior mode reset. to the reset. XTP T HDMI Transmitter and XTP R HDMI Receiver • Operation... -
Page 25: Sis Configuration And Control
A string is one or more characters. Error Responses When the XTP T HDMI or XTP R HDMI receives an SIS command and determines that it is valid, it performs the command and sends the corresponding response to the host device. -
Page 26: Using The Command And Response Tables For Sis Commands
= Carriage return with no line feed = Pipe (can be used interchangeably with the character). • = Space = Escape key = Can be used interchangeably with the character. XTP T HDMI Transmitter and XTP R HDMI Receiver • SIS Configuration and Control... -
Page 27: Command And Response Tables For The Transmitter Sis Commands
= Audio mute = mute loop-through audio = 720p @ 50 Hz = Black video signal resolution = 720p @ 60 Hz (default) = 1080p @ 60 Hz XTP T HDMI Transmitter and XTP R HDMI Receiver • SIS Configuration and Control... -
Page 28: Edid Commands
= 720p @ 60 Hz = 1080p @ 60 Hz = unmute = Video mute = mute video to black = off = HDCP authorized device status = on (default) XTP T HDMI Transmitter and XTP R HDMI Receiver • SIS Configuration and Control... - Page 29 = HDCP status = HDCP-compliant source connected = non-compliant source = video or TMDS signal not detected = Video signal status = video or TMDS signal detected XTP T HDMI Transmitter and XTP R HDMI Receiver • SIS Configuration and Control...
-
Page 30: Command And Response Tables For The Receiver Sis Commands
Command and Response Tables for the Receiver SIS Commands The following commands are for direct connection to the XTP R HDMI (see the XTP matrix switcher user guide for commands sent from the matrix switcher to the receiver). Command ASCII Command... - Page 31 = sink detected with no HDCP encryption = sink detected with HDCP encryption = video or TMDS signal not detected = Video signal status = video or TMDS signal detected XTP T HDMI Transmitter and XTP R HDMI Receiver • SIS Configuration and Control...
-
Page 32: Xtp System Configuration Software
XTP System Configuration Software This section contains installation and configuration procedures for the XTP System Configuration Software to configure and control the XTP T HDMI and XTP R HDMI. Topics in this section include: Software Installation • • Software Operation... -
Page 33: Software Product
Open the executable (.exe) file from the save location. Follow the instructions that appear on the screen. By default, the installation creates a directory in the Program Files or Program Files (x86) folder. XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software... -
Page 34: Software Operation
Software Operation The XTP T HDMI and XTP R HDMI can be controlled directly from the front panel configuration port (see figure on page 15 or figure on page 16) or remotely from an XTP matrix switcher (see the XTP matrix switcher user guide for connection details from an XTP matrix switcher). -
Page 35: Menu Bar
Backup and Restore Commissioning Report available when directly connected to the device. See an XTP matrix switcher user guide (www.extron.com) for more information on these features. XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software... -
Page 36: Update Firmware
. The Tools Software Preference Software Preference dialog box opens. Figure 23. Software Preference Dialog Box Click the button. The dialog box closes. Reset XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software... - Page 37 This option opens the XTP System Configuration Software help file in a Web browser. From the menu, select Help Help Extron Website This option opens the Extron website in a Web browser. From the menu, select Help Extron Website XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software...
-
Page 38: Transmitter Configuration
Analog Audio Gain or down or specify the desired gain in the field below the slider to adjust the audio gain or attenuation in dB. XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software... - Page 39 Audio only — Displays whether the black video signal for audio-only transmission is enabled. Analog Audio Gain — Displays the gain for analog audio. XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software...
- Page 40 . The EDID file appears in the Open panel ( Available EDID Assign the EDID file from the panel to import the EDID to the device. Available EDID XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software...
- Page 41 Common Timings Connected Outputs listing the EDID settings common among the selected outputs. Select the desired common EDID. The EDID is shown in the panel. Available EDID XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software...
-
Page 42: Receiver Configuration
Force analog audio output — For connected DVI displays, click the Force analog check box to output analog audio. audio output when DVI display is connected XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software... - Page 43 S/PDIF audio output. Analog Audio — Displays the mute status of the analog audio output. Analog Audio Volume — Displays the analog audio output volume level. XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software...
-
Page 44: Reference Information
Information This section contains mounting information. Mounting The XTP T HDMI and XTP R HDMI can be placed on a tabletop or mounted in a rack or underneath a desk. Tabletop Mounting Attach the provided rubber feet to the bottom four corners of the enclosure. - Page 45 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
