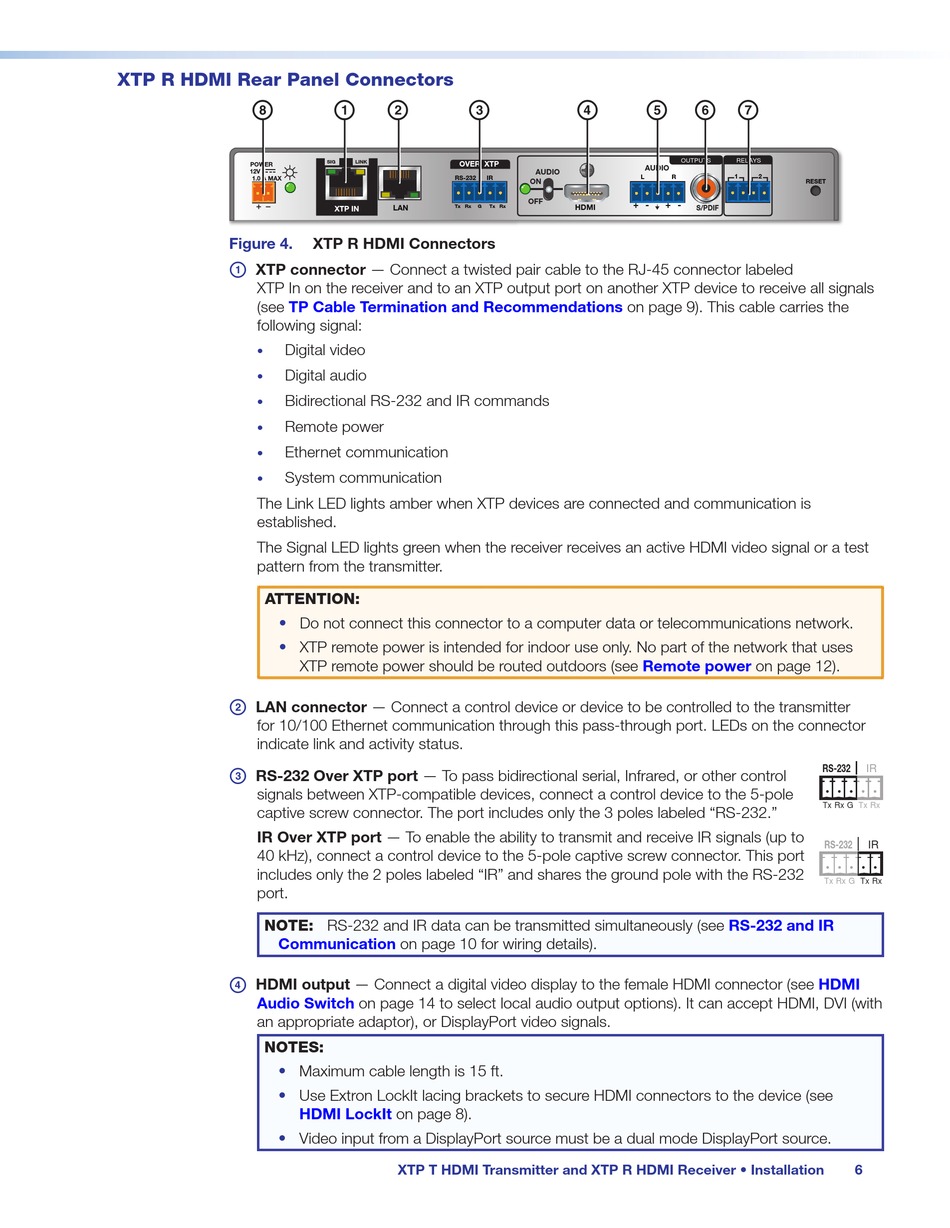

XTP R HDMI Rear Panel Connectors
h
POWER
12V
1.0 A MAX
Figure 4.
a
XTP connector — Connect a twisted pair cable to the RJ-45 connector labeled
XTP In on the receiver and to an XTP output port on another XTP device to receive all signals
(see
TP Cable Termination and Recommendations
following signal:
Digital video
•
Digital audio
•
Bidirectional RS-232 and IR commands
•
Remote power
•
Ethernet communication
•
System communication
•
The Link LED lights amber when XTP devices are connected and communication is
established.
The Signal LED lights green when the receiver receives an active HDMI video signal or a test
pattern from the transmitter.
ATTENTION:
•
•
b
LAN connector — Connect a control device or device to be controlled to the transmitter
for 10/100 Ethernet communication through this pass-through port. LEDs on the connector
indicate link and activity status.
c
RS-232 Over XTP port — To pass bidirectional serial, Infrared, or other control
signals between XTP-compatible devices, connect a control device to the 5-pole
captive screw connector. The port includes only the 3 poles labeled "RS-232."
IR Over XTP port — To enable the ability to transmit and receive IR signals (up to
40 kHz), connect a control device to the 5-pole captive screw connector. This port
includes only the 2 poles labeled "IR" and shares the ground pole with the RS-232
port.
NOTE: RS-232 and IR data can be transmitted simultaneously (see
Communication
d
HDMI output — Connect a digital video display to the female HDMI connector (see
Audio Switch
an appropriate adaptor), or DisplayPort video signals.
NOTES:
•
•
•
a
b
c
SIG
LINK
OVER XTP
RS-232
LAN
Tx
Rx
G
XTP IN
XTP R HDMI Connectors
Do not connect this connector to a computer data or telecommunications network.
XTP remote power is intended for indoor use only. No part of the network that uses
XTP remote power should be routed outdoors (see
on page 10 for wiring details).
on page 14 to select local audio output options). It can accept HDMI, DVI (with
Maximum cable length is 15 ft.
Use Extron LockIt lacing brackets to secure HDMI connectors to the device (see
HDMI LockIt
on page 8).
Video input from a DisplayPort source must be a dual mode DisplayPort source.
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation
d
e f g
AUDIO
AUDIO
L
IR
ON
OFF
+
-
+
Tx
Rx
HDMI
on page 9). This cable carries the
Remote power
OUTPUTS
RELAYS
R
1
2
RESET
-
S/PDIF
on page 12).
RS-232
Tx Rx G
RS-232
Tx Rx G
RS-232 and IR
HDMI
IR
Tx Rx
IR
Tx Rx
6
