User Guide
XTP Systems

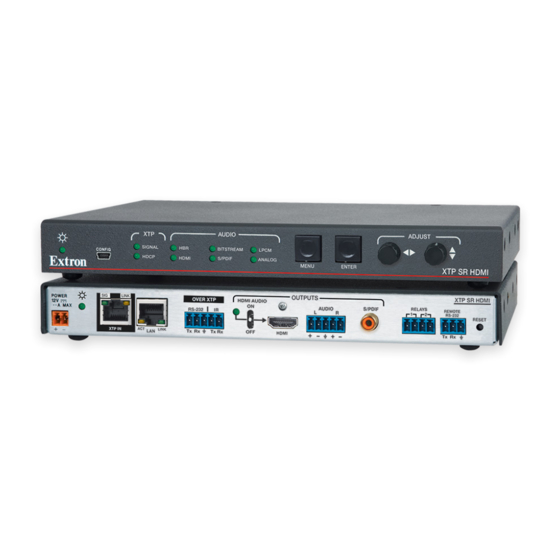

XTP SR HDMI
XTP HDMI Scaling Receiver
68-2007-01 Rev. H
01 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTP SR HDMI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics XTP SR HDMI

Summary of Contents for Extron electronics XTP SR HDMI

  • Page 1 User Guide XTP Systems XTP SR HDMI XTP HDMI Scaling Receiver 68-2007-01 Rev. H 01 19...
  • Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad WARNING: This symbol, ,when used on the product, is avvertire l’utente della presenza di tensione non isolata pericolosa intended to alert the user of the presence of uninsulated dangerous all’interno del contenitore del prodotto che può...
  • Page 3 ついては、 エクス トロンのウェブサイ ト より 『Extron Safety www.extron.com and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧ください。 Copyright © 2013-2019 Extron Electronics. All rights reserved. www.extron.com Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ( ®...
  • Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: WARNING: Potential risk of severe injury or death. AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information.

  • Page 6: Table Of Contents

    Introduction ..........1 Host Device Connection ........23 Guide Overview ........... 1 SIS Overview ............. 23 XTP SR HDMI Scaling Receiver Description ..1 Host-to-Device and Device-to-Host System Compatibility ........... 2 Communication ..........23 Features .............. 2 Device-Initiated Message ....... 23 Error Responses ..........

  • Page 7: Introduction

    This guide provides installation, operation, control, and reference information for the XTP SR HDMI scaling receiver. In this guide, the terms “scaling receiver” and “XTP SR HDMI” are used interchangeably to refer to the XTP SR HDMI scaling receiver. XTP SR HDMI Scaling Receiver Description The Extron XTP SR HDMI receives video, audio, bidirectional RS-232 and IR, and Ethernet signals over a single twisted pair cable.

  • Page 8: System Compatibility

    The following diagram shows one way the XTP SR HDMI can be integrated in an XTP point-to-point application. The scaling receiver can also be used with an XTP matrix switcher (see the XTP matrix switcher user guide for more details on matrix applications).
  • Page 9 • Remote power capability — Allows the XTP SR HDMI to be powered by an XTP CrossPoint Matrix Switcher or XTP Power Injectors to simplify integration. Multiple embedded audio formats — Provides reliable operation with HDMI sources, •...

  • Page 10: Installation

    • Rear Panel Connectors • Connection Details The XTP SR HDMI can be placed on a tabletop or mounted in a rack or under a desk (see Mounting on page 47). Rear Panel Connectors LINK POWER...
  • Page 11 NOTES: • The maximum cable length is 15 feet (4.6 meters). • Use an Extron LockIt Cable Lacing Bracket to secure the HDMI connector to the device (see HDMI Connection on page 7). XTP SR HDMI Scaling Receiver • Installation...
  • Page 12 2-pole captive screw connector (see figure on page 4). The Power LED lights to indicate the device is receiving power. Power Connection NOTE: The XTP SR HDMI can also be powered remotely (see on page 11). XTP SR HDMI Scaling Receiver • Installation...

  • Page 13: Connection Details

    ( ATTENTION: • Connect and pull the tie wraps until they are secure. Do not overtighten. • Connectez et tirez les serre-câbles jusqu’à ce qu’ils soient sécurisés. Ne pas trop serrer. XTP SR HDMI Scaling Receiver • Installation...

  • Page 14: Tp Cable Termination And Recommendations

    Connector Figure 5. Twisted Pair Cable Termination Supported cables The XTP SR HDMI is compatible with shielded twisted pair (F/UTP, SF/UTP, and S/FTP) and unshielded twisted pair (U/UTP) cables. ATTENTION: • Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable to link the XTP products.
  • Page 15 Do not comb the cable for the first 20 m, where cables are straightened, aligned, and secured in tight bundles. • Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners. • Separate twisted pair cables from AC power cables. XTP SR HDMI Scaling Receiver • Installation...

  • Page 16: Rs-232 And Ir Over Xtp Communication

    If the exposed wires are shorter, they can be easily pulled out, even if tightly fastened by the captive screws. • S’ils sont un peu plus courts, ils pourraient sortir, même s’ils sont attachés par les vis captives. XTP SR HDMI Scaling Receiver • Installation...

  • Page 17: Power Connection

    (5 mm) Max. Smooth Ridges Power Supply Output Cord Figure 7. Power Wiring The receiver can be powered by a local power supply. See the notifications on the next page for local power considerations. XTP SR HDMI Scaling Receiver • Installation...
  • Page 18 La longueur idéale est de 5 mm (3/16 inch). TIP: Do not tin the stripped power supply leads. Tinned wires are not as secure in the captive screw connectors and could be pulled out. XTP SR HDMI Scaling Receiver • Installation...
  • Page 19 Remote power The XTP SR HDMI can be powered remotely through an XTP Power Injector or through an XTP matrix switcher. ATTENTION: • XTP remote power is intended for indoor use only. No part of the network that uses XTP remote power should be routed outdoors.

  • Page 20: Operation

    Operation This section contains information for front panel operation and configuration of the XTP SR HDMI and configuration through the On-Screen Display (OSD) menu. Topics in this section include: • Front Panel Features and Indicators Rear Panel HDMI Audio Switch •...

  • Page 21: Rear Panel Hdmi Audio Switch

    Rear Panel HDMI Audio Switch AUDIO The XTP SR HDMI has an HDMI audio switch on the rear panel that mutes or unmutes the embedded audio on the HDMI output connector (see figure on page 4).

  • Page 22: Menu Navigation Using Front Panel Controls

    Press the button to cancel any Enter Menu pending changes. To exit the OSD menu: While in the list of submenus, press the button to exit the OSD menu. Menu XTP SR HDMI Scaling Receiver • Operation...

  • Page 23: Image Reset Submenu

    (Bright) of the image. Rotate the knob to adjust the Vertical Adjustment contrast (Cont) of the image. The default value is Detail — Rotate the adjustment knobs to adjust the detail of the image. The default value XTP SR HDMI Scaling Receiver • Operation...

  • Page 24: User Presets Submenu

    Image size and position Recall — Rotate the adjustment knobs to select a preset to recall. Save — Rotate the adjustment knobs to select a preset to store the current picture control settings. XTP SR HDMI Scaling Receiver • Operation...

  • Page 25: Input Configuration Submenu

    Output format and color bit depth settings are not configurable from the OSD. To configure either setting, use SIS commands (see Output Configuration Commands page 28) or use the XTP System Configuration Software (see Input/Output tab page 39). Figure 14. Output Configuration Submenu XTP SR HDMI Scaling Receiver • Operation...
  • Page 26 Color bit depth — Shows the color bit depth setting. This is not configurable from the OSD menu. To configure this setting, use SIS commands (see Video bit depth SIS commands Input/Output tab on page 28) or use the XTP System Configuration Software (see page 39). XTP SR HDMI Scaling Receiver • Operation...

  • Page 27: Advanced Configuration Submenu

    , the native aspect ratio of the Follow input is maintained. Factory reset — Press and hold the button to reset the device to factory defaults. Enter The scaling receiver retains the current firmware version. XTP SR HDMI Scaling Receiver • Operation...

  • Page 28: Front Panel Lockout Mode (Executive Mode)

    Reset latest firmware version. DO mistake, cycle power to NOT operate the firmware the device to return to the version that results from this firmware version running prior mode reset. to the reset. XTP SR HDMI Scaling Receiver • Operation...

  • Page 29: Sis Configuration And Control

    SIS commands consist of one or more characters per field. No special characters are required to begin or end a command sequence. When the XTP SR HDMI determines that a command is valid, it executes the command and sends a response to the host device. All...

  • Page 30: Error Responses

    Error Responses When the XTP SR HDMI receives an SIS command and determines that it is valid, it performs the command and sends the corresponding response to the host device. If the command is determined invalid or contains invalid parameters, the receiver returns an error response to the host.

  • Page 31: Symbol Definitions

    60 Hz 640x480 800x600 852x480 1024x768 1024x852 1024x1024 1280x768 1280x800 1280x1024 1360x765 1360x768 1365x768 1366x768 1365x1024 1440x900 1400x1050 1680x1050 1600x1200 1920x1200 480p 576p 720p 1080i 1080p 2K (2048x1080) * = default XTP SR HDMI Scaling Receiver • SIS Configuration and Control...

  • Page 32: Command And Response Tables For Sis Commands

    View brightness X&] View the brightness level. BRIT Brit KEY: = unmute (default) = Video mute = mute video = mute video and sync = default) X& = Picture adjustment XTP SR HDMI Scaling Receiver • SIS Configuration and Control...
  • Page 33 Execute an image reset Reset shift and size settings to the default values. KEY: X& = default) = Picture adjustment 65535 = Horizontal position or size 65535 = Vertical position or size XTP SR HDMI Scaling Receiver • SIS Configuration and Control...

  • Page 34: Output Configuration Commands

    = alternating pixels = crosshatch = colorbars = greyscale = auto (default) = Video bit depth = 8 bit See the table on page 25. = Output scaler rate and refresh rate XTP SR HDMI Scaling Receiver • SIS Configuration and Control...

  • Page 35: Audio Configuration Commands

    = mute S/PDIF and HDMI audio outputs = mute S/PDIF and analog audio outputs = mute all audio outputs in 1 dB steps ( = default) X1& = Volume = User preset XTP SR HDMI Scaling Receiver • SIS Configuration and Control...

  • Page 36: Advanced Configuration Commands

    1 step = 100 ms or 10 steps = 1 s = Basic mute = default) where 1 step = 100 ms or 10 steps = 1 s = Advanced mute = default) XTP SR HDMI Scaling Receiver • SIS Configuration and Control...
  • Page 37 = no input = Input signal status = input detected = auto or encrypt the output only when required by = HDCP mode the input (default) = always encrypt the output XTP SR HDMI Scaling Receiver • SIS Configuration and Control...

  • Page 38: Xtp System Configuration Software

    XTP System Configuration Software This section contains installation and configuration procedures for the XTP System Configuration Software. The XTP SR HDMI can also be controlled with the OSD menu (see On-Screen Display Menu System on page 15) or SIS commands (see Configuration and Control on page 23).

  • Page 39: Software Product Page

    Open the executable (.exe) file from the save location. Follow the instructions that appear on the screen. By default, the installation creates a directory in the Program Files or Program Files (x86) folder. XTP SR HDMI Scaling Receiver • XTP System Configuration Software...

  • Page 40: Software Operation

    Software Operation The XTP SR HDMI can be controlled directly from the front panel configuration port (see figure on page 14) or remotely from a connected XTP matrix switcher. Connections The XTP System Configuration Software opens to the screen. This screen is Connections used to establish communication with an XTP device through a USB connection.

  • Page 41: Menu Bar

    Backup and Restore Commissioning Report available when the computer is directly connected to the XTP SR HDMI. See an XTP matrix switcher user guide (www.extron.com) for more information on these features. XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 42 This option resets all disabled confirmation dialogs to the default settings. From the menu, select . The Tools Software Preference Software Preference dialog box opens. Figure 27. Software Preference Dialog Box Click the button. The dialog box closes. Reset XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 43 This option opens the XTP System Configuration Software help file in a Web browser. From the menu, select Help Help Extron Website This option opens the Extron website in a Web browser. From the menu, select Help Extron Website XTP SR HDMI Scaling Receiver • XTP System Configuration Software...

  • Page 44: Device Settings

    Audio mute — Click the button to mute or unmute the audio output. Audio Mute Audio and video mute — Click the button to mute or unmute audio and AV Mute video output. XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 45 Fill Follow Fill — Scales the input signal to fill the entire video output. • Follow — Maintains the signal aspect ratio, with respect to the current output • resolution. XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 46 Pulse — In the desired relay panel, select a length of time from the field. Duration figure Click the button (see on the previous page) to pulse the relay for Pulse ¢ the time specified in the field. Duration XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 47 Save Preset — Select a preset from the list of presets and click the Save Preset button. The current settings are saved. Recall Preset — Select the desired preset from the list of presets and click the Recall button. Preset XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 48 Enter a value or click the arrows in the Down Horizontal Position fields ( Vertical Position To reset all position and size settings to default values: Click the button ( Image Reset XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 49 DVI signals. NOTE: When this check box is selected, Extron EDID Minder does not show the EDID information of the connected display. It shows a 720p Extron EDID. XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 50 Mute Video and Sync General output video and sync. Mute video and sync — Click the button to mute the active Mute Video and Sync video and disable sync on the output. XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 51 Factory Reset page) to reset the receiver to factory settings (except for firmware). NOTE: This is the same as the SIS command (see the Reset mode ZXXX command on page 31). XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
  • Page 52 S/PDIF output. Analog Audio — Displays the mute status of ¢ the analog audio output. £ Analog Audio Volume — Displays the analog audio output volume level. XTP SR HDMI Scaling Receiver • XTP System Configuration Software...

  • Page 53: Reference Information

    This section contains mounting information. Mounting The XTP SR HDMI can be placed on a tabletop or mounted in a rack or underneath a desk. Tabletop Mounting Attach the provided rubber feet to the bottom four corners of the enclosure.
  • Page 54 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
