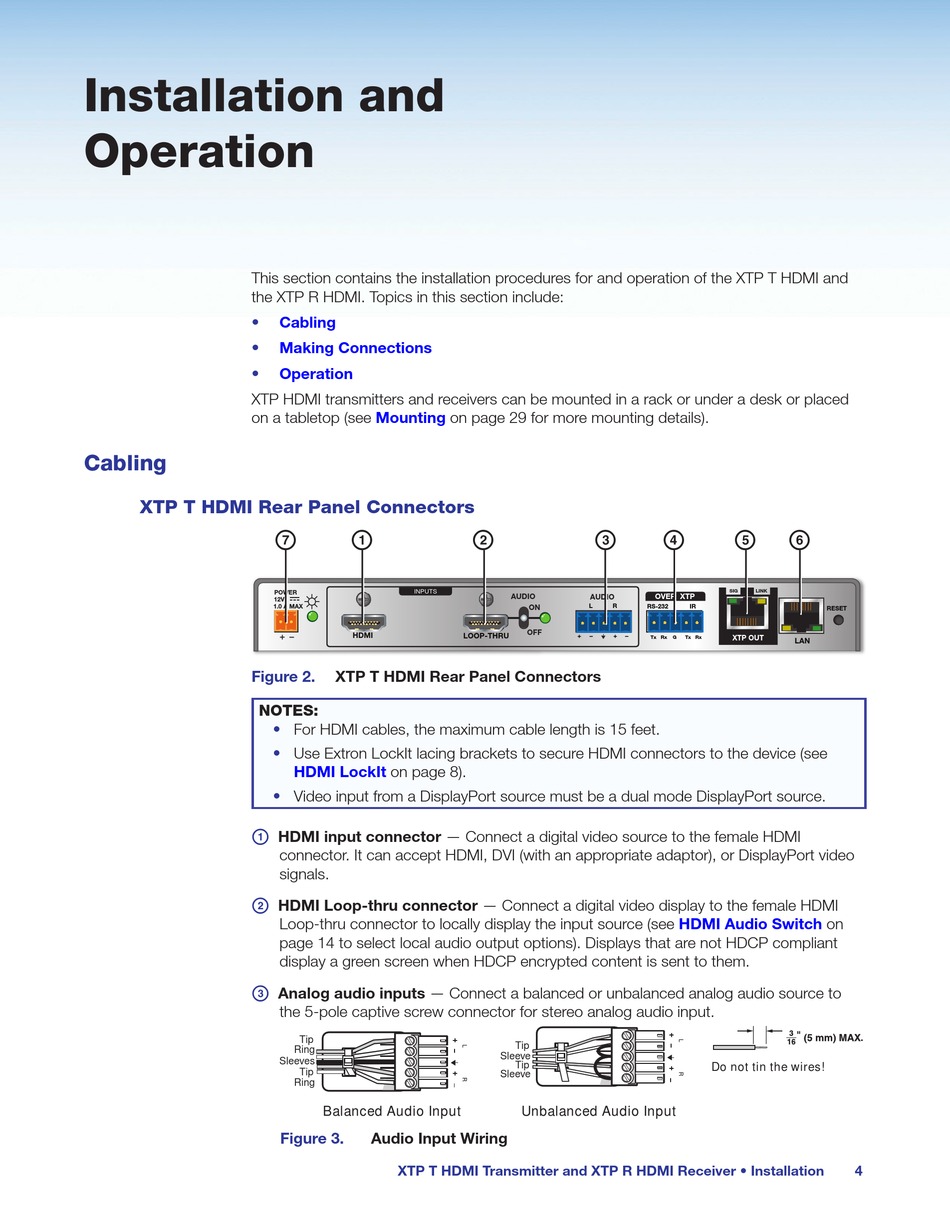

Installation and
Operation
This section contains the installation procedures for and operation of the XTP T HDMI and
the XTP R HDMI. Topics in this section include:
•
•
•
XTP HDMI transmitters and receivers can be mounted in a rack or under a desk or placed
on a tabletop (see

Cabling

XTP T HDMI Rear Panel Connectors

Figure 2.
NOTES:
a
b
c
Cabling
Making Connections
Operation
Mounting on page 29 for more mounting details).
g a
INPUTS
POWER
12V
1.0 A MAX
HDMI
XTP T HDMI Rear Panel Connectors
• For HDMI cables, the maximum cable length is 15 feet.
• Use Extron LockIt lacing brackets to secure HDMI connectors to the device (see
HDMI LockIt on page 8).
•
Video input from a DisplayPort source must be a dual mode DisplayPort source.
HDMI input connector — Connect a digital video source to the female HDMI
connector. It can accept HDMI, DVI (with an appropriate adaptor), or DisplayPort video
signals.
HDMI Loop-thru connector — Connect a digital video display to the female HDMI
Loop-thru connector to locally display the input source (see
page 14 to select local audio output options). Displays that are not HDCP compliant
display a green screen when HDCP encrypted content is sent to them.
Analog audio inputs — Connect a balanced or unbalanced analog audio source to
the 5-pole captive screw connector for stereo analog audio input.
Tip
Ring
Sleeves
Tip
Ring
Balanced Audio Input
Figure 3. Audio Input Wiring
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation
b c
AUDIO
AUDIO
L R
ON
OFF
LOOP-THRU
+ − + −
Tip
Sleeve
Tip
Sleeve
Unbalanced Audio Input
d e f
SIG LINK
OVER XTP
RS-232 IR
RESET
XTP OUT
Tx Rx G Tx Rx
LAN
HDMI Audio Switch on
Do not tin the wires!
4
