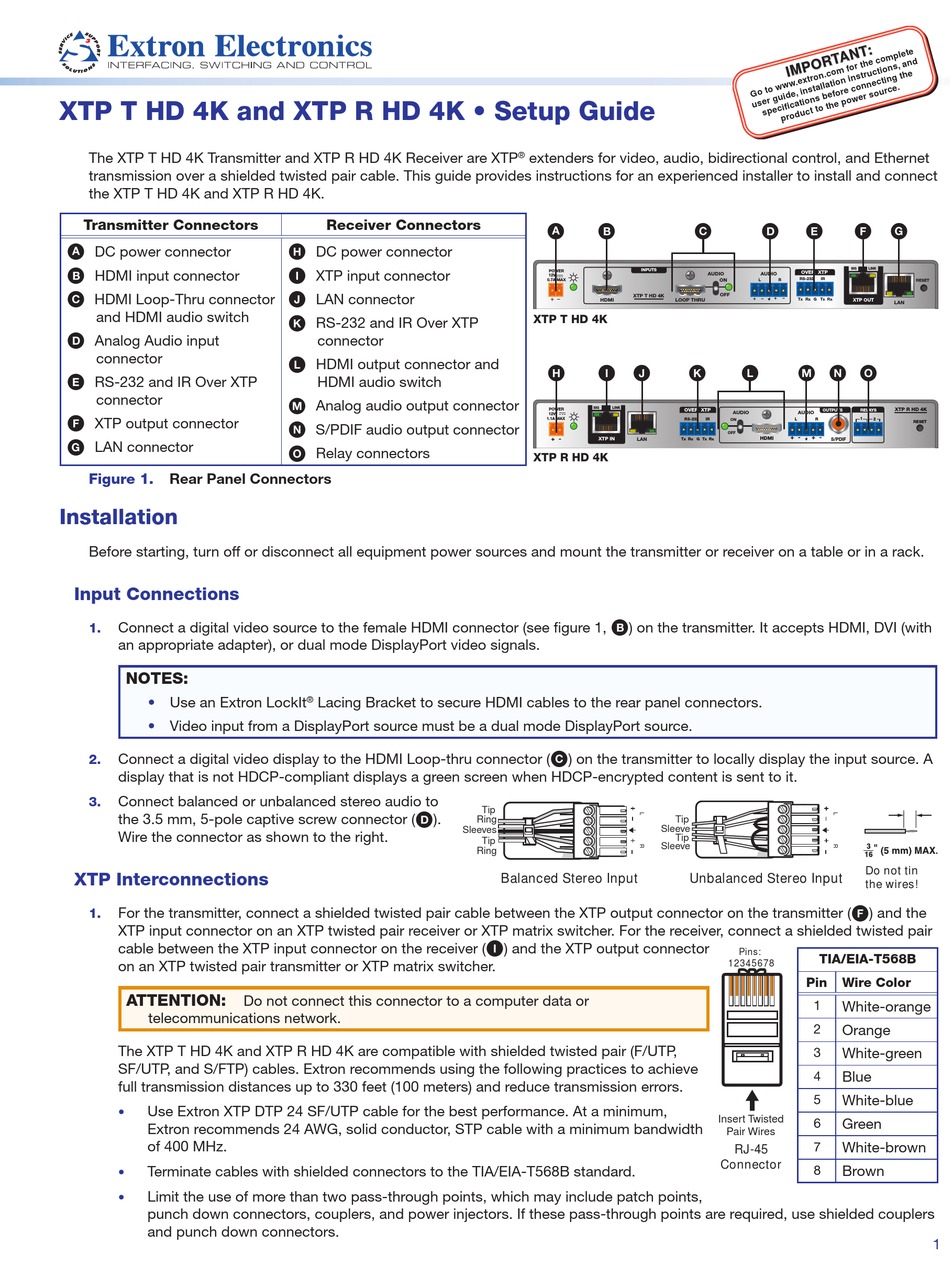

XTP T HD 4K and XTP R HD 4K • Setup Guide

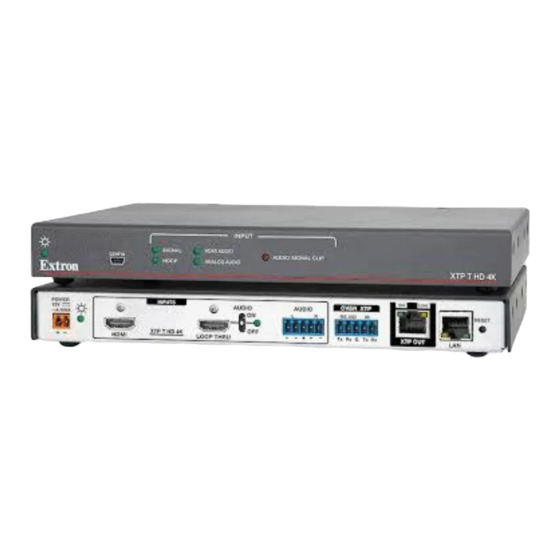

The XTP T HD 4K Transmitter and XTP R HD 4K Receiver are XTP
transmission over a shielded twisted pair cable. This guide provides instructions for an experienced installer to install and connect
the XTP T HD 4K and XTP R HD 4K.

Transmitter Connectors

DC power connector
A
B HDMI input connector
HDMI Loop-Thru connector
C
and HDMI audio switch
Analog Audio input
D
connector
RS-232 and IR Over XTP
E
connector
F XTP output connector
LAN connector
G
Rear Panel Connectors
Figure 1.

Installation

Before starting, turn off or disconnect all equipment power sources and mount the transmitter or receiver on a table or in a rack.

Input Connections

Connect a digital video source to the female HDMI connector (see figure 1,
1.
an appropriate adapter), or dual mode DisplayPort video signals.
NOTES:
• Use an Extron LockIt
• Video input from a DisplayPort source must be a dual mode DisplayPort source.
Connect a digital video display to the HDMI Loop-thru connector (
2.
display that is not HDCP-compliant displays a green screen when HDCP-encrypted content is sent to it.
Connect balanced or unbalanced stereo audio to
3.
the 3.5 mm, 5-pole captive screw connector (
Wire the connector as shown to the right.

XTP Interconnections

For the transmitter, connect a shielded twisted pair cable between the XTP output connector on the transmitter (
1.
XTP input connector on an XTP twisted pair receiver or XTP matrix switcher. For the receiver, connect a shielded twisted pair
cable between the XTP input connector on the receiver (
on an XTP twisted pair transmitter or XTP matrix switcher.
ATTENTION:
Do not connect this connector to a computer data or
telecommunications network.
The XTP T HD 4K and XTP R HD 4K are compatible with shielded twisted pair (F/UTP,
SF/UTP, and S/FTP) cables. Extron recommends using the following practices to achieve
full transmission distances up to 330 feet (100 meters) and reduce transmission errors.
Use Extron XTP DTP 24 SF/UTP cable for the best performance. At a minimum,
•
Extron recommends 24 AWG, solid conductor, STP cable with a minimum bandwidth
of 400 MHz.
Terminate cables with shielded connectors to the TIA/EIA-T568B standard.
•
Limit the use of more than two pass-through points, which may include patch points,
•
punch down connectors, couplers, and power injectors. If these pass-through points are required, use shielded couplers
and punch down connectors.

Receiver Connectors

DC power connector
H
I XTP input connector
LAN connector
J
RS-232 and IR Over XTP
K
connector
HDMI output connector and
L
HDMI audio switch
Analog audio output connector
M
N S/PDIF audio output connector
Relay connectors
O
® Lacing Bracket to secure HDMI cables to the rear panel connectors.
).
D
Sleeves
extenders for video, audio, bidirectional control, and Ethernet
®
A B
INPUTS
POWER
12V
0.7A MAX
XTP T HD 4K
HDMI
XTP T HD 4K
H I J
SIG LINK
POWER
12V
1.1A MAX
+ -
XTP IN LAN
XTP R HD 4K
) on the transmitter. It accepts HDMI, DVI (with
B
) on the transmitter to locally display the input source. A
C
Tip
Ring
Sleeve
Tip
Sleeve
Ring
Balanced Stereo Input
) and the XTP output connector
I
C D E F G
SIG
OVER XTP
AUDIO AUDIO
RS-232 IR
ON L R
OFF
+ −
LOOP THRU + − Tx Rx G Tx Rx XTP OUT
K L M N O
OVER XTP
OUTPUTS RELAYS
AUDIO AUDIO
RS-232 IR 1
ON L R
OFF
+ - + -
HDMI
S/PDIF
Tx Rx G Tx Rx
Tip
Tip
Unbalanced Stereo Input
F
Pins:
TIA/EIA-T568B
12345678
Pin Pin Wire Color Wire color
1 White-green
White-orange
1
2 Green
2 Orange
3 White-orange
3 4 Blue White-green
5 White-blue
Blue
4
6 Orange
5 White-blue
7 White-brown
8 Brown
Insert Twisted
Green
6
Pair Wires
7 White-brown
RJ-45
Connector
8 Brown
LINK
RESET
LAN
XTP R HD 4K
2
RESET
Do not tin
the wires!
) and the
T568A T568B
Wire color
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
1
