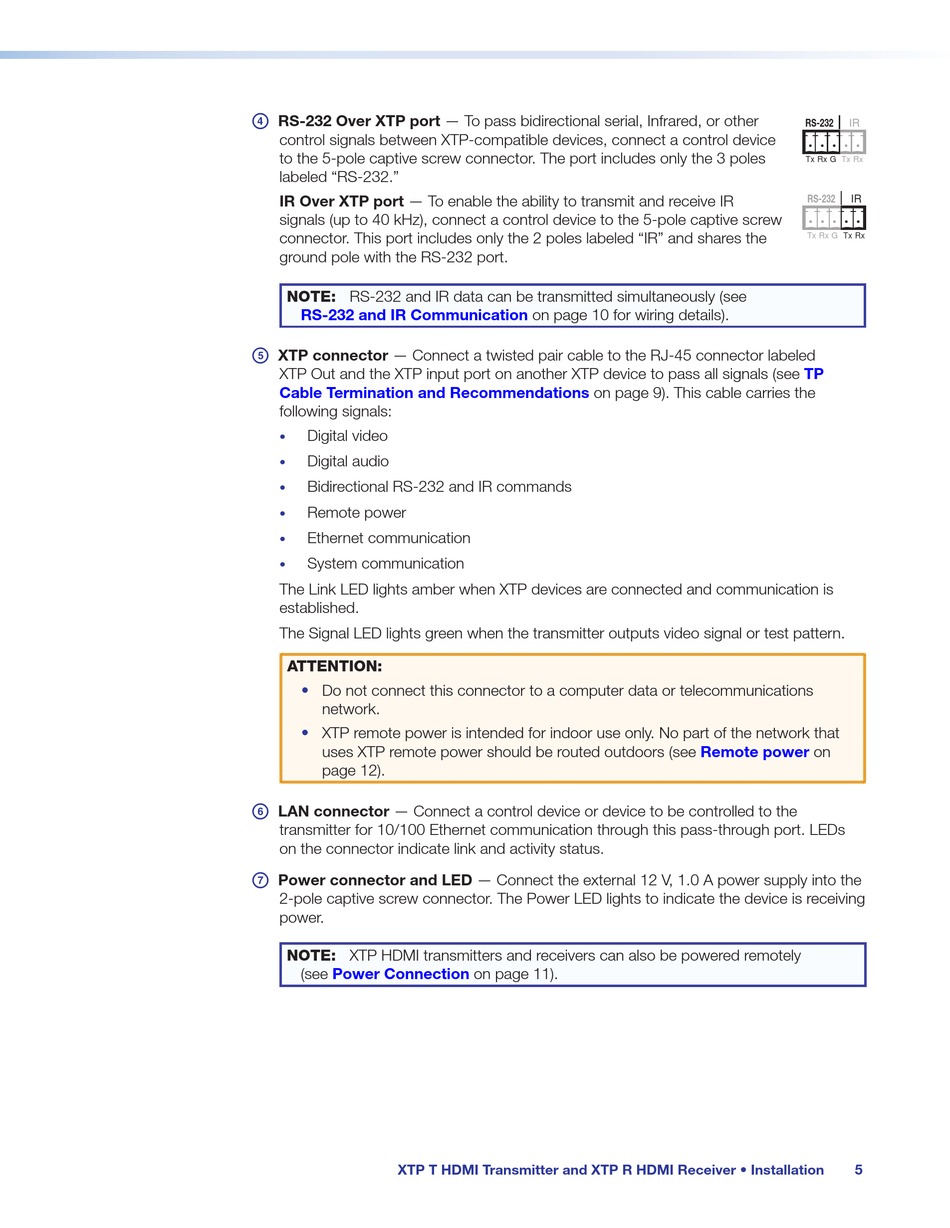

d
RS-232 Over XTP port — To pass bidirectional serial, Infrared, or other
control signals between XTP-compatible devices, connect a control device
to the 5-pole captive screw connector. The port includes only the 3 poles
labeled "RS-232."
IR Over XTP port — To enable the ability to transmit and receive IR
signals (up to 40 kHz), connect a control device to the 5-pole captive screw
connector. This port includes only the 2 poles labeled "IR" and shares the
ground pole with the RS-232 port.
NOTE: RS-232 and IR data can be transmitted simultaneously (see
RS-232 and IR Communication
e
XTP connector — Connect a twisted pair cable to the RJ-45 connector labeled
XTP Out and the XTP input port on another XTP device to pass all signals (see
Cable Termination and Recommendations
following signals:
Digital video
•
Digital audio
•
Bidirectional RS-232 and IR commands
•
Remote power
•
Ethernet communication
•
System communication
•
The Link LED lights amber when XTP devices are connected and communication is
established.
The Signal LED lights green when the transmitter outputs video signal or test pattern.
ATTENTION:
•
Do not connect this connector to a computer data or telecommunications
network.
• XTP remote power is intended for indoor use only. No part of the network that
uses XTP remote power should be routed outdoors (see
page 12).
f
LAN connector — Connect a control device or device to be controlled to the
transmitter for 10/100 Ethernet communication through this pass-through port. LEDs
on the connector indicate link and activity status.
g
Power connector and LED — Connect the external 12 V, 1.0 A power supply into the
2-pole captive screw connector. The Power LED lights to indicate the device is receiving
power.
NOTE: XTP HDMI transmitters and receivers can also be powered remotely
(see Power Connection
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation
on page 10 for wiring details).
on page 9). This cable carries the
on page 11).
RS-232 IR
Tx Rx G Tx Rx
RS-232 IR
Tx Rx G Tx Rx
TP
Remote power on
