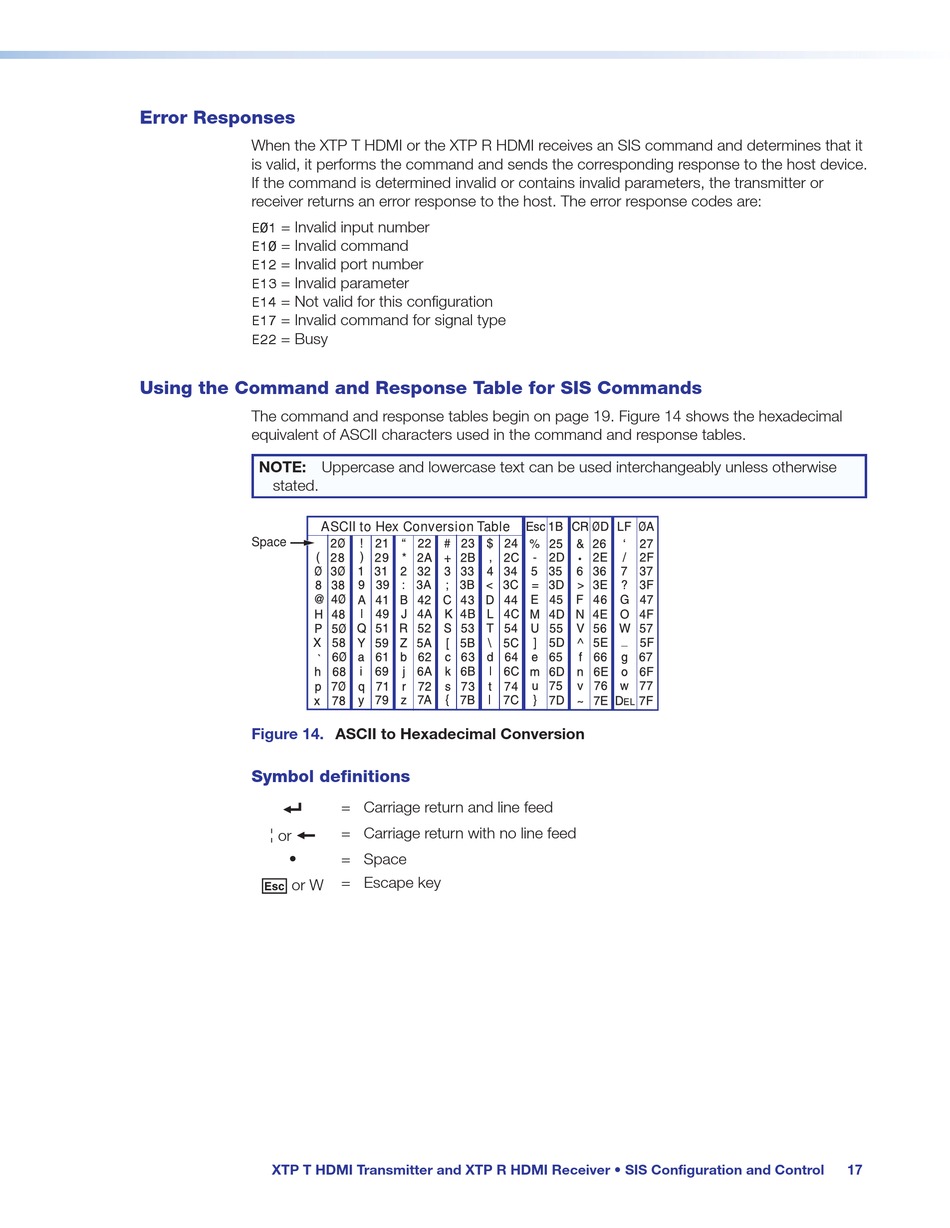

Error Responses

When the XTP T HDMI or the XTP R HDMI receives an SIS command and determines that it
is valid, it performs the command and sends the corresponding response to the host device.
If the command is determined invalid or contains invalid parameters, the transmitter or
receiver returns an error response to the host. The error response codes are:
= Invalid input number
E01
= Invalid command
E10
= Invalid port number
E12
= Invalid parameter
E13
= Not valid for this configuration
E14
= Invalid command for signal type
E17
= Busy
E22

Using the Command and Response Table for SIS Commands

The command and response tables begin on page 19. Figure 14 shows the hexadecimal
equivalent of ASCII characters used in the command and response tables.
NOTE: Uppercase and lowercase text can be used interchangeably unless otherwise
stated.
Space
Figure 14.
Symbol definitions
]
¦
}
or
•
E
or W
XTP T HDMI Transmitter and XTP R HDMI Receiver • SIS Configuration and Control
ASCII to Hex Conversion Table
ASCII to Hexadecimal Conversion
= Carriage return and line feed
= Carriage return with no line feed
= Space
= Escape key
•
