Performing Soft System Resets (Resets 3, 4, and 5)

Perform a soft reset of the switcher as follows:
1. Use an Extron Tweeker or other small screwdriver to press and hold the rear panel
Reset button until the front panel View and Esc buttons blink the number of times for
the desired reset: once (events reset), twice (system reset), or three times (absolute
reset) (see figure 26).
Events
Reset
(Mode 3)
IP Settings
Reset
(Mode 4)
Absolute
Reset
(Mode 5)
Figure 26.

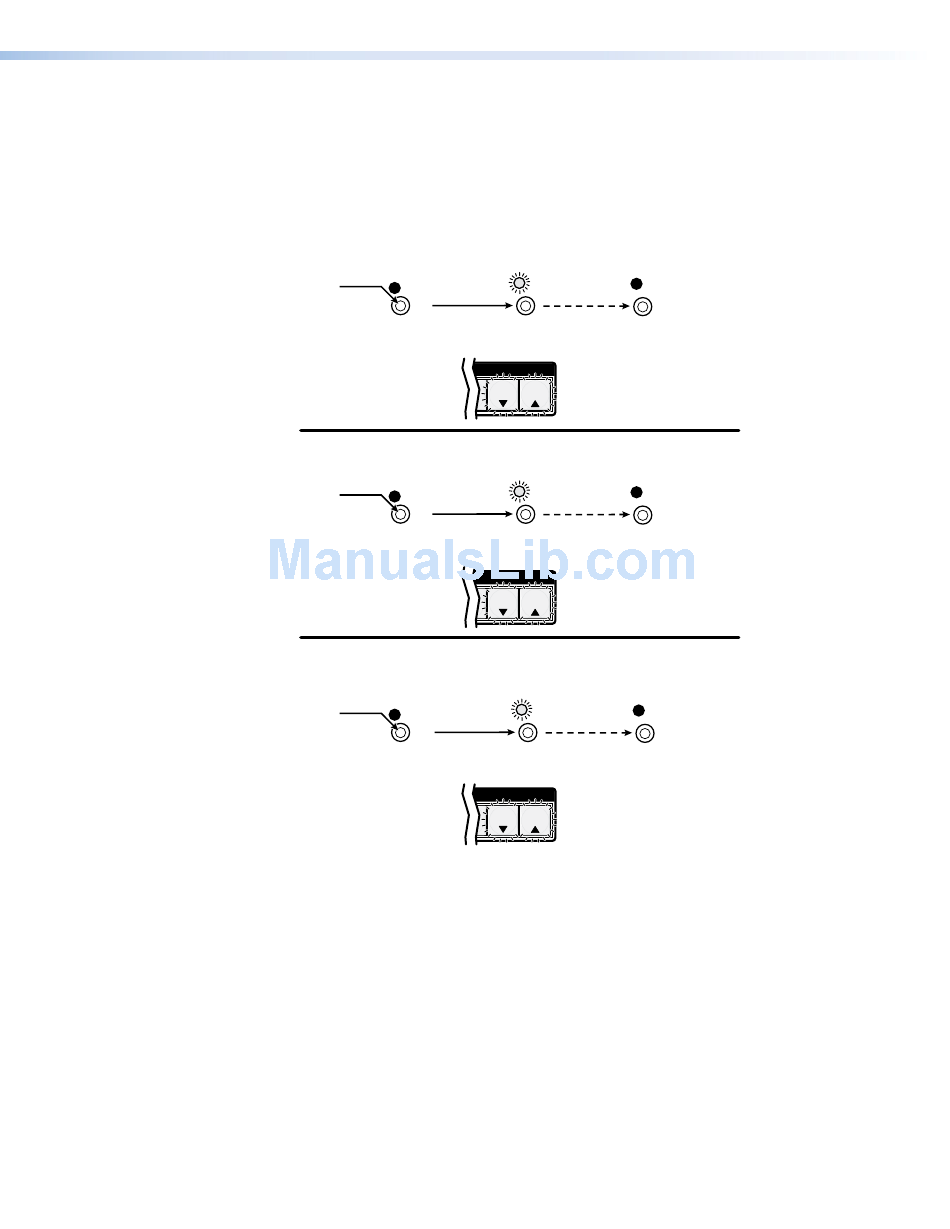

2. Release the Reset button and then immediately press and release the Reset button
again. Nothing happens if the second momentary press does not occur within 1 second.
Press and hold
Reset LED blinks once.
the Reset button.
3 seconds
RESET
View and Esc buttons blink once.
CONTROL
VIEW
T
Press and hold
Reset LED blinks twice.
the Reset button.
6 seconds
RESET
View and Esc buttons blink twice.
CONTROL
VIEW
T
Reset LED blinks
Press and hold
the Reset button. three times.
9 seconds
RESET
View and Esc buttons blink three times.
CONTROL
VIEW
T
Soft System Resets
FOX Matrix 3200 and 7200 Switchers • Operation
Release, then immediately
press and release again.
ESC
Release, then immediately
press and release again.
ESC
Release, then immediately
press and release again.
ESC
