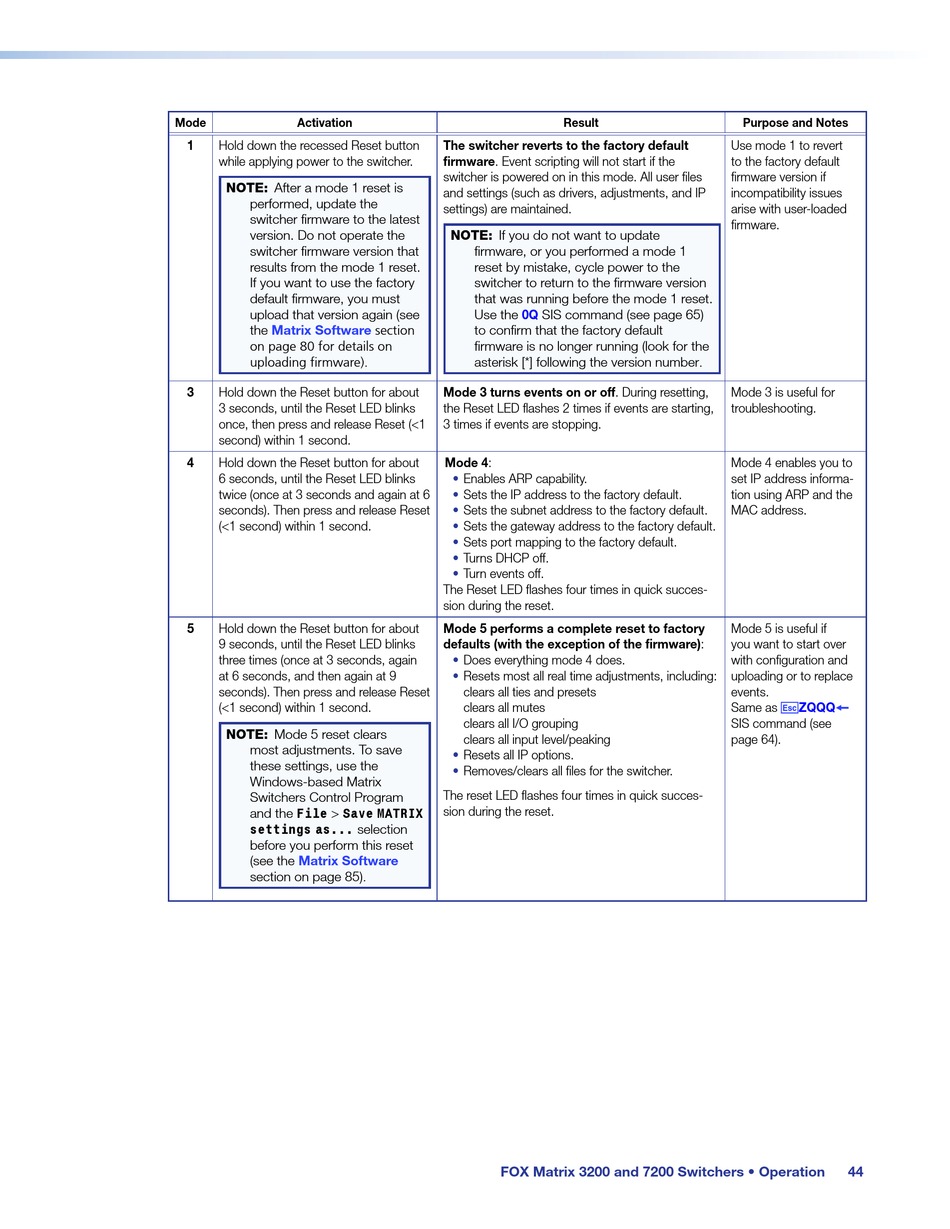

Mode Activation
1 Hold down the recessed Reset button
while applying power to the switcher.
NOTE: After a mode 1 reset is
performed, update the
switcher firmware to the latest
version. Do not operate the
switcher firmware version that
results from the mode 1 reset.
If you want to use the factory
default firmware, you must
upload that version again (see
Matrix Software
the
on page 80 for details on
uploading firmware).
3 Hold down the Reset button for about
3 seconds, until the Reset LED blinks
once, then press and release Reset (<1
second) within 1 second.
4 Hold down the Reset button for about
6 seconds, until the Reset LED blinks
twice (once at 3 seconds and again at 6
seconds). Then press and release Reset
(<1 second) within 1 second.
5 Hold down the Reset button for about
9 seconds, until the Reset LED blinks
three times (once at 3 seconds, again
at 6 seconds, and then again at 9
seconds). Then press and release Reset
(<1 second) within 1 second.
NOTE: Mode 5 reset clears
most adjustments. To save
these settings, use the
Windows‑based Matrix
Switchers Control Program
and the File > Save MATRIX
settings as... selection
before you perform this reset
(see the Matrix Software
section on page 85).
The switcher reverts to the factory default
firmware. Event scripting will not start if the
switcher is powered on in this mode. All user files
and settings (such as drivers, adjustments, and IP
settings) are maintained.
NOTE: If you do not want to update
firmware, or you performed a mode 1
reset by mistake, cycle power to the
switcher to return to the firmware version
that was running before the mode 1 reset.
Use the 0Q SIS command (see page 65)
section to confirm that the factory default
firmware is no longer running (look for the
asterisk [*] following the version number.
Mode 3 turns events on or off. During resetting,
the Reset LED flashes 2 times if events are starting,
3 times if events are stopping.
Mode 4:
• Enables ARP capability.
• Sets the IP address to the factory default.
• Sets the subnet address to the factory default.
• Sets the gateway address to the factory default.
• Sets port mapping to the factory default.
• Turns DHCP off.
• Turn events off.
The Reset LED flashes four times in quick succes‑
sion during the reset.
Mode 5 performs a complete reset to factory
defaults (with the exception of the firmware):
• Does everything mode 4 does.
• Resets most all real time adjustments, including:
clears all ties and presets
clears all mutes
clears all I/O grouping
clears all input level/peaking
• Resets all IP options.
• Removes/clears all files for the switcher.
The reset LED flashes four times in quick succes‑
sion during the reset.
FOX Matrix 3200 and 7200 Switchers • Operation
Result
Use mode 1 to revert
to the factory default
firmware version if
incompatibility issues
arise with user‑loaded
firmware.
Mode 3 is useful for
troubleshooting.
Mode 4 enables you to
set IP address informa‑
tion using ARP and the
MAC address.
Mode 5 is useful if
you want to start over
with configuration and
uploading or to replace
events.
Same as
SIS command (see
page 64).
Purpose and Notes
E
ZQQQ }
