Ethernet
Connection
This section provides a high level discussion of the Ethernet connection to the switcher and
a primer on the subject of subnetting. Topics that are covered, include:
•
•

Ethernet Link

The rear panel Ethernet connector on the FOX matrix switcher can be connected to an
Ethernet LAN or WAN. This connection makes SIS control of the switcher possible using a
computer connected to the same LAN.

Ethernet Connection

The Ethernet cable can be terminated as a straight‑through cable or a crossover cable and
must be properly terminated for your application (see figure 70).
•
•
12345678
Insert Twisted
Pair Wires
Connector

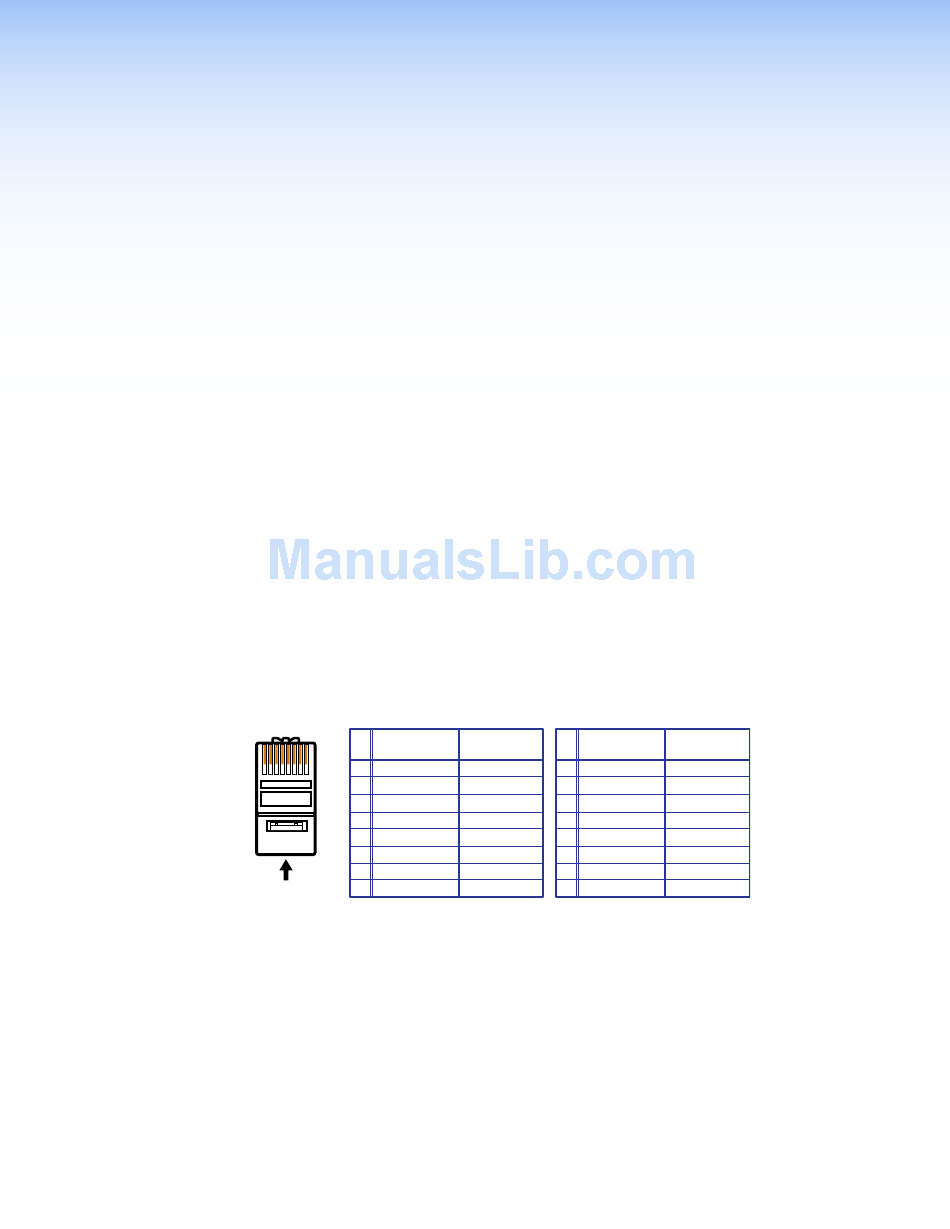

Figure 70.

Default IP Address

To access the FOX matrix switcher via the LAN port, you need the IP address of the
switcher. If the address has been changed to an address comprised of words and
characters, you can determine the actual numeric IP address using the ping utility. If the
address has not been changed, the factory‑specified default is 192.168.254.254.
Ping can also be used to test the Ethernet link to the FOX matrix switcher.
Ethernet Link
Subnetting — A Primer
Crossover cable — Direct connection between the computer and the
FOX matrix switcher
Patch (straight-through) cable — Connection of the FOX matrix switcher to an
Ethernet LAN
Crossover Cable
Pins:
End 1
Pin Wire color
1 White-green
2 Green
3 White-orange
4 Blue
5 White-blue
6 Orange
7 White-brown
8 Brown
T568A
A cable that is wired as T568A at one end
RJ-45
and T568B at the other (Tx and Rx pairs
reversed) is a "crossover" cable.
RJ-45 Connector Pinout Tables
FOX Matrix 3200 and 7200 Switchers • Ethernet Connection
Straight-through Cable
End 2 End 1
Wire color Pin Wire color
White-orange 1 White-orange
Orange 2 Orange
White-green 3 White-green
Blue 4 Blue
White-blue 5 White-blue
Green 6 Green
White-brown 7 White-brown
Brown 8 Brown
T568B T568B
A cable that is wired the same at both ends is
called a "straight-through" cable, because
no pin/pair assignments are swapped.
End 2
Wire color
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
T568B
