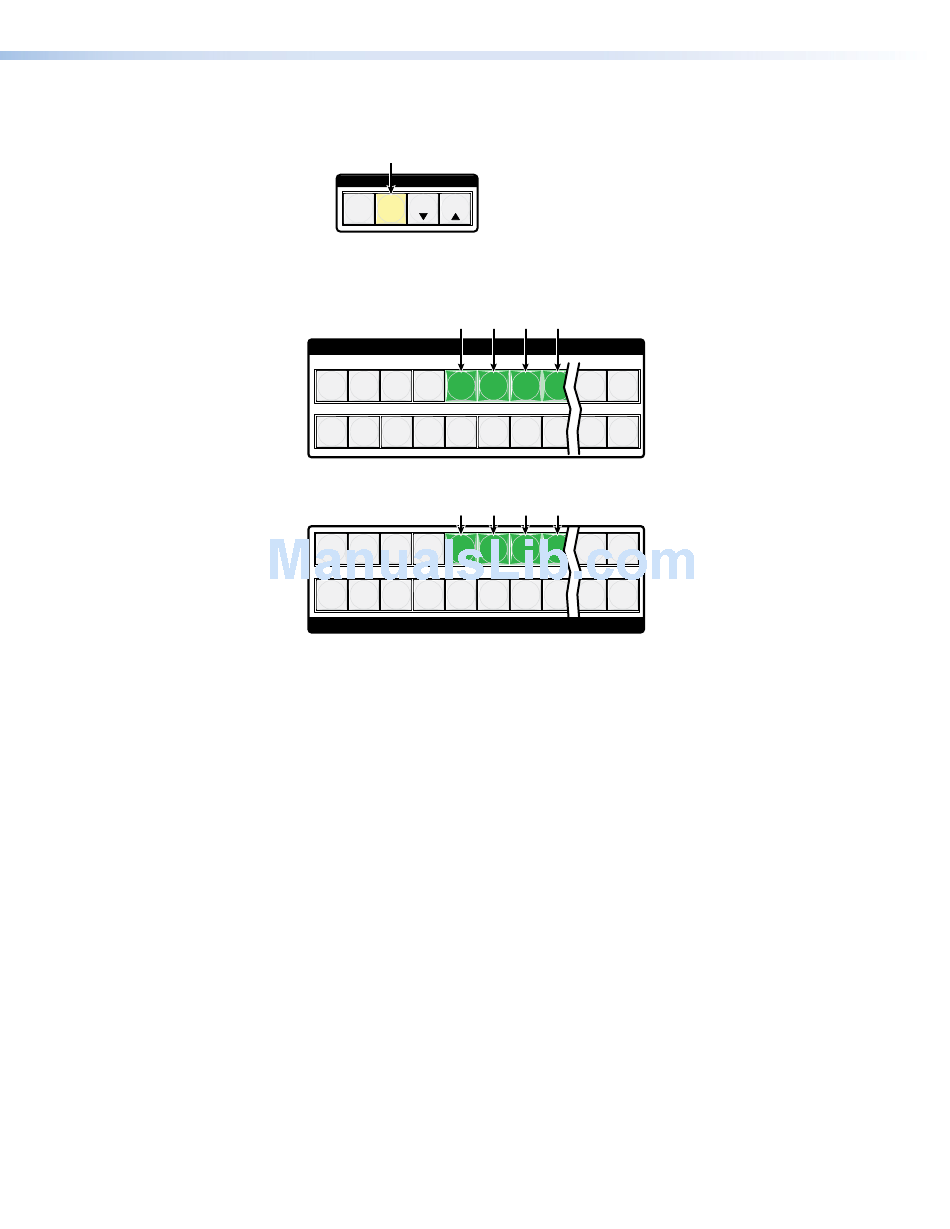

5. Select group 2: Press and release the Preset button.
Press and release the Preset button to select group 2.
The button lights to indicate the selection.
C O N T R O L
ENTER PRESET VIEW
Group # 1 2 3
6. Assign inputs and outputs to group 2:
a. Press and release the Input 5 through 8 buttons.
One at a time, press and release the Input 5 through Input 8 buttons.
The selected buttons light.
1 2 3 4
17 18 19 20 21 22 23 24 31 32
b. Press and release the Output 5 through 8 buttons.
One at a time, press and release the Output 5 through Output 8 buttons.
The selected buttons light.
1 2 3 4
17 18 19 20 21 22 23 24 31 32
7. Do nothing for approximately 30 seconds. The switcher exits I/O Group mode.
In this example:
• Group 1 consists of inputs 1 through 4 and outputs 1 through 4.
Group 2 consists of inputs 5 through 8 and outputs 5 through 8.
•
ESC
4
INPUTS
5 6 7 8 15 16
5 6 7 8 15 16
OUTPUTS
FOX Matrix 3200 and 7200 Switchers • Operation 36
