Performing Soft System Resets (Modes 3, 4, and 5)

Perform a soft reset of the switcher as follows:
Use an Extron Tweeker or other small screwdriver to press and hold the rear panel Reset
button until the rear panel Reset LED and the front panel Preset and View buttons blink
once (events reset), twice (IP settings reset), or three times (absolute reset).
Release the Reset button and then immediately press and release the Reset button
again. Nothing happens if the second momentary press does not occur within 1 second.
NOTE: The factory configured passwords for all accounts on this device have been set
to the device serial number. In the event of a complete system reset, the passwords
convert to the default, which is no password.
Events
Reset
(Mode 3)
IP Settings
Reset
(Mode 4)
Absolute
Reset
(Mode 5)

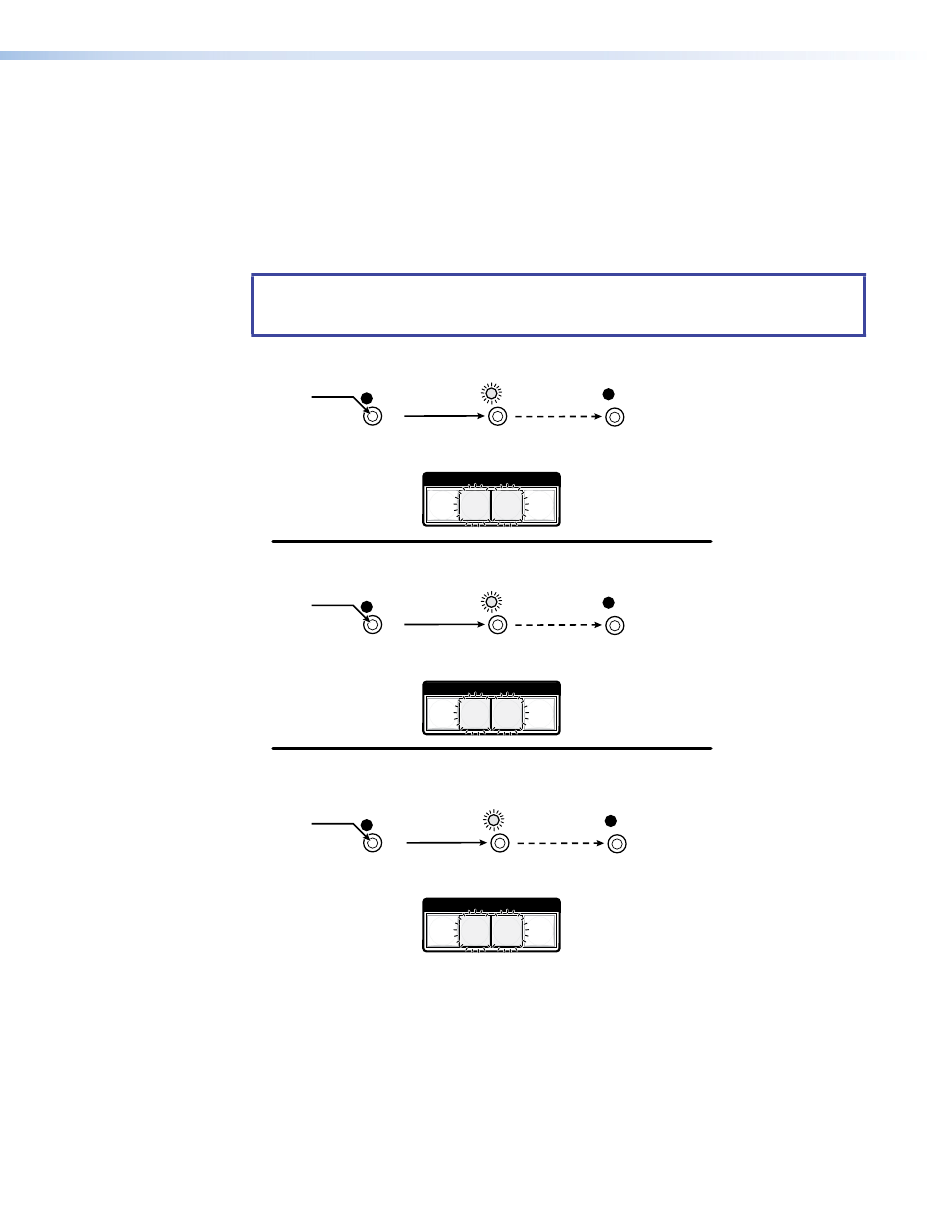

Figure 26.
Press and hold
Reset LED flashes once.
the Reset button.
3 seconds
RESET
View and Esc buttons flash once.
CONTROL
PRESET
ENTER VIEW
Press and hold
Reset LED flashes twice.
the Reset button.
6 seconds
RESET
View and Esc buttons flash twice.
CONTROL
ENTER PRESET VIEW
Reset LED flashes
Press and hold
the Reset button. three times.
9 seconds
RESET
View and Esc buttons flash three times.
CONTROL
ENTER PRESET VIEW
Soft System Resets
DMS 1600, DMS 2000, DMS 3200, and DMS 3600 • Operation
Release, then immediately
press and release again.
ESC
Release, then immediately
press and release again.
ESC
Release, then immediately
press and release again.
ESC
