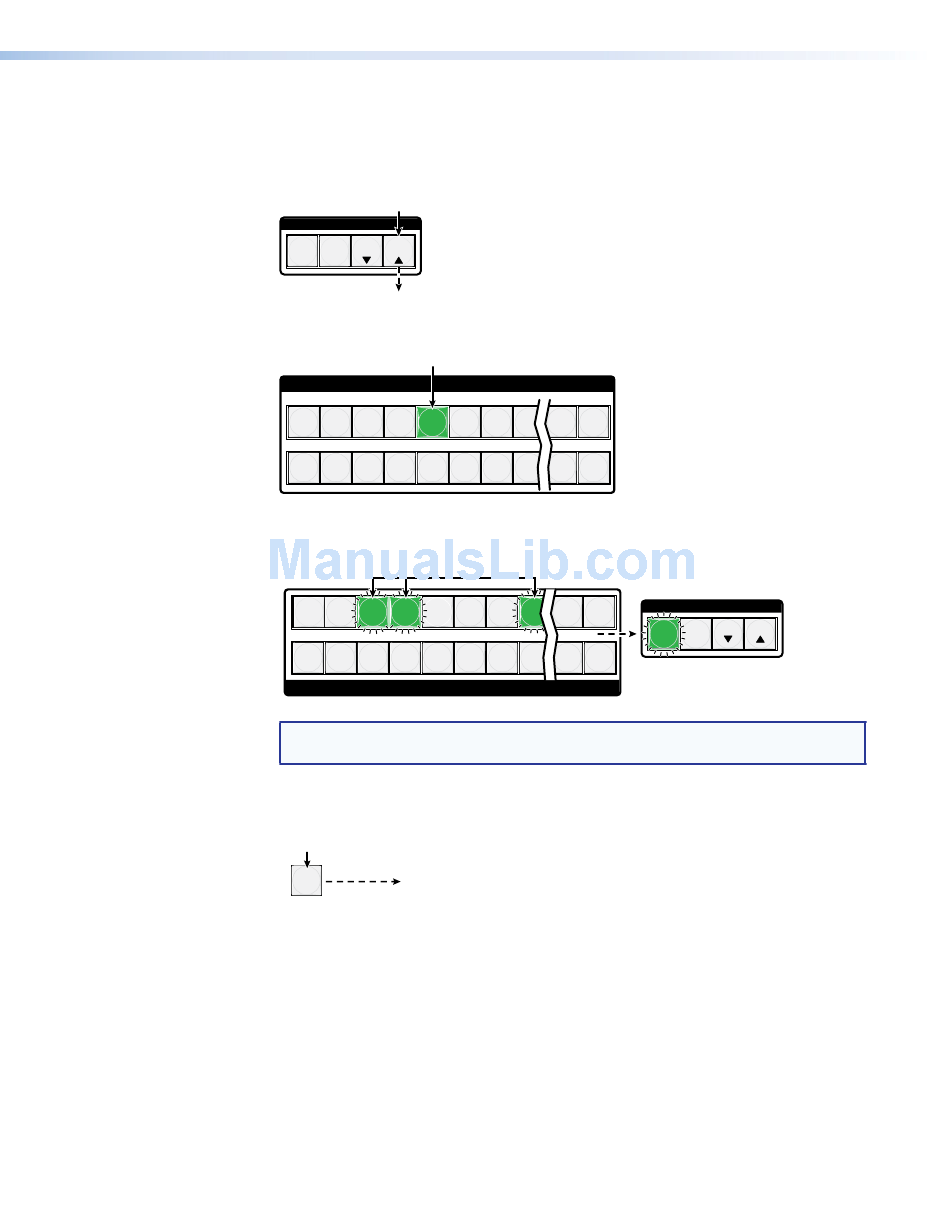

Example 1: Create a set of ties
In the following example, input 5 is tied to outputs 3, 4, and 8. The steps show the front
panel indications that result from your actions.
1. Clear all selections: Press and release the Esc button.
Press the Esc button to clear all selections.
C O N T R O L
ENTER PRESET VIEW ESC
The button flashes once.
2. Select an input: Press and release the input 5 button.
Press and release the Input 5 button.
The button lights.
1 2 3 4 5
17 18 19 20 21 22 23 24 31 32
3. Select the outputs: Press and release the output 3, output 4, and output 8 buttons.
Press and release the Output 3, Output 4, and Output 8 buttons.
The buttons blink to indicate that the selected input will be tied
to these outputs.
1
1 2 3 4
17 18 19 20 21 22 23 24 31 32
NOTE: You can cancel the entire set of ties at this point by pressing and releasing
the Esc button. The Esc button flashes once.
4. Confirm the change: Press and release the Enter button.
Press the Enter button to
confirm the configuration
change.
All input buttons and output buttons
ENTER
return to unlit or background illumination.
The Enter button returns to
unlit or background
illumination.
INPUTS
6 7 8 15 16
5 6 7 8 15 16
OUTPUTS
FOX Matrix 3200 and 7200 Switchers • Operation
C O N T R O L
VIEW ESC
ENTER PRESET
The Enter button blinks
to indicate the need to
confirm the change.
27
