Hard Disk Drive - EUROCOM X7 User Manual

Storage Devices, Mouse & Audio
2

Warranty Warning
Please check with your dis-
tributor/supplier before un-
dertaking any upgrade
procedures to find out if this
will VOID your warranty.
Power Safety
Before attempting to ac-
cess any of the internal
components of your com-
puter please ensure that
the machine is not connect-
ed to the AC power, and
that the machine is turned
off. Also ensure that all pe-
ripheral cables, including
phone lines, are discon-
nected from the computer.

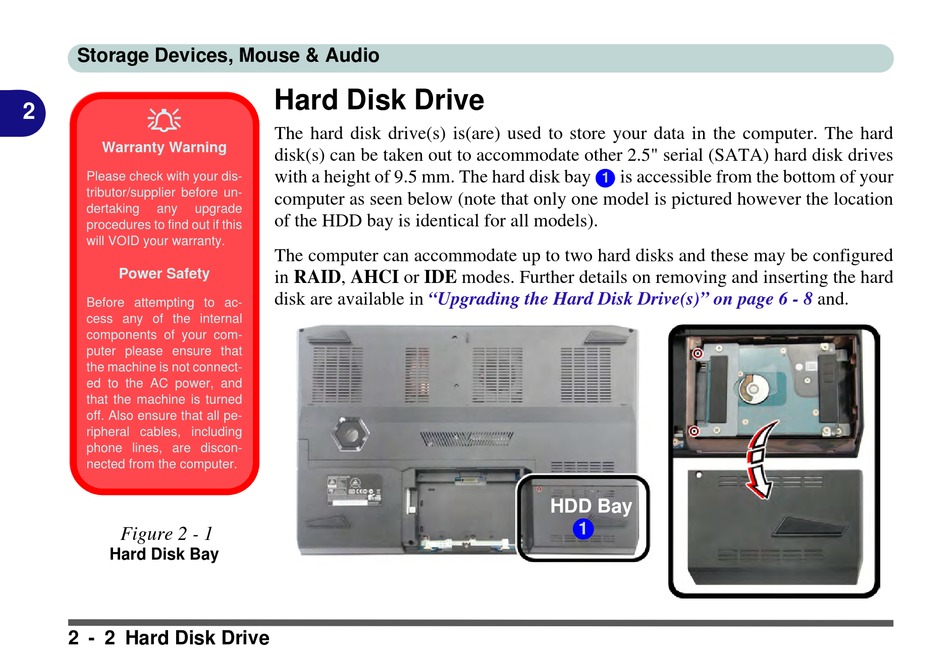

Figure 2 - 1
Hard Disk Bay

2 - 2 Hard Disk Drive

Hard Disk Drive
The hard disk drive(s) is(are) used to store your data in the computer. The hard
disk(s) can be taken out to accommodate other 2.5" serial (SATA) hard disk drives
with a height of 9.5 mm. The hard disk bay
computer as seen below (note that only one model is pictured however the location
of the HDD bay is identical for all models).
The computer can accommodate up to two hard disks and these may be configured
in RAID, AHCI or IDE modes. Further details on removing and inserting the hard
disk are available in "Upgrading the Hard Disk Drive(s)" on page 6 - 8
is accessible from the bottom of your
1
HDD Bay
1
and.
