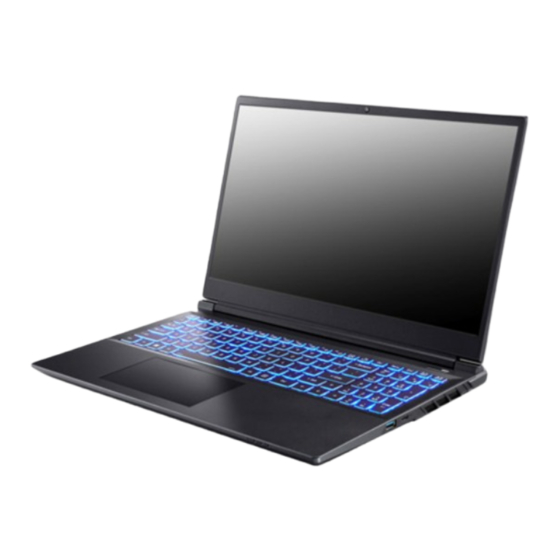

EUROCOM Nightsky RX415z User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
V24.1.00

Advertisement

loading
Need help?

Need help?

Do you have a question about the Nightsky RX415z and is the answer not in the manual?

Questions and answers

Related Manuals for EUROCOM Nightsky RX415z

Summary of Contents for EUROCOM Nightsky RX415z

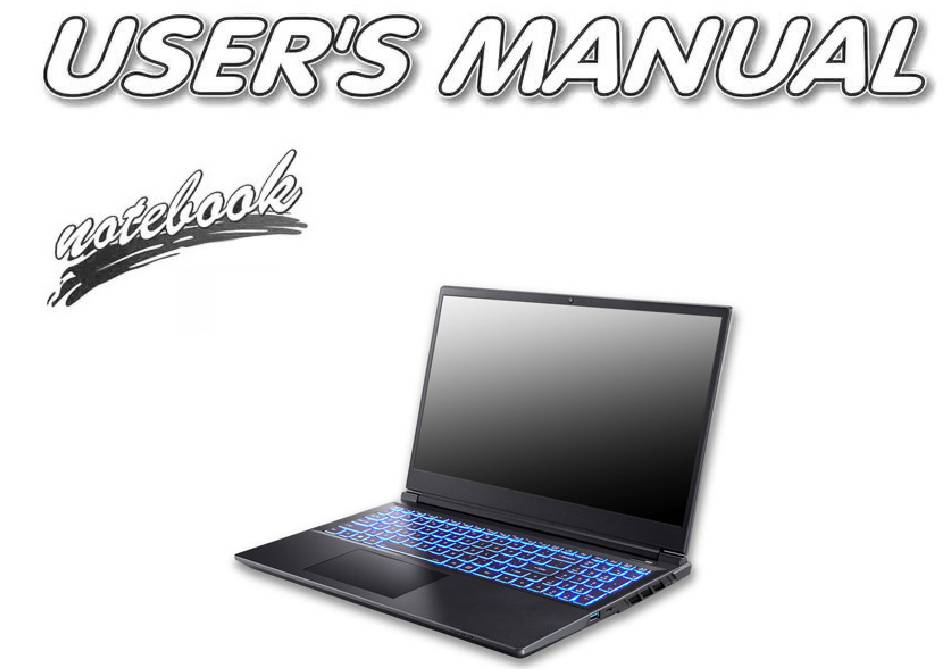

  • Page 1 V24.1.00...
  • Page 3 Preface Notice The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
  • Page 4 Preface RE Directive This device follows the technical standards as shown in the measurement report and was tested according to the measurement procedures in RE Directive 2014/53/EU. And our laboratories are accredited, and approved, ac- cording to ISO/IEC 17025, and this device has passed the test per this. This device will be sold in the following EEA countries: Austria, Italy, Belgium, Liechtenstein, Denmark, Lux- embourg, Finland, Netherlands, France, Norway, Germany, Portugal, Greece, Spain, Iceland, Sweden, Ireland, United Kingdom, Cyprus, Czech Republic, Estonia, Hungary, Latvia, Lithuania, Malta, Slovakia, Poland, Slov-...
  • Page 5 Preface CE Marking This device has been tested to and conforms to the regulatory requirements of the European Union and has at- tained CE Marking. The CE Mark is a conformity marking consisting of the letters “CE”. The CE Mark applies to products regulated by certain European health, safety and environmental protection legislation.
  • Page 6 Preface FCC Statement (Federal Communications Commission) You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 7 Preface FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
  • Page 8 Preface IMPORTANT SAFETY INSTRUCTIONS Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury to persons when using any electrical equipment: Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
  • Page 9 Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. Do not expose the computer Do not place it on an unstable Do not place anything heavy...
  • Page 10 Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic fields. These can hinder proper performance and damage your data. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your work.
  • Page 11 Preface Servicing Do not attempt to service the computer yourself. Doing so may violate your warranty and may expose you and the computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the power supply. Then refer servicing to qualified service personnel under any of the following conditions: •...
  • Page 12 Preface Power Safety The computer has specific power requirements:  • Only use a power adapter approved for use with this computer. • Your AC/DC adapter may be designed for international travel but it still requires a steady, Power Safety uninterrupted power supply.
  • Page 13 Preface Polymer/Lithium-Ion Battery Precautions Note the following information which is specific to Polymer/Lithium-Ion batteries only, and where applicable, this overrides the general battery precaution information overleaf. • Polymer/Lithium-Ion batteries may experience a slight expansion or swelling, however this is part of the battery’s safety mechanism and is not a cause for concern.
  • Page 14 Preface General Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer. • Do not remove any batteries from the computer while it is powered on. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
  • Page 15 Preface Cleaning Do not apply cleaner directly to the computer; use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer. Cleaning Instructions (For Computer Models Supplied with Light Blue Cleaning Cloth) Some computer models in this series come supplied with a light blue cleaning cloth.
  • Page 16 Preface Travel Considerations As you get ready for your trip, run through this list to make sure the system is ready to go: Check that the battery pack and any spares are fully charged. Power off the computer and peripherals. Close the display panel and make sure it’s latched.
  • Page 17 Preface On the Road In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting, keep these points in mind: Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very common.
  • Page 18 Preface Developing Good Work Habits Developing good work habits is important if you need to work in front of the computer for long periods of time. Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints.
  • Page 19 Preface Lighting Proper lighting and a comfortable viewing angle can reduce eye strain and shoulder and neck muscle fatigue. • Position the display to avoid glare or reflections from overhead lighting or outside sources of light. • Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly. •...
  • Page 20 Preface XVIII...
  • Page 21 Preface Contents Notice ................................I ErP Off Mode Power Consumption Statement: ................... II FCC Statement ............................IV FCC RF Radiation Exposure Statement: ..................... V Instructions for Care and Operation ......................VII Servicing ..............................IX Power Safety ..............................X Polymer/Lithium-Ion Battery Precautions ....................XI General Battery Precautions ........................XII Cleaning ..............................
  • Page 22 Preface System Startup ............................1-5 LCD Panel Open - Model A Design I .......................1-6 LCD Panel Open - Model A Design II ......................1-7 LCD Panel Open - Model B ........................1-8 LCD Panel Open - Model C ........................1-9 LED Indicators ............................1-10 Illuminated Colored LED Keyboard .......................1-11 Keyboard Backlight LED Device ......................1-12 Keyboard Shortcuts ..........................1-13 Function/Hot Key Indicators ........................1-14...
  • Page 23 Preface Right View - Model C ..........................1-27 Bottom View - Model A Design I ......................1-28 Bottom View - Model A Design II ......................1-29 Bottom View - Model B ..........................1-30 Bottom View - Model C ..........................1-31 Windows 11 Start Menu ..........................1-32 Right-Clicking the Windows Logo In Start Menu ..................1-33 Windows 11 Control Panel ........................1-35 Windows 11 Settings ..........................1-36...
  • Page 24 Preface Realtek Audio Console - Main ........................2-14 Realtek Audio Console - Speakers ......................2-15 Realtek Audio Console - Microphone .....................2-16 Realtek Audio Console - Device Advanced Settings ................2-17 Power Management Overview ..............................3-1 The Power Sources ............................3-2 AC/DC Adapter ............................3-2 Battery ................................3-3 Turning On the Computer ..........................3-4 Shutting the Computer Down ........................3-5 Settings Menu Power Controls ........................3-6...
  • Page 25 Preface Battery Life ..............................3-22 New Battery .............................3-22 Recharging the Battery with the AC/DC Adapter ...................3-23 Proper handling of the Battery Pack ......................3-23 Battery FAQ .............................3-24 Drivers & Utilities What to Install ............................4-1 Module Driver Installation ........................4-1 Driver Installation ............................4-2 Updating/Reinstalling Individual Drivers ....................4-5 User Account Control ..........................4-6 Windows Security Message ........................4-6 New Hardware Found ..........................4-6...
  • Page 26 Preface MEI Driver ..............................4-8 USB 3.0 Driver ............................4-9 Intel® Dynamic Tuning Technology Driver .....................4-9 Creative Sound Blaster Studio Audio Driver ....................4-9 Audio .................................4-9 Creative Sound Blaster Studio Audio App ....................4-10 Optional Drivers ............................4-11 BIOS Utilities Overview ..............................5-1 The Insyde BIOS Utility ..........................5-2 Updating the BIOS / CPU ..........................5-3 UEFI Boot ..............................5-4 Insyde BIOS Start Screen ..........................5-5...
  • Page 27 Preface Modules & Options Overview ..............................6-1 RAID Mode Setup ............................6-2 RAID ................................6-2 Intel® Optane™ Memory and Storage Management ................6-2 RAID Setup ...............................6-4 Deleting a RAID ............................6-11 Wireless LAN Module ..........................6-12 Intel® WLAN Driver Installation ......................6-13 WLAN Configuration in Windows ......................6-14 Bluetooth &...
  • Page 28 Preface Creative Sound Blaster Studio+ Audio ....................6-33 Creative Sound Blaster Studio Installation ....................6-33 Creative Application ..........................6-35 Device ..............................6-36 Sound Mode .............................6-37 Acoustic Engine ............................6-38 Equalizer ..............................6-39 SuperWide ...............................6-40 Crystal Voice ............................6-41 Mixer ................................6-42 Playback ..............................6-43 Recording ..............................6-44 Settings ..............................6-45 Webcam ..............................6-46 Camera App .............................6-47 Taking Pictures/Capturing Video ......................6-51 Trusted Platform Module .........................6-53...
  • Page 29 Preface Backup and General Maintenance ......................7-3 Viruses ...............................7-4 Upgrading and Adding New Hardware/Software ..................7-5 Problems and Possible Solutions .......................7-7 Interface (Ports & Jacks) Overview ..............................A-1 Notebook Ports and Jacks .........................A-2 Video Driver Controls Overview ..............................B-1 NVIDIA Advanced Optimus Capable Technology ..................B-2 Display Mode - BIOS ..........................B-3 Video Driver Installation ..........................B-4 Intel Video (VGA) ............................B-4...
  • Page 30 Preface Wireless Display Configuration ......................B-14 Intel® Graphics Command Center ......................B-16 Display Devices & Options ........................B-28 Attaching Other Displays ........................B-29 NVIDIA Control Panel ...........................B-32 Adjust Image Settings with Preview .......................B-34 Manage 3D Settings ..........................B-36 Configure Surround, PhysX® .........................B-38 Change Resolution ..........................B-41 HDCP Status ............................B-42 Set Digital Audio ............................B-43 Adjust Video Settings ..........................B-44...
  • Page 31 Preface Slots ................................C-3 Communication ............................C-3 Power Management ..........................C-3 Power & Battery ............................C-3 Security ..............................C-3 Features (For Some Model Designs) ......................C-3 LED Indicators ............................C-4 Operating System ............................C-4 BIOS .................................C-4 Environmental Spec ..........................C-4 Dimensions & Weight ..........................C-4 XXIX...
  • Page 32 Preface...
  • Page 33 Quick Start Guide Chapter 1: Quick Start Guide Overview This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the computer and to getting your system started. The remainder of the manual covers the following: •...
  • Page 34 Quick Start Guide Advanced Users If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful to refer to in the remainder of the User’s “What to Install” on page 4 - 1 “BIOS Utilities”...
  • Page 35 Quick Start Guide Not Included Operating Systems (e.g. Windows) and applications (e.g. word processing, spreadsheet and database programs) have their own manuals, so please consult the appropriate manuals.  Drivers If you are installing new system software, or are re-configuring your computer for a different system, you will need to install the drivers listed in 1.
  • Page 36 Quick Start Guide System Software Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find the Windows 11 (64-bit) operating system is supported.
  • Page 37 Quick Start Guide System Startup Remove all packing materials, and place the computer on a stable surface. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports. When first setting up the computer use the following procedure (as to safeguard the computer during shipping, the battery will be locked to not power the system until first connected to the AC/DC adapter and initially set up as below): •...
  • Page 38 Quick Start Guide LCD Panel Open - Model A Design I Figure 1 - 2 LCD Panel Open  Built-in Webcam Webcam LED Wireless Device Operation Aboard Built-In Array Aircraft Microphone The use of any portable Power Button electronic transmission de- Keyboard vices aboard aircraft is usu- Clickpad &...
  • Page 39 Quick Start Guide LCD Panel Open - Model A Design II Figure 1 - 3 LCD Panel Open  Built-in Webcam Wireless Device Webcam LED Operation Aboard Built-In Array Aircraft Microphone The use of any portable Power Button electronic transmission de- Keyboard vices aboard aircraft is usu- Clickpad &...
  • Page 40 Quick Start Guide LCD Panel Open - Model B Figure 1 - 4 LCD Panel Open  Built-in Webcam Webcam LED Wireless Device Operation Aboard Built-In Array Aircraft Microphone The use of any portable Power Button electronic transmission de- Keyboard vices aboard aircraft is usu- Clickpad &...
  • Page 41 Quick Start Guide LCD Panel Open - Model C Figure 1 - 5 LCD Panel Open  1. Built-in Webcam With Webcam Shutter. Wireless Device (with *Webcam Shutter Operation Aboard Aircraft for some designs) 2. Webcam LED The use of any portable electron- 3.
  • Page 42 Quick Start Guide LED Indicators The LED indicators display helpful information about the current status of the computer. Icon Color Description Orange DC Power is Plugged In Green The Computer is On Blinking Green The Computer is in Sleep Mode Orange The Battery is Charging Green...
  • Page 43 Quick Start Guide Illuminated Colored LED Keyboard  The illuminated colored LED keyboard has an embedded numerical keypad for Other Keyboards easy numeric data input, and features function keys to allow you to change operation- al features instantly. See for full function key combination If your keyboard is dam- Table 1 - 4, on page 1 - 14 aged or you just want to...
  • Page 44 Quick Start Guide Keyboard Backlight LED Device (For Illuminated Colored Keyboards Only) Press Fn plus the key to toggle the keyboard LED on/off. The keyboard LED may be configured using the Fn + key combination outlined in the table below. In addition press Fn plus the key to launch the keyboard backlight application to configure the settings.
  • Page 45 Quick Start Guide Keyboard Shortcuts  The following Windows Logo Key (Winkey) keyboard shortcuts are useful for navi- gation/operation in Windows. Menu/Application Keyboard Shortcut Windows Logo Description When the Desktop app Key + is running you can use the Menu/Application Tap Winkey Toggle the Start menu on the key-...
  • Page 46 Quick Start Guide Function/Hot Key Indicators Keys Function Keys Function Play/Pause (in Audio/Video Programs) Sleep Toggle Fn + Fn + Touchpad Toggle Number Lock Toggle Fn + Turn Display Backlight Off Fn + Scroll Lock Toggle Fn + (Press a key to or use touchpad to turn on) Mute Toggle Caps Lock Toggle Fn +...
  • Page 47 Quick Start Guide Control Center Run the Control Center (fn hotkeys and OSD) from the Windows Start menu or use the Fn + Esc key combination, or double-click the icon in the notification area of the taskbar. The Control Center provides quick access to Power Modes, Fan settings, Preferences and LED Keyboard (if your purchase configuration includes an LED Keyboard) configuration.
  • Page 48 Quick Start Guide Front & Left Views - Model A Design I Figure 1 - 8 Front & Left Views LED Indicators Security Lock Slot Vent/Fan Intake/ Outlet USB 3.2 Gen 1 Type A Port 2-In-1 Audio Jack (Headphone/  Microphone) 2-In-1 Combination Audio Jacks Speaker...
  • Page 49 Quick Start Guide Front & Left Views - Model A Design II Figure 1 - 9 Front & Left Views LED Indicators Security Lock Slot Vent/Fan Intake/ Outlet USB 3.2 Gen 1 Type A Port 2-In-1 Audio Jack (Headphone/  Microphone) 2-In-1 Combination Audio Jacks Speaker...
  • Page 50 Quick Start Guide Front & Left Views - Model B Figure 1 - 10 Front & Left Views LED Indicators Security Lock Slot Vent/Fan Intake/ Outlet USB 3.2 Gen 1 Type A Port 2-In-1 Audio Jack (Headphone/  Microphone) 2-In-1 Combination Audio Jacks Speaker Note that 2-In-1 combination audio jacks can support headphones, headsets (i.e.
  • Page 51 Quick Start Guide Front & Left Views - Model C Figure 1 - 11 Front & Left Views LED Indicators Webcam Shutter for some designs Security Lock Slot Vent/Fan Intake/ Outlet USB 3.2 Gen 1 Type A Port  2-In-1 Audio Jack 2-In-1 Combination Audio Jacks (Headphone/ Headset)
  • Page 52 Quick Start Guide Rear View - Model A Design I Figure 1 - 12 Rear View 1. Vent/Fan Intake RJ-45 LAN Jack HDMI-Out Port DC-In Jack  DisplayPort 1.4, Over USB 3.2 USB Ports Gen 2 (Type C) Port On this computer model there is one USB 3.2 Gen 1 Type A port, One USB 3.2 Gen 2 Type A port, one USB 3.2 Gen 2 Type C port with Power Delivery DC-In Function and one Dis- playPort 1.4, Over USB 3.2 Gen 2 Type C port.
  • Page 53 Quick Start Guide Rear View - Model A Design II Figure 1 - 13 Rear View 1. Vent/Fan Intake RJ-45 LAN Jack HDMI-Out Port DC-In Jack  DisplayPort 1.4, Over USB 3.2 USB Ports Gen 2 (Type C) Port On this computer model there is one USB 3.2 Gen 1 Type A port, One USB 3.2 Gen 2 Type A port, one USB 3.2 Gen 2 Type C port with Power Delivery DC-In Function and one Dis- playPort 1.4, Over USB 3.2 Gen 2 Type C port.
  • Page 54 Quick Start Guide Rear View - Model B Figure 1 - 14 Rear View 1. Vent/Fan Intake RJ-45 LAN Jack HDMI-Out Port DC-In Jack  DisplayPort 1.4, Over USB 3.2 USB Ports Gen 2 (Type C) Port On this computer model there is one USB 3.2 Gen 1 Type A port, One USB 3.2 Gen 2 Type A port, one USB 3.2 Gen 2 Type C port with Power Delivery DC-In Function and one Dis- playPort 1.4, Over USB 3.2 Gen 2 Type C port.
  • Page 55 Quick Start Guide Rear View - Model C Figure 1 - 15 Rear View 1. Vent/Fan Intake RJ-45 LAN Jack HDMI-Out Port DC-In Jack  DisplayPort 1.4, Over USB 3.2 USB Ports Gen 2 (Type C) Port On this computer model there is one USB 3.2 Gen 1 Type A port, One USB 3.2 Gen 2 Type A port, one USB 3.2 Gen 2 Type C port with Power Delivery DC-In Function and one Dis- playPort 1.4, Over USB 3.2 Gen 2 Type C port.
  • Page 56 Quick Start Guide Right View - Model A Design I Figure 1 - 16 Right View Speaker USB 3.2 Gen 2 Port (Type A) USB 3.2 Gen 2 Port (Type C) with Power Delivery  DC-In Function USB Ports Vent/Fan Intake On this computer model there is one USB 3.2 Gen 1 Type A port, One USB 3.2 Gen 2 Type A port, one USB 3.2 Gen 2 Type C port with Power Delivery DC-In Function and one Dis- playPort 1.4, Over USB 3.2 Gen 2 Type C port.
  • Page 57 Quick Start Guide Right View - Model A Design II Figure 1 - 17 Right View Speaker USB 3.2 Gen 2 Port (Type A) USB 3.2 Gen 2 Port (Type C) with Power Delivery  DC-In Function USB Ports Vent/Fan Intake On this computer model there is one USB 3.2 Gen 1 Type A port, One USB 3.2 Gen 2 Type A port, one USB 3.2 Gen 2 Type C port with Power Delivery DC-In Function and one Dis- playPort 1.4, Over USB 3.2 Gen 2 Type C port.
  • Page 58 Quick Start Guide Right View - Model B Figure 1 - 18 Right View Speaker USB 3.2 Gen 2 Port (Type A) USB 3.2 Gen 2 Port (Type C) with Power Delivery  DC-In Function USB Ports Vent/Fan Intake On this computer model there is one USB 3.2 Gen 1 Type A port, One USB 3.2 Gen 2 Type A port, one USB 3.2 Gen 2 Type C port with Power Delivery DC-In Function and one Dis- playPort 1.4, Over USB 3.2 Gen 2 Type C port.
  • Page 59 Quick Start Guide Right View - Model C Figure 1 - 19 Right View Speaker USB 3.2 Gen 2 Port (Type A) USB 3.2 Gen 2 Port (Type C) with Power Delivery  DC-In Function USB Ports Vent/Fan Intake On this computer model there is one USB 3.2 Gen 1 Type A port, One USB 3.2 Gen 2 Type A port, one USB 3.2 Gen 2 Type C port with Power Delivery DC-In Function and one Dis- playPort 1.4, Over USB 3.2 Gen 2 Type C port.
  • Page 60 Quick Start Guide Bottom View - Model A Design I Figure 1 - 20 Bottom View Vent/Fan Intake/  Outlet Overheating Speakers To prevent your com- puter from overheating make sure nothing blocks the Vent/Fan Intake while the com- puter is in use. ...
  • Page 61 Quick Start Guide Bottom View - Model A Design II Figure 1 - 21 Bottom View Vent/Fan Intake/  Outlet Overheating Speakers To prevent your com- puter from overheating make sure nothing blocks the Vent/Fan Intake while the com- puter is in use. ...
  • Page 62 Quick Start Guide Bottom View - Model B Figure 1 - 22 Bottom View Vent/Fan Intake/  Outlet Overheating Speakers To prevent your com- puter from overheating make sure nothing blocks the Vent/Fan Intake while the com- puter is in use. ...
  • Page 63 Quick Start Guide Bottom View - Model C Figure 1 - 23 Bottom View Vent/Fan Intake/  Outlet Overheating Speakers To prevent your com- puter from overheating make sure nothing blocks the Vent/Fan Intake while the com- puter is in use. ...
  • Page 64 Quick Start Guide Windows 11 Start Menu Most of the apps, control panels, utilities and programs within Windows 11 can be accessed from the Start Menu by clicking the icon in the taskbar at the bottom the screen (or by pressing the Windows Logo Key on the keyboard).
  • Page 65 Quick Start Guide Right-Clicking the Windows Logo In Start Menu Right-click the Start Menu icon (or use the Windows Logo Key + X key combination) to bring up an advanced Context Menu of useful features such as Apps and Features, Power Options, Task Manager, Search, File Explorer, Device Manager, Computer Management and Network Connections etc.
  • Page 66 Quick Start Guide Pining/Unpinning Apps & Programs to/from the Start Menu To make things easy to find you can add and remove tiles for apps and programs to the Start Menu. Right-Click on a program’s icon and select Pin to Start from the drop-down menu. To remove an app or program from the Start Menu right-click the icon and select Unpin from Start.
  • Page 67 Quick Start Guide Windows 11 Control Panel In many instances throughout this manual you will see an instruction to open the Control Panel. The Control Panel can be accessed in a number of ways in Windows 11. • Use the Win- dows Logo Key + R key combination...
  • Page 68 Quick Start Guide Windows 11 Settings The Settings item in the Start Menu (and also as an app) gives you quick access to a number of system settings control panels allowing you to adjust settings for System, Bluetooth & devices, Network & internet, Personal- ization, Apps, Accounts, Time &...
  • Page 69 Quick Start Guide Windows 11 Taskbar In many instances throughout this manual you will see an instruction to access the notification area of the task- bar. The notification area of the taskbar in the bottom right of the screen. Some of the Control Panels and appli- cations referred to throughout the course of this manual can be accessed from here.
  • Page 70 Quick Start Guide Windows 11 Action Center The Action Center appears as a panel on the right side of the screen when you click the battery icon (or use the Windows Logo Key + A key combination) in the notification tray. This gives you access to commonly needed functions like Network, All Settings, Airplane Mode, Bluetooth, Brightness and Volume etc.
  • Page 71 Quick Start Guide Video Features You can switch display devices, and configure display options, from the Display settings (click the Start Menu and click Settings > System or right-click the desktop and select Display settings) control panel (see page 41). In Windows 11 it is possible to quickly configure external displays from the Project menu ( press the Win- dows logo key on your keyboard and the P key or Fn + F7).
  • Page 72 Quick Start Guide To Configure Displays using Project Attach your display to the  appropriate port, and turn it Configuring External Displays Press the + P (or Fn + When multiple external display are at- F7) key combination. tached it is recommended that you Click on any one of the use the System (in Settings - page options from the menu to...
  • Page 73 Quick Start Guide To access the Display Settings: You can quickly adjust the display by right-clicking the desktop and selecting Display Settings. Adjust the settings for Brightness, HDR, Scale, Display resolution and orientation from the menus. When and external display is attached you can arrange the display configuration from Duplicate these displays menu.
  • Page 74 Quick Start Guide To access the Intel(R) Graphics Command Center: Access the Intel Graphics Command Center from the Start menu in Windows (click All apps and scroll down to Intel Graphics Command Center). You can right-click the Intel Graphics Command Center in the Start menu and pin the control panel to Start and/or taskbar.
  • Page 75 Quick Start Guide Advanced video configuration options are provided by the Intel Graphics Command Center. Figure 1 - 34 - Intel® Graphics Command Center Video Features 1 - 43...
  • Page 76 Quick Start Guide To access the NVIDIA Control Panel: Access the NVIDIA Control Panel from the Start menu in Windows (click All apps and scroll down to NVIDIA Control Panel). You can right-click the NVIDIA Control Panel in the Start menu and pin the control panel to Start and/or taskbar.
  • Page 77 Quick Start Guide Minimum Screen Resolution Settings Windows 11 has minimum screen resolution requirements. Right-click a blank area of the Desktop and select Display Settings. Adjust the Display resolution to make sure that it is at least 1024 * 768, although preferably 1366 * 768 or above.
  • Page 78 Quick Start Guide Power Options The Power button item in Start Menu (or the context menu) may be used to Shut down or Restart (you can also add Hibernate/Sleep to the menu - see page 47). The Power & battery menu in Settings (system) can be used for power configuration.
  • Page 79 Quick Start Guide You can also use the context menu (right-click the Start Menu icon or press the Windows logo + X key combination) to Sign out, Sleep, Hibernate, Shut down, and Restart.  Adding Hibernate/Sleep to the Power Menu 1.
  • Page 80 Quick Start Guide 1 - 48...
  • Page 81 Features & Components Chapter 2: Features & Components Overview Read this chapter to learn more about the following main features and components of the computer: • Solid State Drive • Clickpad and Buttons/Mouse • Realtek Audio Console Overview 2 - 1...
  • Page 82 Features & Components Solid State Drive   The solid state drive (SSD) is used to store your data in the computer. The SSD can Bottom Cover Bottom Cover be taken out to accommodate other PCIe SSDs, however you will need to contact Removal Warning Removal Warning your distributor/supplier to do this in order to avoid violating the terms of your war-...
  • Page 83 Features & Components Clickpad and Buttons/Mouse  The Clickpad is an alternative to the mouse; however, you can also add a mouse to Clickpad Cleaning your computer through one of the USB ports. The Clickpad buttons function in much In order to improve pad the same way as a two-button mouse (note the terms Clickpad and Touchpad are performance it is neces- interchangeable throughout this manual).
  • Page 84 Features & Components Mouse Properties Control Panel  You can configure the functions from the Mouse control panel in Windows as fol- Disabling the lows. Clickpad Click the Settings item in the Start Menu (or All Settings in the Action Center). If you need to disable Click Bluetooth &...
  • Page 85 Features & Components Figure 2 - 3 Mouse Properties Control Panels Mouse Properties Control Panel 2 - 5...
  • Page 86 Features & Components Mouse & Touchpad Devices You can configure the functions from the Mouse or Touchpad control panels in De- vices in the Settings control panel as follows. Click the Settings item in the Start Menu (or All Settings in the Action Center). Click Bluetooth &...
  • Page 87 Features & Components Mouse Settings You can select the primary mouse button and scrolling options and access Mouse Properties from Additional mouse settings. Figure 2 - 5 Windows Settings Mouse Mouse & Touchpad Devices 2 - 7...
  • Page 88 Features & Components Touchpad Settings You can disable the Touchpad by clicking the Touchpad button to turn it off. Figure 2 - 6 Windows Settings Touchpad 2 - 8 Mouse & Touchpad Devices...
  • Page 89 Features & Components Touchapd Taps The Touchpad Sensitivity feature helps prevent recognizing taps on the pad by ac- cident, by recognizing when your palm is resting on it or brushing its surface while you are typing. Click in the check box to enable/disable the different gestures or taps on the surface of the pad to perform specific actions to manipulate documents, objects and applica- tions.
  • Page 90 Features & Components Touchapd Scroll and Zoom Click to enable/disable the two finger scrolling and pinch zooming gesture. Figure 2 - 8 Scroll and Zoom/ Scrolling Gesture The two-finger scrolling feature works in most scrollable windows and allows you to scroll horizontally and vertically. Place two fingers, slightly separated, on the Touchpad surface and slide both fingers in the direction required (in a straight con- tinuous motion).
  • Page 91 Features & Components The three-finger and four-finger swipes and taps can be configured for a number of different functions. Select the appropriate function from the drop-down menu. Figure 2 - 10 Three-Finger Gestures (Swipes & Taps) Figure 2 - 11 Four-Finger Gestures (Swipes &...
  • Page 92 Features & Components The following is an overview of some of the main gestures you can use with your Touchpad, however these can be configured from the Touchpad menus. Figure 2 - 12 Touchpad Gesture Examples 2 - 12 Mouse & Touchpad Devices...
  • Page 93 Features & Components Realtek Audio Console  You can configure the audio options on your computer from the Sound control Audio Driver & panel in Windows, or from the Realtek Audio Console Windows Start menu (click Creative Sound All apps and scroll down to Realtek Audio Console). Make sure you have in- Blaster Driver stalled the driver and checked the Microsoft Store for updates (see “Audio”...
  • Page 94 Features & Components Realtek Audio Console - Main  You can adjust the Speaker and Microphone levels by using the sliders in the Re- altek Audio Console Main window. Volume Adjustment The sound volume level can be adjusted from the Action Center in Windows by clicking the battery icon (or use...
  • Page 95 Features & Components Realtek Audio Console - Speakers Click Speakers to access controls for the format and speaker balance etc. Figure 2 - 15 Realtek Audio Console (Speakers) Realtek Audio Console 2 - 15...
  • Page 96 Features & Components Realtek Audio Console - Microphone Click Microphone to access advanced controls for recording on the microphone. Adjust the recording Main Volume level to around 60, to obtain the optimum re- cording quality. Figure 2 - 16 Realtek Audio Console (Microphone) 2 - 16 Realtek Audio Console...
  • Page 97 Features & Components Realtek Audio Console - Device Advanced Settings Device Advanced Settings allows for further configuration of the Connector Set- tings etc. Figure 2 - 17 Realtek Audio Console - Device Advanced Settings Realtek Audio Console 2 - 17...
  • Page 98 Features & Components 2 - 18...
  • Page 99 Power Management Chapter 3: Power Management  Overview OS Note Power management To conserve power, especially when using the battery, your computer power man- functions will vary slight- agement conserves power by controlling individual components of the computer ly depending on your (the monitor and hard disk drive) or the whole system.
  • Page 100 Power Management The Power Sources  The computer can be powered by either an AC/DC adapter or a battery pack. Forced Off AC/DC Adapter If the system “hangs”, Use only the AC/DC adapter that comes with your computer. The wrong type of AC/ and the Ctrl + Alt + Del DC adapter will damage the computer and its components.
  • Page 101 Power Management Battery The battery allows you to use your computer while you are on the road or when an electrical outlet is unavailable. Battery life varies depending on the applications and the configuration you're using. To increase battery life, let the battery discharge completely before recharging (see “Battery FAQ”...
  • Page 102 Power Management Turning On the Computer Now you are ready to begin using your computer. To turn it on simply press the pow- er button on the front panel. When the computer is on, you can use the power button as a Stand by/Hibernate/ Shutdown hot-key button when it is pressed for less than 4 seconds (pressing and holding the power button for longer than this will shut the computer down).
  • Page 103 Power Management Shutting the Computer Down Note that you should always shut your computer down by choosing the Shut down command as this will help prevent hard disk or system problems. Use the Power item in the Start Menu and select Shut down. You can also use the context menu (right-click the Start Menu icon or press the Windows logo...
  • Page 104 Power Management Settings Menu Power Controls Access the Power & battery control panel via the Settings (System > Power & battery) item in the Start Menu (or via the battery icon in the Action Center). Figure 3 - 2 Settings > System (Power &...
  • Page 105 Power Management The Power & battery control panel allows you to quickly adjust power options for Screen and sleep, Power mode, Battery saver and Battery usage etc. Figure 3 - 3 Power & Battery Settings Menu Power Controls 3 - 7...
  • Page 106 Power Management Battery Saver  Battery usage will display your battery levels and you can see the current state of battery usage by application. The Battery saver can be turned on when the system Battery Saver is battery powered, and can be set to run if the battery level falls below a certain per- Note that some Win- centage to limit background activity and push notifications.
  • Page 107 Power Management Screen & Sleep Screen and Sleep settings can be adjusted for when the system is on battery power or is plugged in. Figure 3 - 5 Settings > Screen & Sleep Settings Menu Power Controls 3 - 9...
  • Page 108 Power Management Power Mode The Power mode can be set to Balanced (default) which balances performance and battery life, Best power efficiency for better battery life with reduced performance, and Best Performance for improved performance but with greater battery con- sumption.
  • Page 109 Power Management Power Plans  The computer can be configured to conserve power by means of power plans (Con- Resuming trol Panel > Power Options). You can use (or modify) an existing power plan, or Operation create a new one. Table 3 - 1, on The settings may be adjusted to set the display to turn off after a specified time, and for informa-...
  • Page 110 Power Management Each Windows power plan will also adjust the processor performance of your ma- chine in order to save power. This is worth bearing in mind if you are experiencing any reduced performance (especially under DC/battery power). Choose High performance (you may need to click Show additional plans to view the High performance plan) for maximum performance when the computer is pow- ered from an AC power source.
  • Page 111 Power Management Power-Saving States  You can use power-saving states to stop the computer’s operation and restart where Wake On LAN you left off. Windows uses the Sleep, Hibernate and Shut Down power-saving Support states. Wake-On-LAN is only supported from Sleep or Sleep Hibernate states...
  • Page 112 Power Management Hibernate  Hibernate uses the least amount of power of all the power-saving states and saves all of your information on a part of the hard disk before it turns the system off. If a Right-Click Start Menu Power power failure occurs the system can restore your work from the hard disk;...
  • Page 113 Power Management Configuring the Power Buttons The power/sleep button (Fn + F12 key combo) and closed lid may be set to send the computer in to a power-saving state. Click Choose what the power buttons do on the left menu in Power Options to bring up the menu. Figure 3 - 10 Power Options Define Power...
  • Page 114 Power Management Adding Hibernate/Sleep to the Power Menu Add Hibernate/Sleep to the Power Menu as follows. Go to the Power Options (Hardware and Sound) control panel. Click “Change settings that are currently unavailable” Click Choose what the power buttons do. Click to put a check in the Hibernate/Sleep box under Shutdown settings.
  • Page 115 Power Management Resuming Operation You can resume operation from power-saving states by pressing the power button, or in some cases pressing the sleep button (Fn + F12 key combo). Power Status Icon Color To Resume Table 3 - 1 Power Off Press the Power Button Resuming Press the Power Button...
  • Page 116 Power Management Ctrl + Alt + Delete Key Combination You can use the CTRL + ALT + DEL key combination from almost any of the Win- dows 10 interfaces/Apps to bring up a full-screen displaying Lock, Switch User, Sign out, Change a password and Task Manager options. If you click the Power icon in the lower right corner of the screen a power management option menu ap- pears to display Sleep, Shut down, and Restart.
  • Page 117 Power Management Battery Information  Follow these simple guidelines to get the best use out of your battery. Low Battery Battery Power Warning Your computer’s battery power is dependent upon many factors, including the pro- When the battery is criti- grams you are running, and peripheral devices attached.
  • Page 118 Power Management Click the battery icon in the Action Center to access the Power & battery con- trol panel (see page 7) and you can view the battery level. Figure 3 - 14 Battery Levels See also (which can be turned on when the system is “Battery Saver”...
  • Page 119 Power Management Conserving Battery Power  • Use a power plan that conserves power (e.g Power saver), however note that this may have an affect on computer performance. Windows Mobility Center • Lower the brightness level of the LCD display. The system will decrease LCD The Windows Mobility brightness slightly to save power when it is not powered by the AC/DC adapter.
  • Page 120 Power Management Battery Life Battery life may be shortened through improper maintenance. To optimize the life and improve its performance, fully discharge and recharge the battery at least once every 30 days. We recommend that you do not remove the battery yourself. Charging The Battery Under Heavy Use If the computer is being used under a heavy system load (e.g.
  • Page 121 Power Management Recharging the Battery with the AC/DC Adapter  The battery pack automatically recharges when the AC/DC adapter is attached and plugged into an electrical outlet. If the computer is powered on, and in use, it will Caution take several hours to fully recharge the battery. When the computer is turned off but Danger of explosion if plugged into an electrical outlet, battery charge time is less.
  • Page 122 Power Management Battery FAQ How do I completely discharge the battery? Use the computer with battery power until it shuts down due to a low battery. Don’t turn off the computer even if a message indicates the battery is critically low, just let the computer use up all of the battery power and shut down on its own.
  • Page 123 Power Management Scroll down to Battery and click + to expand the battery options. Choose the options below (click Yes if a warning appears): Figure 3 - 18 Power Options Advanced Settings - Battery • Low battery level = 0% •...
  • Page 124 Power Management How do I fully charge the battery? When charging the battery, don’t stop until the LED charging indicator light changes from orange to green. How do I maintain the battery? Completely discharge and charge the battery at least once every 30 days or after about 20 partial discharges.
  • Page 125 Drivers & Utilities Chapter 4: Drivers & Utilities  This chapter deals with installing the drivers and utilities essential to the operation or Driver Installation & improvement of some of the computer’s subsystems. The system takes advantage of Power some newer hardware components for which the latest versions of most available op- When installing driv- erating systems haven’t built in drivers and utilities.
  • Page 126 Drivers & Utilities Driver Installation Insert the Device Drivers & Utilities + User’s Manual disc into an attached DVD drive. Click the message “Tap to choose what happens with this disc.” Click Run autorun.exe. Click Install Drivers (button), or Option Drivers (button) to access the Optional driver menu. - Drivers Installer Screen 1 Figure 4 - 1 4 - 2 Driver Installation...
  • Page 127 Drivers & Utilities Check the driver installation order from (the drivers must be installed in this order) Table 4 - 1, on page 4 - 4 which is the same as that listed in the Drivers Installer menu below. Click to select the driver you wish to install, (you should note down the drivers as you install them). Follow the instructions for each individual driver installation procedure as listed on the following pages.
  • Page 128 Drivers & Utilities Win 11 (64-bit) Driver Page # Win 11 (64-bit) - Optional Items Page # Chipset Page 4 - 7 RAID Mode Setup Page 6 - 2 Serial IO Page 4 - 7 Wireless LAN Module Page 6 - 12 Control Center Page 4 - 7 Bluetooth &...
  • Page 129 Drivers & Utilities Updating/Reinstalling Individual Drivers Manual Driver Installation Click Browse CD/DVD (button) in the Drivers Install- If you wish to update/reinstall individual drivers it er application and browse to the executable file in the may be necessary to uninstall the original driver.To do appropriate driver folder.
  • Page 130 Drivers & Utilities User Account Control If a User Account Control prompt appears as part of  the driver installation procedure, click Continue or Driver Installation General Guidelines Allow, and follow the installation procedure as direct- The driver installation procedure outlined in this Chapter (and in Chapter 7 Options &...
  • Page 131 Drivers & Utilities Driver Installation Procedure Control Center 1. Click 3.Install Ctrl Center Driver > Yes. Insert the Device Drivers & Utilities + User’s Manual disc and click Install Drivers (button). 2. Click Next > Install. 3. Click Finish > Finish restart the computer. Chipset Intel Video (VGA) Note: During the driver installation process the screen...
  • Page 132 Drivers & Utilities NVIDIA Video (VGA) 1. Click 5.Install NVIDIA VGA Driver > Yes. Note: If the computer enters a deep sleep mode during 2. Click AGREE AND CONTINUE (button) to installation, you will be prompted to plug in a network cable, and click OK, to continue installation.
  • Page 133 Drivers & Utilities USB 3.0 Driver 6. Click OK to restart the computer to complete the installation. 1. Click 10.Install USB 3.0 Driver > Yes. 7. After installing the Audio driver install the Cre- 2. Click OK to complete the installation. ative Sound Blaster Studio App (see page 10).
  • Page 134 Drivers & Utilities Creative Sound Blaster Studio Audio App After installing the audio driver the system will not re- turn to the Drivers Installer screen. To install the op- 1. Click Browse CD/DVD (button) from Device Driv- tional drivers, eject the Device Drivers & Utilities + ers &...
  • Page 135 Drivers & Utilities Optional Drivers See the pages indicated in for the driver installation procedures for any modules in- Table 4 - 1, on page 4 - 4 cluded in your purchase option. Models A & B - Optional Drivers Installer Screen Figure 4 - 3 Note that you need to install both the WLAN &...
  • Page 136 Drivers & Utilities 4 - 12...
  • Page 137 BIOS Utilities Chapter 5: BIOS Utilities  Overview BIOS Screens Note that BIOS This chapter gives a brief introduction to the computer’s built-in software BIOS screens pictured (Basic Input/Output System). these pages are intend- ed for guidance in set- If your computer has never been set up, or you are making important changes to the ting up your system’s BIOS.
  • Page 138 BIOS Utilities The Insyde BIOS Utility  Each time you turn on the computer the system takes a few seconds to conduct a in- BIOS Settings cluding a quick test of the on-board RAM (memory). Warning As the boot process proceeds, the computer will tell you if there is anything wrong. Incorrect settings can If there is a problem that prevents the system from booting, it will display a system cause your system to...
  • Page 139 BIOS Utilities Updating the BIOS / CPU If you need to update the BIOS please contact your distributor or supplier to obtain the latest version. After using the utility to update the BIOS (or if the CPU has been changed) you will need to press F2 at Boot to enter the BIOS, and then press F9 to load the BIOS defaults, and then press F10 to save and exit the settings.
  • Page 140 BIOS Utilities UEFI Boot UEFI (Unified Extensible Firmware Interface) is an advanced firmware standard supporting fast startup. With UEFI Boot prompts at boot to press F2 (to access the BIOS) or F7 (to access Boot options) will not appear. However you can still press F2 to enter the setup, or F7 to choose the preferred boot device, if you press the key immediately the system boots up.
  • Page 141 BIOS Utilities Insyde BIOS Start Screen On accessing the BIOS you will be presented with the Start Screen with 5 menu icons, date and time information, CPU temperature information and navigation and Help icons at the bottom of the screen. You can use the Touchpad, an attached mouse, or the cursor/arrow keys to navigate the menus and press Enter to access the submenu.
  • Page 142 BIOS Utilities Insyde BIOS Start Screen Options: • Continue: Press Enter here or click Continue to carry on with the boot process and load the operating system. • Boot Manager: Press Enter here or click Boot Manager to access the Boot Manager utility.
  • Page 143 BIOS Utilities Boot Manager Figure 5 - 2 Boot Manager  BIOS Screens Note that BIOS screens pictured these pages are intend- ed for guidance in set- ting up your system’s BIOS. BIOS versions are sub- ject to constant change When you turn the computer on it will look for an operating system from the devices and revision, therefore listed in this menu, and in this priority order.
  • Page 144 BIOS Utilities Boot From File / File Explorer Figure 5 - 3 Boot From File (File Explorer) If you need to boot from a file (e.g. on a USB flash drive) then access this menu and use the cursor keys to select the device or file (you can press Enter to explore for a file on an attached device).
  • Page 145 BIOS Utilities Administer Secure Boot Figure 5 - 4 Administer Secure Boot Secure Boot prevents unauthorized operating systems and software from loading during the startup process. You can select a trusted UEFI file to execute the BIOS, make sure that you Enforce Secure Boot, Erase all Secure Boot Settings or Restore the Factory Settings.
  • Page 146 BIOS Utilities You can also make custom changes to the Key Management database if required by accessing the advanced secure boot options for Platform Key (PK Options), Key Ex- change Key (KEK Options), Allowed Signatures Database (DB Options) and For- bidden Signatures Database (DBX Options).
  • Page 147 BIOS Utilities Setup Utility - Main Menu Figure 5 - 6 Main (Upper) System Time & System Date (Main Menu) The hour setting uses the 24-hour system (i.e., ØØ = midnight; 13 = 1 pm). If you can change the date and time settings in your operating system, you will also change these settings.
  • Page 148 BIOS Utilities System/Extended Memory: (Main Menu) This item contains information on the system memory, and is not user configurable. The system will auto detect the amount of memory installed. ME FW Version / MB Series / BIOS Revision / KBC/EC firmware Revision / MAC Address This item contains information on the BIOS version and is not user configurable.
  • Page 149 BIOS Utilities Setup Utility - Advanced Menu Figure 5 - 7 Advanced Menu Advanced Chipset Control (Advanced Menu) The sub-menu here allows you to enable/disable Display Mode, Flexicharger, VT- d, UEFI OS Fast Boot, and Battery Saver. Setup Utility - Advanced Menu 5 - 13...
  • Page 150 BIOS Utilities Overclocking Performance Menu (Advanced Menu) (For Some Processors Only) This menu will be available for processors that support CPU overclocking. Click on Overclocking Performance Menu and then click on the Overclocking Feature item to enable it (it is Disabled by default) and to configure the Memory settings from the Control Center.
  • Page 151 BIOS Utilities FlexiCharger (Advanced Menu > Advanced Chipset Control)  The sub-menu here allows you to enable/disable the FlexiCharger. The FlexiCharg- er may be set to automatically start charging your battery when the battery reaches FlexiCharger a certain capacity level (e.g. you could start the battery charge level at 40%). Warning You can then set the level to stop charging (e.g.
  • Page 152 BIOS Utilities VT-d (Advanced Menu > Advanced Chipset Control) Enable/disable Intel® Virtualization Technology for Directed I/O (VT-d) from this menu. This extends Intel's Virtualization Technology (VT) by providing hard- ware assists for a virtualization solution. UEFI OS Fast Boot(Advanced Menu > Advanced Chipset Control) Use this menu item to enable/disable the Fast Boot option, which when enabled, helps reduce the time it takes to boot the computer.
  • Page 153 BIOS Utilities Enable VMD Controller (Advanced Menu)  Intel VMD (Volume Management Device) is a storage controller with hardware logic inside the CPU, and this helps manage NVMe SSDs. With VMD mode en- VMD Mode Selection abled the Intel Rapid Storage Technology item will be accessible and this will allow you to setup a RAID system.
  • Page 154 BIOS Utilities Setup Utility - Security Menu  Security Menu The changes you make here affect the access to the BIOS utility itself, and also access to your machine as it boots up after you turn it on. These settings do not affect your machine or network passwords...
  • Page 155 BIOS Utilities Note: To clear existing supervisor passwords press Enter and type the existing pass-  word, then press Enter for the new password (without typing any password entry) and Enter again to confirm the password clearance. To clear a user password just Password Warning click on Clear User Password.
  • Page 156 BIOS Utilities TPM Configuration (Security Menu) This sub-menu will allow you to enable/disable Trusted Platform Module (TPM) support, and to configure the TPM State. Select TPM Configuration and press En- ter to access the sub-menu. Press Enter to access the Security Device Support menu and select Enable to support TPM.
  • Page 157 BIOS Utilities Setup Utility - Boot Menu  BIOS Screens Note that BIOS screens pictured these pages are intend- ed for guidance in set- ting up your system’s BIOS. BIOS versions are sub- ject to constant change and revision, therefore your computer’s actual screens appear...
  • Page 158 BIOS Utilities UEFI Setting (Boot Menu) The Unified Extensible Firmware Interface (UEFI) specification provides a clean in- terface between operating systems and platform firmware at boot time. In contrast to BIOS, UEFI defines a set of standard boot and runtime services. The Network Stack item can be enabled/disabled as an option under UEFI Setting.
  • Page 159 BIOS Utilities Setup Utility - Exit Menu  Battery Storage Setting You can enable Shipping Mode for your battery if the system is battery powered and the battery level is re- duced. In this mode the battery will be locked to not power the system until first con- nected AC/DC...
  • Page 160 BIOS Utilities 5 - 24...
  • Page 161 Modules & Options Chapter 6: Modules & Options  Overview Wireless Device Operation Aboard This chapter contains information on the following modules, which may come with Aircraft your computer, depending on the configuration purchased. If you are unsure please The use of any portable contact your service representative.
  • Page 162 Modules & Options RAID Mode Setup  RAID RAID Solid State Drives To configure your RAID (Redundant Array of Independent Disks) system in Strip- ing (RAID 0), Mirroring (RAID 1) or Parity (RAID 5) modes (see Table 6 - 1, on All SSDs in a RAID should 3) you will require at least two identical (see sidebar) SSDs (or three iden- be identical (the same size...
  • Page 163 Modules & Options Description  RAID Level SATA Mode Identical drives reading and writing data in parallel to increase performance. RAID 0 Selection implements a striped disk array and the data is broken into blocks and each block is written to a separate disk drive. RAID 0 The SATA mode selection A Striped Array (RAID 0) is NOT fault-tolerant.
  • Page 164 Modules & Options RAID Setup To configure your RAID (Redundant Array of Independent Disks) system in Strip- ing (RAID 0), Mirroring (RAID 1) or Recovery modes (see Table 6 - 1, on page 6 - 3) you will require two identical solid state drives, or three identical solid state drives for RAID level 5.
  • Page 165 Modules & Options Copy the Drivers folder from the location below (D: denotes your DVD drive) on the Device Drivers & Utilities + User’s Manual disc to the USB flash drive or external USB hard disk. • D:\Options\RAID\F6\Drivers Start up your notebook computer and press <F2> to enter the BIOS and go to the Setup Utility.
  • Page 166 Modules & Options 11. You can now setup your RAID volume using the installed SSDs. 12. Select “Name” and type a name of your choice for your RAID volume and select <Yes>. Figure 6 - 2 RAID Name 6 - 6 RAID Mode Setup...
  • Page 167 Modules & Options 13. Select RAID Level and choose the RAID Level required (see Table 6 - 1, on for details) and press <Enter>. page 6 - 3 • RAID0 (Stripe) • RAID1 (Mirror) • RAID 5 (Parity) - (requires at least 3 drives) Figure 6 - 3 RAID Level Select RAID Mode Setup 6 - 7...
  • Page 168 Modules & Options 14. Go to any of the disks listed under “Select Disks:” and select a disk name. 15. Click on X to select the disk required. Figure 6 - 4 Select Disks 16. You should select two or three identical SSDs (three SSDs are required for RAID 5) to form your RAID volume.
  • Page 169 Modules & Options 20. Press <F10> to “Save and Exit” and select <Yes>, however note the bulleted points below. • Make sure the Windows OS DVD is in the attached DVD drive or on a USB flash drive, as the computer starts up it will automatically boot from the Win- dows 10 OS DVD (you will be prompted to press a key to boot from the DVD/ USB flash drive).
  • Page 170 Modules & Options 26. Hold down the shift key and click to select both driver names. 27. Click Next. 28. Follow the on-screen instructions to install the Windows operating system. 29. Install the Windows drivers from the Device Drivers & Utilities + User’s Manual disc as per (make sure you install the Intel Rapid Table 4 - 1, on page 4 - 4...
  • Page 171 Modules & Options Deleting a RAID If you wish to delete an existing RAID then follow the procedure below to do so. How- ever backup up any necessary files and data before deleting a RAID, as doing so will result in the loss of all data on the RAID volumes. Start-up your notebook computer and press <F2>...
  • Page 172 Modules & Options Wireless LAN Module  If your purchase option includes a Combination Wireless LAN & Bluetooth mod- Wireless Device ule then install the driver for the appropriate module as instructed overleaf. Operation Aboard Aircraft Make sure that the module is on (i.e. the system is not in Airplane Mode) before in- The use of any portable stalling the driver.
  • Page 173 Modules & Options Intel® WLAN Driver Installation  1. Make sure the system is not in Airplane Mode, and then insert the Device Uninstalling The WLAN Drivers & Utilities + User’s Manual disc into an attached DVD drive. Driver 2. Click Option Drivers (button). Note that if you need to un- 3.
  • Page 174 Modules & Options WLAN Configuration in Windows You can configure a wireless connection using one of the following options, how- ever make sure the Wireless LAN module is turned on (and not in Airplane Mode) before configuration begins. Click the Wireless icon in the notification area of the taskbar.
  • Page 175 Modules & Options Enter a network security key (password) if required, and click Next. You can choose to share or connect to devices or not. When you are connected to the network access point it will display its connected status under the name of network. Select any connected network and click Disconnect to disconnect from a connected access point.
  • Page 176 Modules & Options 11. Click on Network & Internet (in Settings) for a more comprehensive list of network and internet settings including Wi-Fi (can be turned on/off), Ethernet, VPN, Mobile Hotspot, Airplane mode (Airplane mode and Wireless devices can be turned on/off) Proxy, Dial-up and Advanced Network Settings. Figure 6 - 8 Network &...
  • Page 177 Modules & Options Bluetooth & WLAN Combo Module  If you have included a Wireless LAN & Bluetooth Combo module is on (i.e. the Wireless Device system is not in Airplane Mode) before installing the driver. Operation Aboard Aircraft Make sure you install the drivers in the order indicated in Table 4 - 1, on page 4 - You will need to install both the WLAN and Bluetooth drivers for all the combo mod- The use of any portable...
  • Page 178 Modules & Options Intel Bluetooth Combo Driver Installation  The Bluetooth drivers for both modules are installed as below. Uninstalling The 1. Make sure the system is not in Airplane Mode, and then insert the Device WLAN / Bluetooth Drivers & Utilities + User’s Manual disc into an attached DVD drive. Combo Driver 2.
  • Page 179 Modules & Options Bluetooth Configuration in Windows Go to the Settings control panel and click Bluetooth & devices (or click the Blue- tooth icon in the taskbar and click Add a Bluetooth Device). Make sure Bluetooth is On. Click Add device and a list of discovered devices will appear. Figure 6 - 9 Settings >...
  • Page 180 Modules & Options Double-click the device you want to pair with the computer and click Connect, if the PIN matches that on the device to which you wish to connect (you may need to click pair on the device). Figure 6 - 11 Bluetooth Connect 6 - 20 Bluetooth &...
  • Page 181 Modules & Options Select a device and click Remove Device to disconnect from any device (click Yes to confirm). Figure 6 - 12 Bluetooth - Remove Device Bluetooth & WLAN Combo Module 6 - 21...
  • Page 182 Modules & Options To Make Your Computer Discoverable to Bluetooth Devices  Go to the Settings control panel and click Bluetooth & devices (or click the Blue- Bluetooth Taskbar tooth icon in the taskbar and click Open Settings). Icon Click the arrow in Devices and scroll down to click More Bluetooth options. In Bluetooth Settings make sure that Allow Bluetooth devices to find this PC If you do not see the Blue- check box (Discovery) has a check inside it.
  • Page 183 Modules & Options Intel Speed Shift Technology Driver ®  Install the Intel® Speed Shift Technology driver as outlined below. Speed Shift *P-States Technology allows operating system to hand off some or all control of the handing of the computer’s *P-States to the processor. This has a couple of noticeable benefits P-states are voltage-fre- quency pairs that set the in responsiveness and the reduction of power consumption.
  • Page 184 Modules & Options Intel GNA Driver ® Install the Intel® GNA Driver for your processor. The Intel® Gaussian & Neural Accelerator (Intel® GNA) is designed to support a small coprocessor in your system that is responsible for accelerating certain Deep Learning algorithms. Intel®...
  • Page 185 Modules & Options Intel Rapid Storage Technology ®  Install the Intel Rapid Storage Technology driver (after installing all necessary VMD Mode BIOS drivers in the correct order) to install the Intel® Optane™ Memory and Storage Setting Management app to support your RAID system (see “Enable VMD Controller After enabling...
  • Page 186 Modules & Options IRST Driver Installation  1. Insert the Device Drivers & Utilities + User’s Manual disc into an attached IRST Driver Installation DVD drive. 2. Click Option Drivers (button). If you have an Optane SSD installed, and have 3.
  • Page 187 Modules & Options Intel® Optane™ Memory & Storage Management Run Intel® Optane™ Memory & Storage Management from the Start menu in Windows (click All apps and scroll down to Intel® Optane™ Memory & Storage Management). Figure 6 - 14 Intel® Optane™ Memory &...
  • Page 188 Modules & Options Intel® Optane™ Memory & Storage Management for RAID Systems  The Intel® Optane™ Memory & Storage Management application also displays Deleting & Creating RAID status information on your RAID configuration. Run the Intel® Optane™ Memory Volumes & Storage Management from the Start menu in Windows. Note that The Intel®...
  • Page 189 Modules & Options Figure 6 - 16 Intel® Optane™ Memory & Storage Management (Manage) Intel® Rapid Storage Technology 6 - 29...
  • Page 190 Modules & Options Intel® Optane™ Memory & Storage Management Help & Support Click the link in For help and support ... in the About menu to go to the Intel sup- port page. Figure 6 - 17 Intel® Optane™ Memory & Storage Management Help 6 - 30 Intel®...
  • Page 191 Modules & Options Intel® Optane™ Memory & Storage Management Performance Enable/Disable Link Power Management link management from the Performance menu. When enabled it allows the SATA host bus adapter to enter a low-power state when there is no I/O activity to save energy. . Figure 6 - 18 Intel®...
  • Page 192 Modules & Options Intel® Optane™ Memory & Storage Management Settings Enable Automatic rebuild on hot plug to automatically start rebuilding any de- graded volume by simply hot plugging a compatible disk into the same location as any failed or missing drive. Do bear in mind the warranty terms as outlined in the sidebar, and you should contact your distributor or supplier for help in the case of degraded volumes or drives.
  • Page 193 Modules & Options Creative Sound Blaster Studio+ Audio Install the Creative application is a suite of audio technologies which allow you to configure the audio settings to your requirements for the best performance in games, music and movies. Creative Sound Blaster Studio Installation 1.
  • Page 194 Modules & Options 9. Then click Browse CD/DVD (button) from Device Drivers & Utilities + User’s Manual disc and navigate to Options//PreInstallKit/04_Creative and double-click CreativeAppSetup_xxxxx. 10. Select the installation language and click OK. 11. Click to accept the terms of the license agreement and then click Next. 12.
  • Page 195 Modules & Options Creative Application Run the Creative App from the Start menu in Windows (click All apps and scroll down to Creative App ). Figure 6 - 20 Creative App (Windows Start Menu) Creative Sound Blaster Studio+ Audio 6 - 35...
  • Page 196 Modules & Options Device The Device menu contains a number of audio control panels. The drop down menu under Sound Mode has different presets for Gaming, Movie, Music etc. Click the Output Switch icon at the bottom left of the screen to select Headphones, Speakers Line-Out or Built-In Speakers.
  • Page 197 Modules & Options Sound Mode Sound Mode allows you to view, and change, the settings for a number of modules, and you can save a Sound Mode profile to apply the settings across modules. Figure 6 - 22 Sound Mode Creative Sound Blaster Studio+ Audio 6 - 37...
  • Page 198 Modules & Options Acoustic Engine The Acoustic Engine offers a suite of playback technologies, for headphones or speakers, to enhance sound. Each playback technology has an On/Off button to al- low you to enable/disable it, and most controls feature a dial to adjust the levels. Figure 6 - 23 Acoustic Engine •...
  • Page 199 Modules & Options Equalizer The Equalizer allows you to manually adjust the Custom settings (click On to en- able the Equalizer). Figure 6 - 24 Equalizer Creative Sound Blaster Studio+ Audio 6 - 39...
  • Page 200 Modules & Options SuperWide SuperWide is available when Built-In speakers are the selected output. SuperWide provides a wide and immersive audio experience. Figure 6 - 25 SuperWide 6 - 40 Creative Sound Blaster Studio+ Audio...
  • Page 201 Modules & Options Crystal Voice Adjust the microphone settings from these recording controls under the Crystal Voice menu. The profiles in Voice Morph allow you to alter your voice in gaming or online chats. Figure 6 - 26 Crystal Voice Creative Sound Blaster Studio+ Audio 6 - 41...
  • Page 202 Modules & Options Mixer The Mixer allows you to adjust the volume levels for Playback and Recording. Figure 6 - 27 Mixer 6 - 42 Creative Sound Blaster Studio+ Audio...
  • Page 203 Modules & Options Playback Playback can be used to Test the configuration of the headphones and speakers, and to select the type of audio output (Headphones, Line-Out Speakers or Built-In Speakers). Figure 6 - 28 Playback Creative Sound Blaster Studio+ Audio 6 - 43...
  • Page 204 Modules & Options Recording Recording can be used to configure audio quality for any attached recording sources such as the Microphone. Figure 6 - 29 Recording 6 - 44 Creative Sound Blaster Studio+ Audio...
  • Page 205 Modules & Options Settings Settings allows you to set the language preferences. Click Reset to return all con- figurations to the factory default settings. Figure 6 - 30 Settings Creative Sound Blaster Studio+ Audio 6 - 45...
  • Page 206 Modules & Options Webcam When the PC Camera application is run the LED indicator to the left of the camera will be illuminated (see 6). Note that you need to use the Figure 1 - 2 on page 1 - Camera app in Windows to take pictures and capture video.
  • Page 207 Modules & Options Camera App  Make sure the webcam is turned on by using the Fn + F10 key combination (or Control Center button). Camera Access Run the Camera app from the Start menu by clicking All Apps and then by clicking on the Camera app icon (you can type “camera”...
  • Page 208 Modules & Options The interface displays two buttons on the right of the screen; one for photo and one for video. Figure 6 - 32 Camera App Mode Icons Photo Video Simply click on the appropriate button (or arrow) to switch to either photo or video modes.
  • Page 209 Modules & Options Click Settings to access the camera settings menu to select/deselect Pro mode, make adjustments for Photo Quality, Framing grid, Time lapse, Video Quality and Flicker reduction.  Camera Settings You can use a Framing grid to help you line up pictures. The Photo Quality can be changed to that which the system supports.
  • Page 210 Modules & Options With the Pro mode selected (in Settings ) you can access the Brightness button to adjust the brightness. In Auto mode you can toggle HDR on (Pro) or off. Figure 6 - 35 Camera Brightness Adjustment (Pro mode) 6 - 50 Webcam...
  • Page 211 Modules & Options Taking Pictures/Capturing Video Make sure the webcam is turned on by using the Fn + F10 key combination (or Control Center button). Run the Camera app from the Start menu by clicking on the Camera app icon (you can type “camera”...
  • Page 212 Modules & Options Captured photos and videos will be saved to the Photos app stored in the Start menu (type Photos into the search box if you cannot find the app). You can also access the photos from the Camera roll icon at the bottom right of the Camera app screen.
  • Page 213 Modules & Options Trusted Platform Module (Optional) The TPM security chip allows you to create and manage digital certificates for user and platform authentication. This type of security is usually administered within large enterprises and organizations, and therefore requires implementation by a sys- tem administrator before users can access security features.
  • Page 214 Modules & Options Enabling & Activating TPM  Restart the computer. Enter the BIOS pressing F2 during the POST/startup. Clearing TPM Click to enter the Setup Utility and select the Security menu. Information Click TPM Configuration and select Enabled for Clear TPM. You will then need to save the changes and restart the computer.
  • Page 215 Modules & Options TPM Management in Windows You can manage your TPM settings from within Windows: BitLocker Drive En- cryption can be used in conjunction with the TPM to encrypt data on the disk. Access the Microsoft BitLocker Drive Encryption control panel applet from the Windows control panel (System and Security).
  • Page 216 Modules & Options Follow the on-screen instructions to setup BitLocker, and make sure you have a removable media (e.g. a USB flash drive) to store saved recovery keys etc. Click TPM Administration. The TPM Management window allows you to configure the TPM within Windows. As TPM is usually administered within large enterprises and organizations, your system administrator will need to assist you in managing the information here.
  • Page 217 Troubleshooting Chapter 7: Troubleshooting Overview Should you have any problems with your computer, before consulting your service representative, you may want to try to solve the problem yourself. This chapter lists some common problems and their possible solutions. This can’t anticipate every problem, but you should check here before you panic. If you don’t find the answer in these pages, make sure you have followed the instructions carefully and observed the safety precautions in the preface.
  • Page 218 Troubleshooting Basic Hints and Tips Many of the following may seem obvious but they are often the solution to a problem when your computer ap- pears not to be working. • Power - Is the computer actually plugged into a working electrical outlet? If plugged into a power strip, make sure it is actually working.
  • Page 219 Troubleshooting Backup and General Maintenance • Always backup your important data, and keep copies of your OS and programs safe, but close to hand. Don’t forget to note the serial numbers if you are storing them out of their original cases, e.g. in a CD wal- let.
  • Page 220 Troubleshooting Viruses • Install an Anti-Virus program and keep the definitions file (the file which tells your program which viruses to look for) up to date. New computer viruses are discovered daily, and some of them may seriously harm your computer and cause you to lose data. Anti-Virus programs are commercially available and the defini- tions file updates are usually downloadable directly from the internet.
  • Page 221 Troubleshooting Upgrading and Adding New Hardware/Software • Do not be tempted to make changes to your Windows Registry unless you are very sure of what you are doing, otherwise you will risk severely damaging your system. • Don’t open your computer or undertake any repair or upgrade work if you are not comfortable with what you are doing.
  • Page 222 Troubleshooting • Thoroughly check any recent changes you made to your system as these changes may affect one or more system components, or software programs. If possible, go back and undo the change you just made and see if the problem still occurs. •...
  • Page 223 Troubleshooting Problems and Possible Solutions Problem Possible Cause - Solution The battery LED power indicator , is Low Battery. Plug in the DC power source. If the computer doesn’t start up blinking orange. immediately, turn it off then on again. You are losing battery power too quickly.
  • Page 224 Troubleshooting Problem Possible Cause - Solution The system will not start up when it is This is due to the electrical characteristics of battery cells at low being operated in a low temperature temperatures. Although the lowest operational temperature tolerance of the environment.
  • Page 225 Troubleshooting Problem Possible Cause - Solution The system will not wake up from a Wake on LAN is supported in AC mode only. power saving state (Sleep/Hibernate) When the system enters a power saving state the plugged in AC/DC adapter on network activity (Wake on LAN) even should be connected, and should remain connected, in order to allow the though I have plugged in the powered...
  • Page 226 Troubleshooting Problem Possible Cause - Solution The sound cannot be heard or the volume The volume might be set too low. Check the volume control in the Volume is very low. Control Panel in the Windows notification area, or use the key combination Fn + F5 and F6 (see 14) to adjust.
  • Page 227 Troubleshooting Problem Possible Cause - Solution The system freezes or the screen goes The system’s power saving features have timed-out. Use the AC/DC adapter, dark. press the sleep (Fn + F12) key combination, or press the power button if no LEDs are lit.
  • Page 228 Troubleshooting Problem Possible Cause - Solution The webcam display is black (for some The camera cover is covering the webcam. Note that some Model C designs Model C designs only). feature a Webcam cover which may be used to cover the camera when not in use.
  • Page 229 Troubleshooting Problem Possible Cause - Solution A file being copied to/from a connected You may have the Bluetooth control panel (Bluetooth & devices) open. When Bluetooth device appears transferring data between the computer and a Bluetooth enabled device, make transferring very slowly. sure that the Bluetooth control panel is closed.
  • Page 230 Troubleshooting 7 - 14...
  • Page 231 Interface (Ports & Jacks) Appendix A: Interface (Ports & Jacks) Overview The following chapter will give a quick description of the interface (ports & jacks) which allow your computer to communicate with external devices, connect to the internet etc. Interface (Ports & Jacks) A - 1...
  • Page 232 Interface (Ports & Jacks) Notebook Ports and Jacks Item Description 2-In-1 Combination Audio Headphones, headsets, microphones or speakers may be connected through this jack. Note: Jack Set your system’s volume to a reduced level before connecting to this jack. Plug an external headset in to this jack to record, or use a communication device, on your computer.
  • Page 233 Interface (Ports & Jacks) Item Description HDMI-Out Port The HDMI-Out (High-Definition Multimedia Interface) is an audio/video connector interface for transmitting uncompressed digital streams. This allows you to connect an external monitor, TV or Flat Panel Display etc. as a display device by means of a HDMI cable. Note that HDMI carries both audio and video signals.
  • Page 234 Interface (Ports & Jacks) Item Description USB 3.2 Gen 1 Type A These USB ports are for low-speed peripherals such as keyboards, mice or scanners, and for Port high-speed peripherals such as external HDDs, digital video cameras or high-speed scanners etc.
  • Page 235 Video Driver Controls Appendix B: Video Driver Controls Overview  The video features for this computer can be configured using the Windows Display Settings, Intel Graphics Command Center or NVIDIA control panel. Video Card Options Note that card types,  specifications and driv- ers are subject to contin- Configuring External Displays...
  • Page 236 Video Driver Controls NVIDIA Advanced Optimus Capable Technology Most notebook computers come with either a discrete or integrated graphics solu- tion. The system features both an Intel’s Integrated GPU (for power-saving) and an NVIDIA’s discrete GPU (for performance). You can switch display devices, and configured display options as long as the video drivers are installed.
  • Page 237 Video Driver Controls Display Mode - BIOS The Display Mode menu in the BIOS (see“Display Mode (Advanced Menu > Ad- 14) item allows you to configure the display vanced Chipset Control)” on page 5 - mode. Display Mode (Advanced Menu > Advanced Chipset Control) This item allows you to configure the display mode.
  • Page 238 Video Driver Controls Video Driver Installation  Make sure you install the drivers in the order indicated in Table 4 - 1, on page 4 - Video Card Options Insert the Device Drivers & Utilities + User’s Manual disc into an attached DVD drive and click Install Drivers (button).
  • Page 239 Video Driver Controls NVIDIA Video (VGA) 1. Click 4.Install NVIDIA VGA Driver > Yes. 2. Click AGREE AND CONTINUE (button) to accept the terms of the license agreement. 3. Click Next. 4. Click Restart Now to restart the computer. 5. Go to the Microsoft Store to download the NVIDIA Control Panel. Note: After installing the video driver go to the Display control panel to adjust the video settings to the highest resolution.
  • Page 240 Video Driver Controls NVIDIA GeForce Experience  If you have a working internet connection (and you will need remain connected NVIDIA GeForce to the internet to run NVIDIA GeForce Experience) you can click the NVIDIA Experience GeForce Experience desktop icon (or app) to run the application.
  • Page 241 Video Driver Controls NVIDIA GeForce Experience - BatteryBoost BatteryBoost allows you to optimize your system’s battery life when gaming. You can adjust the BatteryBoost slider in Preferences > BatteryBoost (make sure you have restarted the computer after the first run of NVIDIA GeForce Experience). Running BatteryBoost 1.
  • Page 242 Video Driver Controls Configure Other Displays Using Project You can configure attached displays from Project. Attach your external display(s) to the appropriate port, and turn it(them) on. Press the + P (or Fn + F7) key combination. Click on any one of the options from the menu to select PC screen only, Duplicate, Extend or Second screen only.
  • Page 243 Video Driver Controls Configuring an External Display In Windows  The System > Display Control Panel in Settings can be used to configure displays. 3 Connected Attach your external display to the appropriate port, and turn it on. Displays Click the Start Menu and click Settings > System > Display (or right-click the Note that when 3 dis- desktop and select Display Settings).
  • Page 244 Video Driver Controls HDMI Audio Configuration  HDMI (High-Definition Multimedia Interface) carries both audio and video signals. Volume Adjustment In some cases it will be necessary to go to the Sound control panel and manually The sound volume level configure the HDMI audio output as per the instructions below. can be adjusted from the Go to the Sound control panel.
  • Page 245 Video Driver Controls Adjust the HDMI settings from the control panel tabs. Click OK to close the Sound control panel. Figure B - 5 HDMI Device Properties HDMI Audio Configuration B - 11...
  • Page 246 Video Driver Controls HDMI Notes  • Connect a device with HDMI support to the HDMI-Out port BEFORE attempt- ing to play audio/video sources through the device. Other Applications • To play audio sources through your external display’s (TV or LCD) speakers If you are using a third you will need to go to the audio configuration control panel on the display and party application to play...
  • Page 247 Video Driver Controls Wireless Display  Wireless Display uses your Wireless LAN module/WLAN Bluetooth Combo mod- Compatible ule (you need to make sure that your video adapter/display device is compatible Adapters with your particular WLAN/Combo module) in conjunction with a compatible video adapter/display device (purchased separately) to allow you to display the For a list of compatible contents of the notebook display on another display (e.g.
  • Page 248 Video Driver Controls Wireless Display Configuration Note that no driver or application is required for wireless display in Windows 11. Press the + K key combination, or, go to the Display settings menu and select Connect to a wireless display and then click Connect. Figure B - 6 Settings .
  • Page 249 Video Driver Controls The display will then connect (for specific settings for your display see the documentation supplied with your compatible adapter/display for full details). Go to the Project menu and click Disconnect to temporarily disconnect from the wireless display. To permanently disconnect from the display (you will need to go back through the connection process again) you can select it in Devices and click Remove Device >...
  • Page 250 Video Driver Controls Intel Graphics Command Center ® Advanced video configuration options are provided by the Intel Graphics Com- mand Center. Access the Intel Graphics Command Center from the Start menu in Windows (click All apps and scroll down to Intel Graphics Command Center). You can right-click the Intel Graphics Command Center in the Start menu and pin the control panel to Start and/or taskbar.
  • Page 251 Video Driver Controls You may make changes to any of the graphics properties by clicking the appropriate  icon on the left and you and then adjust the settings from the sub-menus. Home Click the Home button to return to the main menu screen in any of the sub- menu screens.
  • Page 252 Video Driver Controls Display  Click either General or Color to make display adjustments, including configuration for any attached external displays. Multiple Display At least one other dis- play must be attached in order to view multiple display selection tions. Figure B - 9 Intel Graphics...
  • Page 253 Video Driver Controls Use the Display menu to access System Settings for Display, Scale, and Color Depth and Format. Click Open System Settings (see page 9t) to go to the Display Con- trol Panel to configure displays. Figure B - 10 Intel Graphics ®...
  • Page 254 Video Driver Controls When external displays are attached you can use the Connected Displays control  panel to configure multiple displays (see “Attaching Other Displays” on page B - 29). Click on the dotted lines at the top right of the display graphic to access the set- Multiple Display tings options and click Apply to save any changes made.
  • Page 255 Video Driver Controls Display (Color) Use the color sliders from the menu to make changes to the display. If you wish to revert to the default settings simply click on Restore to Original Colors. Figure B - 12 Intel Graphics ®...
  • Page 256 Video Driver Controls Information Information provides details on any attached displays. Figure B - 13 Intel Graphics ® Command Center (Display - Information) B - 22 Intel® Graphics Command Center...
  • Page 257 Video Driver Controls Global Settings Configure the Adaptive Sync settings for fast frame rates which sync with the dis- play’s refresh rate for a fluid gaming experience. Figure B - 14 Intel Graphics ® Command Center (Display - Global Settings) Intel®...
  • Page 258 Video Driver Controls Video The Video menu allows you to brighten or darken movies, adjust colors and a range of other video options. The Preview image will display a sample image using the current settings, and you can click Add Video to select your own sample video. You will need to click Custom to create a custom profile to make adjustments to most of the settings and you can rename, duplicate or delete custom profiles.
  • Page 259 Video Driver Controls System Hot Keys in System allows you to create and enable/disable hot keys for opening the application and display rotation etc. Click Apply to save changes. The other tabs provide information on your current GPU, Hardware and Power configuration. Figure B - 16 Intel Graphics...
  • Page 260 Video Driver Controls Support Online Resources in Support provides links to online support for Intel graphics is- sues and to the latest drivers. The System Diagnostic tab allows you to Generate Report on the graphics system (as may be required by online help services). Figure B - 17 Intel Graphics...
  • Page 261 Video Driver Controls Preferences You can configure the app to your preferences from this menu. Figure B - 18 Intel Graphics ® Command Center (Preferences) Intel® Graphics Command Center B - 27...
  • Page 262 Video Driver Controls Display Devices & Options  Note that you can use the Intel Graphics Command Center to configure external 4K2K Videos on 4K2K displays connected to the HDMI port and DisplayPort 1.4 over USB 3.2 Gen External Displays (Type C) port.
  • Page 263 Video Driver Controls Attaching Other Displays  To Mirror Displays: Connected Displays Attach your external display to the appropriate port, and turn it on. Go to the Intel Graphics Command Center and click the Display menu button. At least one other dis- Click Detect if you need to scan for any attached displays.
  • Page 264 Video Driver Controls To Enable Extend Mode: Attach your external display to the appropriate port, and turn it on. Go to the Intel Graphics Command Center and click the Display menu button. Click Detect if you need to scan for any attached displays. Click on the dotted lines at the top right of the display graphic to access the settings options and select Extend and the Monitor #.
  • Page 265 Video Driver Controls You can have different resolutions, monitor refresh rates, scales, rotations and aspect ratios for each display device provided your display can support them. You can drag the display icons to match the physical layout of your displays. Icons and programs may also be dragged between the displays.
  • Page 266 Video Driver Controls NVIDIA Control Panel  The NVIDIA Control Panel provides additional video configuration controls and Navigating the tools which allow quick access to features such as image settings, 3D Settings and Control Panel PhysX configuration. Navigate through the Access the NVIDIA Control Panel from the Start menu in Windows (click All control panels in much apps and scroll down to NVIDIA Control Panel).
  • Page 267 Video Driver Controls The Help menus provide index and search features, and direct links to the NVIDIA website etc. Figure B - 23 Help Menu NVIDIA Control Panel B - 33...
  • Page 268 Video Driver Controls Adjust Image Settings with Preview This page allows you to preview 3D image settings and you can let the application decide, adjust the settings from the control panel (see over) or use the slider towards either quality or performance. Figure B - 24 Adjust Image Settings with...
  • Page 269 Video Driver Controls Additional menus will appear when external displays are attached, or when the Display Mode in the BIOS is set to Discrete GPU. Figure B - 25 NVIDIA Control Panel With External Displays Attached to the Mini DisplayPort 1.4 or In Discrete GPU Display Mode in BIOS Adjust Image Settings with Preview B - 35...
  • Page 270 Video Driver Controls Manage 3D Settings You can configure the 3D global settings (to be applied to all application programs) or make specific adjustments for installed program settings. Go to NVIDIA Control Panel. Click Manage 3D Settings and select either Global Settings or Program Settings.
  • Page 271 Video Driver Controls Click Apply to save the settings. Figure B - 27 Manage 3D Settings (Program Settings) Manage 3D Settings B - 37...
  • Page 272 Video Driver Controls Configure Surround, PhysX ® NVIDIA PhysX is a physics engine that can use the GPU to accelerate game and ® ® 3D application performance. You can select the GeForce video card or CPU as a PhysX processor, or configure the computer to auto-select a PhysX processor ®...
  • Page 273 Video Driver Controls When other displays are connected you can click Span displays with Surround and click Configure. Figure B - 29 Surround Configuration You may need to quit any applications which conflict with surround display (e.g. you may need to quit Sound Blaster Studio). Manage 3D Settings B - 39...
  • Page 274 Video Driver Controls The NVIDIA Set Up Surround control panel will pop-up to allow you to configure the attached displays to your requirements. Figure B - 30 NVIDIA Set Up Surround  Set Up Surround Settings Select the Resolution and Refresh Rate for your connected displays from the menu.
  • Page 275 Video Driver Controls Change Resolution You can Change Resolution for your attached displays from the NVIDIA control panel. Attach your external display to the appropriate port, and turn it on. Go to the NVIDIA Control Panel. Double-click Display (if the sub-menus are not visible), and then click Change resolution.
  • Page 276 Video Driver Controls HDCP Status If your external display is HDCP (High Bandwith Digital Content protection) com- patible then the NVIDIA control panel will display the HDCP system status. Figure B - 32 HDCP Status B - 42 HDCP Status...
  • Page 277 Video Driver Controls Set Digital Audio As HDMI (High-Definition Multimedia Interface) carries both audio and video sig- nals you can configure the audio output from the NVIDIA control panel and Sound control panel. The settings will depend upon the external HDMI display to which you have connected.
  • Page 278 Video Driver Controls Adjust Video Settings You can adjust video color and image settings from the Video sub-menus. Go to the NVIDIA Control Panel. Click “+” next to Video if its sub-items are not shown and then click either Adjust video color settings or Adjust video image settings.
  • Page 279 Video Driver Controls Display Devices - NVIDIA CP You can use the NVIDIA control panel to configure external displays attached to the DisplayPort 1.4 over USB 3.2 Gen 2 (Type C) port or HDMI port. See your external display device’s manual to see which formats it supports. ...
  • Page 280 Video Driver Controls Display Mode Description Clone simply shows an exact copy of the Primary display Clone desktop on the other displays. This mode will drive multiple Table B - 2 displays with the same content. Display Modes NVIDIA Extend treats connected displays as separate devices, and they act as a virtual desktop resulting in a large workspace.
  • Page 281 Video Driver Controls Configuring an External Display (NVIDIA)  Clone the External Displays Display Not Shown Attach your external displays to the appropriate port, and turn them on. Go to the NVIDIA Control Panel. If the attached display Double-click Display (if the sub-menus are not visible), and then click Set up does not appear in the multiple displays.
  • Page 282 Video Driver Controls Extending the Display  Attach your external displays to the appropriate port, and turn them on. Go to the NVIDIA Control Panel. Changing the Double-click Display (if the sub-menus are not visible), and then click Set up Primary Display on multiple displays.
  • Page 283 Video Driver Controls The Primary display (the main window display) will be denoted by an asterisk the top right corner of the icon. To change the Primary display right-click the icon and select Make primary. Click Apply > Yes to save any changes. Figure B - 37 Switch Primary Display...
  • Page 284 Video Driver Controls You can drag the icons to match the desktop layout you want to use (e.g. you may want to extend the display to the right or left of the primary display). 10. Click Apply > Yes to save any further changes. Figure B - 38 Drag Display Icons...
  • Page 285 Specifications Appendix C: Specifications  Latest Specification Information The specifications listed in this Appendix are correct at the time of going to press. Certain items (particularly processor types/ speeds and CD/DVD device types) may be changed, updated or delayed due to the manufacturer's release schedule. Check with your distributor/supplier for details.
  • Page 286 Specifications Display Pointing Device & Keyboard  Model A: Built-in Clickpad with Microsoft PTP SO-DIMM Memory Types Multi-Gesture and Scrolling Functionality 15.6” / 39.62cm, FHD (1920 * 1080), All SO-DIMM memory modules installed in the QHD (2560 * 1440), 16:9, 3.2mm Thick system should be identical (the same size and Full Size &...
  • Page 287 Specifications Power & Battery One HDMI-Out (High-Definition Intel® Dual Band Wi-Fi 6E AX211 2*2 Multimedia Interface) Port (with HDCP) WLAN + Bluetooth M.2 2230 Module Embedded 4 Cell Polymer Battery Pack (Factory Option) One 2-in-1 Audio Jack (Headphone / 53.35WH Microphone) Intel®...
  • Page 288 Specifications LED Indicators Dimensions & Weight Power/Suspend, Battery, Storage, Camera Model A: 361mm (w) * 248.5mm (d) * 24.9mm(h) Operating System 361mm (w) * 248.2mm (d) * 24.9mm(h) Windows® 11 23H2 (64-bit) 2.25kg *Barebone System with Battery BIOS Model B: One 256Mb SPI Flash ROM 361mm (w) * 259mm (d) * 25mm(h) Insyde BIOS...

This manual is also suitable for:

Raptor x16
