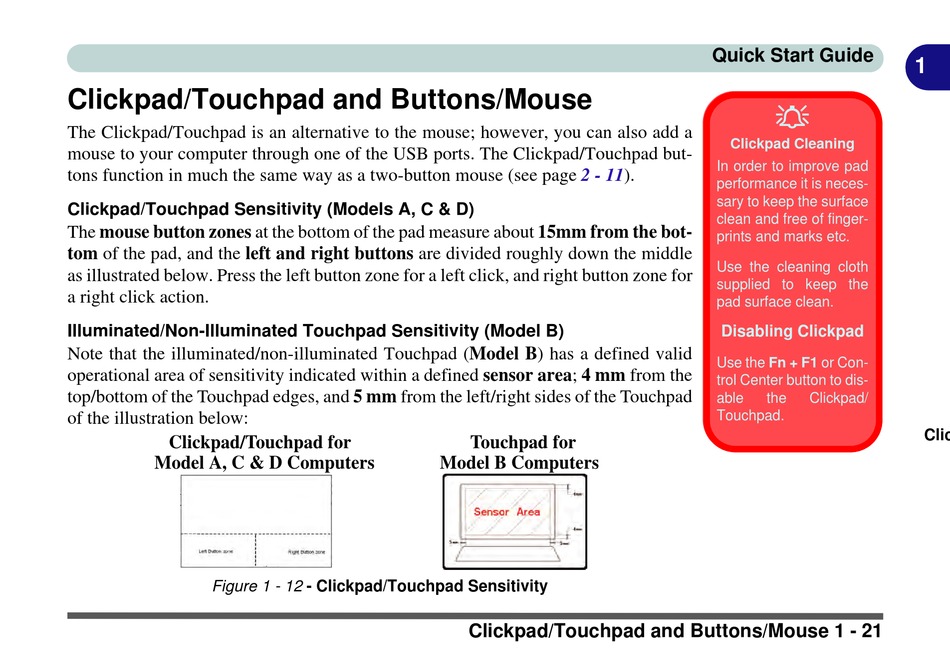

Clickpad/Touchpad and Buttons/Mouse

The Clickpad/Touchpad is an alternative to the mouse; however, you can also add a
mouse to your computer through one of the USB ports. The Clickpad/Touchpad but-
tons function in much the same way as a two-button mouse (see page
Clickpad/Touchpad Sensitivity (Models A, C & D)
The mouse button zones at the bottom of the pad measure about 15mm from the bot-
tom of the pad, and the left and right buttons are divided roughly down the middle
as illustrated below. Press the left button zone for a left click, and right button zone for
a right click action.
Illuminated/Non-Illuminated Touchpad Sensitivity (Model B)
Note that the illuminated/non-illuminated Touchpad (Model B) has a defined valid
operational area of sensitivity indicated within a defined sensor area; 4 mm from the
top/bottom of the Touchpad edges, and 5 mm from the left/right sides of the Touchpad
of the illustration below:
Clickpad/Touchpad for
Model A, C & D Computers
Figure 1 - 12 - Clickpad/Touchpad Sensitivity
2 - 11).
Touchpad for
Model B Computers
Clickpad/Touchpad and Buttons/Mouse 1 - 21
Quick Start Guide

Clickpad Cleaning
In order to improve pad
performance it is neces-
sary to keep the surface
clean and free of finger-
prints and marks etc.
Use the cleaning cloth
supplied to keep the
pad surface clean.
Disabling Clickpad
Use the Fn + F1 or Con-
trol Center button to dis-
able the Clickpad/
Touchpad.
