Quick Start Guide
1

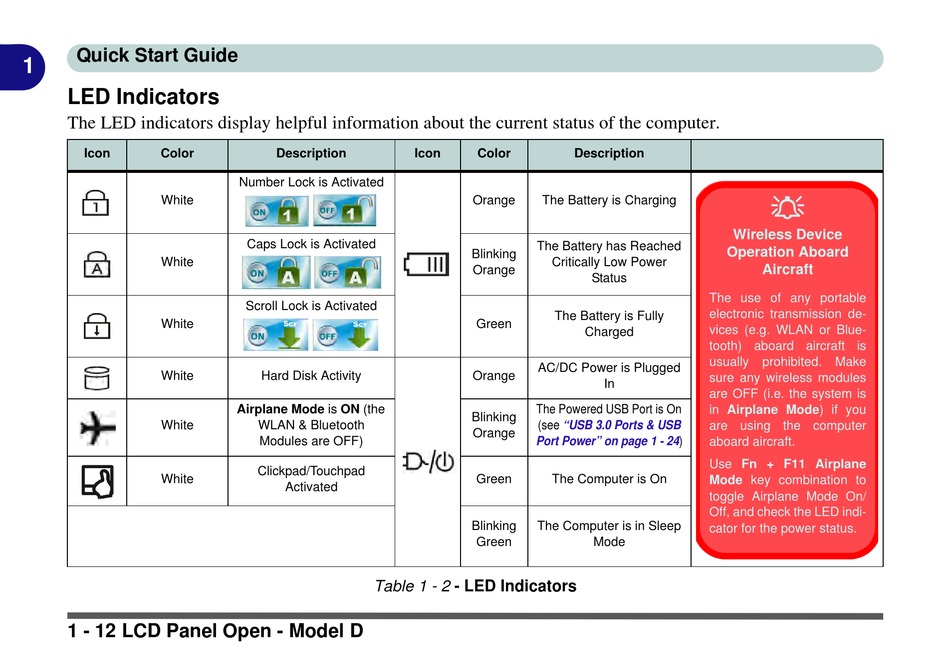

LED Indicators

The LED indicators display helpful information about the current status of the computer.
Icon Color
White
White
White
White
White
White
1 - 12 LCD Panel Open - Model D
Description Icon
Number Lock is Activated
Caps Lock is Activated
Scroll Lock is Activated
Hard Disk Activity
Airplane Mode is ON (the
WLAN & Bluetooth
Modules are OFF)
Clickpad/Touchpad
Activated
Table 1 - 2 - LED Indicators
Color Description
Orange The Battery is Charging
The Battery has Reached
Blinking
Critically Low Power
Orange
Status
The Battery is Fully
Green
Charged
AC/DC Power is Plugged
Orange
In
The Powered USB Port is On
Blinking
(see "USB 3.0 Ports & USB
Orange
Port Power" on page 1 -
Green The Computer is On
Blinking The Computer is in Sleep
Green Mode

Wireless Device
Operation Aboard
Aircraft
The use of any portable
electronic transmission de-
vices (e.g. WLAN or Blue-
tooth) aboard aircraft is
usually prohibited. Make
sure any wireless modules
are OFF (i.e. the system is
in Airplane Mode) if you
are using the computer
24)
aboard aircraft.
Use Fn + F11 Airplane
Mode key combination to
toggle Airplane Mode On/
Off, and check the LED indi-
cator for the power status.
