Illuminated LED Keyboard - Models A, C & D
The illuminated keyboard has an embedded numerical keypad for easy numeric data
input, and features function keys to allow you to change operational features instant-
ly. See Table 1 - 6, on page 1 - 20
Function Keys
Play/Pause Key
Game Control Keys
Windows Logo Key

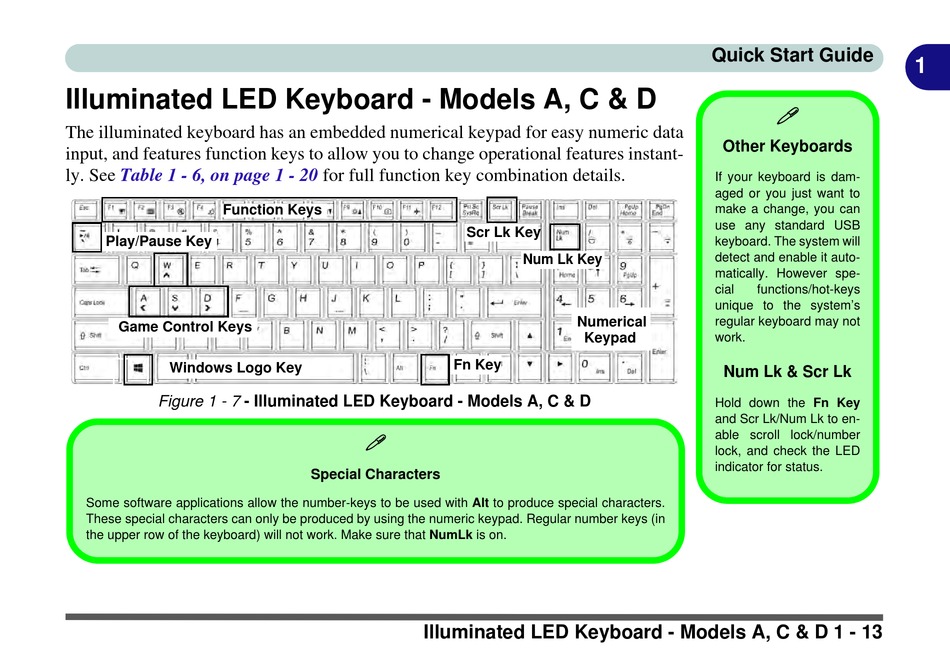

Figure 1 - 7 - Illuminated LED Keyboard - Models A, C & D
Some software applications allow the number-keys to be used with Alt to produce special characters.
These special characters can only be produced by using the numeric keypad. Regular number keys (in
the upper row of the keyboard) will not work. Make sure that NumLk is on.
for full function key combination details.
Scr Lk Key
Fn Key

Special Characters
Illuminated LED Keyboard - Models A, C & D 1 - 13
Num Lk Key
Numerical
Keypad
Quick Start Guide

Other Keyboards
If your keyboard is dam-
aged or you just want to
make a change, you can
use any standard USB
keyboard. The system will
detect and enable it auto-
matically. However spe-
cial functions/hot-keys
unique to the system's
regular keyboard may not
work.
Num Lk & Scr Lk
Hold down the Fn Key
and Scr Lk/Num Lk to en-
able scroll lock/number
lock, and check the LED
indicator for status.
1
