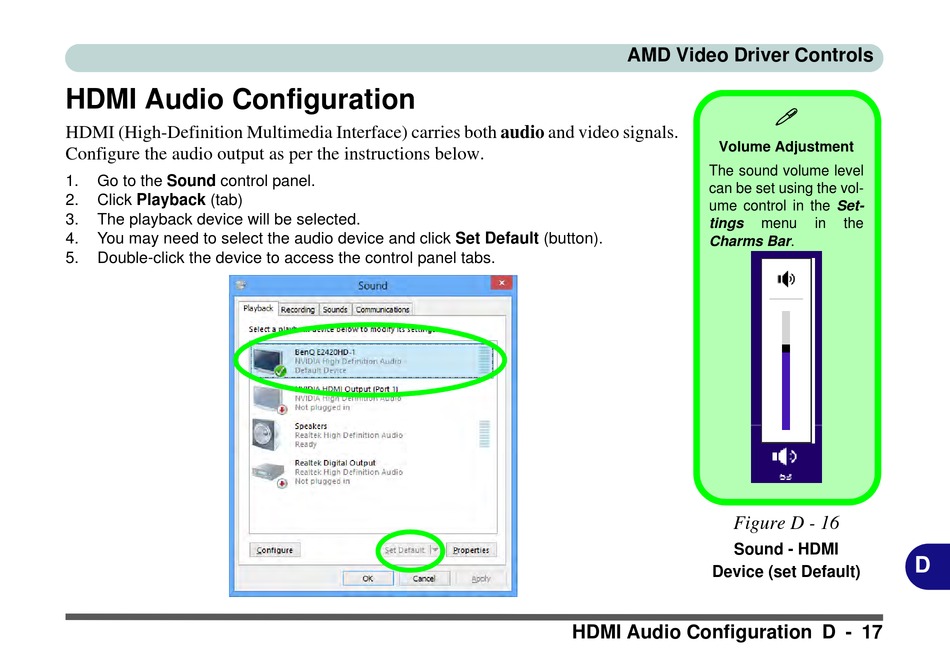

HDMI Audio Configuration

HDMI (High-Definition Multimedia Interface) carries both audio and video signals.
Configure the audio output as per the instructions below.
1. Go to the Sound control panel.
2. Click Playback (tab)
3. The playback device will be selected.
4. You may need to select the audio device and click Set Default (button).
5. Double-click the device to access the control panel tabs.
AMD Video Driver Controls
Volume Adjustment
The sound volume level
can be set using the vol-
ume control in the Set-
tings
Charms Bar.
Figure D - 15
Sound - HDMI
(Set Default)
Figure D - 16
Sound - HDMI
Device (set Default)
HDMI Audio Configuration D - 17

menu in the
Device
D
