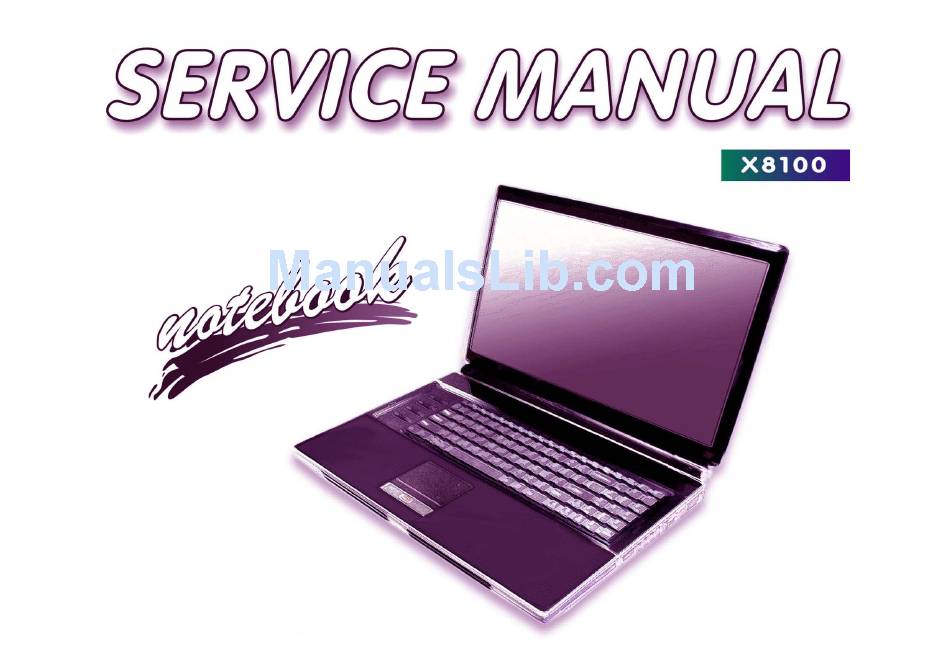

  • Page 3 Preface Notebook Computer X8100 Service Manual...
  • Page 4 Preface Notice The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven- dor.
  • Page 5 Preface About this Manual This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and inspection of personal computers. It is organized to allow you to look up basic information for servicing and/or upgrading components of the X8100 series notebook PC.
  • Page 6 Preface IMPORTANT SAFETY INSTRUCTIONS Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per- sons when using any electrical equipment: 1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

  • Page 7: Instructions For Care And Operation

    Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. Do not expose the computer Do not place it on an unstable Do not place anything heavy...

  • Page 8: Power Safety

    Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag- netic fields. These can hinder proper performance and damage your data. Take care when using peripheral devices. Use only approved brands of Unplug the power cord before peripherals.

  • Page 9: Battery Precautions

    Preface Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
  • Page 10 Preface Related Documents You may also need to consult the following manual for additional information: User’s Manual on CD This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro- gram. It also describes the installation and operation of the utility programs provided with the notebook PC. VIII...

  • Page 11: Table Of Contents

    Preface Contents Introduction ..........1-1 Part List Illustration Location ............A-2 Top with Fingerprint ..............A-3 Overview ..................1-1 Top without Fingerprint ..............A-4 System Specifications ..............1-2 Bottom ................... A-5 External Locator - Top View with LCD Panel Open ......1-4 LCD - CCFL Panel ................ A-6 External Locator - Front &...
  • Page 12 Preface CRT, DVI ..................B-22 V1.0 Power_SEQ S4 ..............B-54 Panel, Inverter, TPM ..............B-23 Power Block Diagram ..............B-55 HDMI Repeater, Fan Control ............B-24 V2.0 Power_SEQ S3 ..............B-56 HDMI Switch ................B-25 ODD, CCD, BT, USB2.0 ............. B-26 Codec, Subwoofer, DMIC ............B-27 Audio AMP ..................

  • Page 13: Introduction

    Introduction Chapter 1: Introduction Overview This manual covers the information you need to service or upgrade the X8100 series notebook computer. Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about driv- ers (e.g.

  • Page 14: System Specifications

    Introduction System Specifications Video Adapter Options Keyboard & Pointing Device Processor nVIDIA® GeForce GTX 280M SLI PCIe Full Size Winkey Keyboard with Numeric Intel® Core i7-720QM Processor: Video Card Keypad 1.6GHz 1GB GDDR3 Video RAM On Board Built-In TouchPad (with Multi Gesture 45nm (45 Nanometer) Process Technology, Functionality) Supports PCIe * 8 (SLI - 2 * PCIe * 8)
  • Page 15 Introduction Interface Security Four USB 2.0 Ports Security (Kensington® Type) Lock Slot One eSATA Port BIOS Password One Mini-IEEE1394a Port Fingerprint Reader Module (Factory Option) One DVI-Out Port (with CRT out) Operating System One HDMI-Out (High-Definition Multimedia Interface) Port (with HDCP Support) Windows®...

  • Page 16: External Locator - Top View With Lcd Panel Open

    Introduction External Locator - Top View with LCD Panel Open Figure 1 Top View 1. Optional Built-In PC Camera 2. LCD 3. LED Status Indicators 4. Touch Sensor Instant Keys 5. 8 * Gaming Keys 6. Keyboard 7. TouchPad and Buttons 8.

  • Page 17: External Locator - Front & Right Side Views

    Introduction External Locator - Front & Right side Views Figure 2 Front Views 1. Color LEDs 2. Speakers 3. LED Power Indicators 4. Consumer Infrared Transceiver (enabled with optional TV Tuner only) Figure 3 Right Side Views 5. Headphone-In Jack 6.

  • Page 18: External Locator - Left Side & Rear View

    Introduction External Locator - Left Side & Rear View Figure 4 Left Side View 1. DVI-Out Port 2. 2 * USB 2.0 Ports 3. RJ-45 LAN Jack 4. HDMI-Out Port 5. 7-in-1 Card Reader 6. ExpressCard Slot 7. HDMI-In Port 8.

  • Page 19: External Locator - Bottom View

    Introduction External Locator - Bottom View Figure 6 Bottom View 1. Sub Woofer 2. Fan Outlet/Intake 3. Component Bay Cover 4. Battery (Secondary HDD Bay - HDD3) 5. Primary HDD Bay (HDD1 & 2)  Overheating To prevent your com- puter from overheating make sure...

  • Page 20: Mainboard Overview - Top (Key Parts)

    Introduction Mainboard Overview - Top (Key Parts) Figure 7 Mainboard Top Key Parts 1. North Bridge 2. Memory Slots DDR3 So-DIMM 3. Mini-Card Connector (WLAN Module) 4. Mini-Card Connector (TV Module) 1 - 8 Mainboard Overview - Top (Key Parts)

  • Page 21: Mainboard Overview - Bottom (Key Parts)

    Introduction Mainboard Overview - Bottom (Key Parts) Figure 8 Mainboard Bottom Key Parts 1. CPU Socket 2. VGA Socket 3. Memory Slots DDR3 So-DIMM Mainboard Overview - Bottom (Key Parts) 1 - 9...

  • Page 22: Mainboard Overview - Top (Connectors)

    Introduction Mainboard Overview - Top (Connectors) Figure 9 Mainboard Top Connectors 1. CCD Cable Connector 2. LCD Cable Connector 3. Side L Cable Connector 4. Inverter Cable Connector 5. LED Cable Connector 6. Subwoofer Connector 7. Power Button Connector 8. Game-Key Cable Connector 9.

  • Page 23: Mainboard Overview - Bottom (Connectors)

    Introduction Mainboard Overview - Bottom (Connectors) Figure 10 Mainboard Bottom Connectors 1. Battery Connector 2. DC-In Jack 3. CRT Port Mainboard Overview - Bottom (Connectors) 1 - 11...
  • Page 24 Introduction 1 - 12...

  • Page 25: Disassembly

    Disassembly Chapter 2: Disassembly Overview This chapter provides step-by-step instructions for disassembling the X8100 series notebook’s parts and subsystems. When it comes to reassembly, reverse the procedures (unless otherwise indicated). We suggest you completely review any procedure before you take the computer apart. Procedures such as upgrading/replacing the RAM, optical device and hard disk are included in the User’s Manual but are repeated here for your convenience.

  • Page 26: Maintenance Tools

    Disassembly NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the battery is removed too). Maintenance Tools The following tools are recommended when working on the notebook PC: • M3 Philips-head screwdriver •...

  • Page 27: Maintenance Precautions

    Disassembly Maintenance Precautions  The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re- moval and/or replacement job, take the following precautions: Power Safety Warning 1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other Before you undertake components could be damaged.

  • Page 28: Disassembly Steps

    Disassembly Disassembly Steps The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM THE DISASSEMBLY STEPS IN THE ORDER INDICATED. To remove the Battery: To remove the Wireless LAN Module: 1. Remove the battery page 2 - 5 1.

  • Page 29: Removing The Battery

    Disassembly Removing the Battery Figure 1 Battery Removal If you are confident in undertaking upgrade procedures yourself, for safety reasons it is best to remove the battery. a. Loosen screws. 1. Turn the computer off, and turn it over. b. Release the battery. 2.

  • Page 30: Removing The Optical (Cd/Dvd) Device

    Disassembly Removing the Optical (CD/DVD) Device Figure 2 Optical Device 1. Turn off the computer, and turn it over and remove the battery (page 2 - Removal 2. Locate the hard disk bay cover and remove screws & , and remove the bay cover 3.

  • Page 31: Removing The Hard Disk Drive

    Disassembly Removing the Hard Disk Drive Figure 3 The hard disk drive is mounted in a removable case and can be taken out to accommodate other 2.5" SATA hard disk HDD Assembly drives with a height of 9.5mm (h). Follow your operating system’s installation instructions, and install all necessary driv- Removal ers and utilities (as outlined in Chapter 4 of the User’s Manual) when setting up a new hard disk.
  • Page 32 Disassembly Removing the Hard Disk(s) in the Secondary HDD Bay Figure 4 1. Turn off the computer, and turn it over and remove the battery. Secondary HDD 2. The secondary hard disk bay is located under the battery compartment. Assembly Removal 3.

  • Page 33: Removing The System Memory (Ram) -1

    Disassembly Removing the System Memory (RAM) -1 Figure 5 RAM-1 Module The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) DDR III Removal (DDR3) supporting 1066/1333 MHz. The main memory can be expanded up to 8GB. The total memory size is automat- ically detected by the POST routine once you turn on your computer.
  • Page 34 Disassembly 7. Gently pull the two release latches & on the sides of the memory socket in the direction indicated by Figure 6 the arrows (Figure RAM-1 Module 8. The RAM module will pop-up (Figure g), and you can then remove it. Removal (cont’d.) ...

  • Page 35: Removing The System Memory (Ram) - 2

    Disassembly Removing the System Memory (RAM) - 2 Figure 7 RAM-2 Module The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) DDR III Removal (DDR3) supporting 1066/1333 MHz. The main memory can be expanded up to 4GB. The SO-DIMM modules supported are 1024MB and 2048MB DDR Modules.
  • Page 36 Disassembly 6. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable. Figure 8 7. Disconnect the keyboard ribbon cable from the locking collar socket RAM-2 Module 8. Remove the keyboard Removal (cont’d.) 9. Remove screws from the keyboard shielding plate and remove the keyboard shielding plate.
  • Page 37 Disassembly 16. Replace the shielding plate, keyboard and screws (make sure to reconnect the keyboard cable). Figure 9 17. Snap the LED cover module down at the top fo the module at point & RAM-2 Module Removal (cont’d.) j. Snap down the LED cover at point 22 &...

  • Page 38: Removing And Installing The Processor

    Disassembly Removing and Installing the Processor Figure 10 Processor Removal Processor Removal Procedure 1. Turn off the computer, and turn it over, remove the battery (page 2 - a. Remove the screws. 2. Locate the component bay cover and remove screws b.
  • Page 39 Disassembly 7. Turn the release latch towards the unlock symbol , to release the CPU (Figure 11a). 8. Carefully (it may be hot) lift the CPU up out of the socket (Figure 11b). Figure 11 9. See page 2 - 16 for information on inserting a new CPU.
  • Page 40 Disassembly Processor Installation Procedure Figure 12 Processor 1. Insert the CPU , pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!), and turn Installation the release latch towards the lock symbol (Figure 12b).

  • Page 41: Removing The Vga Card

    Disassembly Removing the VGA Card Figure 13 VGA Card Removal 1. Turn off the computer, and turn it over and remove the battery (page 2 - 2. Locate the component bay cover and remove screws a. Remove the screws. 3. Carefully (a fan and cable are attached to the under side of the cover) lift up the bay cover. b.
  • Page 42 Disassembly 7. Remove screws from the heatsink in the order indicated on the label (two video cards are pictured Figure 14 here). VGA Card Removal 8. Grip the handle and carefully remove the heatsink (cont’d.) 9. Remove screws from the video card. 10.

  • Page 43: Installing The Vga Card

    Disassembly Installing the VGA Card 1. Prepare to fit the VGA card into the slot by holding it at about a 30° angle. Figure 15 2. The card needs to be fully into the slot, and the VGA card and socket have a guide-key and pin which align to allow VGA Card the card to fit securely.

  • Page 44: Removing The Wireless Lan Module

    Disassembly Removing the Wireless LAN Module Figure 16 Wireless LAN 1. Turn off the computer, and turn it over, remove the battery (page 2 - 5), keyboard and keyboard shielding plate Module Removal (page 2 - 2. The Wireless LAN Module will be visible at point a.

  • Page 45: Removing The Bluetooth Module

    Disassembly Removing the Bluetooth Module Figure 17 Bluetooth Module 1. Turn off the computer, and turn it over, remove the battery (page 2 - 5), keyboard and keyboard shielding plate Removal (page 2 - 2. The Bluetooth module is visible at point a.

  • Page 46: Removing The Tv Tuner Card

    Disassembly Removing the TV Tuner Card Figure 18 TV Tuner Card 1. Turn off the computer, and turn it over, remove the battery (page 2 - 5), keyboard and keyboard shielding plate Removal (page 2 - 2. The TV tuner card is visible at point 3.

  • Page 47: Part Lists

    Part Lists Appendix A: Part Lists This appendix breaks down the X8100 series notebook’s construction into a series of illustrations. The component part numbers are indicated in the tables opposite the drawings. Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure to cross-check any relevant documentation.

  • Page 48: Part List Illustration Location

    Part Lists Part List Illustration Location The following table indicates where to find the appropriate part list illustration. Table A- 1 Part List Illustration Location Parts X8100 Top with Fingerprint page A - 3 Top without Fingerprint page A - 4 Bottom page A - 5 LCD - CCFL Panel...

  • Page 49: Top With Fingerprint

    Part Lists Top with Fingerprint Figure A - 1 Top with 無鉛 無鉛 Fingerprint 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 (非耐落) 無鉛 無鉛 無鉛 黑色 (無鉛) 無鉛 無鉛 無鉛 無鉛 (無鉛) 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛...

  • Page 50: Top Without Fingerprint

    Part Lists Top without Fingerprint Figure A - 2 無鉛 無鉛 Top without 無鉛 無鉛 Fingerprint 無鉛 無鉛 無鉛 無鉛 (非耐落) 無鉛 Ω 鴻立 (無鉛) 藍天7 互億 無鉛 無鉛 無鉛 無鉛 黑色 (無鉛) 無鉛 無鉛 無鉛 無鉛 (無鉛) 無鉛 無鉛 無鉛...

  • Page 51: Bottom

    Part Lists Bottom Figure A - 3 Bottom 無鉛 無鉛 Ω 鴻立 無鉛 無鉛 (非耐落) 無鉛 無鉛 無鉛 無鉛 精乘 無鉛 無鉛 無鉛 無鉛 Ω 鴻立 無鉛 無鉛 無鉛 無鉛 精乘 無鉛 鐵網封精油 無鉛 鐵網封精油 無鉛 信越 無鉛 無鉛 無鉛 無鉛...

  • Page 52: Lcd - Ccfl Panel

    Part Lists LCD - CCFL Panel Figure A - 4 LCD - CCFL Panel 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 度 無鉛 無鉛 (非耐落) 無鉛 無鉛 無鉛 無鉛 度 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛...

  • Page 53: Lcd - Led Panel

    Part Lists LCD - LED Panel Figure A - 5 LCD - LED Panel 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 (非耐落) 無鉛 無鉛 無鉛 華力 醋酸布包覆 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛...

  • Page 54: Mainboard

    Part Lists Mainboard Figure A - 6 Mainboard 無鉛 無鉛 無鉛 無鉛 無鉛 (半卡) 無鉛 海華 無鉛 展達 電容變更無鉛 增加 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛...

  • Page 55: Dvd Super Multi

    Part Lists DVD Super Multi Figure A - 7 DVD Super Multi 無鉛 無鉛 已內縮 無鉛 內縮 無鉛 無鉛 DVD Super Multi A - 9...

  • Page 56: Dvd Super Multi - Hlds

    Part Lists DVD Super Multi - HLDS Figure A - 8 DVD Super Multi - HLDS 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 A - 10 DVD Super Multi - HLDS...

  • Page 57: Schematic Diagrams

    Schematic Diagrams Appendix B: Schematic Diagrams This appendix has circuit diagrams of the X8100 notebook’s PCB’s. The following table indicates where to find the ap- propriate schematic diagram. Diagram - Page Diagram - Page Diagram - Page Table B - 1 Schematic System Block Diagram - Page B - 2 PCH 7/8 PWR - Page B - 19...

  • Page 58: System Block Diagram

    Schematic Diagrams System Block Diagram SY ST EM P OW ER 14.3 18 MH z Power Button BOARD CLEVO X8100 System Block Diagram PO WE R VC OR E Cl oc k Ge ne ra to r SL G8 SP 58 5V DDR3 SDRAM SOCKET TOUCH PAD LED PO WE R 1.

  • Page 59: Processor 1/7 Dmi, Peg

    Schematic Diagrams Processor 1/7 DMI, PEG P E G _R X N [ 0 . . 7] P E G _R X N [ 0 . . 7 ] P E G _R X P [ 0 . . 7 ] P E G _R X P [ 0 .

  • Page 60: Processor 2/7 Clk, Misc

    Schematic Diagrams Processor 2/7 CLK, MISC D DR 3 Co mp en sa ti on S ig na ls P ro ce ss or C om pe ns at io n Si gn al s PROCESSOR ( CLK,MISC,JTAG ) S M _ R C O MP _ 0 R 3 6 1 10 0 _ 1% _ 0 4 S M _ R C O MP _ 1...

  • Page 61: Processor 3/7 Ddr3I

    Schematic Diagrams Processor 3/7 DDR3I PROCESSOR ( DDR3 ) U38C U38D A A6 M _C LK_D DR0 8 S A _CK [0] A A7 M _A_D Q[63:0] S A _CK #[0] M _C LK_D DR#0 8 M _B _DQ[63:0] SB _CK [0] M _ CLK _DDR 2 9 SA _CK E [0] M _C KE 0 8...

  • Page 62: Processor 4/7 Power

    Schematic Diagrams Processor 4/7 Power PR OCESS OR CO RE PO WER PROCESSOR ( POWER ) U 38F 1. 1 VS _V T T V COR E PRO CESSO R UNC ORE P OWER A G35 AH 14 V CC 1 V T T 0_1 A G34 AH 12...

  • Page 63: Processor 5/7 Gfx Pwr

    Schematic Diagrams Processor 5/7 GFX PWR PROCESSOR ( GRAPHICS POWER ) U38G FO R DIS ABLE AT 21 VA X G1 AT 19 A R22 V AX G _SE NS E R373 * 0_04 VA X G2 VA X G_S EN SE AT 18 A T22 V SS A X G_SE NS E...

  • Page 64: Processor 6/7 Gnd, 7/7 Rsvd

    Schematic Diagrams Processor 6/7 GND, 7/7 RSVD PROCESSOR ( RESERVED ) PROCESSOR ( GND ) S 3 Po w e r Re d uc tio n w h it e p ap e r U 3 8H U 3 8I R 4 9 5 0 _ 04 A T 20...

  • Page 65: Ddr3 So-Dimm_0 Rev

    Schematic Diagrams DDR3 SO-DIMM_0 REV SO-DIMM 0 REVERSE TYPE H=4.0mm J D I M M2 A M_ A _ A [ 1 5 : 0 ] M _ A _ D Q [ 63 : 0 ] 4 M_ A _ A 0 M _ A _D Q0 D Q0 M_ A _ A 1...

  • Page 66: B - 10 Ddr So-Dimm_1 Rev

    Schematic Diagrams DDR SO-DIMM_1 REV SO-DIMM 1 REVERSE TYPE H=4.0mm J D I MM 1B JD I MM 1 A M _ B _ A [ 1 5: 0 ] M_ B _ D Q [ 6 3 : 0] M_ B _ A 0 M_ B _ D Q 0 D Q 0...

  • Page 67: Mxm 3.0 Master

    Schematic Diagrams MXM 3.0 Master MXM 3.0 V I N _ M XM V I N _ MX M J _ MX M2 A MASTER 1 1 , 16 P E G _ R S T # E 1- 1 E 2 -1 P W R _ S R C P W R _S R C...

  • Page 68: Mxm 3.0 Slave

    Schematic Diagrams MXM 3.0 Slave MXM 3.0 S I 4 8 35 B D Y V I N _ MX M V I N _ MX M 15 A V I N _ MX M J _ MX M 1A V I N 3.

  • Page 69: Pch 1/8 Rtc, Hda, Sata

    Schematic Diagrams PCH 1/8 RTC, HDA, SATA IBEXPEAK - M (HDA,JTAG,SATA) RT CV C C 20 mils 2 0mils Zo= 5 0O C204 1u_6.3V _Y5 V_0 4 C218 15p_5 0V_ NP O_04 V DD3 39 890 5 D G1. 5: D 15 sp aci ng >...

  • Page 70: B - 14 Pch 2/8 Pcie, Smbus, Clk

    Schematic Diagrams PCH 2/8 PCIE, SMBUS, CLK IBEXPEAK - M (PCI-E,SMBUS,CLK) 3 . 3 V SMB us U 1 4 B Zo= 50 O P C H _ B T _ E N # R 1 6 2 1 0 K _ 0 4 P C H _ B T _ E N # S M B _ C L K _ D D R 3 B G3 0...

  • Page 71: Pch 3/8 Dmi, Pwrgd

    Schematic Diagrams PCH 3/8 DMI, PWRGD A ub ur nd al e Gr ap hi cs Di sa bl e Gu id el in e IBEXPEAK - M (DMI,FDI,GPIO) I n ad di ti on , FD I_ RX N_[ 7: 0] a nd F DI _R XP _[ 7: 0] c an b e le ft f lo at in g on t he P CH .

  • Page 72: Pch 4/8 Lvds, Ddi, Gnd

    Schematic Diagrams PCH 4/8 LVDS, DDI, GND IBEXPEAK - M (GND) U 1 4I U 1 4H A Y 7 H 4 9 A B 1 6 V S S [ 1 59 ] V S S [ 2 5 9 ] V S S [ 0 ] B 1 1 V S S [ 1 60 ]...

  • Page 73: Pch 5/8 Pci, Usb, Nvram

    Schematic Diagrams PCH 5/8 PCI, USB, NVRAM IBEXPEAK - M (PCI,USB,NVRAM) DMI T ermination V oltage Se t to V ss w he n L OW NV_CLE U 14 E Se t to V cc w he n H IG H N V _ C E [ 0] # Boot BIOS Strap H 4 0...

  • Page 74: Pch 6/8 Gpio, Cpu

    Schematic Diagrams PCH 6/8 GPIO, CPU B MB U S Y # R 1 3 9 1 0 K _ 0 4 3 . 3 V S IBEXPEAK - M (GPIO,VSS_NCTF,RSVD) BIOS RECOVERY DISABLE----NO STUFF (DEFAULT) ENABLE-----STUFF B I OS _R E C R 4 0 9 1 0 K _ 0 4 3 .

  • Page 75: Pch 7/8 Pwr

    Schematic Diagrams PCH 7/8 PWR IBEXPEAK - M (POWER) 1.1VS _VTT POWER 1. 432A U 1 4G 69mA AB 2 4 A E50 V CCCORE [ 1] V CCADA C[1] 3. 3V S AB 2 6 V CCCORE [ 2] C512 C 5 42 AB 2 8...

  • Page 76: B - 20 Pch 8/8 Pwr

    Schematic Diagrams PCH 8/8 PWR V olt ag e Rai l Vo lta ge S0 I cc max C ur ren t (A ) IBEXPEAK - M (POWER) V _CP U_ IO 1 .1/ 1. 05 < 1 (m A) V 5RE F <...

  • Page 77: Clk Gen, Hdmi-In

    Schematic Diagrams CLK GEN, HDMI-In CLOCK GENERATOR 3 . 3V S CLKGEN POWER C LK _ V C C 1 L1 6 H C B 1 6 08 K F -1 2 1T 2 5 C L K _ 3 . 3V _ 1 . 5 V C 1 3 3 C 1 5 4 C 1 6 0...

  • Page 78: Crt, Dvi

    Schematic Diagrams CRT, DVI DVI PORT 5 V S _ D V I _P W R D 1 3 R B 5 5 1 V -3 0 S 2 5 V S R 3 4 L 11 C 9 8 0.

  • Page 79: Panel, Inverter, Tpm

    Schematic Diagrams Panel, Inverter, TPM 18.4" PANEL TPM 1.2 U 3 1 12 , 3 1 L P C _ A D 0 L A D 0 V D D 1 3 . 3 V S 12 , 3 1 L P C _ A D 1 L A D 1 V D D 2...

  • Page 80: Hdmi Repeater, Fan Control

    Schematic Diagrams HDMI Repeater, Fan Control FAN CONTROL P C S C L R 5 3 8 4 . 7 K _ 0 4 NOTE: PCSCL PCSDA 3 . 3 V S _ C A T 6 35 1 HDMI IN 5 V S U 3 9 P C S D A...

  • Page 81: Hdmi Switch

    Schematic Diagrams HDMI Switch HDMI SWITCH TM DS In put eq ualiza tion selector (co ntrol pin) 3. 3 V S _ H D M I HDMI 1.3 c omplia nt ca ble V C C H D M I _ C C LK _C HD MI_EQ V C C (P )A 1 4...

  • Page 82: Odd, Ccd, Bt, Usb2.0

    Schematic Diagrams ODD, CCD, BT, USB2.0 SATA ODD 5 V _ C C D 5 V _ C C D _1 J_ OD D *2 8 mi l _N P _0 6 MT P 34 0 3 N 3 S A T A _ TX P 1 _ C C 56 5 0 .

  • Page 83: Codec, Subwoofer, Dmic

    Schematic Diagrams Codec, Subwoofer, DMIC Vo =V ref *( R2 +R1 )/ R2 Vr ef =1. 21 5V L 3 2 * H C B 1 0 0 5K F -12 1 T 20 R 4 0 0 _ 04 3 .

  • Page 84: Audio Amp

    Schematic Diagrams Audio AMP FRONT R/L 4ohm 5 V S ? ? ? ? ? R ev _3 .0 L5 1 R E A R _L 5V S _ A M P H C B 10 0 5 K F -1 21 T 2 0 R E A R _R C 56 3 C 5 64...

  • Page 85: New Card, Mini Card

    Schematic Diagrams New Card, Mini Card NEW CARD 3 . 3 V 3. 3 V C 3 5 8 *0 . 1 u _1 6 V _ Y 5 V _ 04 U 2 9 B U F _ P L T _R S T # 7 4A H C 1 G 08 G W R 2 9 2 R 29 3...

  • Page 86: Lan-Rtl8111Dl, Rj45

    Schematic Diagrams LAN-RTL8111DL, RJ45 RTL8111DL L 2 5 E V D D 1 2 L 2 1 3 . 3V >60mils H C B 1 00 5 K F -1 2 1 T2 0 40 mi l C T R L 1 2A L A N _V D D 3 L 2 0 H C B 1 6 08 K F - 12 1 T 2 5...

  • Page 87: Card Reader, Ieee1394

    Schematic Diagrams Card Reader, IEEE1394 7 in 1 SOCKET JMB380 L ayout Note : N ote: J _C A R D -N O R S D _ C D # C lose to JM B380 S D _ C D # C D _ S D S D W P # C lose to J MB380...

  • Page 88: Kbc Ite It8512-J

    Schematic Diagrams KBC ITE IT8512-J MODEL _ID V D D 3 K B C _ A V D D L 35 H C B 1 00 5 K F -1 2 1T 2 0 EVT /DVT 3.3V V D D 3 C 3 60 C 3 5 9 C 35 3...

  • Page 89: Mb To Small B'd Connector A

    Schematic Diagrams MB to Small B’d Connector A AUDIO B'd GAME KEY B'd Click B'd J_ A U D I O U S B _P P 0 S A T A _ R X N 3 1 2 U S B _P N 0 S A T A _ R X P 3 1 2 U S B _P P 1 S A T A _ TX N 3 1 2...

  • Page 90: Mb To Small B'd Connector B

    Schematic Diagrams MB to Small B’d Connector B FRONT LED B'd TOUCH PAD LED B'd TOUCH SENSOR B'd Front LED control J _ F L E D J _ T LE D J _ S E N S O R 10 mil s 5 V S _ F T 5 V S _ TL E D...

  • Page 91: Power System

    Schematic Diagrams Power System POWER SW Q4 2 7 0? 16 A ma x . I R F 7 8 3 2Z TR P B F S Y S 15 V V D D 5 5 V S 1 0. 5 A 1 0 .5 A R 4 8 2 S Y S 15 V...

  • Page 92: Power Vcore

    Schematic Diagrams Power VCore P C 1 7 4 V I N * 1n _5 0 V_ 0 4 S G N D 2 P R 17 4 Rev _3.0 ? ? ? ? 06 03 * 47 K _0 4 P C 1 75 1 U _6 .

  • Page 93: Power 1.1V_Vtt, Screw Hole

    Schematic Diagrams Power 1.1V_VTT, Screw Hole CO NT ROL 1 .1 VS _V TT H _VTT VID1 = LOW, 1. 1V 3 . 3V P R 94 H _VTT VID1 = HIGH , V I N 1 .05V 3 . 3 V 1 0 K _0 4 H_VT TVID1 P D 2...

  • Page 94: Power 1.5V/0.75Vs

    Schematic Diagrams Power 1.5V/0.75VS V I N 3 . 3 V P R 2 6 P R 2 8 P D 3 P R 2 1 Vout = 1.5V ( 1 + Ra / Rb ) V D D Q 1 .

  • Page 95: Power 1.8Vs/1.5Vs

    Schematic Diagrams Power 1.8VS/1.5VS V IN PD 1 PR 3 10K _04 EN1.8V S P R5 10K_1% _04 FM 0540-N P C96 P C94 4.7u_25V _X 5R_ 08 *15u_25V _6.3*4.4_C 1.8VS PQ 22A 1.8VS _P WRG D AO 4932 1.8V S _PW RGD P Q1 P C2 SC4 12A...

  • Page 96: Power 3.3V/5V

    Schematic Diagrams Power 3.3V/5V V I N 1 Z 3 50 4 P R 3 7 1 0 _ 0 6 P C 75 S Y S 5 V 0. 0 1 u _ 5 0V _X 7 R _0 4 LG A T E 1 Z 35 1 3 P C 5 4...

  • Page 97: Power Charger, Dc-In

    Schematic Diagrams Power Charger, DC-In J _ A C B A T V A + + P R 8 5 0 _ 20 J _ B A T T P C 1 8 P C 1 6 P C 1 7 P C 10 3 P C 9 9 P R 1 02...

  • Page 98: Single Hdd Board

    Schematic Diagrams Single HDD Board Function SINGAL SATA HDD IR10 IR11 IRN1 IC12 IC13 CH 0 & CH 1 -> 0 d B IR12 IR13 IRN2 IC14 CH 0 -> 5 d B CH 1 -> 0 d B Re-drive 0.01U CH 0 ->...

  • Page 99: Dual Hdd Board

    Schematic Diagrams Dual HDD Board DUAL SATA HDD HU 2 HR 19 HR2 1 HRN2 H R14 HC28 H C29 HR20 HR 22 HRN1 HR1 HR11 HC25 HC26 H J _M B HR 23 HR2 5 HRN4 HR16 HC30 HR24 HR 26 HRN3 HR12...

  • Page 100: Audio Board

    Schematic Diagrams Audio Board AUDIO BOARD USB + eSATA A 3 . 3 V S L ay ou t n ot e: Place un der the common bead bod y and same as A R 1 1 N ote : USB trac e requirment Clo sed TO AU1 A U 1...

  • Page 101: Power Button Board

    Schematic Diagrams Power Button Board POWER BUTTON B'D B3.3 V S Sheet 44 of 55 Power Button B R 2 B 3. 3VS 22 0_0 4 Board B C1 BS W 1 B J _MB 0.1u_1 6V _Y 5V _04 TJ G -53 3-S -T/ R BM_ BTN # BGN D...

  • Page 102: Click & Fp Board

    Schematic Diagrams Click & FP Board CLICK BOARD LIFT C V D D 3 C V D D 3 C S W 1 C 3 . 3 V S _ F TJ G- 53 3 -S -V -T / R C C 1 0 .

  • Page 103: Game Key Board

    Schematic Diagrams Game Key Board GAME KEY BOARD GSW 2 GSW 5 TJ G- 53 3- S-T/R TJ G- 53 3- S-T/R GG AME# 1 GG AME# 5 G3 .3 VS G3 .3 VS G 3. 3VS G 3. 3VS GC 1 GC 5 0.

  • Page 104: Front R Side Led Board

    Schematic Diagrams Front R Side LED Board FRONT R SIDE LED B'd Sheet 47 of 55 X5VS X J _MB1 Front R Side LED X5VS Board LTW - 008R GB- L 20mil X Z 02 X Z05 68. 1_1%_06 40mil 20 mil X Z 03 X Z06...
  • Page 105 Schematic Diagrams Front L Side LED Board FRONT L SIDE LED B'd Y 5VS Sheet 48 of 55 Y J_MB1 Y5 V S Front L Side LED YD 1 LTW-0 08 RG B-L Board 20mil Y Z02 YR 1 6 8. 1_1 %_0 6 Y Z08 40mil 20mil...

  • Page 106: Cir Board

    Schematic Diagrams CIR Board CIR BOARD Sheet 49 of 55 CIR Board KH _O1 KH _O2 KH _O3 KV DD 5 K J_MB KC IR _R X KGN D KGN D KVD D 5 88 266-030 01 KGN D KR 1 KU 1 IR M- V0 38/ TR 1-P KVD D 5_C I R...

  • Page 107: Finger Board

    Schematic Diagrams Finger Board FU 1 FE S D _R IN G E XT_R I N G 2 FG R I D 0/ S E N S E C R I D O R I N G F GN D FM U XOU T M U XOU T F AV D D...

  • Page 108: V1.0 Power On Seq Diagram

    Schematic Diagrams V1.0 Power on SEQ Diagram X8100 EVT POWER ON SEQUEN CE V1.0 M_BTN# DD_ON 1.744 m s rise=1.14 8m s ; P C9 3=1500p rise=1.020ms 1.1 28m s 3.3V 73 .6m s(t 02) 0 ~2 00 ms ,P AS S SUS_PWR_ACK 73.6ms(t0 3) >...

  • Page 109: V1.0 Power_Seq S3

    Schematic Diagrams V1.0 Power_SEQ S3 X8100 V1.0 POWER SEQUENCE S3 AND WAKE-UP SUSB# MEPWROK 32us(T e) > 0ms,P ASS 118m s 3.3VS 470us( Tc) > 40ns, PASS 1.52 0ms 1.1VS 4.144 ms(Tj ) 2.01 6ms >5us, PASS SYS_PWROK Sheet 52 of 55 3 .984m s(Ti) >...
  • Page 110 Schematic Diagrams V1.0 Power_SEQ S4 X8100 V1.0 POWER SEQUENCE S4 AND WAKE-UP SUSB # 3.3V S 310us(T c) >40ns,PASS 1.49ms 1.1V S 30u s(Td) >40ns,PASS 4.02ms(Tj) 2.588ms >5us,PASS Sheet 53 of 55 MEPWR OK 30us(Te) >0ms,PA SS 379ms V1.0 Power_SEQ V core_ ON Vcore 760u s...
  • Page 111 Schematic Diagrams Power Block Diagram V D D 5 5V S 3 .3 V V D D 3 SL P_ S3 3. 3V S DD _O N# DD _O N SYST EM VR SW IT C HE S 1 .8 VS 1.
  • Page 112 Schematic Diagrams V2.0 Power_SEQ S3 X8100 V1.0 POWER SEQUENCE S3 AND WAKE-UP SUSB# MEPWROK 62 us( Te) > 0ms ,PA SS 219 ms 3.3VS 3 6us (Tc ) >40 ns, PAS S 1 .41 0ms Sheet 55 of 55 1.1VS V2.0 Power_SEQ 2.5 58m s(T j) 3.

Table of Contents
