EUROCOM X7 User Manual page 174

Upgrading The Computer
6

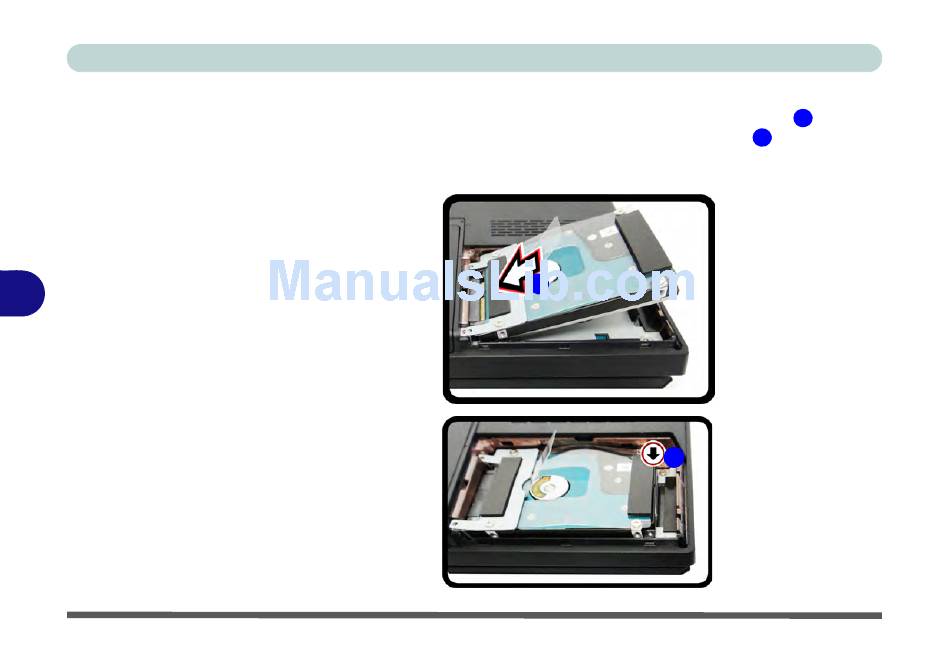

Figure 6 - 8
HDD Assembly
Insertion
6 - 12 Upgrading the Hard Disk Drive(s)
Inserting the Hard Disk into the Upper HDD Bay Slot
1. Insert the HDD assembly into the bay at the angle indicated by arrow
2. Place the HDD assembly flat into the bay as indicated by arrow
3. Slide the assembly firmly into the connector (the reverse direction to the arrow in
Figure 6 - 6 on page 6 - 10).
1
.
1
.
2
2
